Водонепроницаемый датчик давления IP68 для насоса с переменной

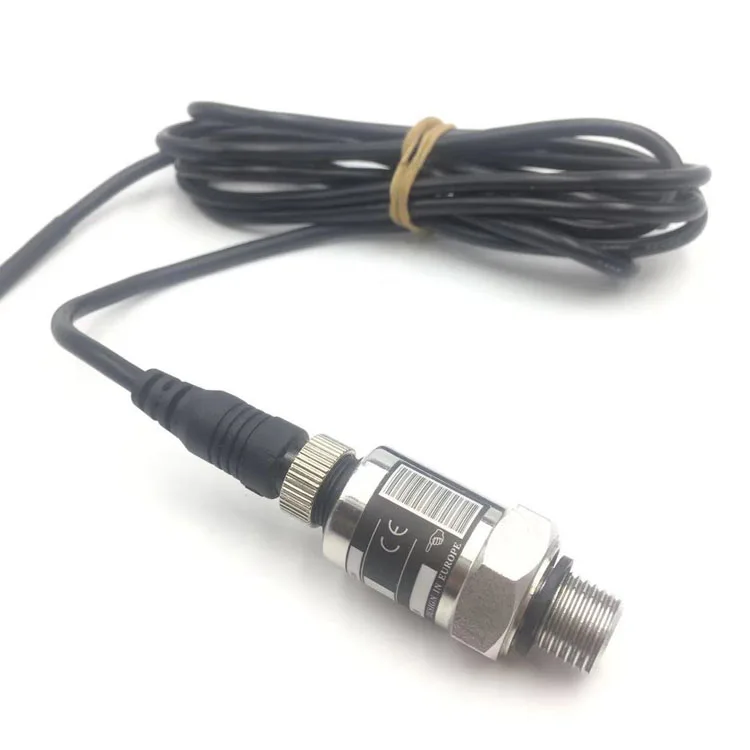

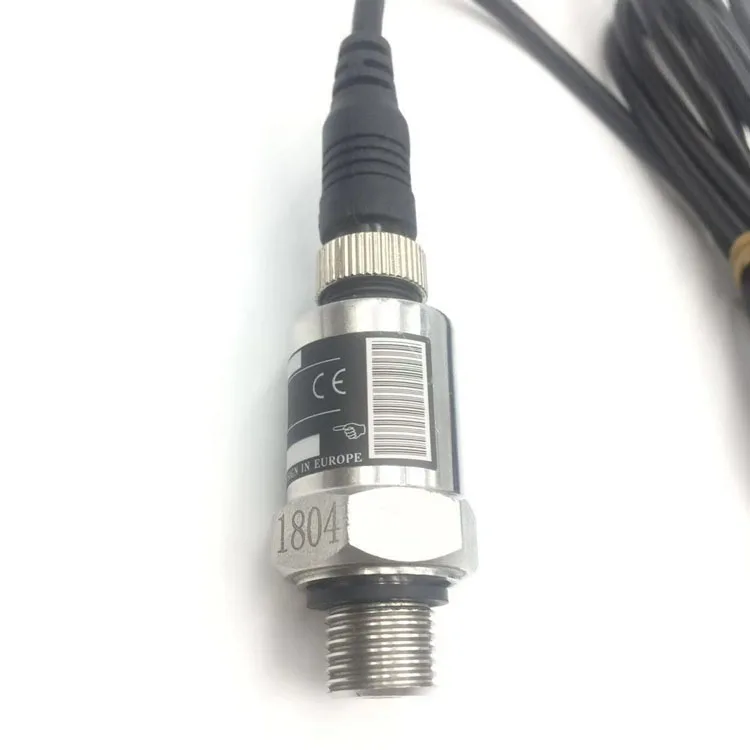

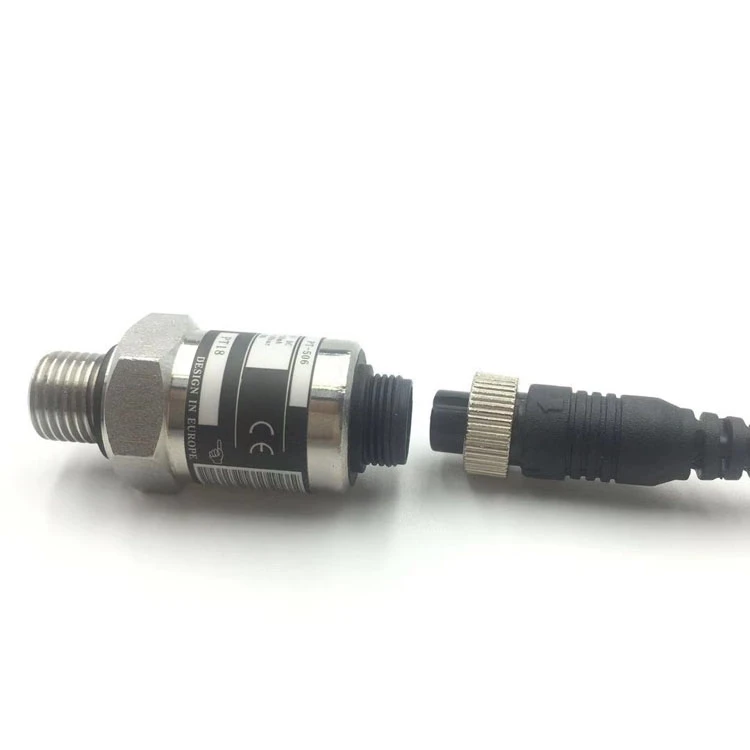

The PT-506 pressure transmitter is specially designed according to the requirement of water treatment industry, it is widely used in variable frequency pump, complete water supply and air conditioning equipment, etc. Professional waterproof hammer impact, high electrical performance and long-term stability make it the first choice for similar industries, and can directly replace similar products such as Atlas, MSI, HUBA.

Advanced chip for signal conditioning with high integration bridge pressure sensor that meets AEC-Q100 standard, making the PT-504L pressure transmitter a cost-effective product. With functions of 24-bit ADC for input voltage detection; High precision 1X~256X variable gain meter amplification; Up to 8 times the digital gain; Low temperature drift 16-bit DAC; Built-in universal sensor based on MCU calibration logic; EEPROM multi-programmable.

Features:

• Advanced diffused silicon sensor core, cost-effective
• Multiple pressure ranges and electrical outputs
• Compact structure
• High electrical performance
• Overall mold plug for better waterproof performance
• Long-term stability

 Wiring:

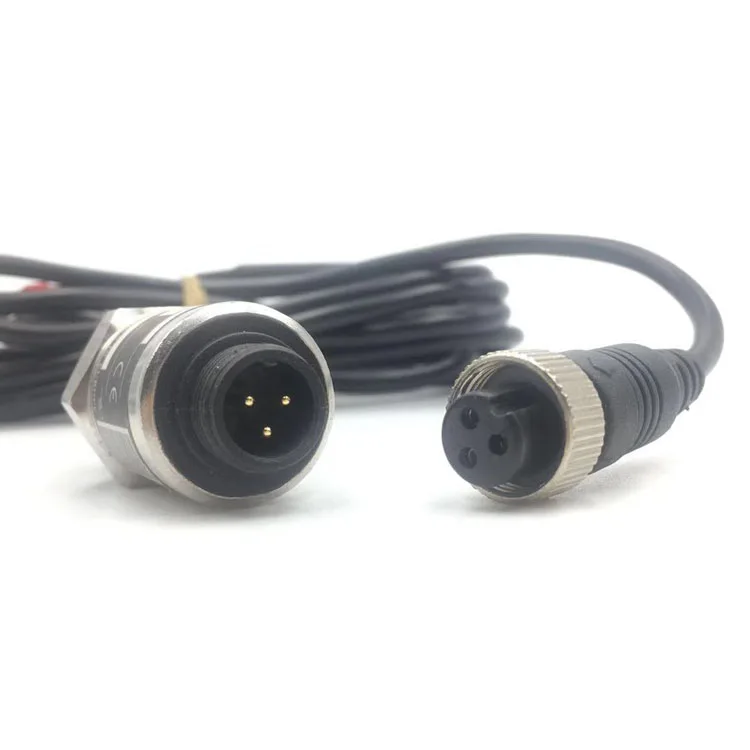

 Electrical Connection:

Shenzhen Ould Instrument Co., Ltd. is a leading manufacturer of pressure sensors / transmitters / transducers since 2002, head-quarter located in Shenzhen, and a sub-branch in Shanghai. We have approved ISO9001: 2008 certification, and gathered a core team of design engineers with rich experience in high-quality pressure transmitters, process control and similar products.

We design, engineer, and manufacture sensor, pressure transmitter, pressure module, temperature transmitter, etc. Our products are widely used in air compressors, electricity, Oil, Chemistry, Printing, Food, Pharmacy, Hydraulic, Metallurgical and Building Construction. In addition to our extensive offering of standard product, OEM/ODM pressure sensors / transmitters / transducers are also welcomed!
