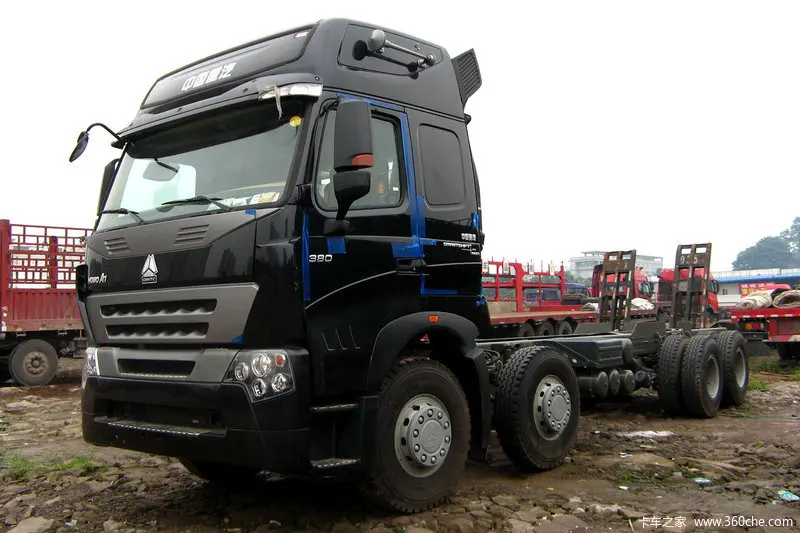

Грузовой автомобиль SINOTRUCK HOWO A7

Type

HOWO 8X4 CARGO TRUCK

Cabin

A7-W(Single bed); A7-V(Two bed)

Engine

WD615.47

Transmission

HW15710, HW19710, HW19710T, HW19712

Front Axle

HF9/HF7

Rear Axle

HC16; AC16; ST16

Steering

ZF8118, ZF steering gear

Tyre

12.00-20; 12.00R20; 12R22.5

Fuel

300L

Displacement

9.726L

Suspension

Leaf spring suspension; air spring suspension

Emission standard

EURⅡ

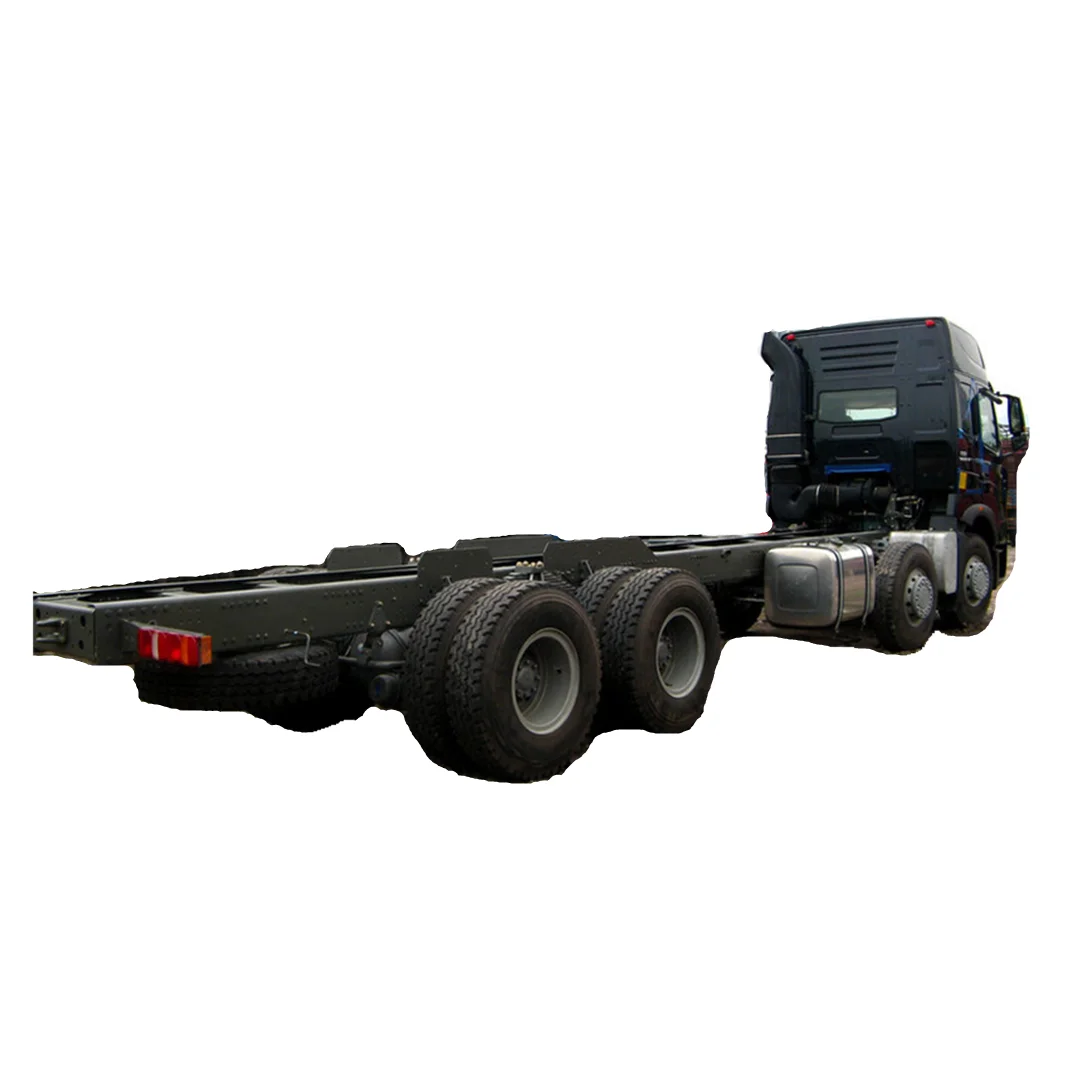

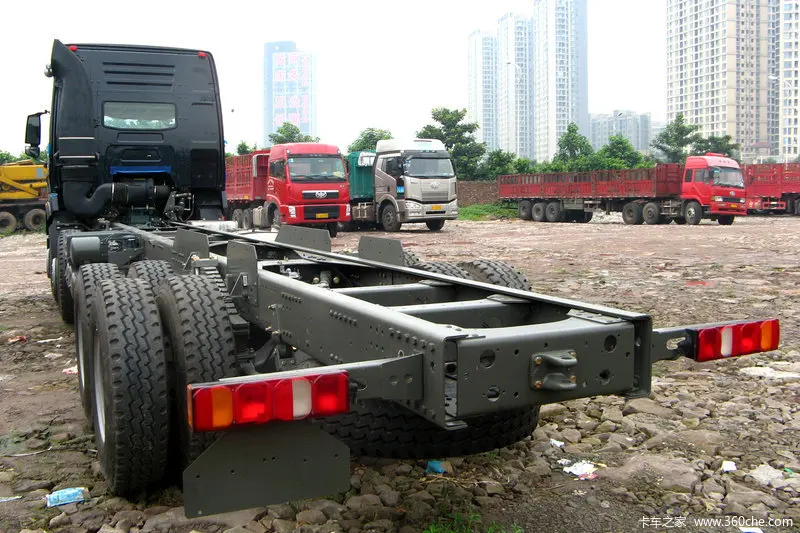

Chassis

A7 chassis frame is made of the latest high-strength material ,with a tensile strength of 820mpa ,the U-profile frame with a
section of 300x90x8 provides a greater bending and torsion strength ,improving the stability of chassis and reducing the dead
weight of the complete vehicle by approximately 100kg while enhancing the load-carrying capacity coared to the original chassis
frame Aluminum fuel tank :400L capacity with locking fuel cap ,fitted to the off side of the chassis .Spare wheel ,fifth wheel
:2.0 inches ,option :3.5 inches .

Brarking

Service Brake: dual circuit compressed air brake
Parking brake: spring energy, compressed air operating on rear wheels.
Option:ABS

Instrument Panel

Active check central control with indications with this intergral instrument the daily manual checks on the vehicle and combined
indicators of compressed air pressure, coolant temperature , engine off presssure and battery charging
