4-канальный беспроводной комплект ip-камер видеонаблюдения камера безопасности система
- Категория: >>>
- Поставщик: Shandong,Tanyue,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 309.37 $* | 324.73 $* |
| Aug-18-2025 | 307.51 $* | 322.83 $* |
| Jul-18-2025 | 257.44 $* | 270.30 $* |
| Jun-18-2025 | 302.94 $* | 317.30 $* |
| May-18-2025 | 263.88 $* | 276.45 $* |
| Apr-18-2025 | 296.26 $* | 311.20 $* |
| Mar-18-2025 | 294.28 $* | 309.36 $* |
| Feb-18-2025 | 291.19 $* | 306.0 $* |
| Jan-18-2025 | 289.86 $* | 303.73 $* |
Характеристики
Product Description

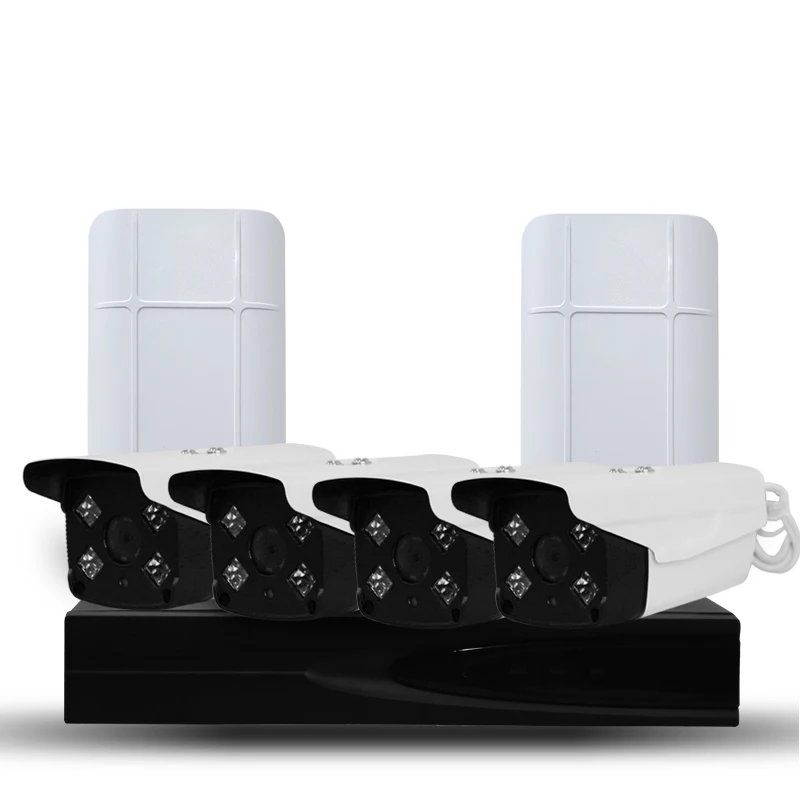

4 channel wireless camera kit
This is a completely plug & play wifi camera kit. No need to install those long range cables for cameras since it has already connected to NVR wirelessly, just get the cameras & wireless bridge powered and NVR connected.
There are 4pcs camera in one set, you can get multi-channels in one screen at the same time. Cameras can be put within 1km distance of NVR, camera signals can pass through wireless bridges.
Videos can also be remotely viewed by phone or PC.
There are 4pcs camera in one set, you can get multi-channels in one screen at the same time. Cameras can be put within 1km distance of NVR, camera signals can pass through wireless bridges.
Videos can also be remotely viewed by phone or PC.
cctv kit camera 4ch surveillance camera wifi outdoor cctv camera set
And we support OEM service, it means we can develop appropriate plans and solutions according to the needs of our customers, not limited to this set of 4ch wireless cctv kit. Just contact us, we will make a suitable solution for you.
Andy Shaw
Mob/Wechat/Whatsapp: +86 130 5334 3539
Skype: live:e125cf9f4b64b661
QQ: 1211031999
Mob/Wechat/Whatsapp: +86 130 5334 3539
Skype: live:e125cf9f4b64b661
QQ: 1211031999

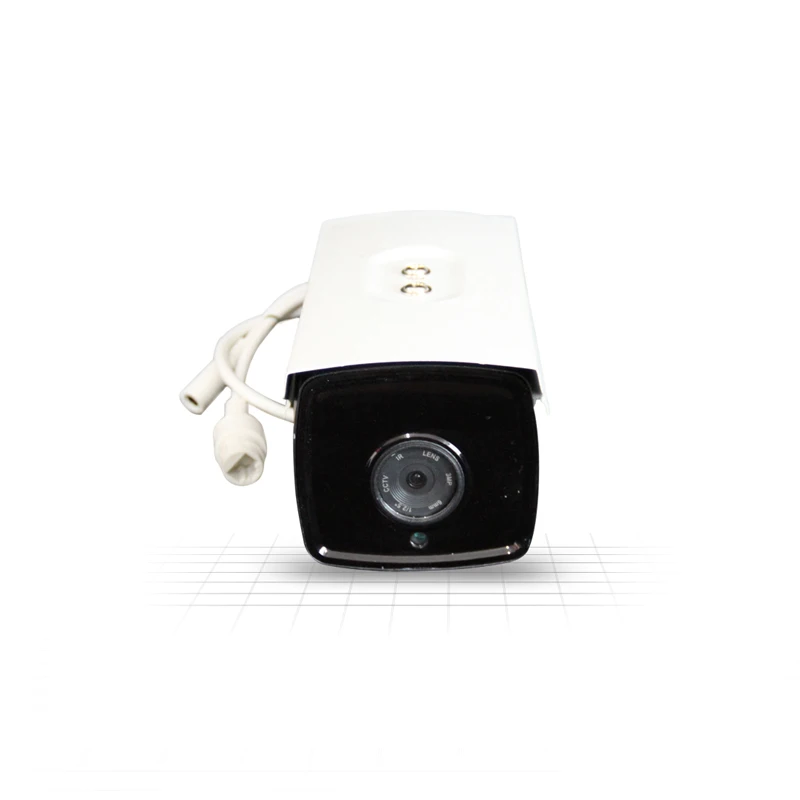

Camera specifications | ||
Model number | TY-5020D | |
Image sensor | 1/2.5″CMOS | |
Pixel | 2MP | |
Len | 4mm & 6mm | |
Resolution | 1080P | |
Frame | 25FPS | |
Night vision | Support | |
Onvif | Support | |
Power | 12V DC | |
This IP camera has a two million pixels len, it can meet most of the monitoring requirements. It has infrared and night vision functions, and supports standard onvif. H.265 coding makes it have a higher video compression ratio and reduce the storage footprint.

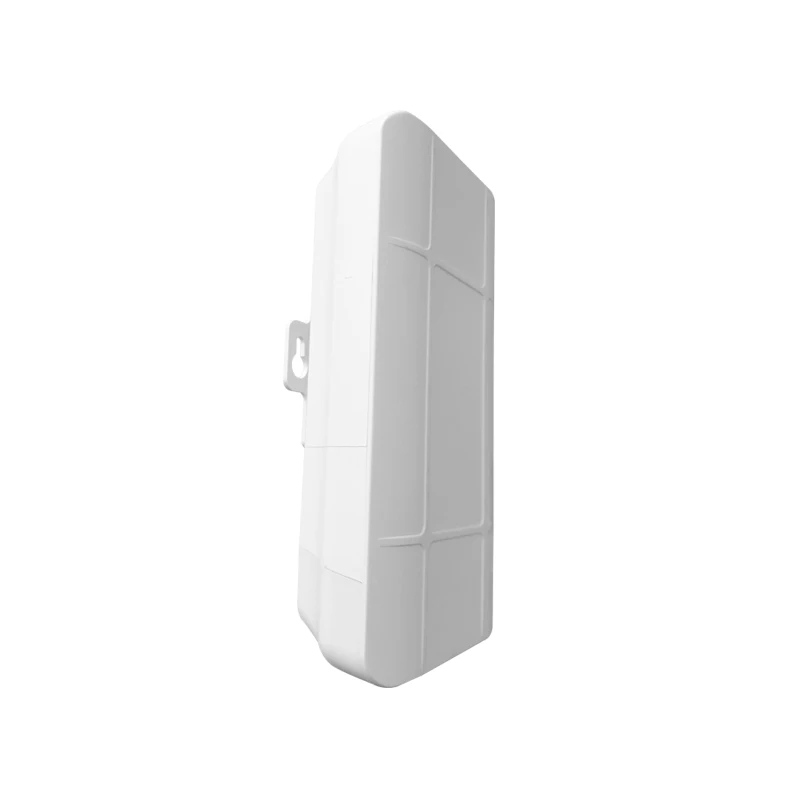

TY-W520 wireless CPE/AP
We use W520 wireless cpe to send and receive camera signals in this kit.
* 5.8GHz frequency band
* PTP range 2km
* 300Mbps through out
* QCA9342 chipset
* 12dBi antenna gain
* 24V PoE power supply
* 300Mbps through out
* QCA9342 chipset
* 12dBi antenna gain
* 24V PoE power supply
This TY-W520 wireless CPE can help to transmit camera signal to 1km away.
More info about TY-W520, click the picture please.
Model | TY-LXJ2508 |
Channel | 8 |
Screen layout | 1/4/8 picture |
Coding standard | H.265 |
Audio Compression | G.711 |
Output | HDMI & VGA |
HDD | Support 1 * 8TB |
ONVIF | Support |
Remote viewing | Support |
* 1U standard case, Max 8*3MP IPC input
* Support 8 screen preview and 1*3MP playback
* Support 1*8T hard drive * Support standard ONVIF protocol
* Support cloud service, P2P function standard. It means we can see monitoring videos by phone & PC.
* USB x 2, RJ45, VGA, HDMI H.265 coding
* Support 8 screen preview and 1*3MP playback
* Support 1*8T hard drive * Support standard ONVIF protocol
* Support cloud service, P2P function standard. It means we can see monitoring videos by phone & PC.
* USB x 2, RJ45, VGA, HDMI H.265 coding
High performance chipset
The camera is with 1/3" sensor, which improves picture quality.It makes the picture more vibrant colors than other brands of camera.
2MP HD lens
* 6-layer industrial-garde optical glass
* Multi-layer coating technology
* Clear and visible at night
3D noise reduction technology
Advanced 3D dynamic intelligent noise reduction function makes pictures delicate and stable.
Remote playback
When NVR is connected to internet, you can use your mobile phone or tablet to see monitoring videos, both live stream and playback.
Motion detection function
When camera detects a moving object, it will automatically send message to mailbox, you will know who get in the area.
HDMI + VGA output
We can connect the NVR to 2 monitors at same time.
Details Images
How to use

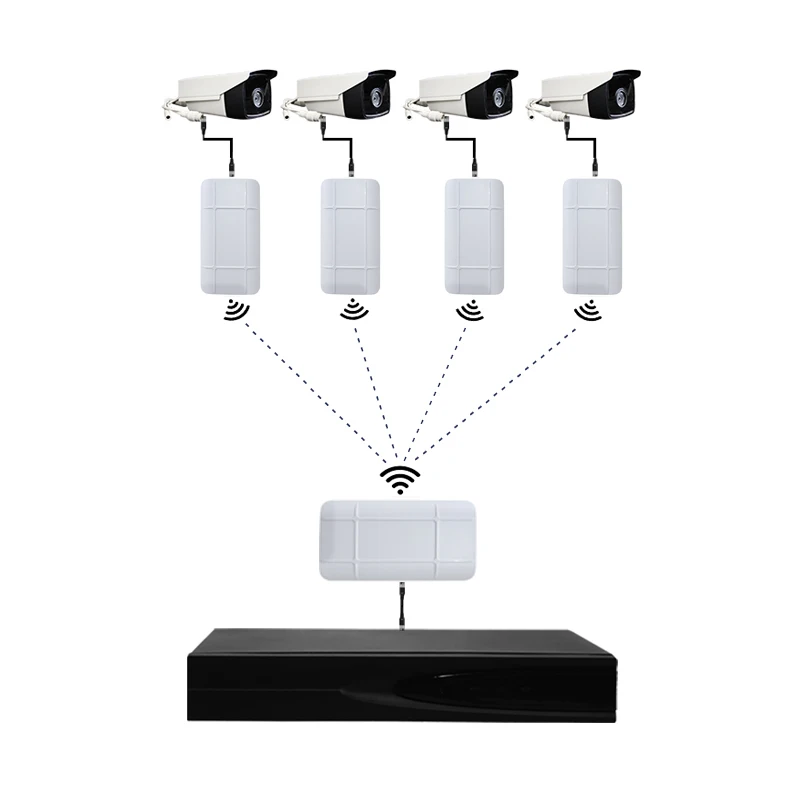

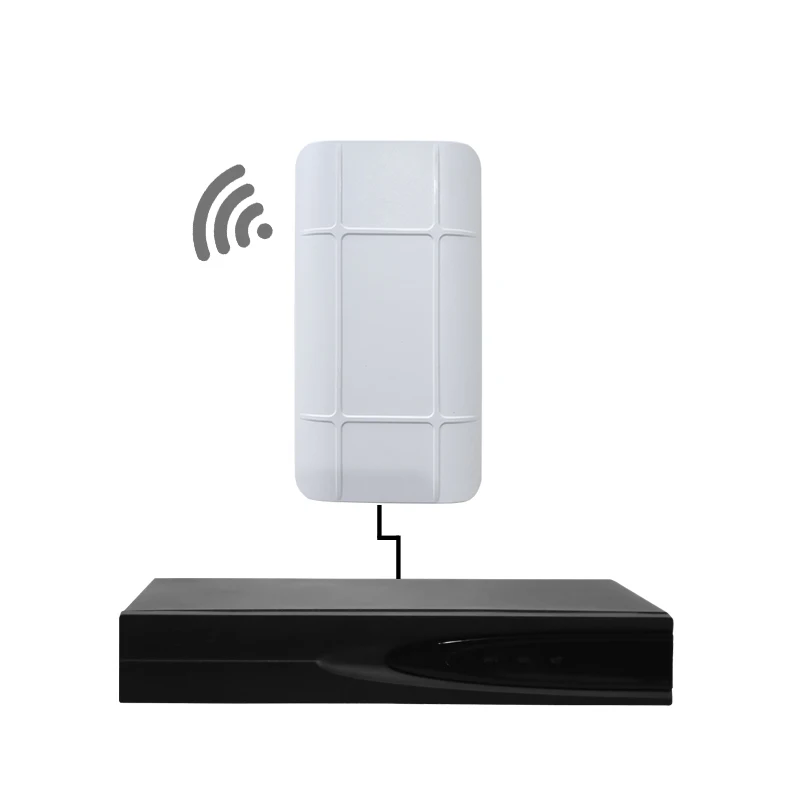

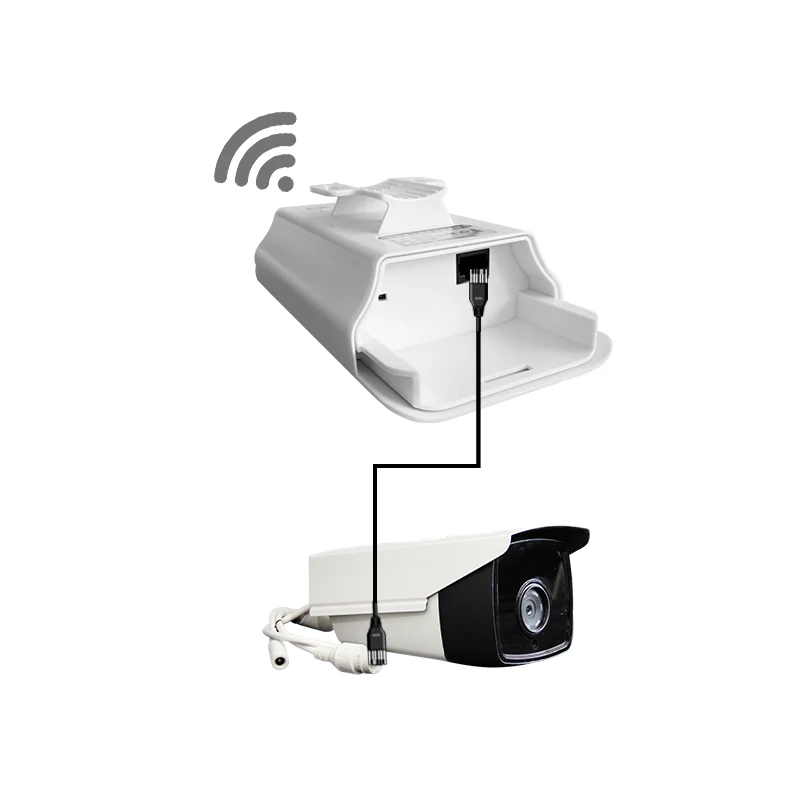

Our wireless CPE(We call the receiver as Station, call sender as Access point) supports PoE power supply. We put Access point at NVR, and Station at each camera. There should be no obstruction between Access point and each Station, cause obstruction reduces the efficiency of wireless transmission.
Please note: Stations should be within 60 degrees of Access point.
Please note: Stations should be within 60 degrees of Access point.
If we connnect Access point, NVR, internet router to a switch, we can see the monitoring videos by phone or PC.
When you are on a business trip, you can still see the monitor screens.
Step 1: Check NVR Seetong cloud ID
After entering the NVR main interface, you can view the middle of the top of the preview
interface to view the NVR Seetong cloud ID, or click the right mouse button, enter the right menu - system setting - network, you
can also view the Seetong cloud ID.
Step 2: Download Seetong ID
In the NVR boot wizard mobile phone monitoring or preview screen by moving the mouse to the
top of the middle area of the QR code, or right click menu - system setting - system - basic
information, scan QR code download the corresponding Seetong APP.
Step 3: Registered Seetong cloud users, according to user login and add Seetong cloud ID
When you are on a business trip, you can still see the monitor screens.
Step 1: Check NVR Seetong cloud ID
After entering the NVR main interface, you can view the middle of the top of the preview
interface to view the NVR Seetong cloud ID, or click the right mouse button, enter the right menu - system setting - network, you
can also view the Seetong cloud ID.
Step 2: Download Seetong ID
In the NVR boot wizard mobile phone monitoring or preview screen by moving the mouse to the
top of the middle area of the QR code, or right click menu - system setting - system - basic
information, scan QR code download the corresponding Seetong APP.
Step 3: Registered Seetong cloud users, according to user login and add Seetong cloud ID
View monitoring image on PC/laptop
After we connect NVR to network, we can view the pictures and record videos to hard disk.
Company Introduction
Shandong Tanyue Tehcnology Co., LTD. is a wholesale company that manufactures good & high quality wireless AP/CPE, networking equippments,CCTV and solar products. The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine.
Feedback
Packing&Shipping
One package includes 4 piece camera, 1piece NVR, 5 piece wireless bridge, and 1 piece user manual.We test and preconfigure devices before delivery, so that it is very easy for customers to intsall and use.
FAQ
How can i get product price list?
Contact us by email, trademanager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptible for bulk order.
What is the product warrenty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Andy Shaw
Mob/Wechat/Whatsapp: +86 130 5334 3539
Skype: live:e125cf9f4b64b661
QQ: 1211031999
Contact us by email, trademanager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptible for bulk order.
What is the product warrenty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Andy Shaw
Mob/Wechat/Whatsapp: +86 130 5334 3539
Skype: live:e125cf9f4b64b661
QQ: 1211031999
