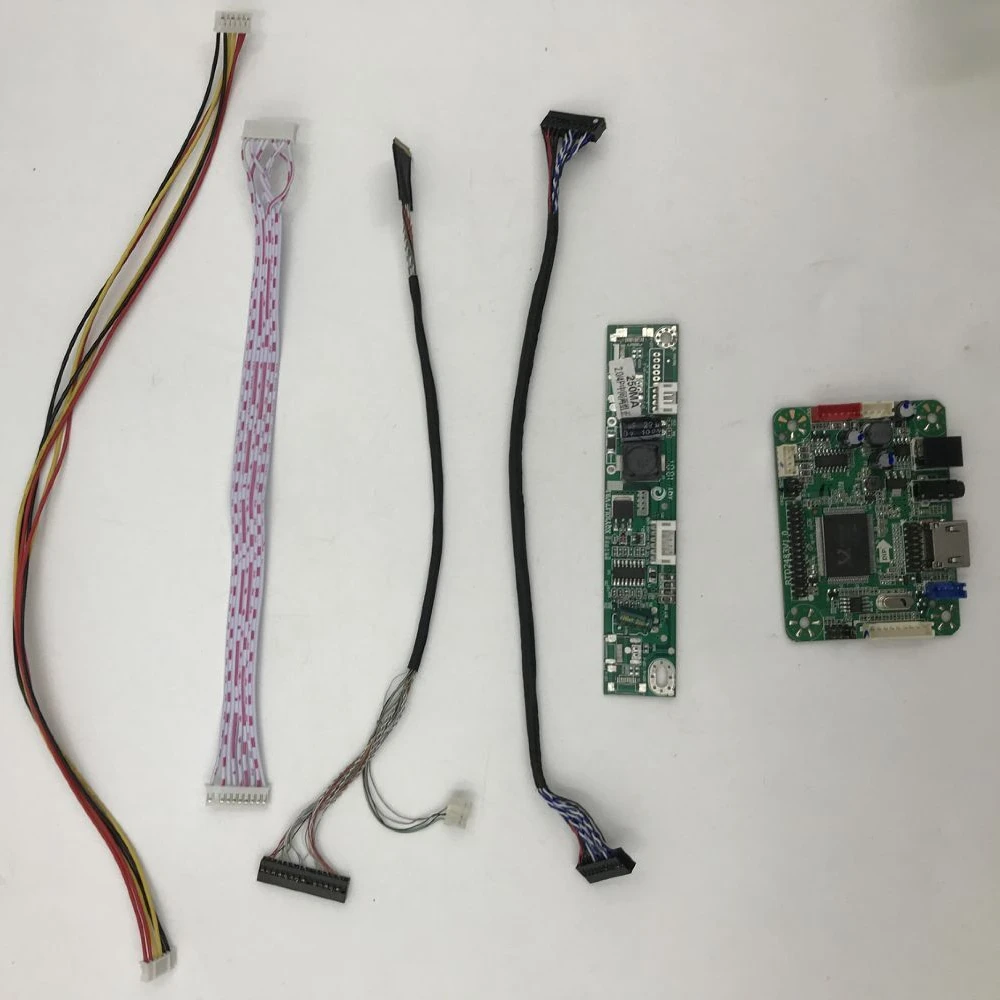

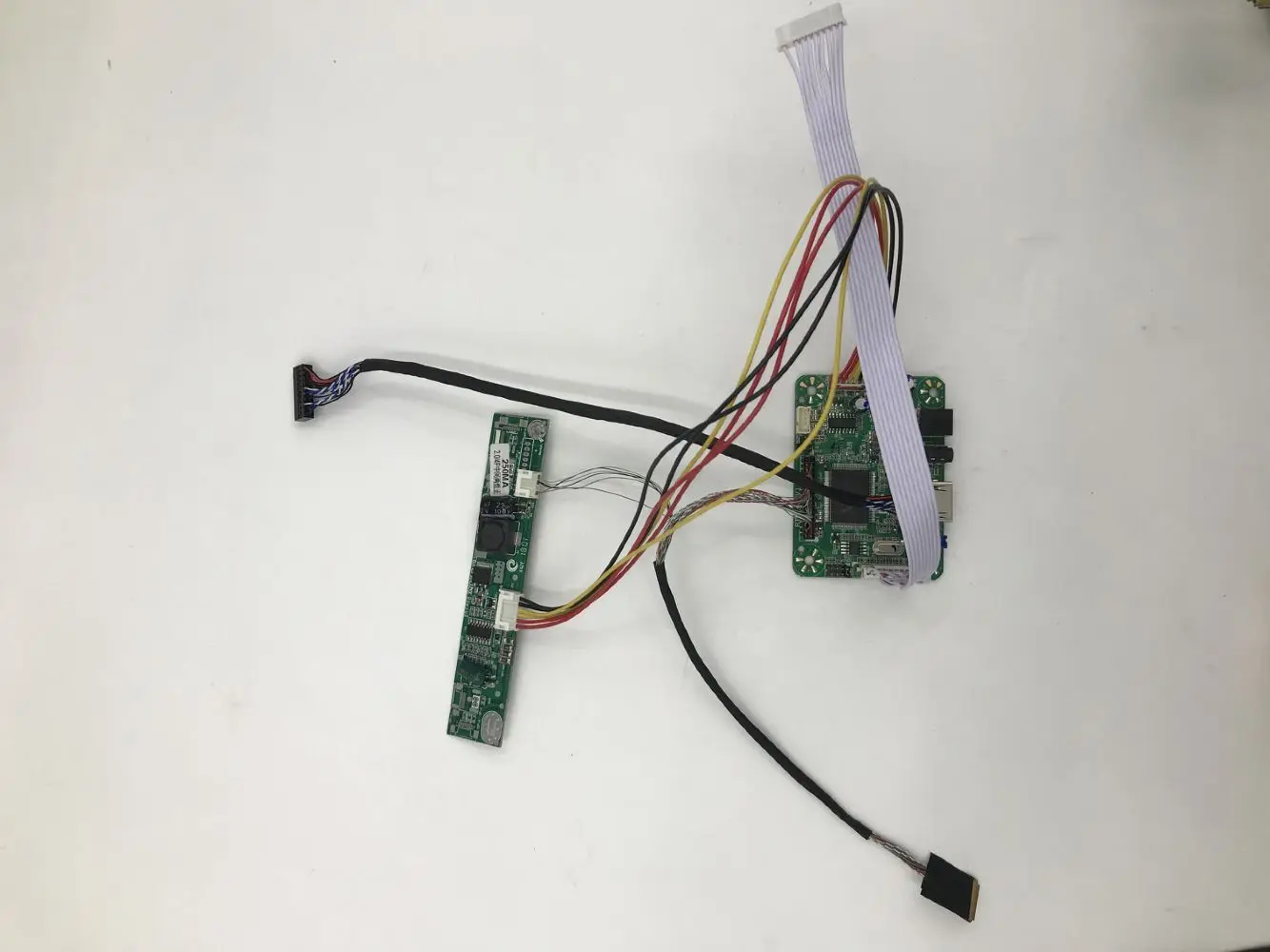

LCD controller board RTD2483 V1.0 LVDS signal with Audio connector support LP154WP4-TLA1

1.General description

RTD2483 V1.0 is a multi-purpose LCD monitor controller board. It is designed to support dual/single 6/8 bit LVDS LCD panel. The supported resolution can up to

1920X1080 @60Hz.

RTD2483 V1.0 only support signal input. and DC power input connector can be use internal pin connection to instead of standard connector .

RTD2483 V1.0 with Audio function, Support Audio signal input form , The power of the audio amplifier’s output for speaker is 2X4Ω/2.5W. It also support earphone output .

RTD2483 V1.0 can support Keypad control, brightness control , Firmware Jumper, Also these features support customized .

2. Function layout

Side Elevation of RTD2483 V1.0

3. Features

Below you will find the detailed feature

CHIPSET	RTD2483BD(Realtek)
Support LCD Panel	Interface	Single/Dual 6/8 bit LVDS
Support LCD Panel	Resolution	Up to 1920X1800@60Hz
Power	For board	12V DC Power Supply
	To LCD panel	3.3V,5V,12V
	Management	Low Power Consumption Mode
	Standby	≤0.5 W
OSD Language	Simple Chinese,English is default. Other language support customized.
Key functions	5 keys	ON/OFF,Menu,Right,Left,Exit
Video input		480i,480p,576i,576p,720p 1080i,1080p
Audio input	0.2 – 1.5 Vrms
Audio output	2X2.5W (4Ω) THD+N<10%
Extend function	Factory Setting, Brightness Control(Default is DC dimming mode, PWM dimming mode is optional),On board several type of different firmware(Optional), Vertical Mode for OSD Menu
Dimension	76mm(L)55mm(W)11mm(H)
