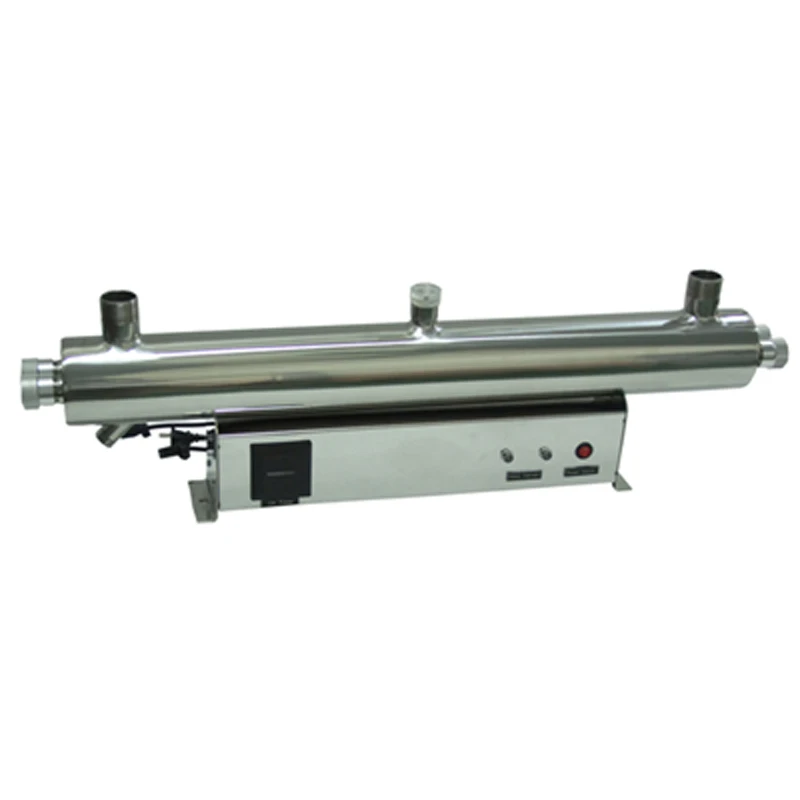

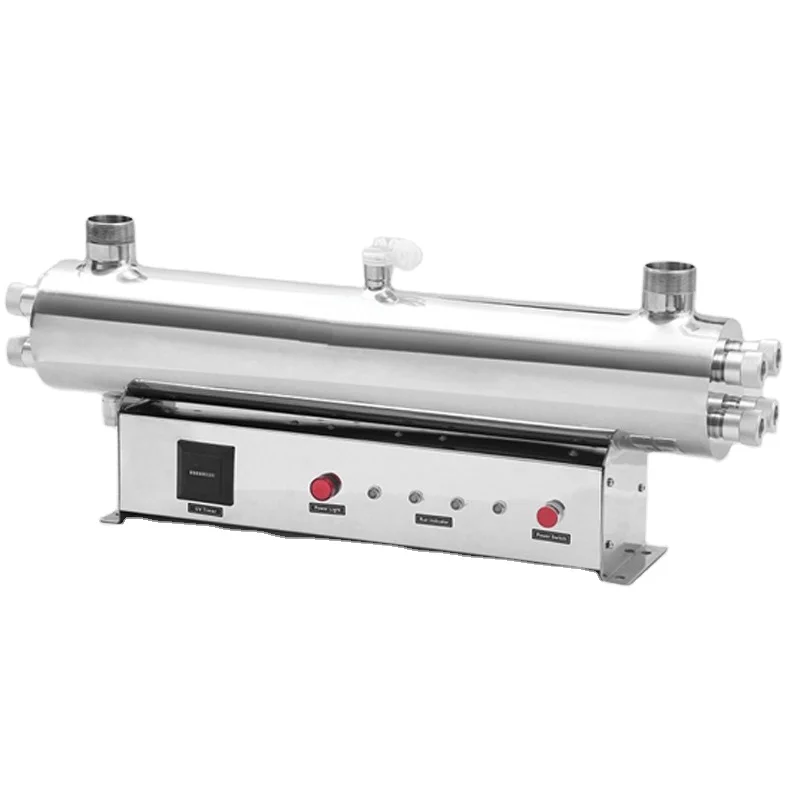

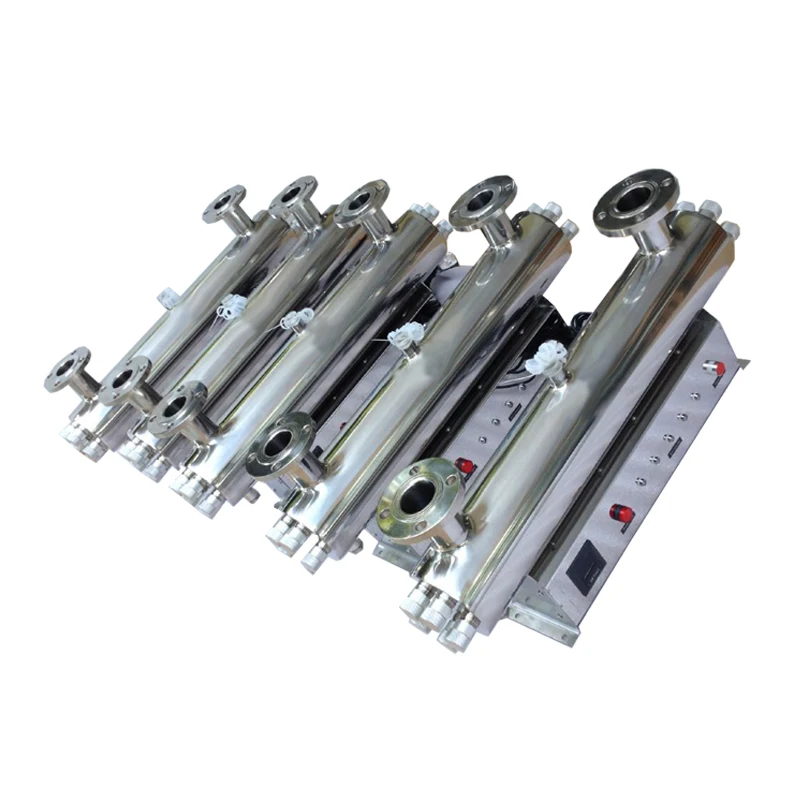

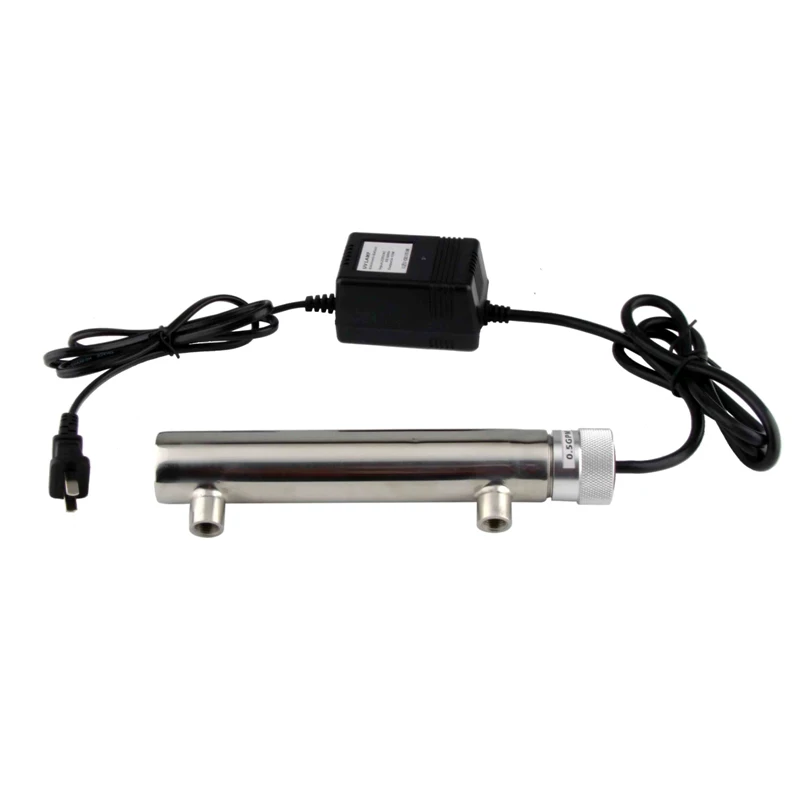

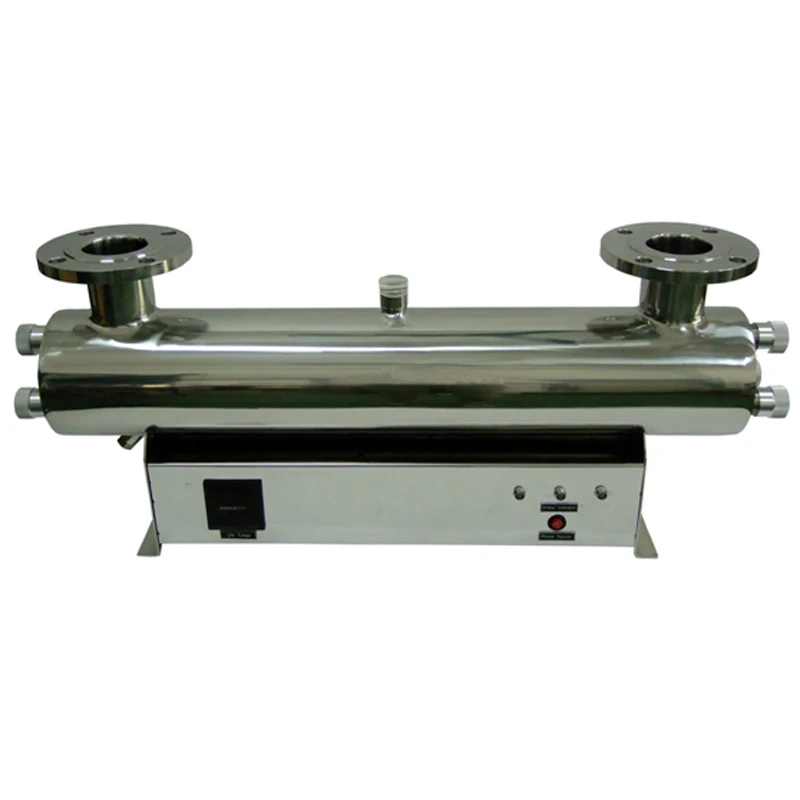

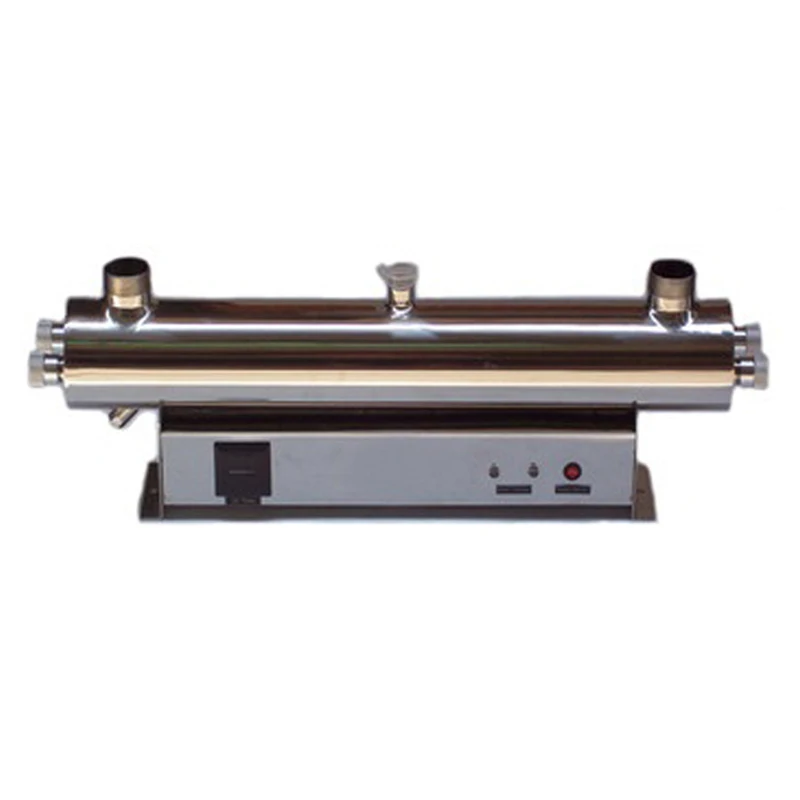

320w uv lamp for ultraviolet water sterilizer/ water filter equipment



Introduction

Using 304/316L stainless steel material made of pipeline reaction cavity (inside and outside carry on high sterngth polishing processing),the UV lamp installed in the high transmittance quartz sleeve, sealed by the o-type circle.water flows inlet meanwhile the ballasts light UV lamp,high intensity irradiation of UV kill the bacteria and viruses in water, the sterilziation rate can reach 99.9% when the water flow out

Features

• Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.
• Warranty: 10 years warranty for stainless steel housing, other components are 1 year
• Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;
• Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and sterilize effect.
• Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.
• Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.
• The whole system adopts America NSF55 standard of “Ultraviolet microbial water treatment equipment” and domestic Ultraviolet sterilizer industry standard for living and drinking water of CJ/T204-2000.
• Use America Hanovia lamp tube.

Application:

1- Living water, Drinking water, Pure water, Mineral Water

2- Swimming piol, Landscape water, Circulating cooling water

3- Food,Cosmetic,Medicine

4- Sewage treatments

5- Aquarium

6- Toc reduction of electronic ultra-pure water

Specification :

OGP-UV50L-5000L

 OGP-UV3~30T

Model	Water flow (T/Hr)	Power (W)	Size (mm)	Water Input & Ouput Size	Max Pressure (Mpa)
OGP-UV 3T	2-3T/H	55W	950×125×250	1″	0.8
OGP-UV6T	4-6T/H	100W	950×138×280	1.5″
OGP-UV 12T	8-12T/H	200W	950×195×335	2″
OGP-UV 20T	15-20T/H	300W	950×205×405	2″
OGP-UV30T	25-30T/H	400W	1250×275×545	3″

OGP-UV40~500T

Model	Water flow (T/Hr)	Power (W)	Size (mm)	Water Input & Ouput Size	Max Pressure (Mpa)
OGP-UV40T	35-40T/H	500W	1250×275×550	3″	0.8
OGP-UV50T	45-50T/H	600W	1250×275×550	4″
OGP-UV60T	60	150×5	1650×280×495	4″
OGP-UV70T	70	150×6	1650×305×520	5″
OGP-UV80T	80	150×7	1650×305×520	5″
OGP-UV100T	100	150×8	1650×335×550	6″
OGP-UV125T	125	150×10	1650×360×575	6″
OGP-UV150T	150	150×12	1650×385×600	8″
OGP-UV200T	200	150×16	1650×460×675	8″
OGP-UV500T	500	240×25	1650×650×750	DN300
