C41-25KG Профессиональный Горячий кованый станок кузнечный
- Категория: Metal Forging Machinery >>>
- Поставщик: Tengzhou,Runfa,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.66 $* | 0.85 $* |
| Aug-16-2025 | 0.94 $* | 0.9 $* |
| Jul-16-2025 | 0.77 $* | 0.13 $* |
| Jun-16-2025 | 0.69 $* | 0.4 $* |
| May-16-2025 | 0.38 $* | 0.60 $* |
| Apr-16-2025 | 0.3 $* | 0.83 $* |
| Mar-16-2025 | 0.67 $* | 0.38 $* |
| Feb-16-2025 | 0.76 $* | 0.95 $* |
| Jan-16-2025 | 0.27 $* | 0.32 $* |
Характеристики
Product Description

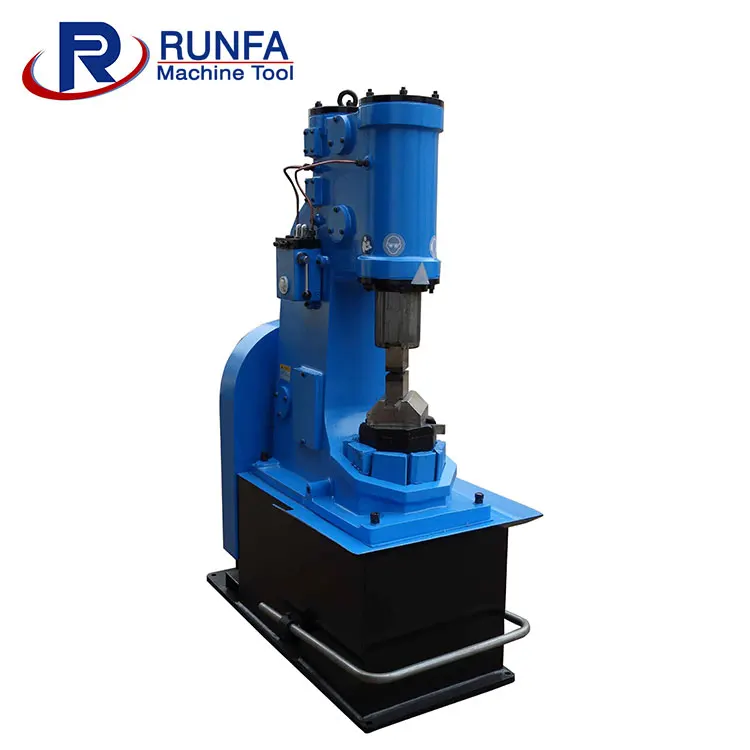

C41-25kg FB type pneumatic forging hammer is a kind of free forging hammer.The design is based on the time proved designs of the old European hammers many which are still in use today. With a self contained power hammer, you require no external air supply or high pressure hoses.
It can be used for all kinds of free forgings,such as stretching,upsetting,puching,hot shearing,forged welding,bending and
twisting.It can be used for die forging with boster dies,but can't be used for closed die forging,because the blow energy of close die forging is very big,the hammer rod,guide,working cylinder...ect main parts will be damaged.
It can be used for all kinds of free forgings,such as stretching,upsetting,puching,hot shearing,forged welding,bending and
twisting.It can be used for die forging with boster dies,but can't be used for closed die forging,because the blow energy of close die forging is very big,the hammer rod,guide,working cylinder...ect main parts will be damaged.
Main Features
1) Simple structure ,self-contained .No need additional air compressor,easy in installation and maintation.
2) Adopting advanced resin cast hammer frame and other parts make the surface of cast very smooth.
3) Less Maintenance.Automatic and fully adjustable oil system.
4)Very easy to control,can by handle or footpedal control hammer working.
5) Provide 3-5 years spare parts for instead of wearing parts
6).Can special order the long ram type,that would keep the top die doesn't retract inside the cylinder.that can allow to use a little larger hammer die.
Detail Specifications
We aslo have C41-6KG,C41-16KG,C41-20KG,C41-25KG,C41-40KG,C41-75KG,C41-100KG for choose according different forging work need.You can choose the model according by the following specifications.
2) Adopting advanced resin cast hammer frame and other parts make the surface of cast very smooth.
3) Less Maintenance.Automatic and fully adjustable oil system.
4)Very easy to control,can by handle or footpedal control hammer working.
5) Provide 3-5 years spare parts for instead of wearing parts
6).Can special order the long ram type,that would keep the top die doesn't retract inside the cylinder.that can allow to use a little larger hammer die.
Detail Specifications
We aslo have C41-6KG,C41-16KG,C41-20KG,C41-25KG,C41-40KG,C41-75KG,C41-100KG for choose according different forging work need.You can choose the model according by the following specifications.
Item Name | Unit | Model | ||||||||||||||
C41-20FB | C41-25FB | C41-40FB | C41-55FB | C41-55LFB | ||||||||||||
Falling parts weight | Kg | 20 | 25 | 40 | 55 | 55 | ||||||||||
Max.Hit energy | KJ | 0.22 | 0.27 | 0.53 | 0.7 | 0.7 | ||||||||||
Distance from tup axis to frame body | mm | 180 | 200 | 235 | 280 | 280 | ||||||||||
Distance from hammer ram guide bottom surface to bottom die surface | mm | 200 | 210 | 245 | 295 | 295 | ||||||||||
Hit frequency | Min-1 | 255 | 250 | 245 | 230 | 230 | ||||||||||
Top and bottom die surface | mm | 90X50 | 100*50 | 120*50 | 120*55 | 120*55 | ||||||||||
Max.forged size(diameter) | round | mm | φ35 | φ45 | φ68 | φ70 | φ75 | |||||||||
square | mm | 30*30 | 40*40 | 52*52 | 55*55 | 60*60 | ||||||||||
Motor | Power | kw | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 | |||||||||
Speed | r.p.m | 1440 | 1440 | 1440 | 1440 | 1440 | ||||||||||
Overalldimensions (L*W*H) | mm | 1300*720*1760 | 1380*570*1690 | 1500*670*1800 | 1730*803*1935 | 1732*820*2150 | ||||||||||
Total weight | kg | ~860 | ~1180 | ~1520 | ~2050 | ~2160 | ||||||||||
Direction for use
Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding,
bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer,
pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg,16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 100kg,150kg mainlyfor artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer,
pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg,16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 100kg,150kg mainlyfor artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Description of application effect
Our hammer can help blacksmiths complete many kinds of works.Especially for some agriculture tools.It is best choice for some small repair shop or tools shop.They can get powerful force from hammer and finish perfectful and high efficent.
Detailed Images
Our Hammer also Provide customized service.Customer can order some optional hammer die for diffferent kinds of forging works.
Size Information
Mini Size | C41-25FB | C41-25LFB |
Length | 1530 | 1530 |
Width | 800 | 800 |
Height | 1885 | 1930 |
Related Products
Packing&Shipping
After Sales Service
we would provide English Version working manual.If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is 1 years.So if your machine has any unintentional damages,we would provide parts for free.
24Hours life time after sale service.
Technician is available to go to your place for training and debugging after you received the machine,but this need you pay for all the cost for that.
Machine warranty is 1 years.So if your machine has any unintentional damages,we would provide parts for free.
24Hours life time after sale service.
Technician is available to go to your place for training and debugging after you received the machine,but this need you pay for all the cost for that.
Company Introduction
We Tengzhou Runfa Machinery Co. Ltd. is a professional CNC machine tool,press forging,radialdrill,band saw,shaper
machine,traditional milling,hydraulic press and punch press manufacturer owning brand “HE LI”, provides wide range products from heavy cutting to high speed, from 3-axis spindle to 5-axis spindle, and from metal cutting to composite material machining centers which have been applied in vehicles manufacture, power generating, aerial components and so on. Widely applied in curve-based polyhedral machining,forging work,drill,cutting, ,planning, milling,puching,pressing,shearing etc.
The powerful economic strength,the advanced technology and equipment,the consummate inspection,the pragmatic style of work and the outstanding management have constructed the good quality of our enterprise’s production.Our company’s product is sold all over the world and winning greatest honors from our customers after using around the world.
We always follow management philosophy: "people-oriented, forefront technology, excellent quality, sincere service". We wish with all our customers together to create a sincere, friendly, harmonious and cooperative business space. Under the "HELI" brand, we will cooperate with you sincerely and create a brilliant future with the principle of "win-win" and mutual benefit.
machine,traditional milling,hydraulic press and punch press manufacturer owning brand “HE LI”, provides wide range products from heavy cutting to high speed, from 3-axis spindle to 5-axis spindle, and from metal cutting to composite material machining centers which have been applied in vehicles manufacture, power generating, aerial components and so on. Widely applied in curve-based polyhedral machining,forging work,drill,cutting, ,planning, milling,puching,pressing,shearing etc.
The powerful economic strength,the advanced technology and equipment,the consummate inspection,the pragmatic style of work and the outstanding management have constructed the good quality of our enterprise’s production.Our company’s product is sold all over the world and winning greatest honors from our customers after using around the world.
We always follow management philosophy: "people-oriented, forefront technology, excellent quality, sincere service". We wish with all our customers together to create a sincere, friendly, harmonious and cooperative business space. Under the "HELI" brand, we will cooperate with you sincerely and create a brilliant future with the principle of "win-win" and mutual benefit.
Our Certificate
FAQ
1. What to do when you don’t know which model hammer need to buy?
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
