Минеральный осадочный водоочистительный фильтр пластиковый песок Гидроциклон жидкий твердый гидроциклонный сепаратор
- Категория: Минеральный сепаратор >>>
- Поставщик: Jiangxi,Walker,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 238.74 $* | 250.32 $* |
| Aug-15-2025 | 236.79 $* | 248.37 $* |
| Jul-15-2025 | 198.35 $* | 208.6 $* |
| Jun-15-2025 | 232.67 $* | 244.59 $* |
| May-15-2025 | 202.60 $* | 212.60 $* |
| Apr-15-2025 | 228.20 $* | 239.88 $* |
| Mar-15-2025 | 226.25 $* | 237.60 $* |
| Feb-15-2025 | 224.80 $* | 235.53 $* |
| Jan-15-2025 | 222.46 $* | 233.58 $* |
Характеристики
Product Description
High Efficient Energy Saving Hydrocyclone Separator
Hydrocyclone Introduction | ||
Hydrocyclone, also called Hydraulic cyclone, which is a high efficient grading and de-sliming equipment of fine-particle materialis and it is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. | ||
Application Fields of Hydrocyclone:
1.A hydrocyclone is most often used to separate "heavies" from a liquid mixture originating at a centrifugal pump or some othe
continuous source of pressurized liquid.
2.A hydrocyclone is most likely to be the right choice for processes where "lights" are the greater part of the mixture and where
the "heavies" settle fairly easily.
3.Generally, hydrocyclones are used in continuous flow systems so that the instantaneous liquid inflow to the hydrocyclone is
equal to the total instantaneous outflow of "lights" plus "heavies".
4.In cases where "heavies" are a very small part of the whole liquid, it is sometimes advantageous to accumulate them in the
bottom of the hydrocyclone for batchwise removal.
continuous source of pressurized liquid.
2.A hydrocyclone is most likely to be the right choice for processes where "lights" are the greater part of the mixture and where
the "heavies" settle fairly easily.
3.Generally, hydrocyclones are used in continuous flow systems so that the instantaneous liquid inflow to the hydrocyclone is
equal to the total instantaneous outflow of "lights" plus "heavies".
4.In cases where "heavies" are a very small part of the whole liquid, it is sometimes advantageous to accumulate them in the
bottom of the hydrocyclone for batchwise removal.
- Working Principle of Hydrocyclone separator
The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp. This generates a
vortex in the cyclone, with a low pressure zone along the vertical axis.An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure.
Hydroclone have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer
size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within
thecircuit is reduced.
vortex in the cyclone, with a low pressure zone along the vertical axis.An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure.
Hydroclone have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer
size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within
thecircuit is reduced.

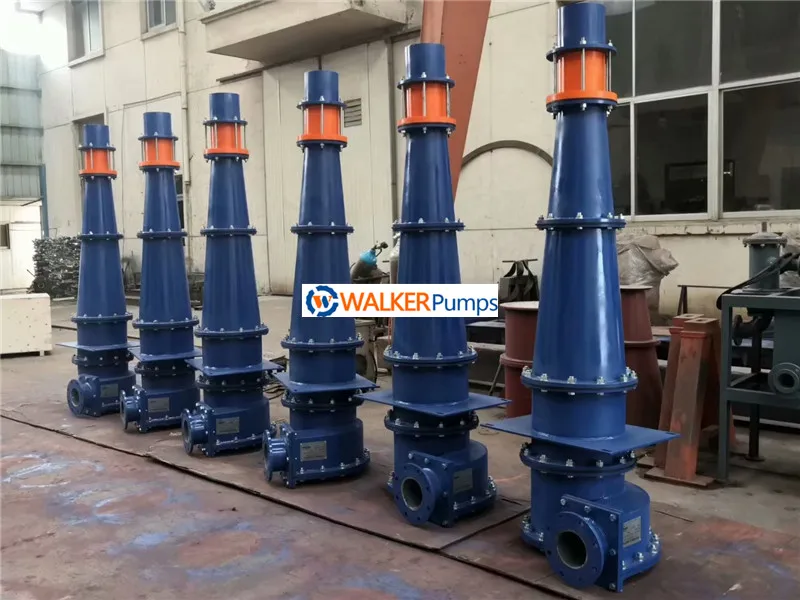

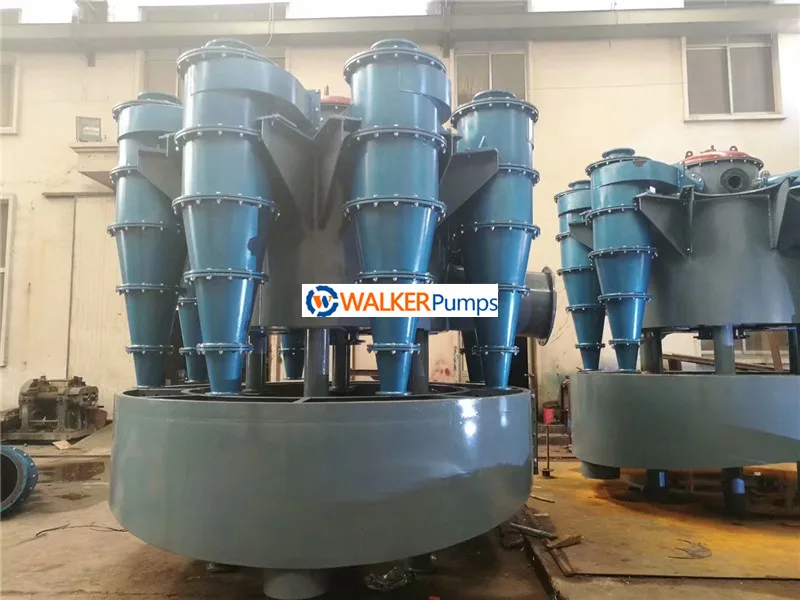

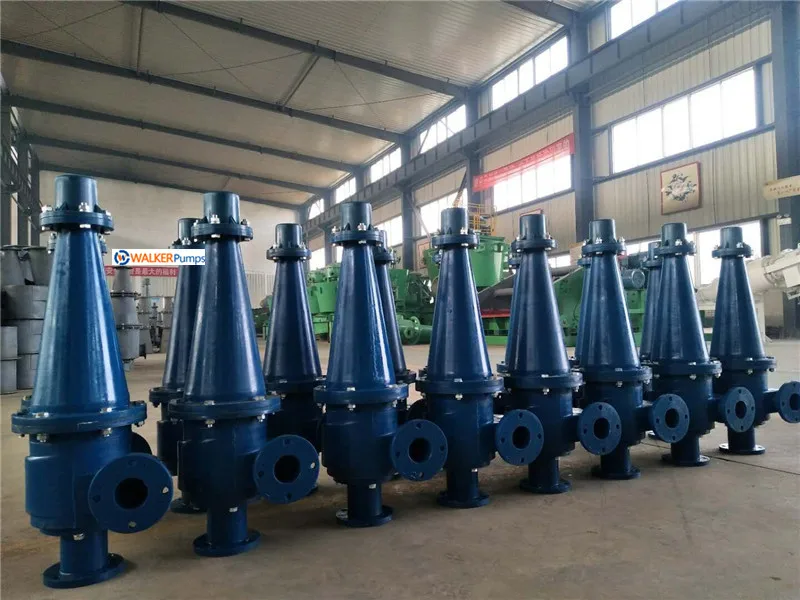

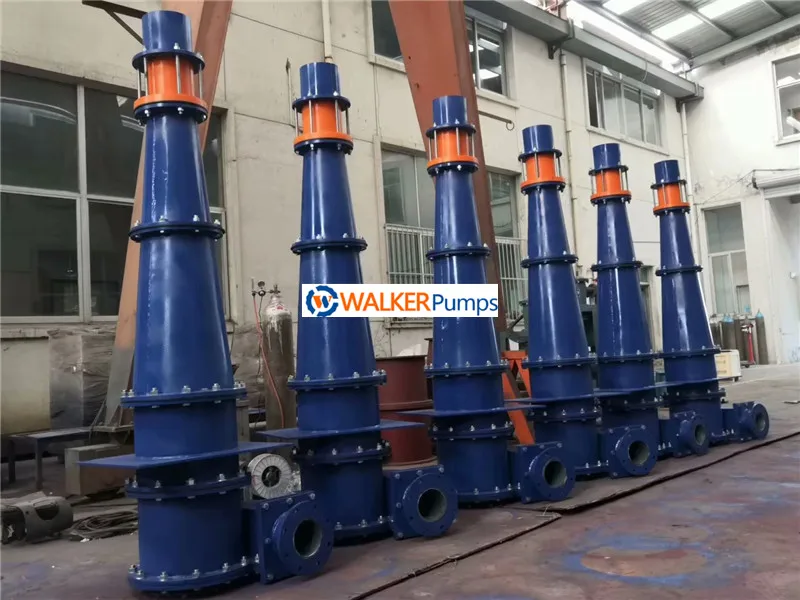

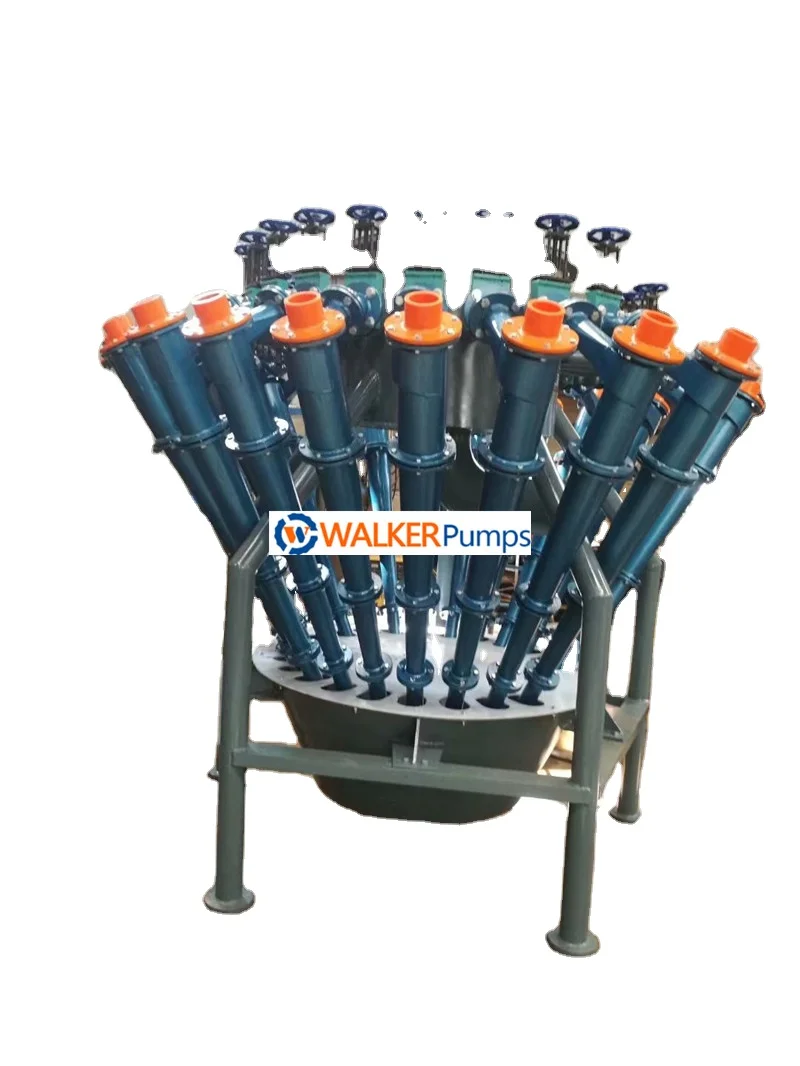

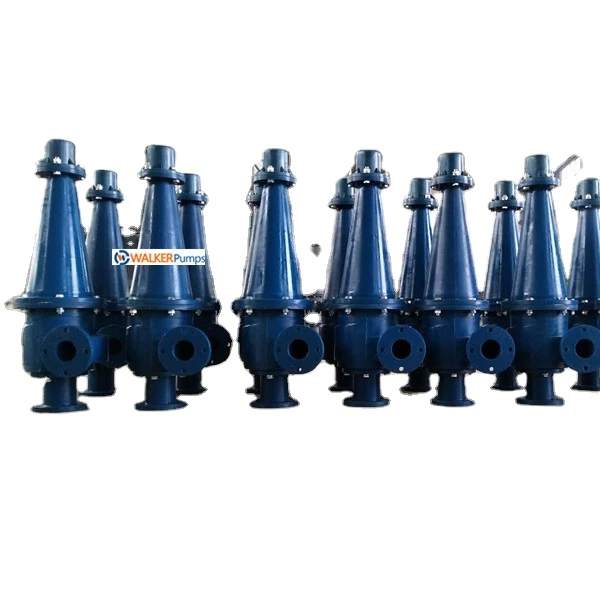

Detailed Images
A hydrocyclone is a classification device that uses centrifugal force to accelerate the settling of ore particles. It requires pressure to give ore, so it consumes large power, but it has a small footprint, low price, large processing capacity, high classification efficiency, and can obtain very fine overflow products. It is mostly used in the second-stage closed-circuit grinding equipment.
Size Information
Hydrocyclone Parameters
Model name | Diameter (mm) | Inlet Pressure (mpa) | Capacity (m³/h) | Cut Size (pm) |
FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
FX710 | 710 | 0.04-0.15 | 400-550 | 74-250 |
FX660 | 660 | 0.04-0.15 | 260-450 | 74-220 |
FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
FX400 | 400 | 0.06-0.2 | 100-170 | 74-150 |
FX350 | 350 | 0.06-0.2 | 70-160 | 50-150 |
FX300 | 300 | 0.06-0.2 | 45-90 | 50-150 |
FX250 | 250 | 0.06-0.3 | 40-80 | 40-100 |
FX200 | 200 | 0.06-0.3 | 25-40 | 40-100 |
FX150 | 150 | 0.08-0.3 | 14-35 | 20-74 |
FX125 | 125 | 0.1-0.3 | 8-20 | 25-50 |
FX100 | 100 | 0.1-0.3 | 8-20 | 20-50 |
FX75 | 75 | 0.1-0.4 | 4-10 | 10-40 |
FX50 | 50 | 0.1-0.4 | 2-5 | 7-40 |
FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
Related Products
Packing&Shipping
The small hydrocylone is packed by wooden box by air or sea . The big hydrocylone or large quantity hydrocylone are packed by container by sea .
Company Introduction
◆ Jiangxi walker Machinery Co.,Ltd
Walker Machinery Equipment Co., Ltd is a professional industrial pump manufacturer, committed to providing technology supports and industry level solutions for various ultra heavy duty applications such as commercial building, municipal water treatment, construction dewatering, agricultural irrigation, mining & metallurgy, Paper/Pulp, oil & gas, food & beverage, etc.Founded in 1985, WALKER Pump has been a reliable provider in pumps field for almost 35 years, We combines the manufacturing,selling, and after-services so that our customers can get the best support. and as a experienced pump manufacturer, we continue the tradition of diligent and innovation fitting the everchanging needs of customers. Thanks to their versatility andguaranteed quality, WALKER’ pumps delivers long life with low maintenance cost in challenging operating conditions around the world.
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
●Are you a trade company or manufacturer ?
We are a manufacture. We have our own factory and workshop . We have over 35 experience to produce pump series.
●How long is the guarantee?
All of our products (Except for the wearing parts ) are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
According to the specific data provided by the customer,our customized products's delivery time is 7-30 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●Service and Payment Terms?
We can accept Western union or T/T or L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
We are a manufacture. We have our own factory and workshop . We have over 35 experience to produce pump series.
●How long is the guarantee?
All of our products (Except for the wearing parts ) are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
According to the specific data provided by the customer,our customized products's delivery time is 7-30 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●Service and Payment Terms?
We can accept Western union or T/T or L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
