Многофункциональная машина для производства плоских сумок из нетканого
- Категория: Nonwoven Machines >>>
- Поставщик: Ruian,Xinye,Packaging,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17077.34 $* | 17931.68 $* |
| Aug-16-2025 | 16933.38 $* | 17780.74 $* |
| Jul-16-2025 | 14207.48 $* | 14917.18 $* |
| Jun-16-2025 | 16646.59 $* | 17478.20 $* |
| May-16-2025 | 14494.94 $* | 15219.81 $* |
| Apr-16-2025 | 16359.82 $* | 17177.20 $* |
| Mar-16-2025 | 16216.5 $* | 17027.66 $* |
| Feb-16-2025 | 16072.34 $* | 16876.52 $* |
| Jan-16-2025 | 15929.87 $* | 16725.83 $* |
Характеристики
Product Description

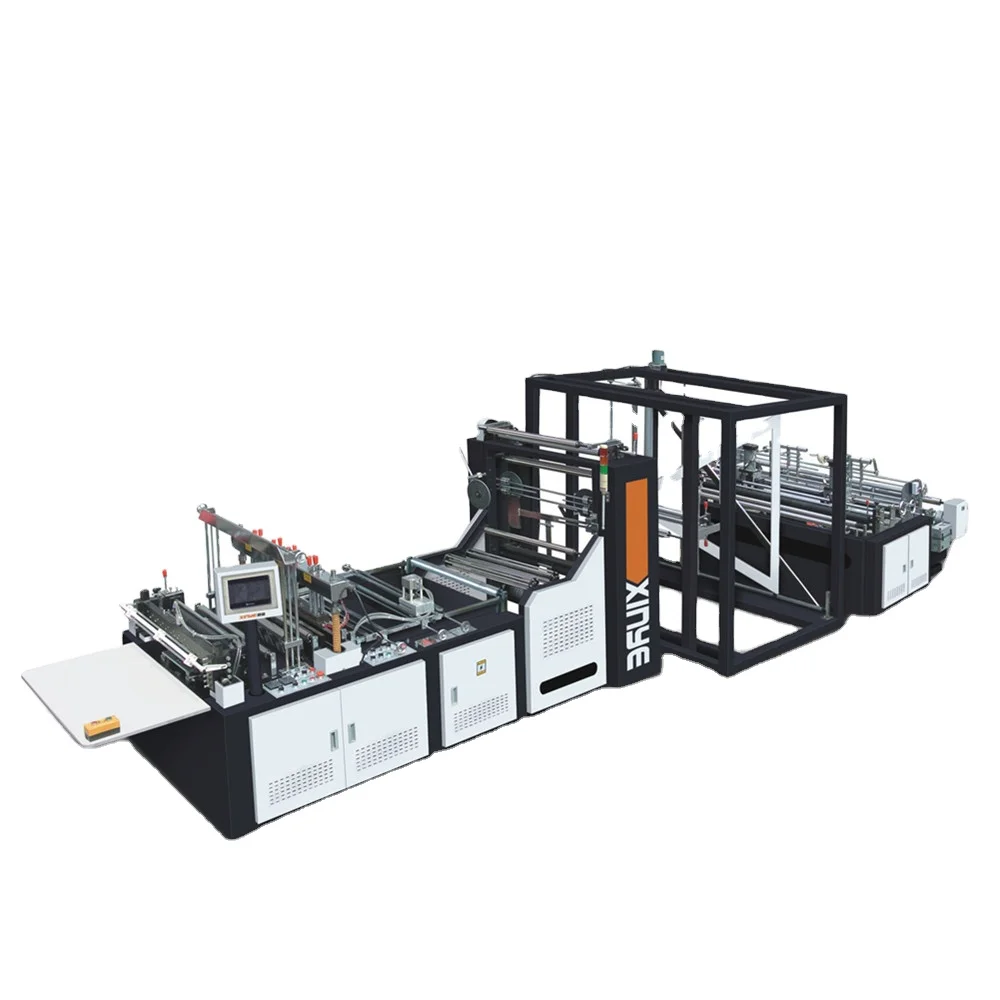

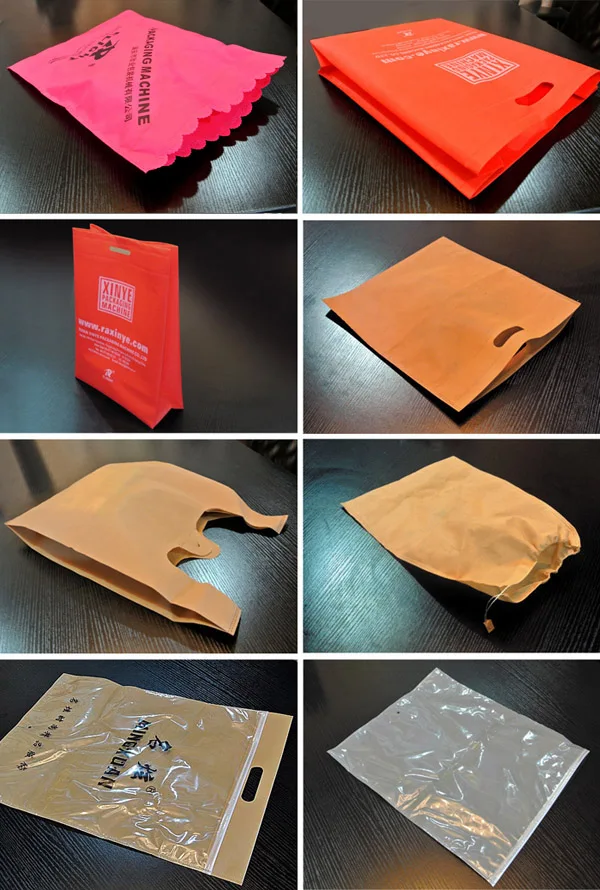

This machine uses non-woven fabrics material. It can produce many kinds and sizes of bags such as vest bags, loop handle bags, ziplock bags, flat bags, box bags, ribbon-through bags for shoes and purse, etc.
It is equipped with two computer touch screens, step motor to control the length and photocell to track accurately and steadily. There control devices such as auto-counting alarming, auto-punching etc., which keep the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental friendly bag making equipment.
It is equipped with two computer touch screens, step motor to control the length and photocell to track accurately and steadily. There control devices such as auto-counting alarming, auto-punching etc., which keep the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental friendly bag making equipment.
Detailed Images
Model | XY- |
Bag Type | D-cut /W-cut/Flat Bag |
Loop handle length | 370-560mm |
Bag Width | 100-800mm |
Bag Height | 220-550mm |
Speed | 40-120pcs/min |
Voltage | 380V,50hz, 3phase |
Total Power | 9.5kw |
Installation Size | 7.4*1.5*1.9m |
Wight | 2500kg |
Unwinding Unit
1.Air Clinder Loading
2.EPC And Tension Contol System
3. Bag Top Folding And Sealing System
4. 1.5KW AC Inveter Motor
Fold-up Unit
1. DC motor pull type
2. Universal Adjustment
W-cut Bag Side Sealing Unit
1. DC Motor Drive
2.Ultrasonic Sealing
Gusset Unit
1. D-cut /Flat Bag Bottom Folding
2. W-cut Bag/T-shirt Bag Side Gusset
3. Adjust Range 0-100mm
Main Sealing And Cutting Unit
1. 5*153mm horn
2.Two stepping Motor
3.One 1.5Kw AC motor
Automatic W-cut bag puncher
Manual W-cut bag puncher
Operate Pannel
Control System
Packing&Shipping
Standard: Packed in waterproof air bubble film with pretection oil.
Wooden box wanted: Extra cost
Company Introduction

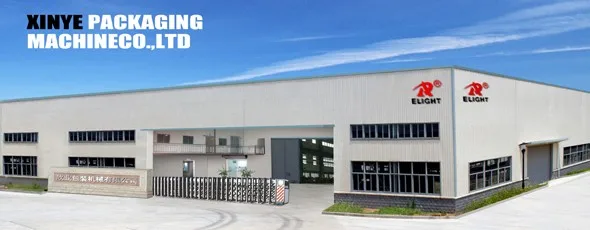

Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It specializes in producing Series of plastics-packaging equipment.We are engaged in producing bag-making machine,Printing Machine,Film Blowing Machine, etc.
1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft handle bag-making Machine ; high speed heat sealing and slitting bag-making Machine;Microcomputer control bag-making Machine;Computerized vest bag-making Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine,High Speed Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine.Since its establishment, with the purpose of " Gain the customer’s confidence base on good quality."and "Improve continuously, meet customer’s needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft handle bag-making Machine ; high speed heat sealing and slitting bag-making Machine;Microcomputer control bag-making Machine;Computerized vest bag-making Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine,High Speed Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine.Since its establishment, with the purpose of " Gain the customer’s confidence base on good quality."and "Improve continuously, meet customer’s needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
