Полипропиленовая газовая горелка Prepress для пламенной
- Категория: Форпресс оборудование >>>
- Поставщик: Shenzhen,Tamprinter,Printing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.3 $* | 0.98 $* |
| Aug-16-2025 | 0.42 $* | 0.15 $* |
| Jul-16-2025 | 0.59 $* | 0.77 $* |
| Jun-16-2025 | 0.95 $* | 0.82 $* |
| May-16-2025 | 0.57 $* | 0.96 $* |
| Apr-16-2025 | 0.80 $* | 0.12 $* |
| Mar-16-2025 | 0.99 $* | 0.80 $* |
| Feb-16-2025 | 0.86 $* | 0.0 $* |
| Jan-16-2025 | 0.3 $* | 0.49 $* |
Характеристики
Product Description
Product Description
Prepress Air-Gas burner video:
https://www.youtube.com/watch?time_continue=29&v=xMdCi174u00

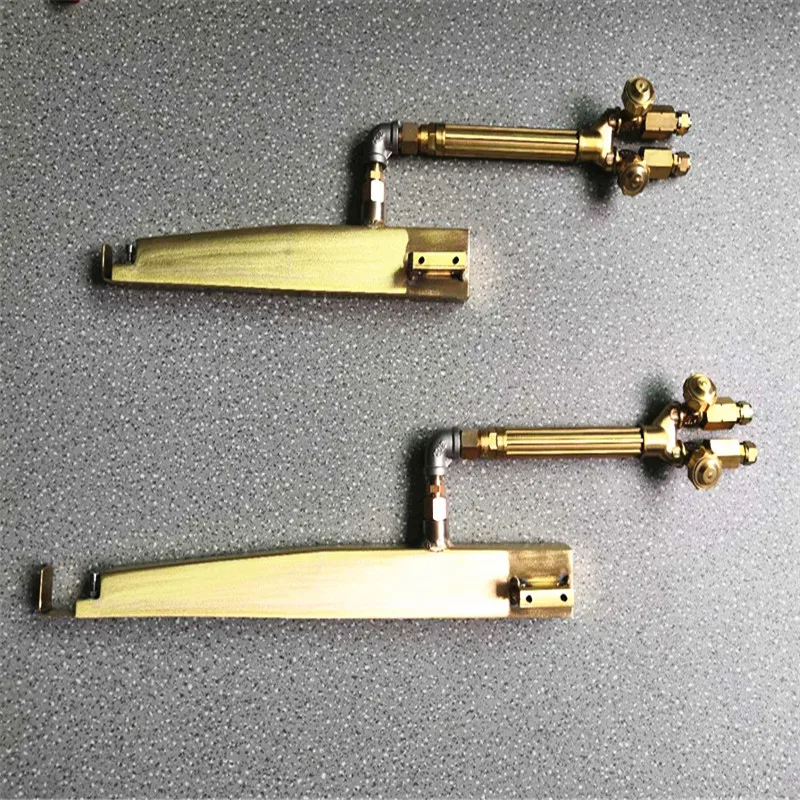

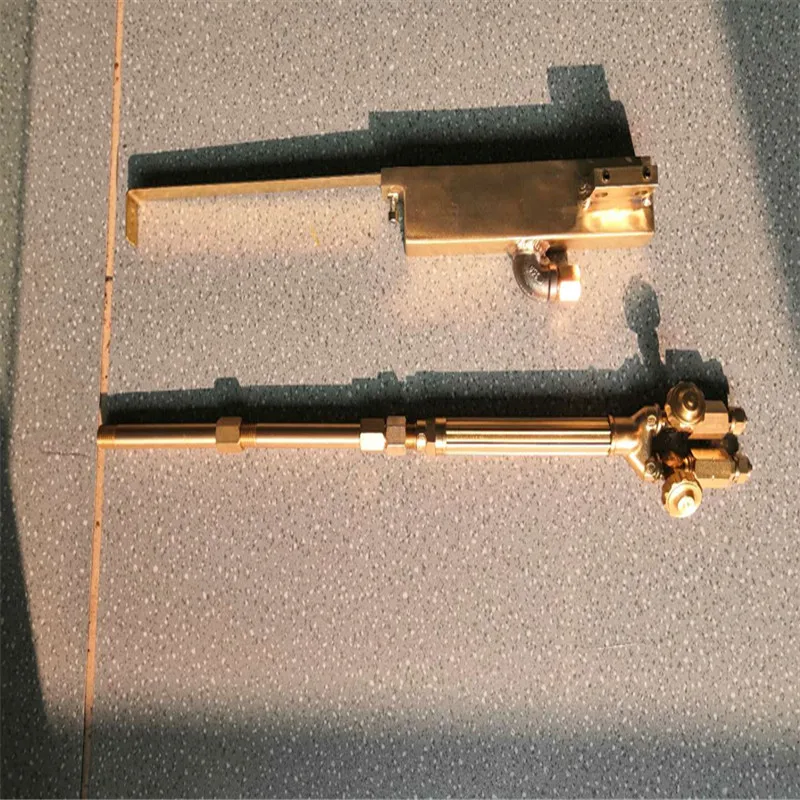

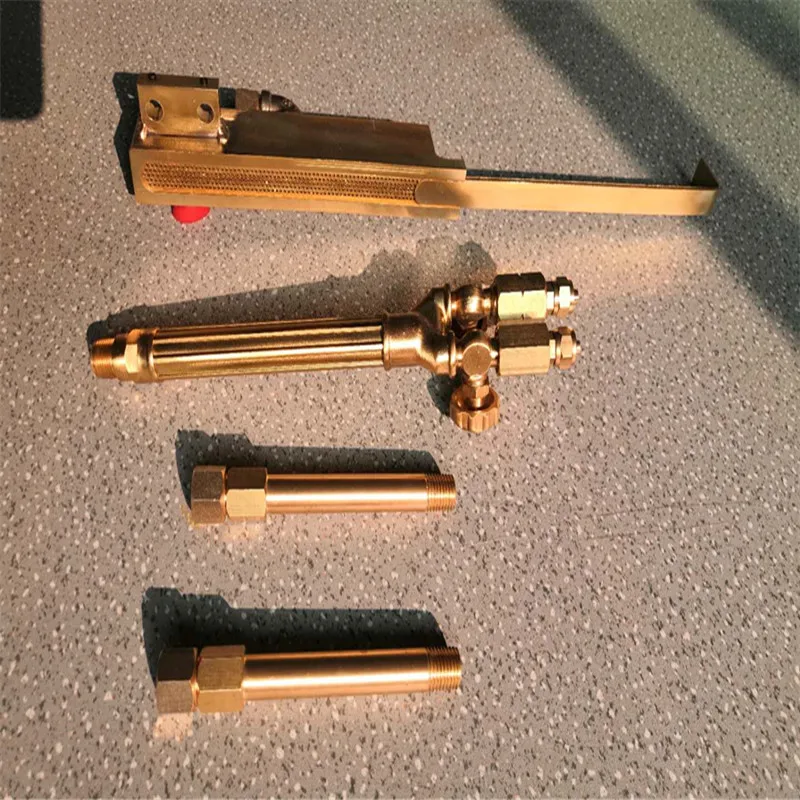

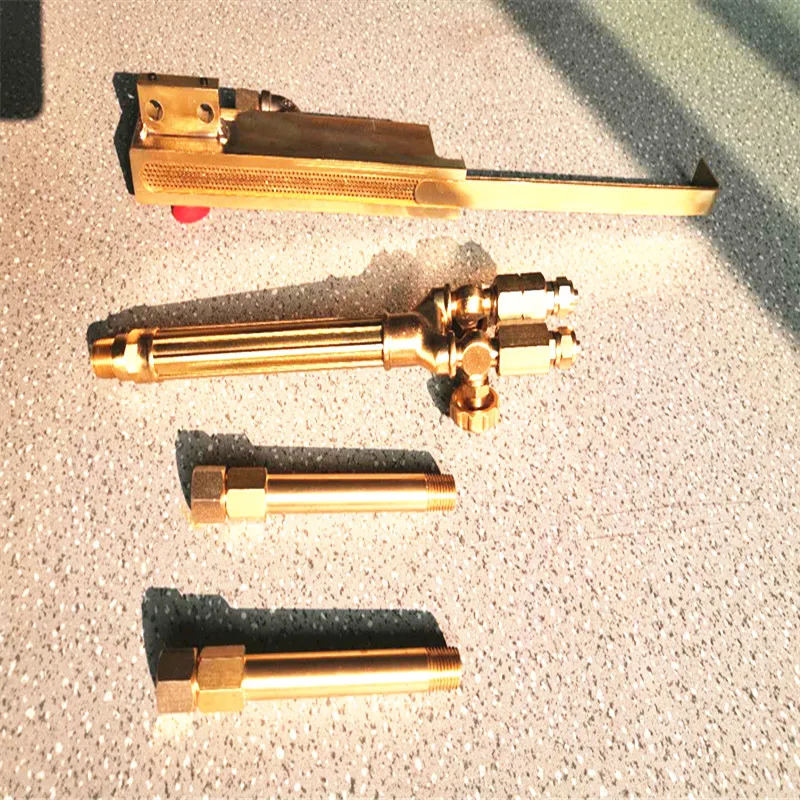

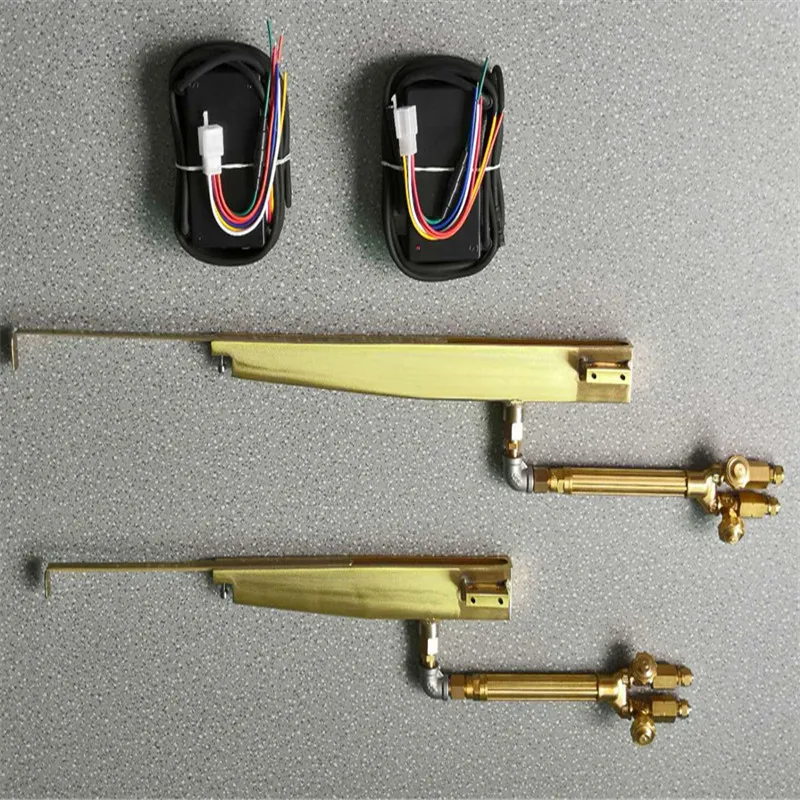

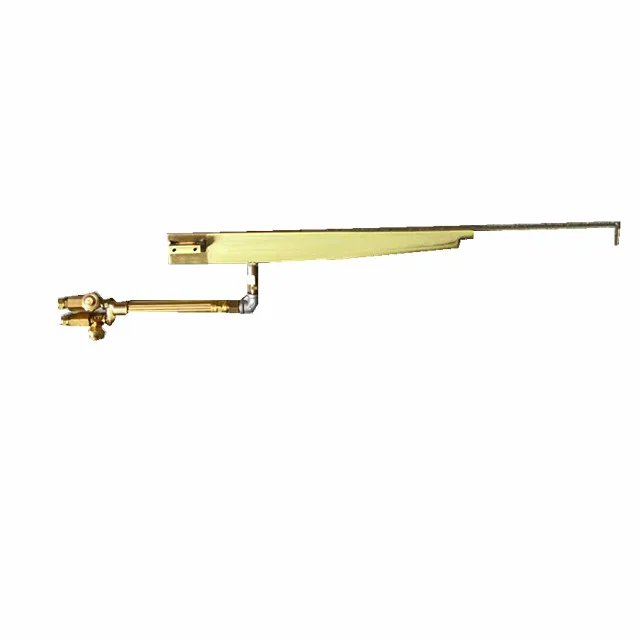

Prepress flame treatment gun or name Air-Gas burner More photo link:
http://photo.163.com/tamprinter/#m=1&aid=262756598&p=1
Prepress Air-Gas burner video:
https://www.youtube.com/watch?time_continue=29&v=xMdCi174u00
Prepress flame treatment gun or name Air-Gas burner More photo link:
http://photo.163.com/tamprinter/#m=1&aid=262756598&p=1
size | L242XW25XH50mm |
Material: | SUS304 shell, copper fire-breathing hole |
Effective flame length (mm) | 0-200 mm |
Flame width（mm） | 15mm |
Specification ： | vertical |
Direction for use
使用说明
Air-Gas burner flame treatment machine 8419899090
bottle container the flame processor, Basketball board large flat flame processor, electric car shell Flame Treatment Machine,
continuous PP tube Flame Treatment, car bumpers flame processor equipment.
Construction of the manufacturing process in the production of PP, PE plastic is non-polar polymer materials, chemical stability,
low surface tension, coupled with the opening of synthetic resin added, antistatic agents, anti-aging agent of influence for the
difficult and ink firm bond . To improve PP, PE plastic printability must handle, so that the surface tension of not less than 3.8
× 10-2N / m. Flame surface processor adapted to the flame surface treatment PP, PE ,, PET, PVC and other plastic products of
different shapes; articles deal with various thickness are not deformed
Widely used in polypropylene (PP plastic) / polyethylene (PE plastic) plate, sheet, shell, surface modification treatment after
film printing, bonding, surface oxidation and other processes, is also suitable for all types of metal alloys quenched with local
heat treatment, a glass flame polished.
Flame Temperature: 1100 ~ 1800 ℃ oxidizing flame
Flame width: 15 ~ 150MM adjustable
Flame Thickness: Standard 20MM 5 row holes
Combustion gases: Standard natural gas, liquefied petroleum gas, household gas 4KGf / CM2
Combustion gas: compressed air 8KGf / CM2 ，Capacity:＞0.5m3/min
Electronic ignition Power: 220V / 50Hz
bottle container the flame processor, Basketball board large flat flame processor, electric car shell Flame Treatment Machine,
continuous PP tube Flame Treatment, car bumpers flame processor equipment.
Construction of the manufacturing process in the production of PP, PE plastic is non-polar polymer materials, chemical stability,
low surface tension, coupled with the opening of synthetic resin added, antistatic agents, anti-aging agent of influence for the
difficult and ink firm bond . To improve PP, PE plastic printability must handle, so that the surface tension of not less than 3.8
× 10-2N / m. Flame surface processor adapted to the flame surface treatment PP, PE ,, PET, PVC and other plastic products of
different shapes; articles deal with various thickness are not deformed
Widely used in polypropylene (PP plastic) / polyethylene (PE plastic) plate, sheet, shell, surface modification treatment after
film printing, bonding, surface oxidation and other processes, is also suitable for all types of metal alloys quenched with local
heat treatment, a glass flame polished.
Flame Temperature: 1100 ~ 1800 ℃ oxidizing flame
Flame width: 15 ~ 150MM adjustable
Flame Thickness: Standard 20MM 5 row holes
Combustion gases: Standard natural gas, liquefied petroleum gas, household gas 4KGf / CM2
Combustion gas: compressed air 8KGf / CM2 ，Capacity:＞0.5m3/min
Electronic ignition Power: 220V / 50Hz
Direction for use
使用说明
We have copper burner no do stainless steel burner,
1、Hot leak gas welding, to ensure safety.
2、 Appearance is very beautiful, internal filter fine,
3、 Intake premixed three-way regulating valve imports from U.S..
4、 Have 17 types , min size of burner TAM-F70A
5、Copper-welded copper, consistent thermal expansion rate, safe.
It is helpfull If you can offer us following details, we can do PI ASAP.
1) Auto-ignition or manual ignition
what specifications flame treatment gun you used before,
please show us photos and size (flame length, wide and type),
Gas path entrance，t the top, in the middle, or at the corner
Optional accessories: gas on/off solenoid valve, 5D bracket, red and blue air tube, 4-way connector, long mouth lighter, etc.
2) Or you can choose one model from our burner video link:
http://www.tamprinter.com/sdp/1963483/4/pd-6621680/11436709-2562801/Prepress_flame_treatment_gun.html
See the following links for more photos
http://photo.163.com/tamprinter/#m=1&aid=262756598&p=1
3) please send us your contact detail for DHL express (address, TEL).
4) If you have paypal account, we send you PI, you can pay online,
For glass containers, Pyrosil increases adhesion, extends durability and improves scratch resistance of UV and LED Inks:
Tamprinter is recommended by Marabu, Dubuit, Ruco and the technology has been used with Sun Chemical and Ferro inks as well.
1、Hot leak gas welding, to ensure safety.
2、 Appearance is very beautiful, internal filter fine,
3、 Intake premixed three-way regulating valve imports from U.S..
4、 Have 17 types , min size of burner TAM-F70A
5、Copper-welded copper, consistent thermal expansion rate, safe.
It is helpfull If you can offer us following details, we can do PI ASAP.
1) Auto-ignition or manual ignition
what specifications flame treatment gun you used before,
please show us photos and size (flame length, wide and type),
Gas path entrance，t the top, in the middle, or at the corner
Optional accessories: gas on/off solenoid valve, 5D bracket, red and blue air tube, 4-way connector, long mouth lighter, etc.
2) Or you can choose one model from our burner video link:
http://www.tamprinter.com/sdp/1963483/4/pd-6621680/11436709-2562801/Prepress_flame_treatment_gun.html
See the following links for more photos
http://photo.163.com/tamprinter/#m=1&aid=262756598&p=1
3) please send us your contact detail for DHL express (address, TEL).
4) If you have paypal account, we send you PI, you can pay online,
For glass containers, Pyrosil increases adhesion, extends durability and improves scratch resistance of UV and LED Inks:
Tamprinter is recommended by Marabu, Dubuit, Ruco and the technology has been used with Sun Chemical and Ferro inks as well.
Flame treating Process:
使用效果描述
When it comes to treating the surfaces of packaging, molded parts, glass, automotive parts, and a wide range of films, foils,
coated boards and other substrates, Flame treating is a proven winner. Flame treating induces an ionized air stream that flame
treateralters the surface that is being treated. Flame treaters work by burning an ultra-lean gas mixture, whose excess oxygen
becomes reactive by the high treatment temperature.
The Result?
Flame treated surfaces offer many advantages, including freedom from pinholing, ozone, and backtreatment. Using the right
equipment in your process can help you achieve treatment levels above 70 dynes even on polyolefins. The increased surface tension
will now allow, inks, glues, dyes, paint, etc to adhere to the substrate creating a successful solution for your company.
Flame treating Advantages over Corona / Air Plasma Treatment
Higher achievable treatment levels
Lower treatment decay rates
No backside treatment
No ozone
No gauge or surface contour restrictions
Flame treating Advantages over Chemical Treatment
Chemical treating creates odor
No skin irritation
Less expensive
Does not require disposing of environmentally hazardous material
Chemicals expose workers to dangerous substances
Tamprinter is in the business of delivering top quality flame treatment solutions. Our machines will greatly reduce your labor
costs, workers compensation costs, and streamline your production with a higher quality product, every time.
coated boards and other substrates, Flame treating is a proven winner. Flame treating induces an ionized air stream that flame
treateralters the surface that is being treated. Flame treaters work by burning an ultra-lean gas mixture, whose excess oxygen
becomes reactive by the high treatment temperature.
The Result?
Flame treated surfaces offer many advantages, including freedom from pinholing, ozone, and backtreatment. Using the right
equipment in your process can help you achieve treatment levels above 70 dynes even on polyolefins. The increased surface tension
will now allow, inks, glues, dyes, paint, etc to adhere to the substrate creating a successful solution for your company.
Flame treating Advantages over Corona / Air Plasma Treatment
Higher achievable treatment levels
Lower treatment decay rates
No backside treatment
No ozone
No gauge or surface contour restrictions
Flame treating Advantages over Chemical Treatment
Chemical treating creates odor
No skin irritation
Less expensive
Does not require disposing of environmentally hazardous material
Chemicals expose workers to dangerous substances
Tamprinter is in the business of delivering top quality flame treatment solutions. Our machines will greatly reduce your labor
costs, workers compensation costs, and streamline your production with a higher quality product, every time.
