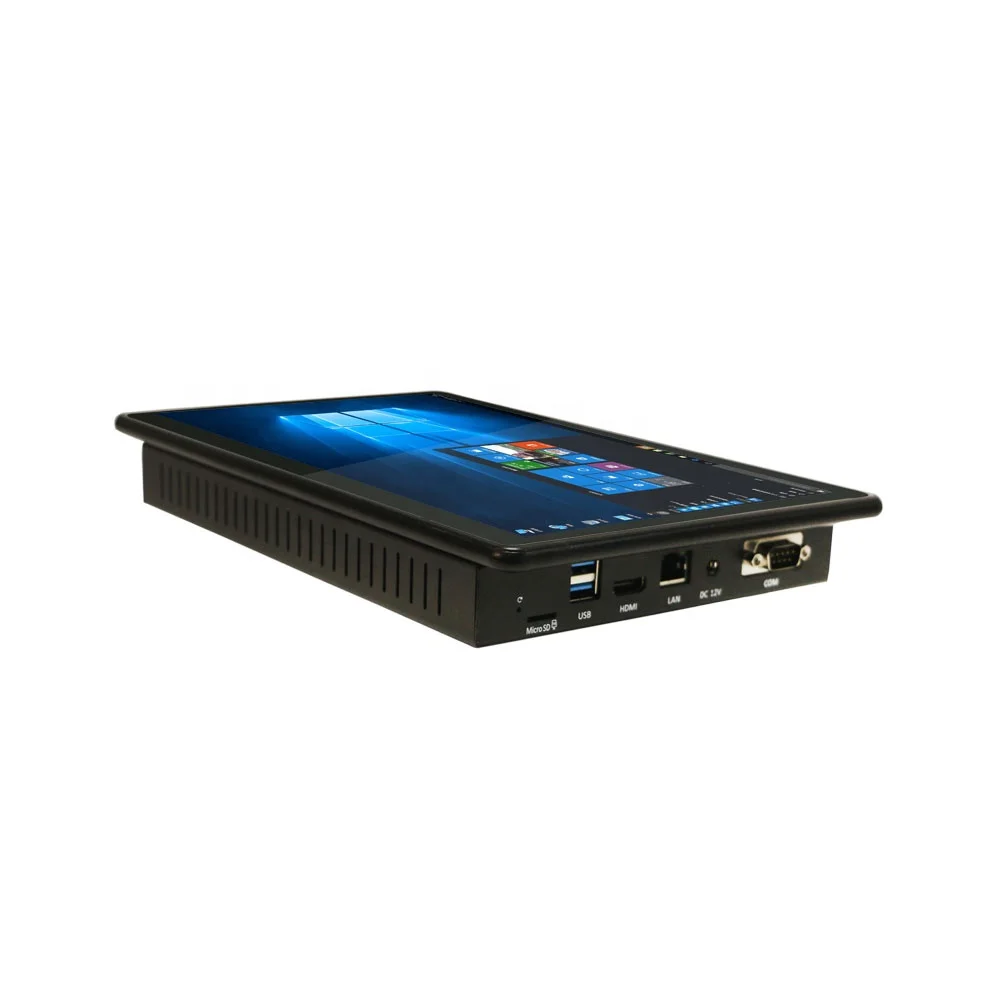

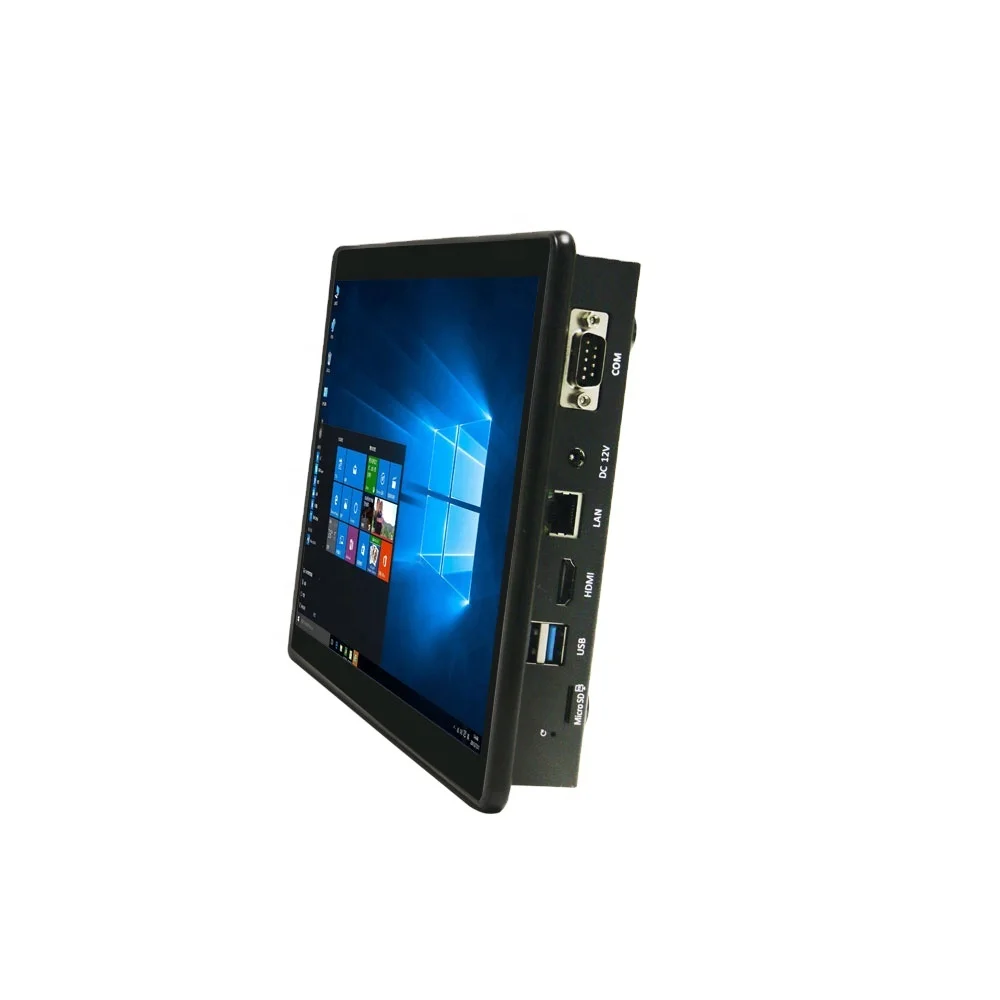

11 6 дюймов планшетный ПК Безвентиляторный Компьютер Windows сенсорный экран все в одном мини Встраиваемая промышленная
- Категория: Финансовое оборудование >>>
- Поставщик: Shenzhen,Qianhai,Gole,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 259.31 $* | 272.16 $* |
| Aug-16-2025 | 257.49 $* | 270.41 $* |
| Jul-16-2025 | 216.33 $* | 227.98 $* |
| Jun-16-2025 | 253.94 $* | 266.97 $* |
| May-16-2025 | 220.21 $* | 231.71 $* |
| Apr-16-2025 | 249.77 $* | 261.22 $* |
| Mar-16-2025 | 246.57 $* | 258.58 $* |
| Feb-16-2025 | 244.13 $* | 256.50 $* |
| Jan-16-2025 | 242.65 $* | 254.81 $* |
Характеристики
Product Description
System Physical Standard Configuration: | ||||||||||||
Type | Details | Descriptions | ||||||||||
Product Form | Form Factor | 11.6" mini Aio PC | ||||||||||
Dimensions | 283 x 177 x 42mm | |||||||||||
Weight | 1.2KG | |||||||||||
LCD | Screen Size | 11.6" | ||||||||||
Screen Resolution | 1920×1080 (IPS + 250ANSI) | |||||||||||
TP | Touch Module | G+G Multi-Touch | ||||||||||
Battery | CMOS battery | Yes | ||||||||||
System Hardware Configuration: | ||||||||||||
Type | Details | Descriptions | ||||||||||
CPU | Type | Intel Apollo Lake J3355 Dual-Core | ||||||||||
Speed | 2GHz ~ 2.50GHz | |||||||||||
GPU | Type | Intel HD Graphics 500 | ||||||||||
Memory | Capacity | 4GB (LPDDR4) | ||||||||||
Storage | eMMC | 64GB | ||||||||||
SSD (M.2; 22×42mm) | Optional (Support Customized as MOQ order) | |||||||||||
Speaker | Built-in | 8Ω/1W | ||||||||||
Micphone | Built-in | Optional | ||||||||||
G-sensor | Built-in | Yes | ||||||||||
Network Connections: | ||||||||||||
Type | Details | Descriptions | ||||||||||
WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band | ||||||||||
Blue tooth | Blue tooth Module: Intel AC3165 | Blue tooth4.2 | ||||||||||
Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan | ||||||||||
Interface Configuration: | ||||||||||||
Type | Details | Descriptions | ||||||||||
USB Interface | USB3.0 Host | ×2pcs | ||||||||||
USB2.0 Host | ×2pcs | |||||||||||
SD / TF Card reader | TF Card reader | ×1pc | ||||||||||
Audio Jack | 3.5mm headphone | ×1pc | ||||||||||
HD-MI | HD-MI1.4 | ×1pc | ||||||||||
Video output through HD-MI | Up to 4K | |||||||||||
COM Port | DB9 (RS232) | ×1pc (RS232×1pc) | ||||||||||
Button Switch: | ||||||||||||
Type | Details | Descriptions | ||||||||||
Power | On/Off | ×1pc | ||||||||||
Volume | Down/UP | ×1pc | ||||||||||
CMOS Reset | Reset by Short Press | Yes | ||||||||||
VESA hole | Standard 75 × 75mm VESA hole | Yes | ||||||||||
Main Accessories: | ||||||||||||
Type | Details | Descriptions | ||||||||||
Power adapter | DC 12V/2A | ×1pc | ||||||||||
User's Manual | User's Manual | ×1pc | ||||||||||
VESA Mount | Standard 75×75mm VESA Mount on desk | Optional | ||||||||||
Software Configuration: | ||||||||||||
Type | Details | Descriptions | ||||||||||
Power on Function | By Power Button or Auto Power on | Optional | ||||||||||
Wake up on Lan | Wake up on Lan by RJ45 | Support | ||||||||||
PXE | Preboot Execution Environment | Support | ||||||||||
Operating System | Windows 10 Pro | Optional | ||||||||||
Linux | Test by end user | |||||||||||
Environment: | ||||||||||||
Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) | ||||||||||
Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||||||||
Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||||||||
Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||||||||
Certification: | ||||||||||||
CE | CE | Optional | ||||||||||
Other | Other | Optional | ||||||||||
Features
1. Intel Celeron powerful CPU, fast speed
2 Mini size, 11.6” 1920*1080 IPS FullHD resolution
3. Low power consumption, less than 10w
4. Dual Frequency WIFI, 2.4G&5G and 1000Mbps Gigabit Lan
5. With HD-MI(up to 4K), Blue tooth, RJ45, RS232 com port, USB3.0, USB2.0, Audio Jack, TF Card reader,
7. Fanless, 7*24 hours operation
8. Wake up on lan, PXE, Auto power on
10. Standard 75*75mm Vesa Holes, can be mounted onto the wall or desk
11. Wide usage, POS system, education, 3D printing, video meeting, industrial control, advertisement, display, access control etc
2 Mini size, 11.6” 1920*1080 IPS FullHD resolution
3. Low power consumption, less than 10w
4. Dual Frequency WIFI, 2.4G&5G and 1000Mbps Gigabit Lan
5. With HD-MI(up to 4K), Blue tooth, RJ45, RS232 com port, USB3.0, USB2.0, Audio Jack, TF Card reader,
7. Fanless, 7*24 hours operation
8. Wake up on lan, PXE, Auto power on
10. Standard 75*75mm Vesa Holes, can be mounted onto the wall or desk
11. Wide usage, POS system, education, 3D printing, video meeting, industrial control, advertisement, display, access control etc
Related Products
Company Profile
Gole Technology is a leading designer and manufacturer of mini computer and rugged tablet pc. Established in 2008 and located in the QianHai Special economic zone in Shenzhen. Further, Gole is A class agent of Intel and Allwinner chipset company. Technology innovation and R&D is working strengths. Products: tablet PC, mini PC with Windows & Android. Own registered brand HiGOLE and exclusive design patent. Simultaneously focus on customization project and ODM bulk order for customers and supported by E-commerce channels and overseas distributors.Quality of products is the life. More attention paid to strict quality control. All the products will pass a full set process of SQE, IQC, IPQC,FQC as well as OQC. Hereby Sincerely hope can grow-up together with customers.
QC Flow
Certifications
Packing & Delivery
11.6" mini Windows10 Apollo all in one pc
Standard Carton Package
unit size:283*177*42mm
unit size with box:328*218*95mm
Standard Carton Package
unit size:283*177*42mm
unit size with box:328*218*95mm
FAQ
Q : Are you manufacturer?
A: Yes, we are manufacturer with our own R&D team, production lines, sales department, after-sales service team etc. We can provide OEM/ODM customized service.
Q: What is the minimum order (MOQ)?
A: We accept one unit for standard products. If necessary, we can even customize your logo. For OEM & ODM required order, welcome to contact our sales department for more details.
Q: How long will it take for the delivery?
A: For the standard products, our safe stock is 2000pcs per month. The delivery date is around 3-5 working days. Shipping method is by DHL/UPS/FEDEX/TNT.
Q: Can we get free samples?
A: Generally speaking, we could not provide free samples. If the customer confirmed, they can order the sample firstly for testing and evaluation.
Q: How to order and pay?
A: We accept Alibaba trade assurance online order, T/T bank transfer, Paypal, Western Union, L/C at sight etc.
Q: What's your products warranty?
A: We offer 12 months as warranty.
Q: How to repair the device if any problem?
A: We will provide technical support online to solve software problems. For the hardware problems, we can send the parts or components to customers and teach them how to fit it they have technicians. Or send back the defective unit to us to fix it.
Q: Is the Windows with license?(Is it true Windows 10)
A: It's optional, for Windows license, cost is $15 per unit.
A: Yes, we are manufacturer with our own R&D team, production lines, sales department, after-sales service team etc. We can provide OEM/ODM customized service.
Q: What is the minimum order (MOQ)?
A: We accept one unit for standard products. If necessary, we can even customize your logo. For OEM & ODM required order, welcome to contact our sales department for more details.
Q: How long will it take for the delivery?
A: For the standard products, our safe stock is 2000pcs per month. The delivery date is around 3-5 working days. Shipping method is by DHL/UPS/FEDEX/TNT.
Q: Can we get free samples?
A: Generally speaking, we could not provide free samples. If the customer confirmed, they can order the sample firstly for testing and evaluation.
Q: How to order and pay?
A: We accept Alibaba trade assurance online order, T/T bank transfer, Paypal, Western Union, L/C at sight etc.
Q: What's your products warranty?
A: We offer 12 months as warranty.
Q: How to repair the device if any problem?
A: We will provide technical support online to solve software problems. For the hardware problems, we can send the parts or components to customers and teach them how to fit it they have technicians. Or send back the defective unit to us to fix it.
Q: Is the Windows with license?(Is it true Windows 10)
A: It's optional, for Windows license, cost is $15 per unit.
