Stainless steel food powder ibc bin silo

USAGE:
The IBC bin is used for storage , transferr ing, and mixing of the bulk material on their processing, and handling stage in the chemical material and food industries , etc . All the IBC bins could be designed & fabricated to match with stackable request for saving handling and storage space .

FEATURES:
The IBC bin is designed with the volume ranges from 200L to 2000L, to meet the different handling and processing requirements. The bin could be designed for handling by post hoist, forklift, or manual moving operation; and could be also processed in the IBC washer,and IBC washing & drying cabinet.

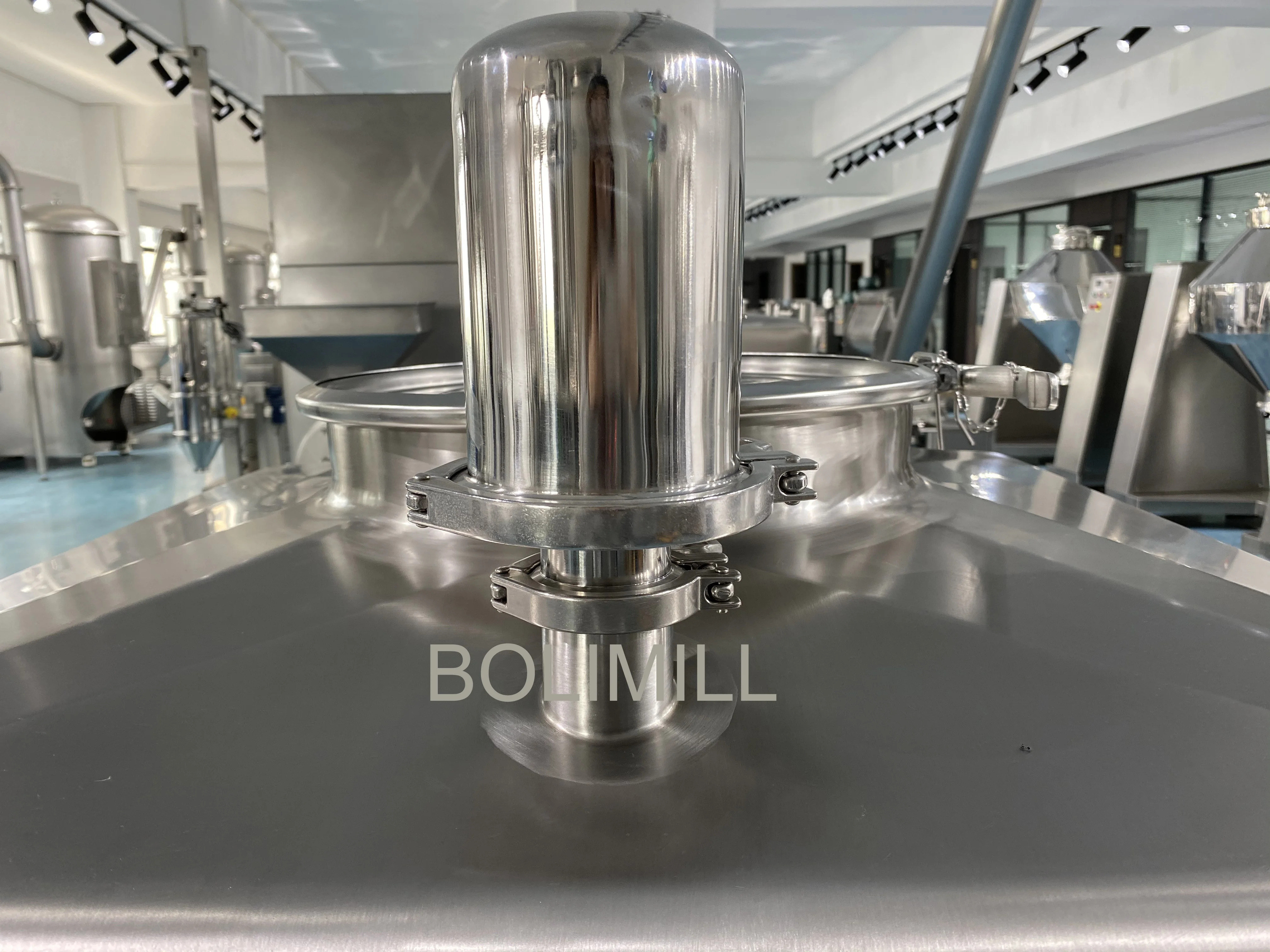

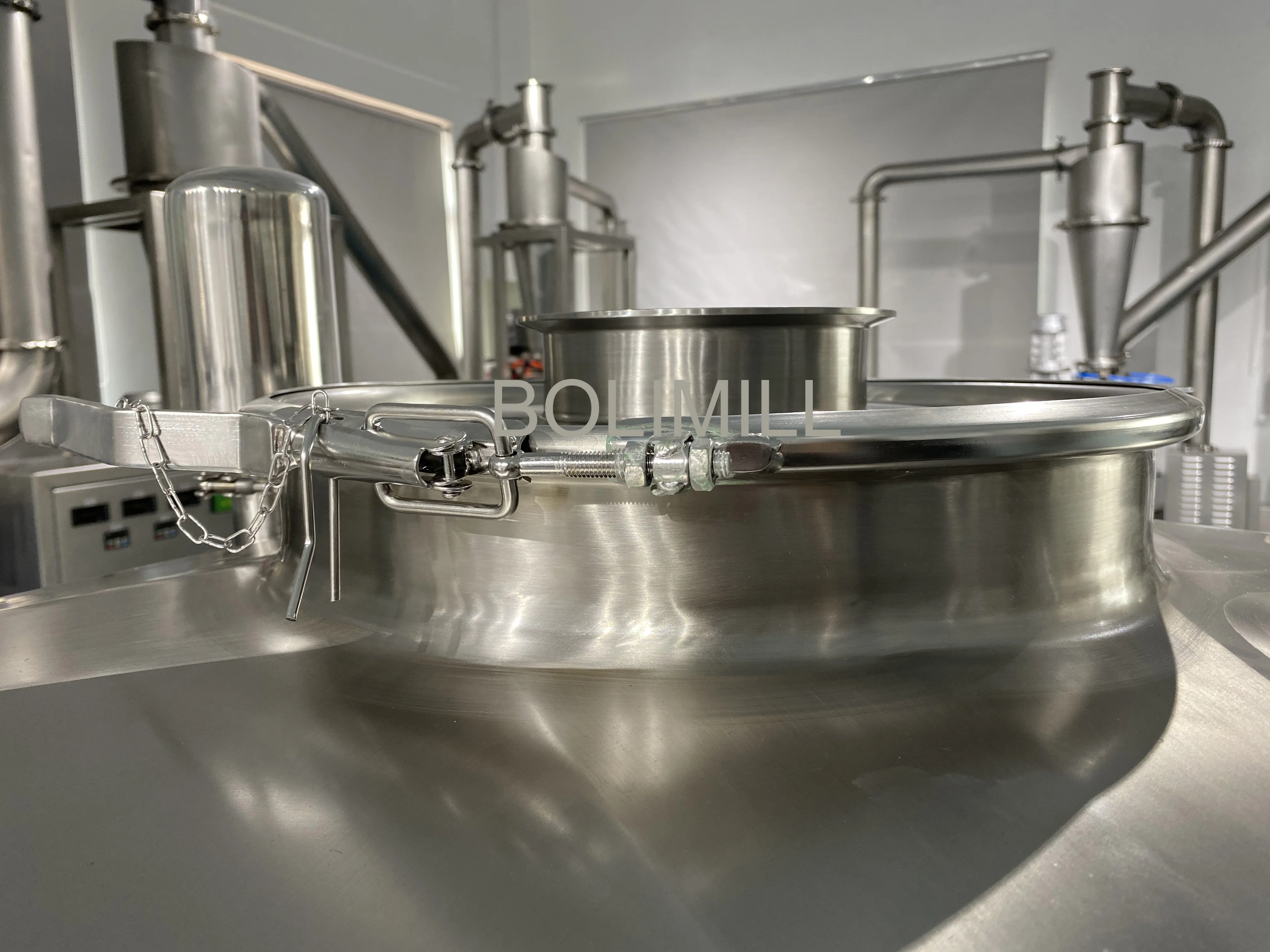

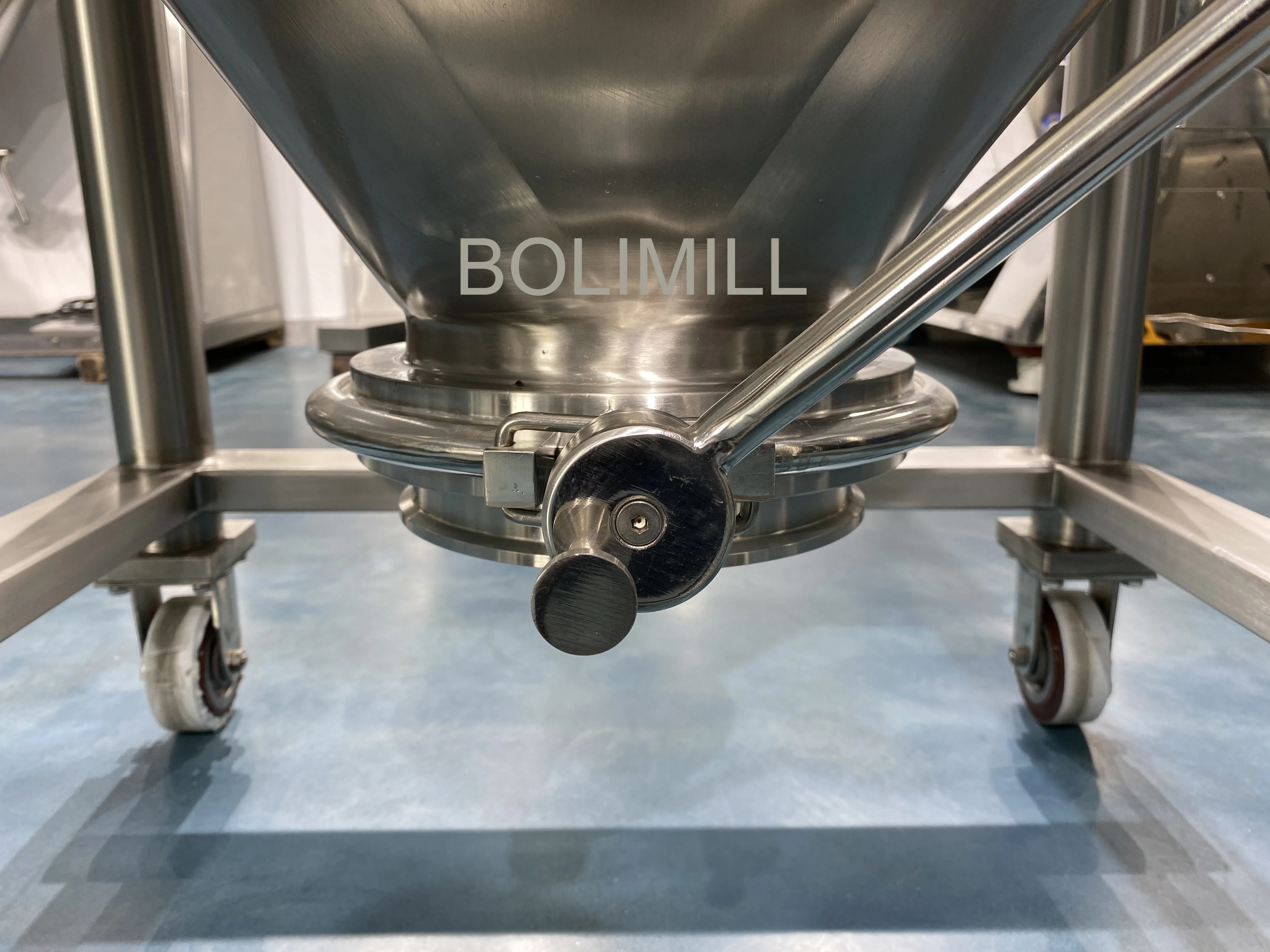

The IBC bin is designed with high-strength structure , round corner without dead angle ,tilting with no material left; the loading inlet port designed with silicon gasket sealing, and unloading port designed with silicon gasket sealed butterfly valve.
The bin is made of high-quality stainless steel, with smooth welds and the internal & external surface well-polished. lt can also be designed in the shaping according to client's particular application requirement.

Technical Data:

Model	Main Structural Dimensions(mm)					Volume	Wall thickness
	H1	H2	W	D	DN	L	t
JB-200	1097	158	594	100	150	200	2.5
JB-300	1168	204	794	125	200	300	2.5
JB-400	1290	165	794	125	200	400	2.5
JB-500	1331	229	994	125	200	500	2.5
JB-600	1366	151	994	125	200	600	2.5
JB-800	1545	118	994	125	200	800	2.5
JB-1000	1586	168	1194	150	250	1000	2.5
JB-1500	1868	99	1194	150	250	1500	3
