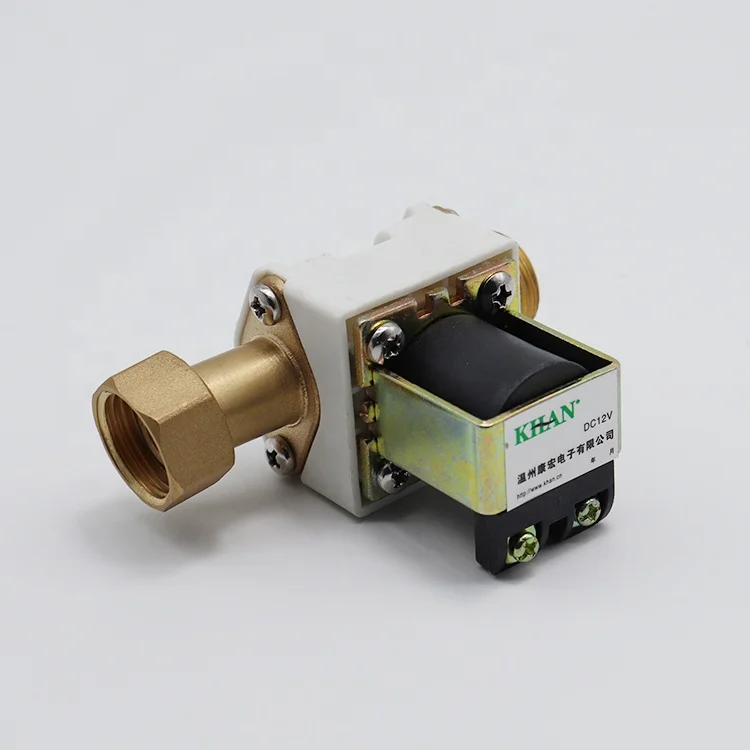

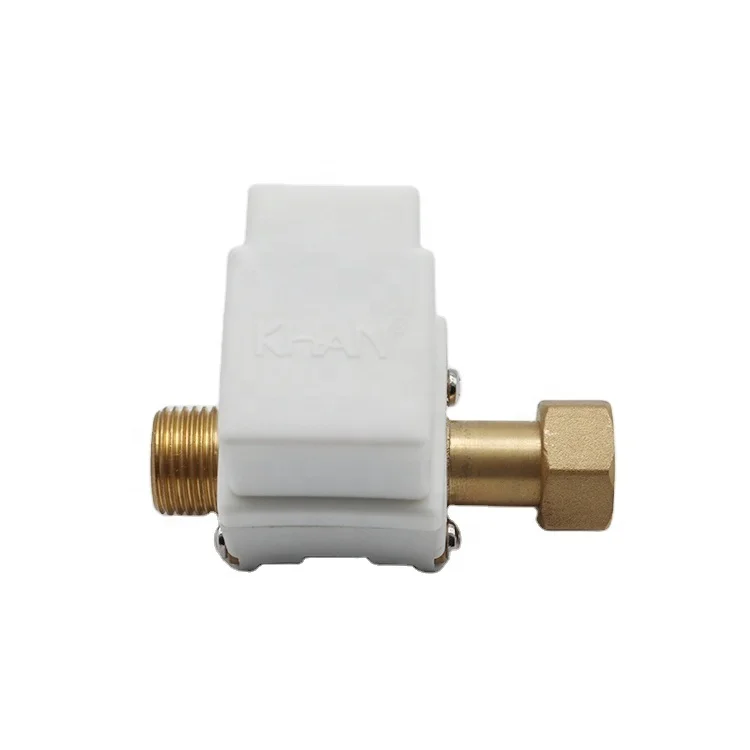

KHAN FPD-0A06 нормально закрытый односторонний 1/2 дюймовый водяной электромагнитный клапан средней температуры General

Product Name

FPD-270A06 solenoid valve

Style

Normally closed

Brand

KHAN

Colour

White

Valve body material

Plastic valve body copper joint

Place of Product

Zhejiang Province,China

Rated Voltage

DC 6/9/12/24V

AC 220V

Modes of packing

Packed in corrugated paper cartons

Application

Water Purifier and Water dispenser series etc.

Life Expectancy

≥100k cycles

Input connection way

4 external threads

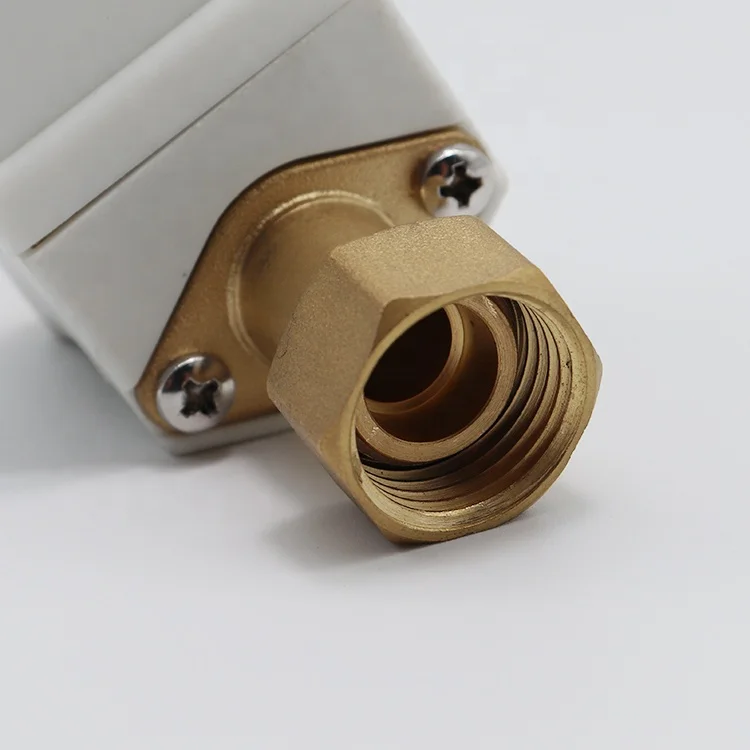

Output connection way

4 inner threads

Medium temperature

0~80℃

Non-return function

No

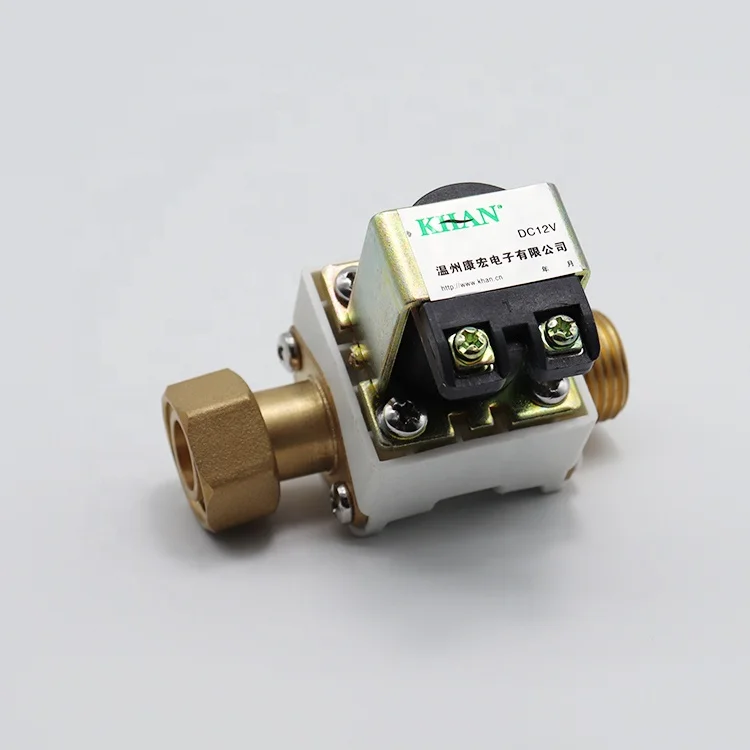

Power supply connection way:

fixed with M3 screw/6.3 Insert piece

Guarantee Period:

Under the normal use conditions,the quality warranty period for our goods is 12 months

Variable voltage of supply supply voltage:

-10%~+10%

Insulation resistance:

Tested by DC500V megohmmete for 1 min,the insulation resistance should≥100MΩ

Watertight performance:

Hydrostatic pressure 0.02Mpa,leakage ratio 0 mL/min

Hydraulic pressure withstand:

withstand hydrostatic pressure of 1.2 Mpa for 5 min,no unbroken,deformation or outside leakage

Reliability:

0.02-0.8Mpa,make and break for 10s respectively, lasting 1h, the check valve should be unlocked;

Flow characteristic:

Pressure 0.02Mpa,Flux 3L/min;Pressure 0.1Mpa,Flux 8L/min;Pressure 0.3pa,Flux 12L/min;Pressure 0.8Mpa,Flux 25 L/min

Across layers insulation:

Withstand high voltage pulse for 2s,it should be normal

Continuously energized:

Energize for 12^th,but not connect through the water,the valve should be deformation,and the coil should not be burned

Withstand voltage:

The acceptable high-voltage power between electric conduction and outer without electrified metal withstand AC1500V 50HZ for 1 min,no flashover or breakdown;withstand AC1800V,50HZ for 1s,no flashover or breakdown
