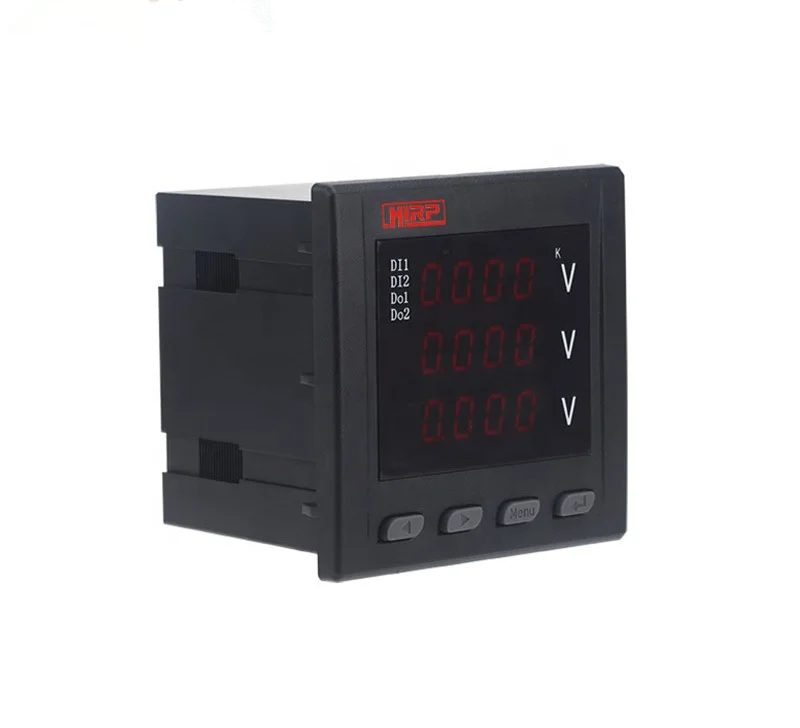

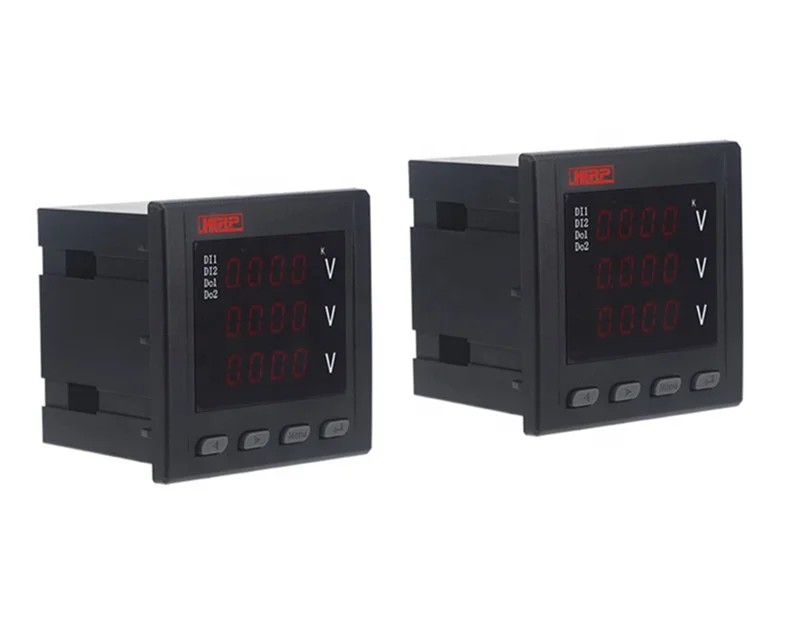

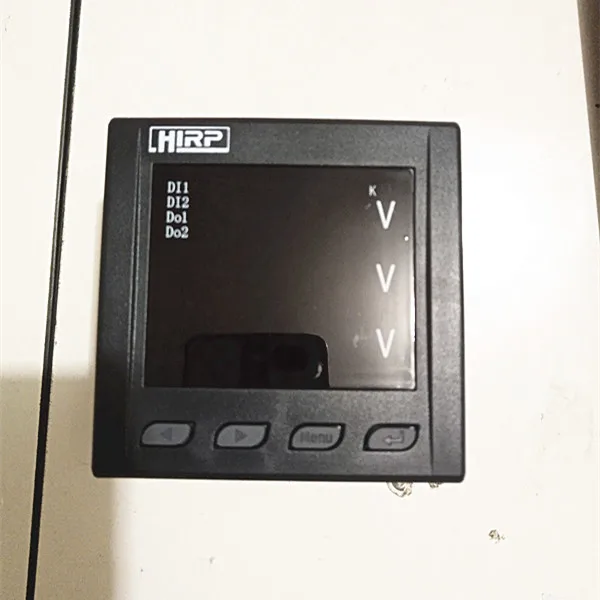

Трехфазный цифровой многофункциональный измеритель напряжения RPPZ655U-9K4 светодиодный
- Категория: Voltage Meters >>>
- Поставщик: Yueqing,Renping,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.74 $* | 0.66 $* |
| Aug-16-2025 | 0.14 $* | 0.58 $* |
| Jul-16-2025 | 0.94 $* | 0.79 $* |
| Jun-16-2025 | 0.36 $* | 0.45 $* |
| May-16-2025 | 0.47 $* | 0.13 $* |
| Apr-16-2025 | 0.47 $* | 0.91 $* |
| Mar-16-2025 | 0.59 $* | 0.65 $* |
| Feb-16-2025 | 0.28 $* | 0.31 $* |
| Jan-16-2025 | 0.50 $* | 0.27 $* |
Характеристики
Product Description
This digital panel voltmeter is applicable for electric power grid and automation control systems, mainly used to measure voltage in power grid. According to the additional functions, the meters can be divided into X, K series.
X series digital display intelligent voltmeters adopt direct AC sampling, use algorithm of True RMS to measure the voltage, and employ direct display of LED tube.
K series intelligent digital display meters are designed on the basis of X series, can be an optional of 1-3 channels of analog transmitting output (4-20mA,etc.) , 1-4 channels of digital input measuring function (realizing“remote signaling” ) ,1-2 channels of relay output function (realizing “remote control” ); and 1 channel of RS-485 digital interface, adopting Modbus-RTU protocol to realize “remote measurement” function, it is flexible and convenient to use and with three-row digital display or single-row digital display.
The meters also can be divided into single-phase voltmeter and three-phase voltmeter according to the measured power network,. Display mode of single-phase voltmeter is single-row digital display or liquid crystal
display; Display mode of three-phase voltmeter are three-row digital display or liquid crystal display.
Detailed technical specifications refer to the technical indexes of digital display meter.
**Basic Specification and Main Parameters
| Indexes | ||
| Accuracy class | Class 0.5 | |
| Display mode | LED or LCD | |
| Input | Nominal input | Voltage AC100V, 220V, 380V, etc; current AC1A, 5A, etc. |
| Overload | Last: 1.2 times, instantaneous: voltage 2times/1s, current 10times/5s | |
| Frequency | 40~65Hz | |
| Current | Power supply | AC 220V; AC/DC 80V-270V Can be customized |
| Power consumption | <4VA | |
| Transmitting output | When it is DC4~20mA current output, load<510Ω, when it is DC0~5V voltage output, load>20kΩ | |
| Communication interface | RS-485 interface, Modbus-RTU protocol, default baud rate is 4800 (optional 2400, 9600) bps | |
| Relay input | Digital input, dry contact | |
| Isolation withstand voltage | Power and input>AC2kV, power and output >AC2kV, output and input >AC1kV | |
| Insulation resistance | ≥100MΩ | |
| Mean time between failures | ≥50000h | |
| Working condition | Ambient temperature: -10~55℃, relative humidity ≤93%, locations free of corrosive gas | |
| Storage environment | -25~70℃, relative humidity ≤93% | |
| Altitude | ≤2500m | |
**You can choose different size according to following Outline dimension table
**Similar products:
RPPZ657U-9K4
Certifications
FAQ
1,Q:Why your quotation is higher than some other suppliers?
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost meter which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable meter!
..............................................................................................................................................................
2,Q:Your meter power supply is 220V,380V or other voltage?
A:Our meter power supply is normally 220V(240V)AC,50Hz,if you need 380Vac or AC/DC 80V-270V,then you It needs to be customzied.
..............................................................................................................................................................
3,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.
..............................................................................................................................................................
4,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
..............................................................................................................................................................
5,Q: What’s the delivery time?
A: It usually takes about 1-5 working days for small sample order and 10-35 days for big order.
