Ddgtndt испытательное оборудование высокого напряжения импульсный детектора праздника DGT-HD6 Spark покрытие для проделывания отверстий детектор утечки
- Категория: Промышленные металлоискатели >>>
- Поставщик: Dandong,Flaw,Detector,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 774.86 $* | 813.89 $* |
| Aug-19-2025 | 767.36 $* | 805.90 $* |
| Jul-19-2025 | 644.83 $* | 676.16 $* |
| Jun-19-2025 | 754.92 $* | 792.77 $* |
| May-19-2025 | 657.22 $* | 690.27 $* |
| Apr-19-2025 | 741.17 $* | 778.35 $* |
| Mar-19-2025 | 735.97 $* | 772.59 $* |
| Feb-19-2025 | 728.48 $* | 764.51 $* |
| Jan-19-2025 | 722.40 $* | 758.80 $* |
Характеристики
Product Description

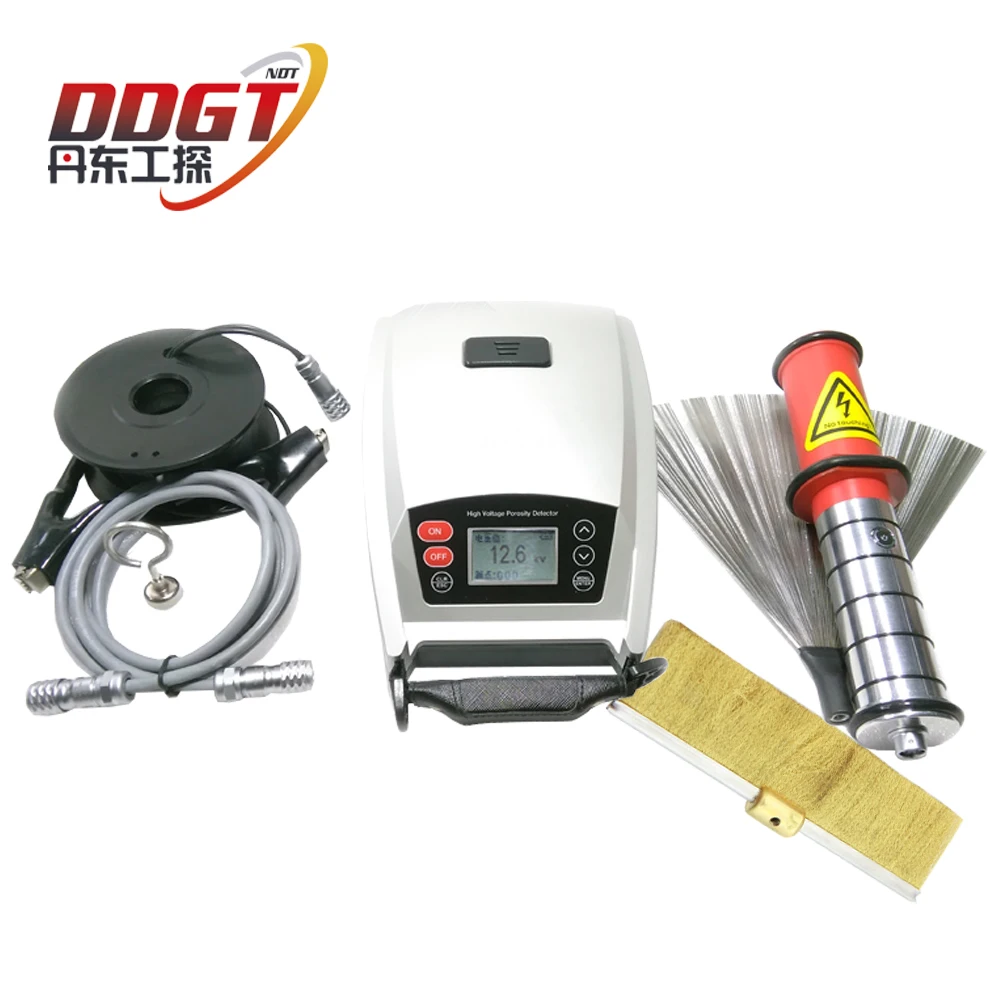

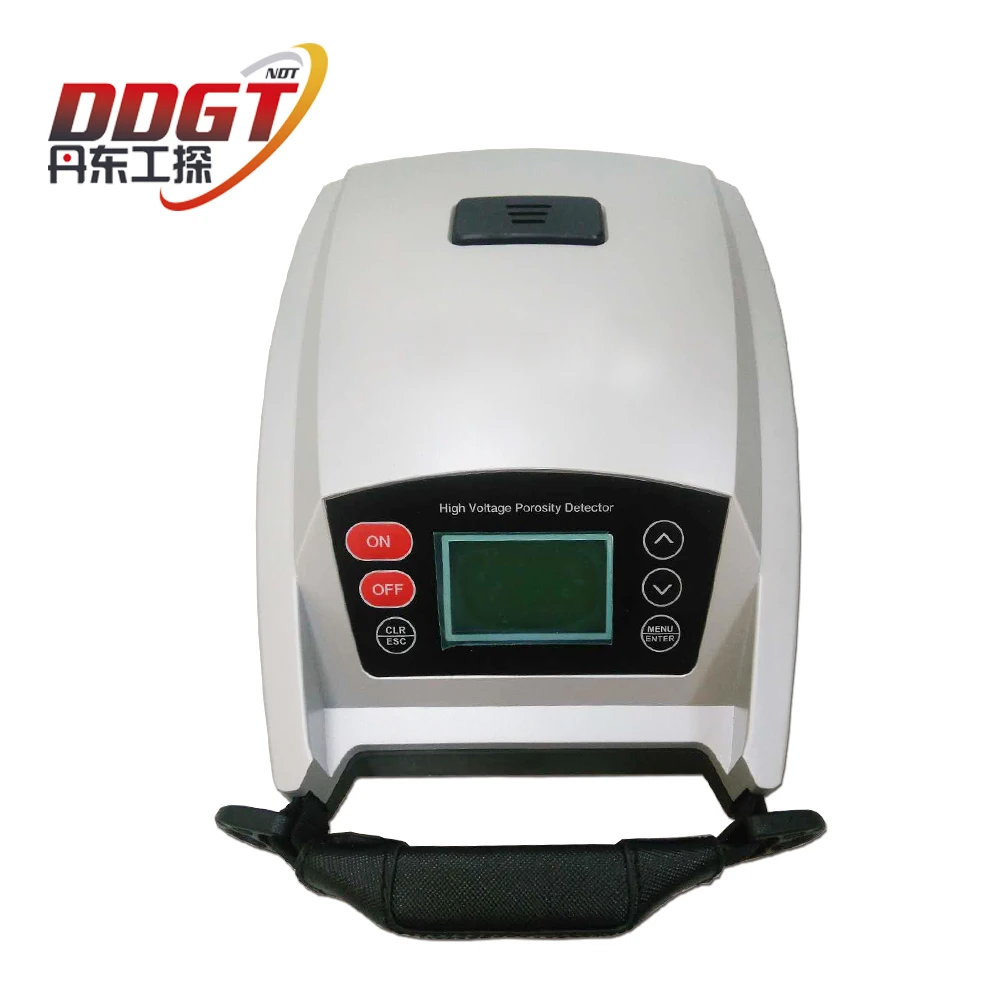

DDGTNDT Testing Equipment High Voltage Pulse Porosity Holiday Detector DGT-HD6 Spark Coating Pinhole Leak Detector
Overview
DGT-HD6 holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±（0.1KV+3%reading）.It can adjust its value of voltage according to the thickness of protecting coating. DGT-HD6 use lithium battery for power source, it is also can be used in field.
Working principle
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
Application
The equipment design of DGT-HD6 is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
DGT-HD6 holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±（0.1KV+3%reading）.It can adjust its value of voltage according to the thickness of protecting coating. DGT-HD6 use lithium battery for power source, it is also can be used in field.
Working principle
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
Application
The equipment design of DGT-HD6 is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
Specification
Model | DGT-HD6 Holiday Detector |
Test voltage range | 0.6KV～30KV |
Thickness range | 0.05～10mm |
High voltage output | Pulse |
Voltage display | 3 digit |
Resolution | 0.1KV |
Voltage precision | ±（0.1kv+3%） |
Max leak record | 999 maximum |
Way of alarming | Headphone buzzer and light |
Shutdown | Auto and Manual |
Display | 128*64 LED screen with backlight |
Power | ≤6W |
Size | 240mm*165mm*85mm |
Battery | 12V 4400mA |
Working time | ≥12 hours(Max voltage) |

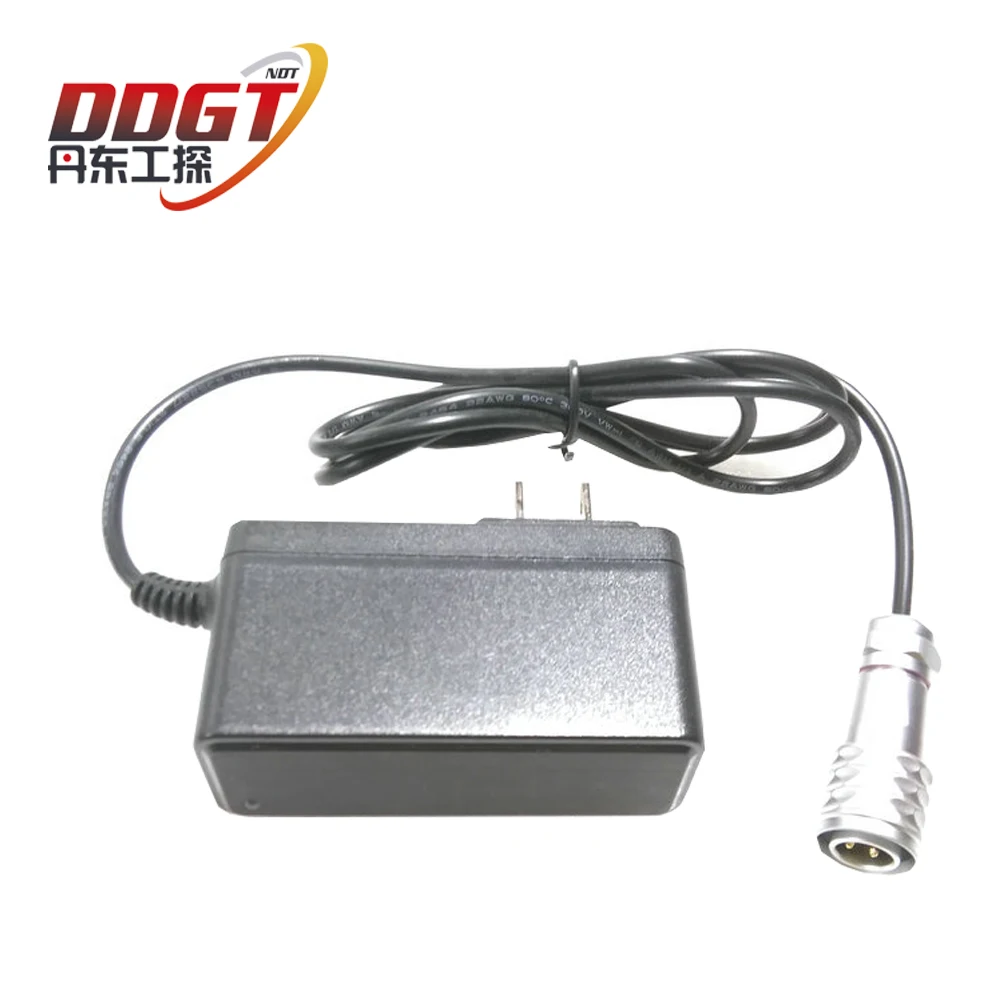

Voltage of adapter | Input AC 100-240V Output 12.6V 1A |
Probe wire | Close to 1.5m |
Earth lead wire | 2*5m black/black |
Packing & Delivery
DDGTNDT Testing Equipment High Voltage Pulse Porosity Holiday Detector DGT-HD6 Spark Coating Pinhole Leak Detector
Company Profie
Our company DDGT NDT was founded in 1988,which is one of the well known companies specialized in Non-dectructive testing(NDT) equipments. After 20 years' development,we have accumulated abundant technical force and established a wealth of design and practical experience.We are a manufacturer and trading company. Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our Service
DDGTNDT Testing Equipment High Voltage Pulse Porosity Holiday Detector DGT-HD6 Spark Coating Pinhole Leak Detector
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
