УФ планшетный принтер
- Категория: Цифровые принтеры >>>
- Поставщик: Linyi,Wanna,Deyin,Digital,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.8 $* | 0.3 $* |
| Aug-15-2025 | 0.98 $* | 0.65 $* |
| Jul-15-2025 | 0.80 $* | 0.87 $* |
| Jun-15-2025 | 0.24 $* | 0.63 $* |
| May-15-2025 | 0.80 $* | 0.65 $* |
| Apr-15-2025 | 0.69 $* | 0.13 $* |
| Mar-15-2025 | 0.79 $* | 0.59 $* |
| Feb-15-2025 | 0.76 $* | 0.60 $* |
| Jan-15-2025 | 0.39 $* | 0.73 $* |
Характеристики

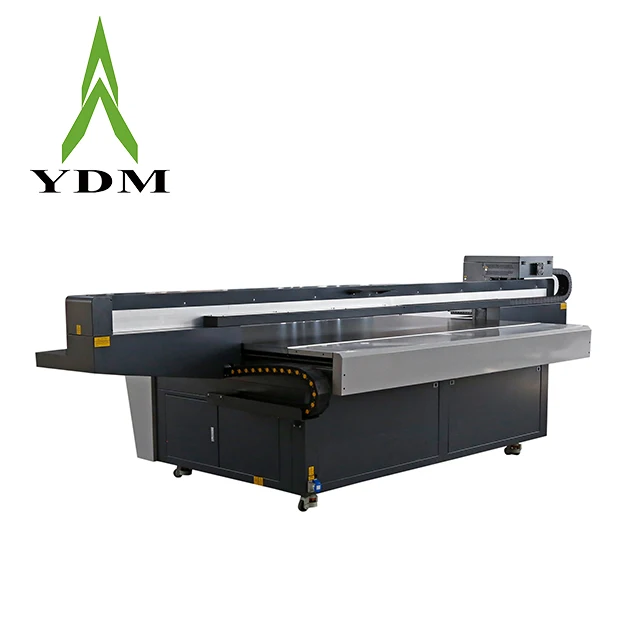

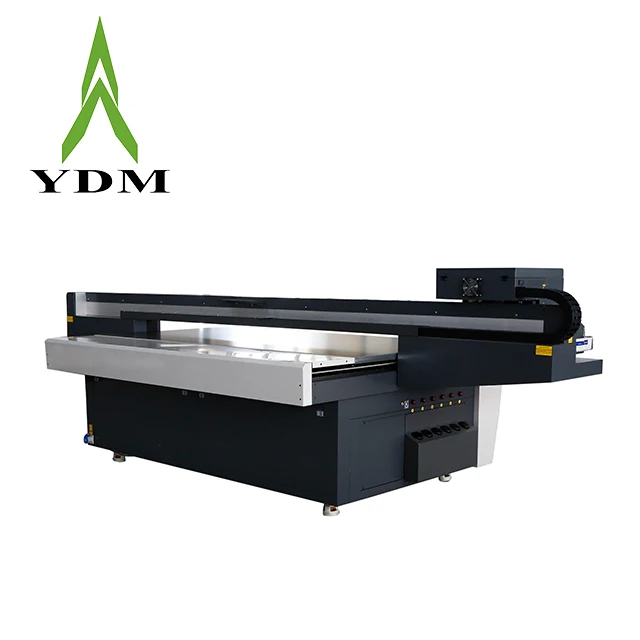

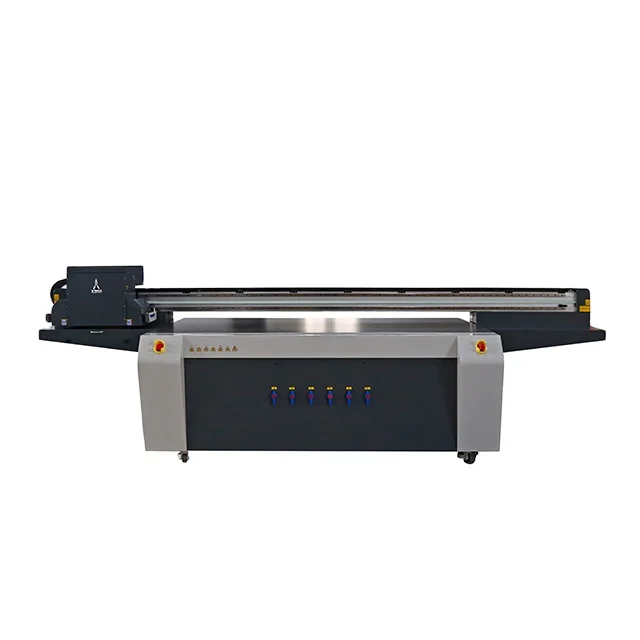

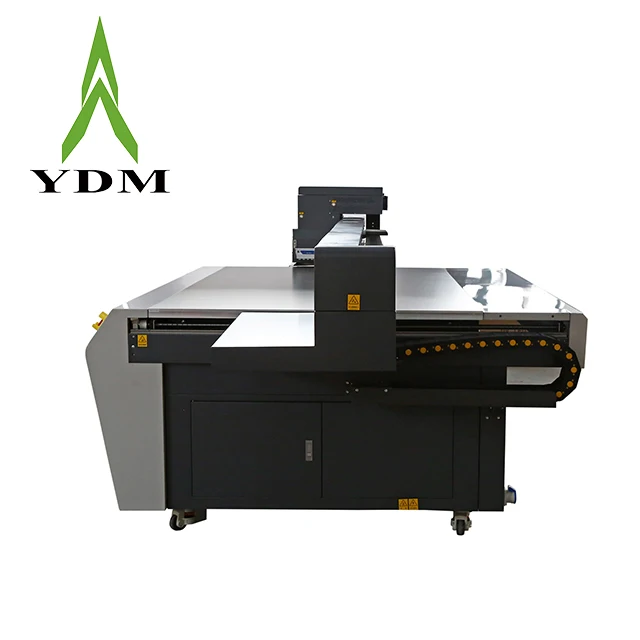

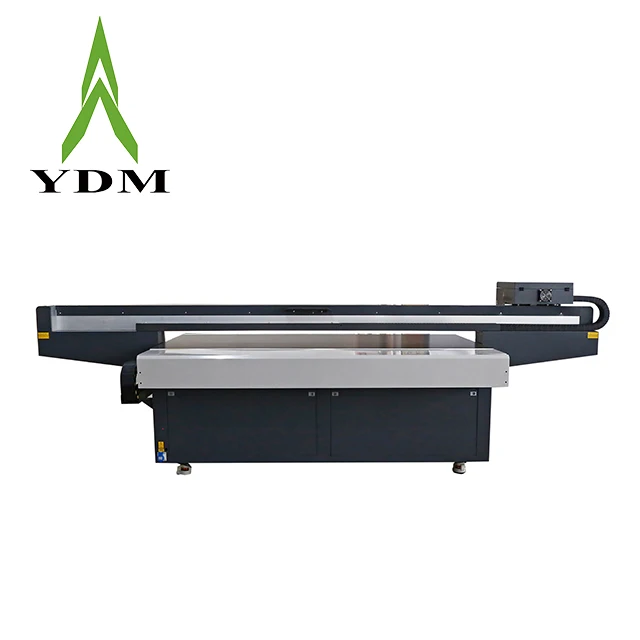

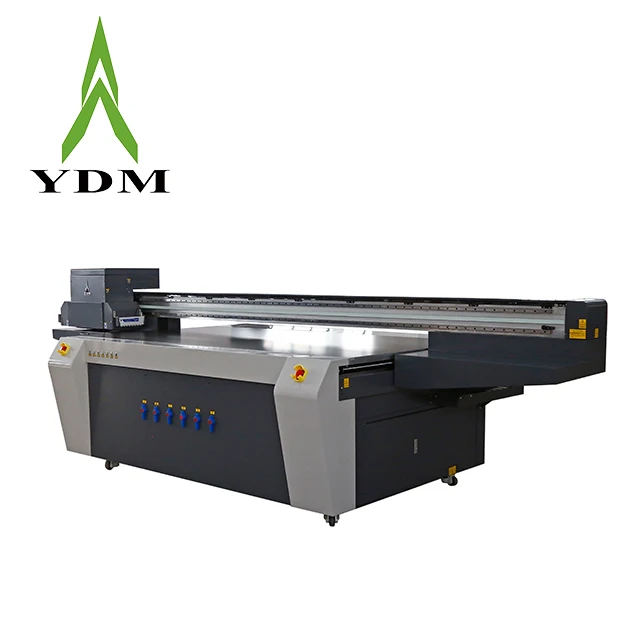

YDM UV 2513 Flatbed Printer has 4- 16 PCS CE4M printheads , CMYK/ CMYK+W+V color set and the printing thickness is 10 cm , larger size can be customized. It can print on acrylic, aluminum, ceramic,card board ,foam board, glass and other flatbed materials .If printer has rotary attachment , it also can print on cylindrical and small spherical objects , sush as bottles , cans, golf balls and pingpong balls etc.
Product Description
Technical Parameters
Technical Data | UV2513 TOSHIBA series | |
Print Technology | ||
Print Format | 250 x 130 cm / 8 x 4 ft | |
Print Height | 10 cm / 4 in ( Max. 40 cm / 16 in ) | |
Head Model | Toshiba CE4, Auto Heating, 4~16 ph | |
Color Set | CMYK+LM+LC+W+V; CMYK+W+V, CMYK+2W+2V; CMYK+W+CMYK | |
Control System | KNFUN, Toshiba Official Partner | |
RIP Software | UnitedFancy, Developed by Holland Aurelon | |
Print Direction | Uni / Bi-directional , Front / Rear Alternative | |
Resolution | 4 PASS : 600 x 600 dpi 6 PASS : 600 x 900 dpi 8 PASS : 600 x 1200 dpi | |
Print Speed | Production mode: 15-18 sqm/h Quality mode: 12-15 sqm/h High resolution mode: 10-12 sqm/h | |
Machine Highlight | ||
Heavy Duty Frame | Strengthened aluminum beam + Thicken steel base | |
Driving Mode | HIWIN linear rail + Servo motor + Lead screw + IGUS Drag chain | |
Protective Device | Anti-collision + Static eliminator | |
Work Table | Anodized aluminum table + Independent vacuum control | |
Ink System | Negative pressure Ink supply + White Ink stirring and circulation | |
Curing System | Imported UV lamp, 30000 Hours Lifespan + Water cooling Chiller | |
Height Detection | Automatic sensor | |
Others | ||
Print Media | Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc | |
PC configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G | |
Signal Transmission | Optical Fiber + USB 3.0 | |
Color Control | Comply with ICC standards, With curve and density Adjustment function | |
File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF | |
Power Supply | AC220V,50/60HZ | |
Working Power | 3.5 KW | |
Noise | Standby < 32 dB ; Working < 65 dB | |
Machine Size | 4.6 m x 2 m x 1.45 m | |
Net Weight | 1600 KG | |
Technical Highlights
Application
Certifications
Company Profile
Factory &warehouse
Strategic Parter
Production Process
Exhibition
Why choice us?
Recommend Products
FAQ
1.Do I Need White Ink?
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities. That’s because white ink will help create high-quality graphics on rigid or flexible substrates, like acrylic sheets or backlit films, and can also be used as a “base coat” for printing on non-white materials. Printing white simultaneously with color is ideal when required.
you will be pushing the boundaries of value with great production and quality capabilities that can open your business up to an even broader customer base.
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities. That’s because white ink will help create high-quality graphics on rigid or flexible substrates, like acrylic sheets or backlit films, and can also be used as a “base coat” for printing on non-white materials. Printing white simultaneously with color is ideal when required.
you will be pushing the boundaries of value with great production and quality capabilities that can open your business up to an even broader customer base.
2.Do I Need a rotary model ?
Flatbed printers are ideal for a wide range of applications but there are still some jobs that are better suited for a roll-to-roll printer. Ink type is a big factor here since flatbeds are primarily UV, while various rotary models can utilize dye-sublimation, solvent, latex, aqueous or UV inks.
3.What materials can UV flatbed printer print on?
POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
4.What’s RIP installation interface supported language?
4.What’s RIP installation interface supported language?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional)
5.What about the after-sales service ?
5.What about the after-sales service ?
We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.
6.what about maintenance of the printer?
About maintenance,we suggest to power on the printer once a day. If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head) .
7.Are you a factory or trade company ?
A factory, so we can supply the reasonable price printer and good service.
