QSMOTOR 3000W 72V 80kph Hub Motor with EM100SP controller and kits for electric scooter
For 3000W motor kits, it could be used for electric scooter, which could be 72V 80KPH.
e.g. Electric Scooter
E-scooter weight, approx 108kg+1*100kg
Speed: 80 peak km/h
Climbing slope: 10 degree@208kg
Tire: 120/70-12
Battery: 72V40AH LG cell Lithium Battery

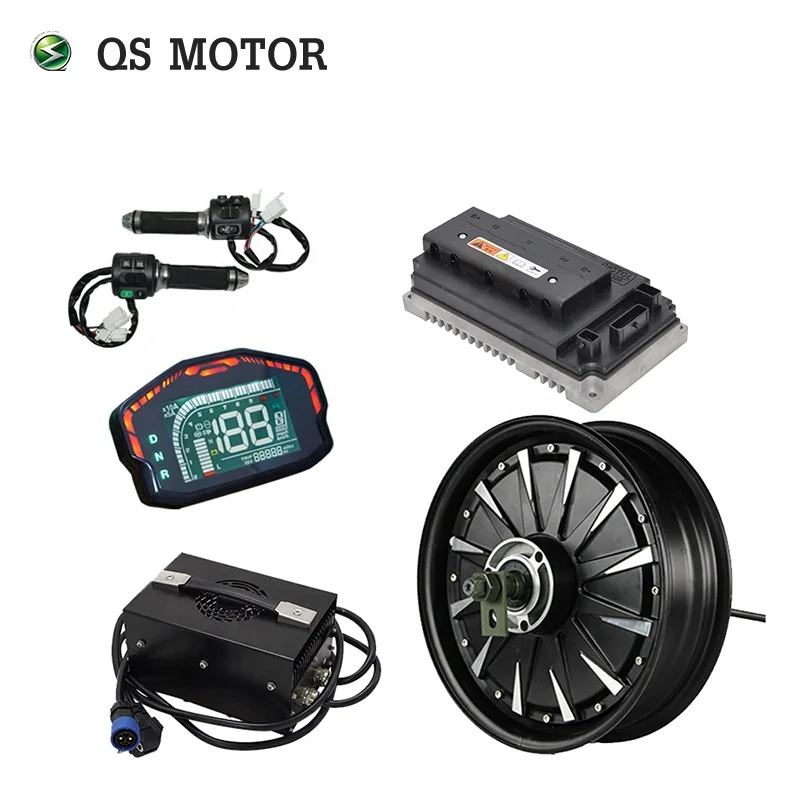

One set including below kits
Combo1.
1. 1pcs X QSMOTOR 3000W electric wheel hub motor
2. 1pcs X EM72100 sine wave motor controller with standard CAN-BUS
3. 1pcs X 1800W charger with CAN-BUS
4. 1pcs X DKD LCD speedometer
5. 1pcs X Z6 throttle with combination switch

Combo2.
1. 1pcs X QSMOTOR 3000W electric wheel hub motor
2. 1pcs X EM72100 sine wave motor controller with standard CAN-BUS
3. 1pcs X 1800W charger with CAN-BUS
4. 1pcs X 72V 40Ah Battery
5. 1pcs X DKD LCD speedometer
6. 1pcs X Z6 throttle with combination switch
(ps :The battery is difficult to transport, please communicate offline)



Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%



Product Description

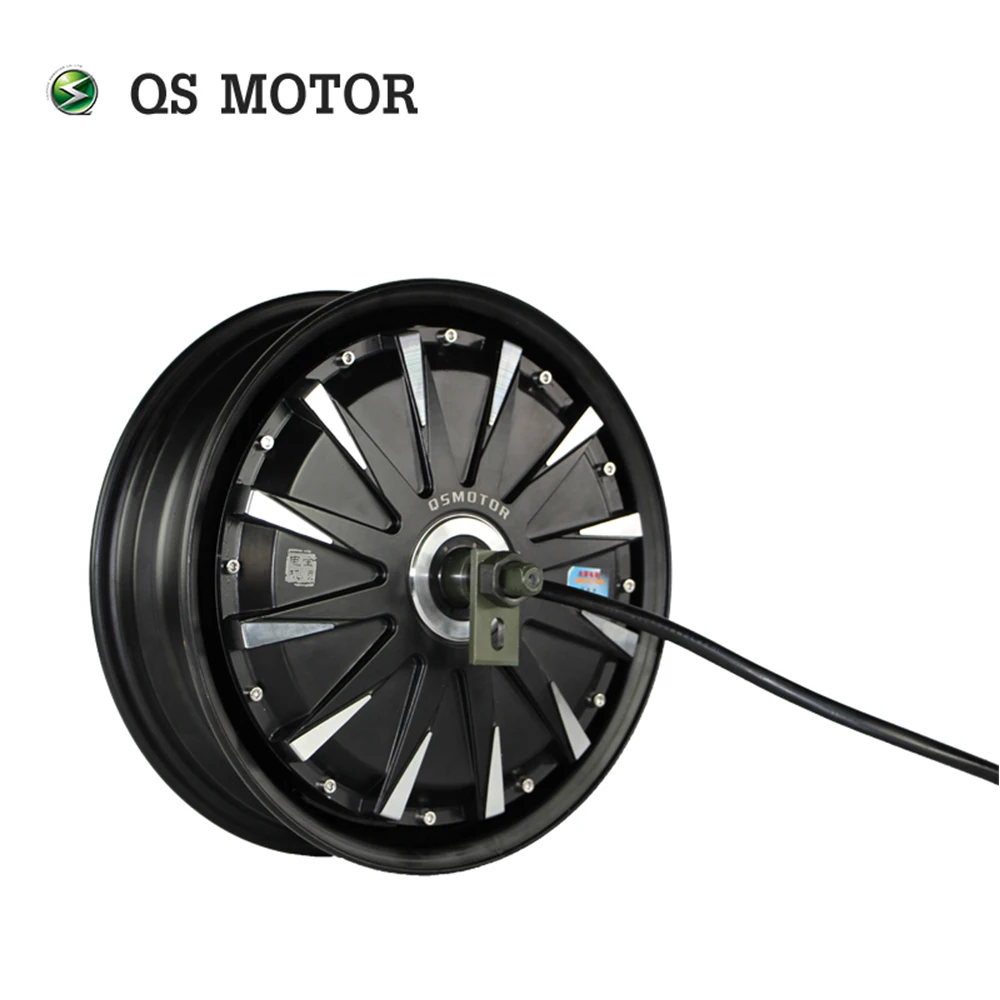

1. QSMOTOR 12X3.5inch 3000W V1.2 Electric Scooter Hub Motor

Drawing

Test Report

For Motor

Chassis dynamometer

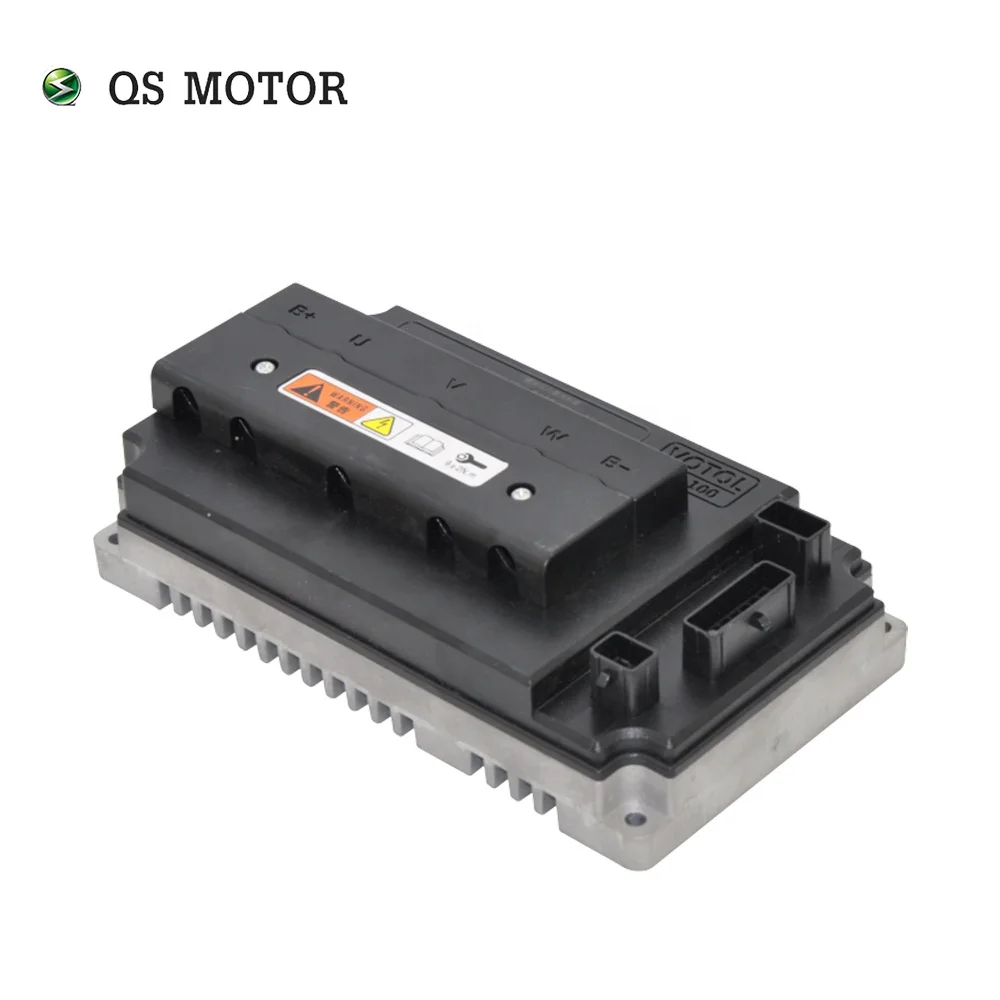

2. EM100SP 72V sinusoidal wave BLDC motor controller, with CAN BUS

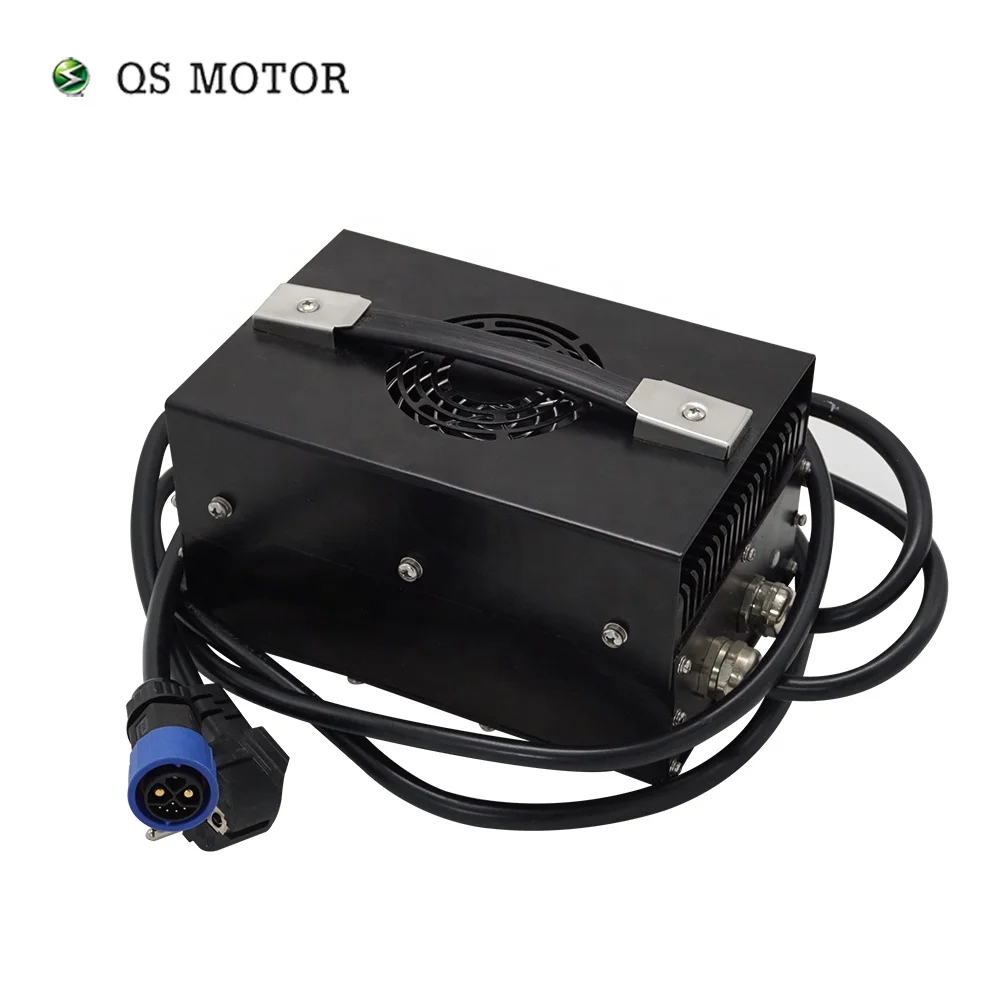

3. 1800W battery charger with CAN BUS (disable CAN as default, to fit with battery)

4. 72V40Ah Battery

(ps :The battery is difficult to transport, please communicate offline)

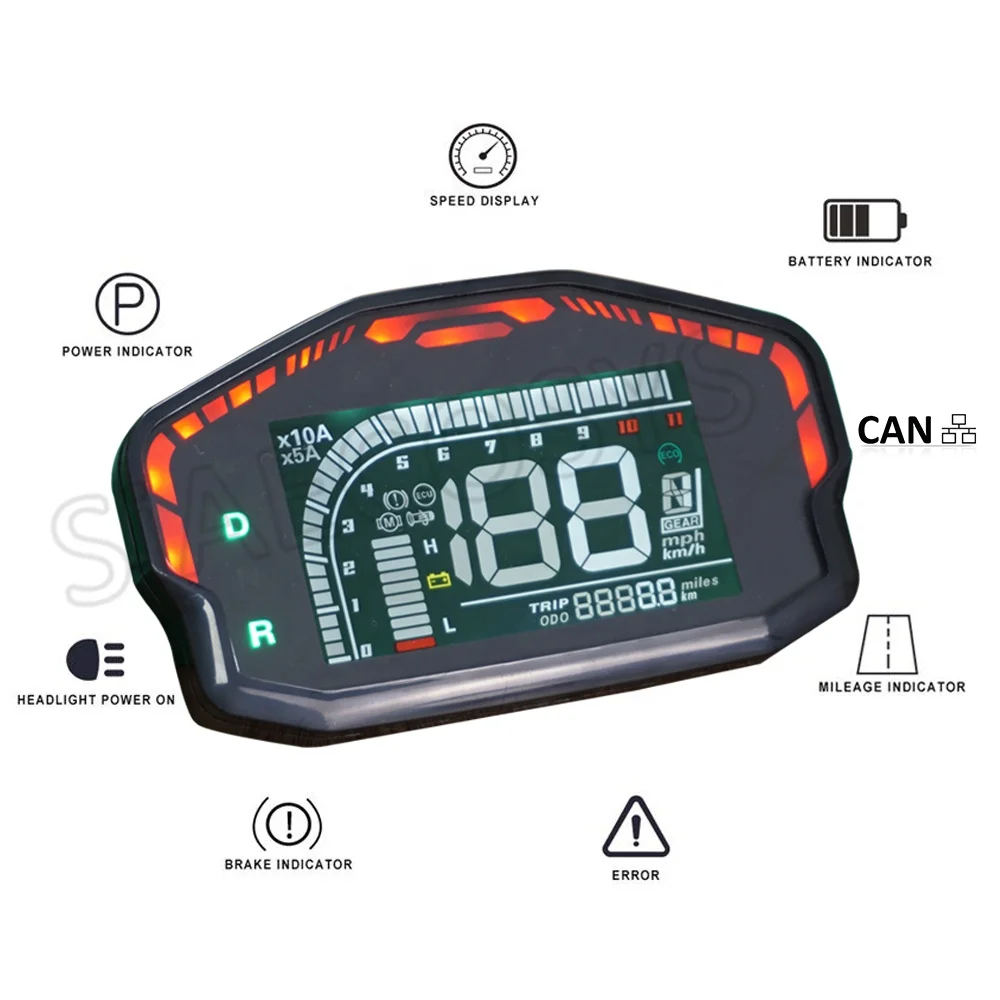

5. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

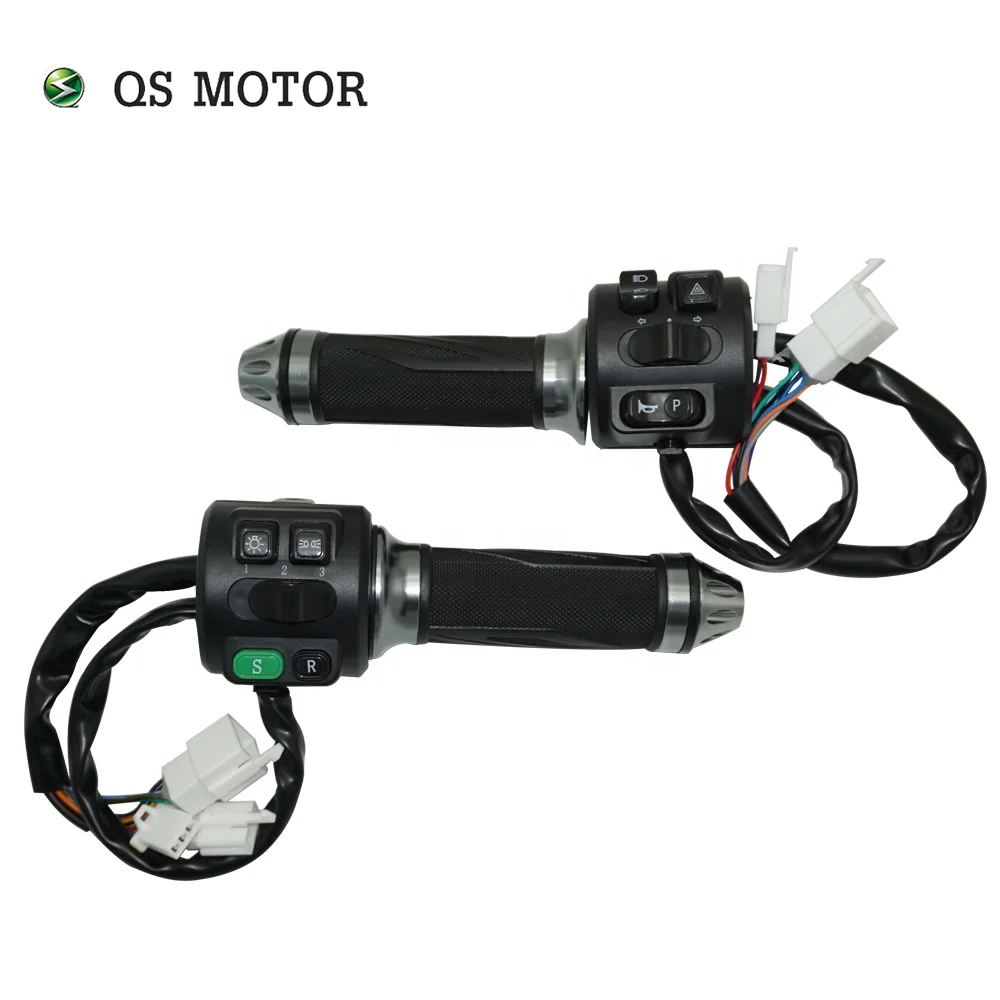

6. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.

Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

Application

A note to client
1. Please contact seller confirm the parameter, otherwise we will produce as default.
2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is Customized based on application, without in stock).
3. When place order please leave email address, for seller provide manual.
4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
