Гидропоника Hanyang теплица для выращивания тамато используемая в
- Категория: Single-Span Greenhouses >>>
- Поставщик: Qingzhou,Hanyang,Greenhouse,Project,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 17.7 $* | 17.23 $* |
| Jul-17-2025 | 13.5 $* | 13.68 $* |
| Jun-17-2025 | 16.45 $* | 16.31 $* |
| May-17-2025 | 16.34 $* | 16.57 $* |
| Apr-17-2025 | 13.11 $* | 13.43 $* |
| Mar-17-2025 | 16.83 $* | 16.71 $* |
| Feb-17-2025 | 16.25 $* | 16.15 $* |
| Jan-17-2025 | 16.44 $* | 16.4 $* |
Характеристики
Product Description
We can customize the greenhouse for you.The main structure of the multi-span flim greenhouse is simple, mainly using galvanized steel parts and components. The curved roof is beautiful and smooth, the lines are smooth, the structure uses steel, and the structure is stable. The covering material is plastic film.
Product name | Multi-span Greenhouse |
Frame material | Hot Galvanized Steel Tube |
Covering | 0.15mm/0.20mm PO film |
Length | 20m-200m/Customized |
Width | 8m/10m customized |
Gutter Height | 3m-10m |
Ventilation | Roof Ventilation+side Ventilation |
Cooling system | Cooling Pad Fan System |
Shading System | Inside+outside Shading |
Application | agricultural planting or ecological restaurant |

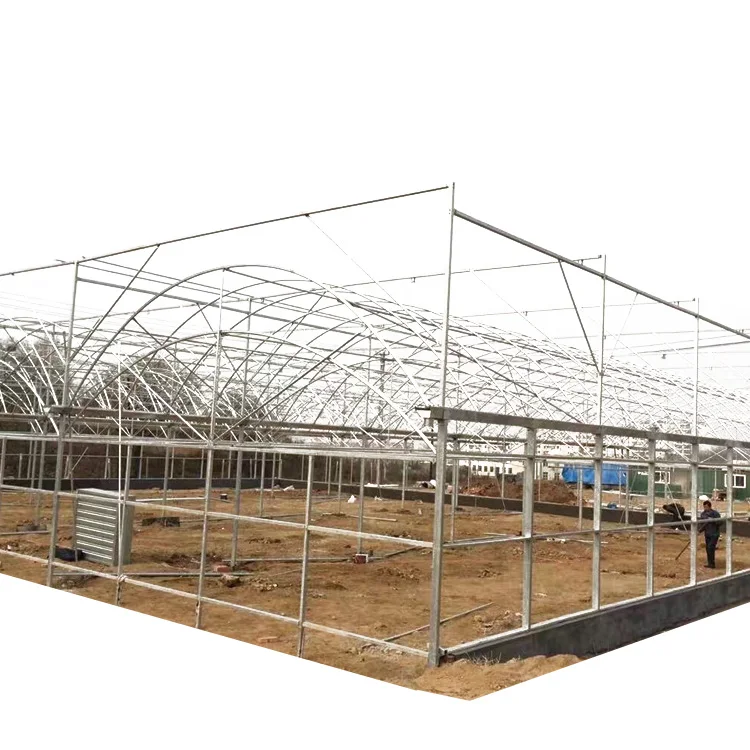

Main structure
The steel structure is made of high quality carbon steel with hot galvanized layer which will be not less than 170g.
Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Cover material
150/200 microns Plastic Film with life 3--5 years
anti-aging and anti-drip, will be fixed by special film lock channel and wriggle wire.
Project system
External sunshade system
Material:Black Round-Wire Sunshade Net
Introduction:Installed and fixed above the frame of greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Introduction:Installed and fixed above the frame of greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Inner sunshade system
Introduction:Installed in the greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature by cutting off excess solar radiation.
Advantage:Button control switch, reduce the internal temperature by cutting off excess solar radiation.
Cooling system
Cooling system has cooling fan and cooling pad,cooling fan and cooling pad use the evaporation principle to achieve the purpose of cooling.
In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.
Ventilation system
Ventilation system have top ventilation and side ventilation,
The side ventilation depend on the control of manual or electric film winder to realize the openning and closing of ventilation，
The top ventilation denpend on the rotation of gear rack to realize or electric film winder to realize the opening and closing ofventilation system.
Heating system
Heating system consists of boilers and radiators,boilers have gas boiler,diesel boiler and biomass boiler,radiators have ,radiating pipe,heating pipe for hydroponics,heating coil fan,gardening heater fan.
Hydroponic system
Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled, preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
Control System
Control System of greenhouse is a kind of environmental automatic control system that is designed for the agricultural greenhouse, agriculture environmental control and weather observation, able to measure a lot of agricultural factors such as direction and speed of wind, temperature and humidity of air or soil, air pressure, rainfall, solar radiant quantity and ultraviolet intensity, etc. It can control the facilities of ventilation system, shading system, cooling system, illumination supplement, irrigation and fertilization, adjusting the inner environment of the greenhouse to the most suitable conditions.
Related Products
Micro injection system
Drip irrigation system
Fog system
Water and fertilizer machine
Ebb and flow bench
Mobile seedbed
light deprivation system
Circulation fan
Light system
Our Case
Company Profile
Qingzhou Hanyang Greenhouse Project Co.,Ltd is A greenhouse factory focusing on providing customers with nice quality professional services.
It mainly promotes five products: glass greenhouse, PC greenhouse, film greenhouse, light deprivation greenhouse, and hydroponic greenhouse. It has comprehensive planting equipment, mature foreign trade team, and professional design team, which supports customization and provides customers with the most suitable products.
Your request is our standard.
Your request is our standard.
Customer had a group photo taken
FAQ
1.Are you factory?
Yes, we are manufacturer for types of greenhouse for 10 years.
With professional engineer team for suitable greenhouse design, complete after-sale service and factory direct sale for you now!
2.How to ensure the quality of the products ?
A.We are golden supplier of alibaba, goods had been exported to more than 40 countries and got good reputation in worldwide market. Long-term and mutual-benefits cooperation is our management philosophy.
B.To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and carefully before delivery. Necessary test and certification can be obtained as your request.
3.How about packaging and shipping?
A.The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the container directly(suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B.Shipping port is usually Qingdao/shanghai, we can arrange the shipping for you after getting your compensation.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
Yes, we are manufacturer for types of greenhouse for 10 years.
With professional engineer team for suitable greenhouse design, complete after-sale service and factory direct sale for you now!
2.How to ensure the quality of the products ?
A.We are golden supplier of alibaba, goods had been exported to more than 40 countries and got good reputation in worldwide market. Long-term and mutual-benefits cooperation is our management philosophy.
B.To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and carefully before delivery. Necessary test and certification can be obtained as your request.
3.How about packaging and shipping?
A.The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the container directly(suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B.Shipping port is usually Qingdao/shanghai, we can arrange the shipping for you after getting your compensation.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
