Печатающая головка Ricoh Gen5 высокоскоростная печатающая для оригинальной головки MH5420
- Категория: Other Printer Supplies >>>
- Поставщик: Shenzhen,Shenyihao,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2083.33 $* | 2187.89 $* |
| Aug-16-2025 | 2065.82 $* | 2168.54 $* |
| Jul-16-2025 | 1733.73 $* | 1820.73 $* |
| Jun-16-2025 | 2030.88 $* | 2132.32 $* |
| May-16-2025 | 1768.47 $* | 1856.68 $* |
| Apr-16-2025 | 1995.11 $* | 2095.66 $* |
| Mar-16-2025 | 1978.29 $* | 2077.38 $* |
| Feb-16-2025 | 1960.83 $* | 2058.11 $* |
| Jan-16-2025 | 1943.42 $* | 2040.84 $* |
Характеристики
Best Selling
Product Description
MH5420 | MH5440 | ||
Method | Piston pusher with metallic diaphragm plate | ||
Print Width | 54.1 mm(2.1") | ||
Number of nozzles | 1,280 (4 × 320 channels), staggered | ||
Nozzle spacing | (4 color printing) 1/150"(0.1693 mm) | ||
Nozzle spacing (Row to row distance) | 0.55 mm | ||
Nozzle spacing (Upper and lower swath distance) | 11.81mm | ||
Compatible ink | UV, Solvent, Aqueous, Others. | ||
Total printhead dimensions | 89(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors | ||
Weight | 155g | ||
Max.number of color inks | 2 colors | 4 colors | |
Operating temperature range | Up to 60℃ | ||
Temperature control | Integrated heater and thermistor | ||
Jetting frequency Binary mode | 30kHz / Grey-scale mode: 20kHz | ||
Drop volume Binary mode: | 7pl / Grey-scale mode: 7-35pl *depending on the ink | ||
Viscosity range | 10-12 mPa•s | ||
Surface tension | 28-35mN/m | ||
Grey-scale | 4 levels | ||
Total Length | 248 mm (standard) including cables | ||
Ink port | Yes | ||
Number of ink ports | 2 × dual ports | 4 × dual ports | |
Alignment pin direction | Front (standard) | ||
Single-pass 600dpi high-resolution printing
and support for multiple ink colors
With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to four ink colors.
Support for grey-scale
Achieves excellent gray-scale rendering with up to 4 scales per dot.
Excellent durability
and extended service life
Ricoh inkjet print heads are made of stainless steel. These heads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.
Support for different inks
With its built-in heater, these heads are capable of jetting high-viscosity inks. Additionally, the ink path is isolated from the
actuator (piezo elements) , i.e. no ink contact.
Variable drop volume capability
The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.

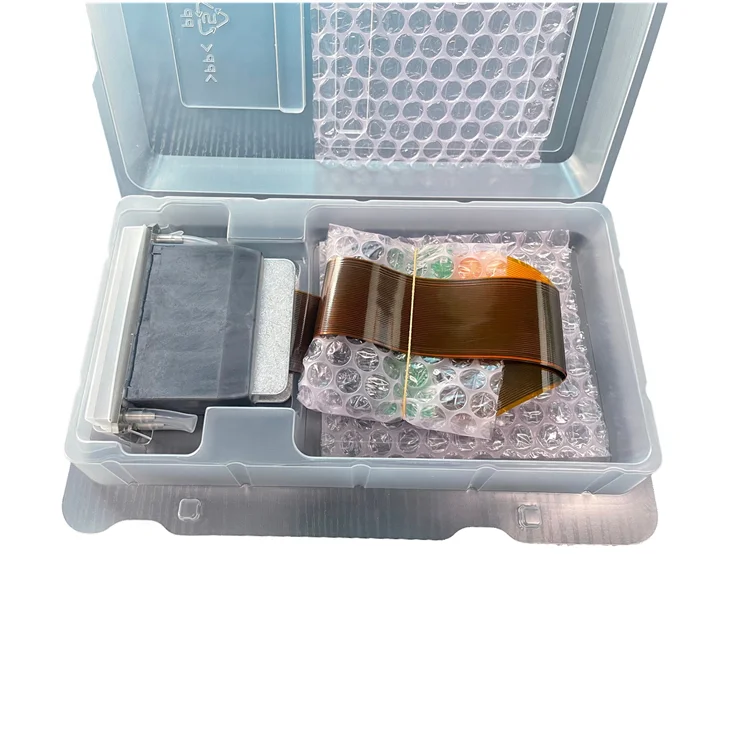

Packing & Delivery
Company Introduction
Our Service
1).Printhead : 100% original brand new.
2).24-hour inquiry & consulting support online Service.
3).Ex-shipment test: 100% tested before package and shipmen.
4).Factory Price Direct For Sale.
5).Call me any time : Whatsapp / Wechat +8619925345295
1).Printhead : 100% original brand new.
2).24-hour inquiry & consulting support online Service.
3).Ex-shipment test: 100% tested before package and shipmen.
4).Factory Price Direct For Sale.
5).Call me any time : Whatsapp / Wechat +8619925345295
FAQ
Q: Does it 100% original and brand new?
A: Of course sure! All printheads are 100% original and brand new from Japan Import .
Q: If you don't know your printer suitable for which printhead?
A: Pls contact us . We will provide professional guide for you.
Q: What should i do if don't know how to install and operate?
A: Pls contact us. We will arrange a professinal technician to teach you.
Q: How can I pay and what about the delivery time?
A: we accept the T/T transfer, Western Union, PayPal. within 2 workdays after full payment is received.
Q:If you want to know more about printer accessories and use?
A: Please feel free to contact us, we have the complete range of printer spare parts.
A: Of course sure! All printheads are 100% original and brand new from Japan Import .
Q: If you don't know your printer suitable for which printhead?
A: Pls contact us . We will provide professional guide for you.
Q: What should i do if don't know how to install and operate?
A: Pls contact us. We will arrange a professinal technician to teach you.
Q: How can I pay and what about the delivery time?
A: we accept the T/T transfer, Western Union, PayPal. within 2 workdays after full payment is received.
Q:If you want to know more about printer accessories and use?
A: Please feel free to contact us, we have the complete range of printer spare parts.
