Легкая гидравлическая подъемная платформа для кабины Howo 14 м 16 дизельный

Описание и отзывы

Трекер стоимости

Характеристики

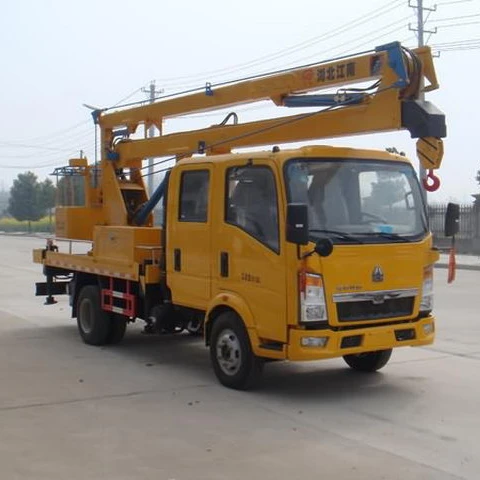

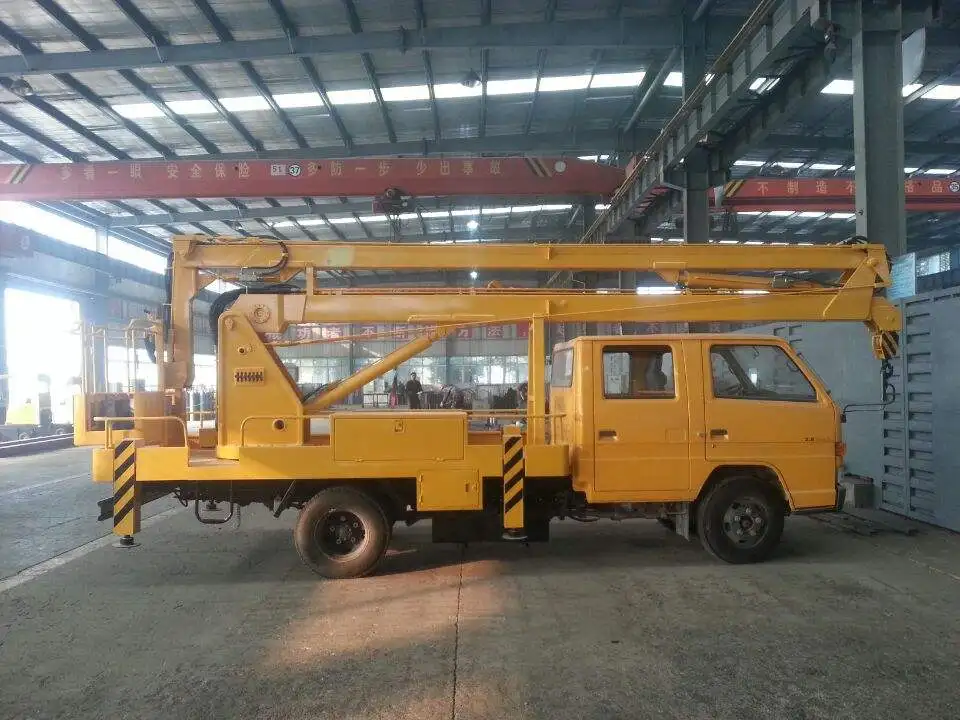

Howo 4x2 armflod manlift truck, max lifting height 16M.
We also have 4x4 model and bigger lifting capacity model to meet different client's requirement.
Driving type: LHD (RHD for option)
Emission standard: Euro 2/Euro 3/Euro 4/Euro 5 for option.

Chassis model				ZZ1107G451CD1R
Chassis manufacturer				Howo
Cabin				Single row with sleeper bed, power steering, a/c
Wheel base (mm)				4500
Overall dimension (L*W*H)(mm)				8995x2496x3320
Total mass (kg)				16000
Curb weight (kg)				7740
Rated payload weight (kg)				8065
Engine			Engine model	ISF3.8s3154
			Engine make	CUMMINS
			Rated power	115kw / 154hp
			Displacement	3760
			Emission standard	Euro 3
			Type	Diesel engine, 6-cylinders in line, supercharged water cooled, direct injection
Axle		Front axle		Cast steel hub reduction front driving axle with
		Rear axle		STR16, Hub reduction rear driving axle with wheel differential lock, ratio 5.73
Transfer case		Model		WLY6T53
		High speed ratio		1.00
		Low speed ratio		1.75
Gear box				Manual, 6 speed forward, 1 speed reverse
Brake
		Service brake		Dual-circuit pneumatic brake
		Parking brake		Energy-accumulating spring air cut-off brake
		Auxiliary brake		Engine exhaust brake
Suspension		Front		Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar, 9
		Rear		Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar, 9+6
Electrical system		Voltage(V)		2x12
		Battery capacity(A.h)		165
Clutch				Single dry plate, air booster, GF420
Steering				ZF8098
Tire type				8.25R16
Tire number				6pcs and one spare tire
Performance parameter	Minimum ground clearance			314mm
	Minimum turning diameter(m)			15
	Max speed(km/h)			67
	Maximum grade ability (%)			48
	Parking brake gradient (%)			20
	Fuel tank volume (L)			400
	Fuel consumption per 100km (L)			34

Working bucket Maximum operating altitude		16m
Working bucket Maximum operating range		10m
Working bucket Rated load		200kg
Turntable rotation angle		360 ° continuous
Working bucket rotation angle		±90°
Operating range when working bucket Maximum operating altitude		4.1m
Work bucket Maximum operating range Maximum operating altitude		16.7m
Turntable rotation speed		0~0.5 r/min
The rotation speed of the bucket		0~1.6 r/min
Outrigger span	Lateral	4302mm
	Portrait	4600mm
With state size (length × width × height)		8890mm×2480mm×3583mm
