555152 3.7V lithium polymer battery lipo
- Категория: >>>
- Поставщик: Shenzhen,Data,Power,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2.29 $* | 2.7 $* |
| Aug-15-2025 | 2.29 $* | 2.86 $* |
| Jul-15-2025 | 2.96 $* | 2.39 $* |
| Jun-15-2025 | 2.52 $* | 2.90 $* |
| May-15-2025 | 2.98 $* | 2.13 $* |
| Apr-15-2025 | 2.22 $* | 2.68 $* |
| Mar-15-2025 | 2.56 $* | 2.90 $* |
| Feb-15-2025 | 2.50 $* | 2.9 $* |
| Jan-15-2025 | 2.5 $* | 2.34 $* |
Характеристики
Product Description
Product Description
Item | Specification |

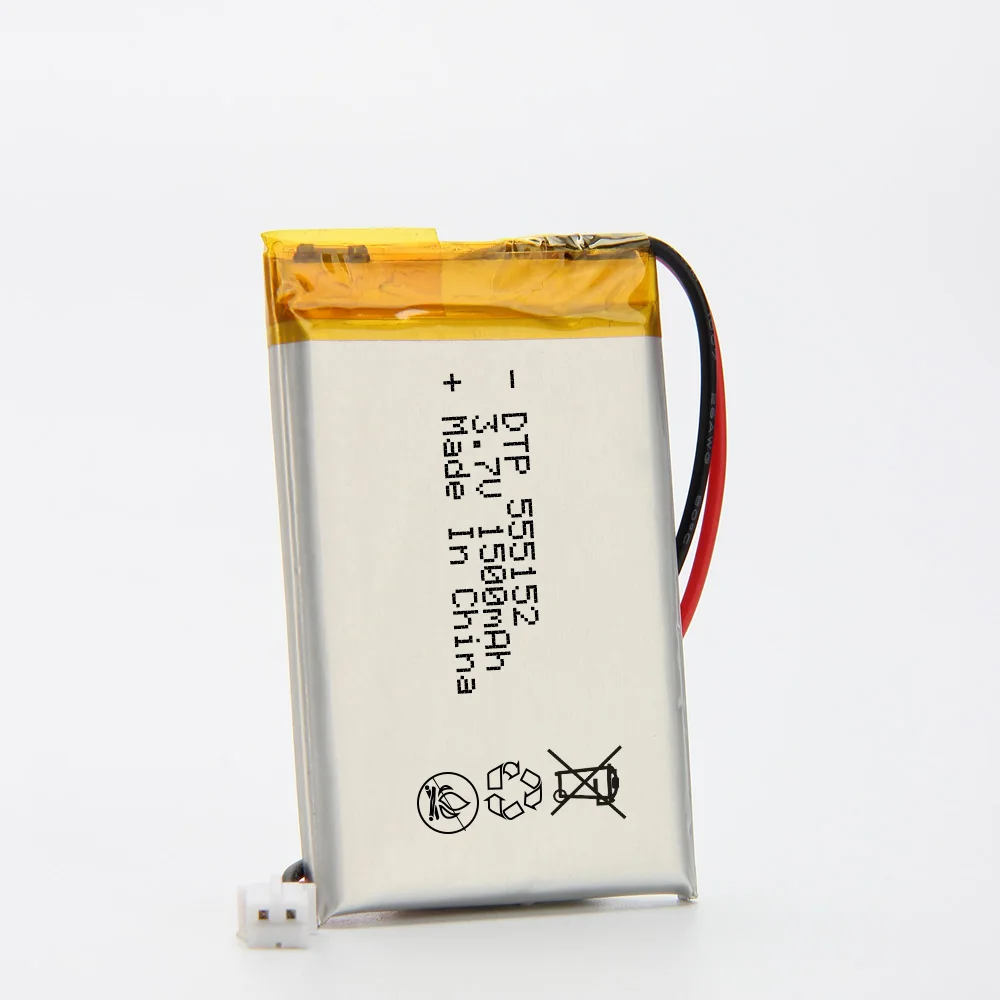

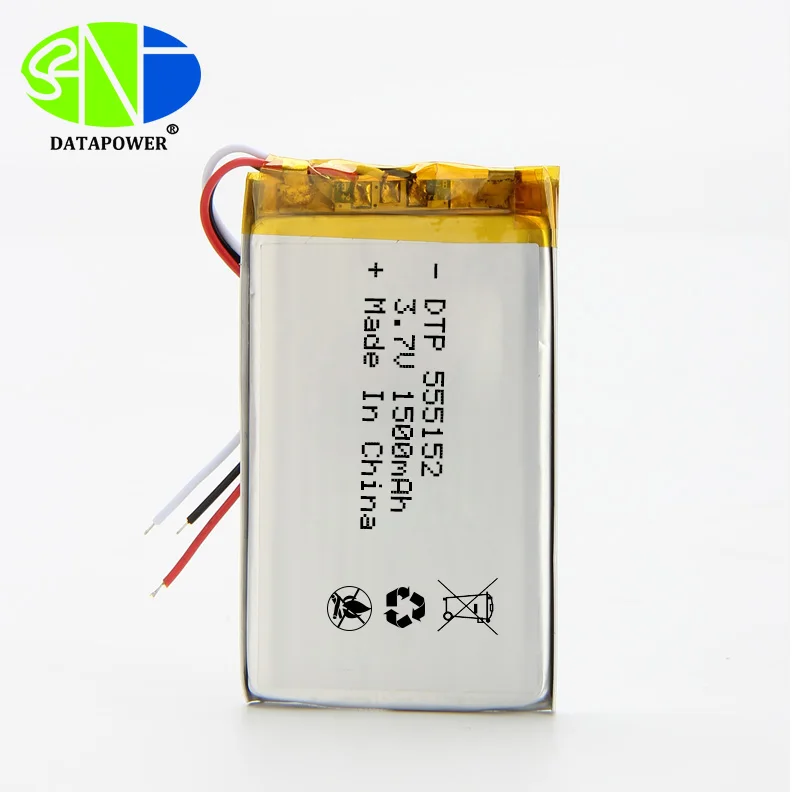

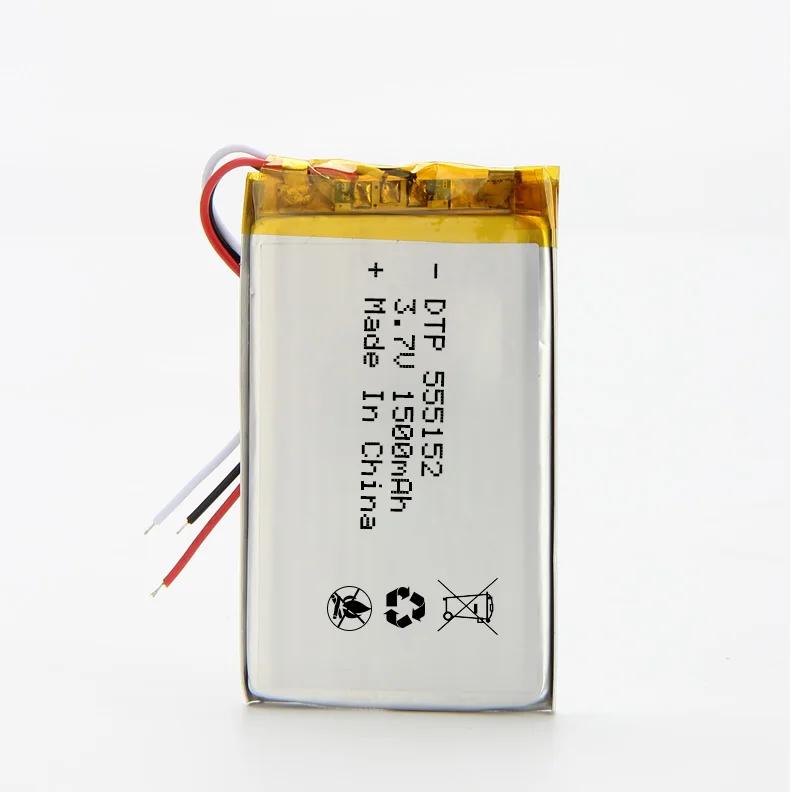

Product Name | 555152 lipo 1500mah 3.7V lithium polymer battery |
Battery model | dtp555152 |
Nominal voltage | 3.7V |
Minimum capacity | 1500mAH (0.2C discharge) |
Charging cut-off voltage | 4.2V |
Discharging cut-off voltage | 2.75V-3.0V |
Standard charging | 0.2C /4.2V |
Max charging | 1.0C /4.2V |
Standard discharging | 0.2C/2.75V-3.0V |
Max discharging | 1.0C/2.75V-3.0V |
Shipment voltage | ≥3.85V |
Battery pack impedance | ≤80mΩ |
Operating temperature | Charging: 0°C ~ 45°C |
Discharging: -20°C ~60°C | |
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10℃~25℃ (12 months ≥85% ) -10℃ ~45℃ (6 months ≥85% ) -10℃~55℃ (1 month ≥90% ) 20±5℃ is the recommended storage temperature |
Visual Inspection | There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
Reference standard | GB/T 18287-2013,KC,CE,ROHS,IEC/EN62133 UL1642,MSDS,CB,PSE |
Details Images
Our Lithium polymer battery can be customized size, OEM Lable, cells only, or with 10K NTC, PCB(Protection circuit board), wires and connector.
PCB standard: 2.4V-3.0V cut off voltage
Wires type: UL3302AWG28,26,24,22#, UL1571AWG28,26,24#,UL3239AWG26#, etc, custom
Connector model: Molex51021-0200, Molex51021-0300, JST-PHR-02, JST-PHR-03, JST-XHP-02, etc cutom
DTP503048-3.7V-720mAh
Max size of length is 50mm.
Most of size will be within size limit.
DTP503048-3.7V-720mAh
Max size of thickness is 5.2mm.
Most of size will be within size limit.
Max size of thickness is 5.2mm.
Most of size will be within size limit.
DTP503048-3.7V-720mAh
Max size of width is 30.5mm.
Most of size will be within size limit.
Max size of width is 30.5mm.
Most of size will be within size limit.
Related Products
Certificate

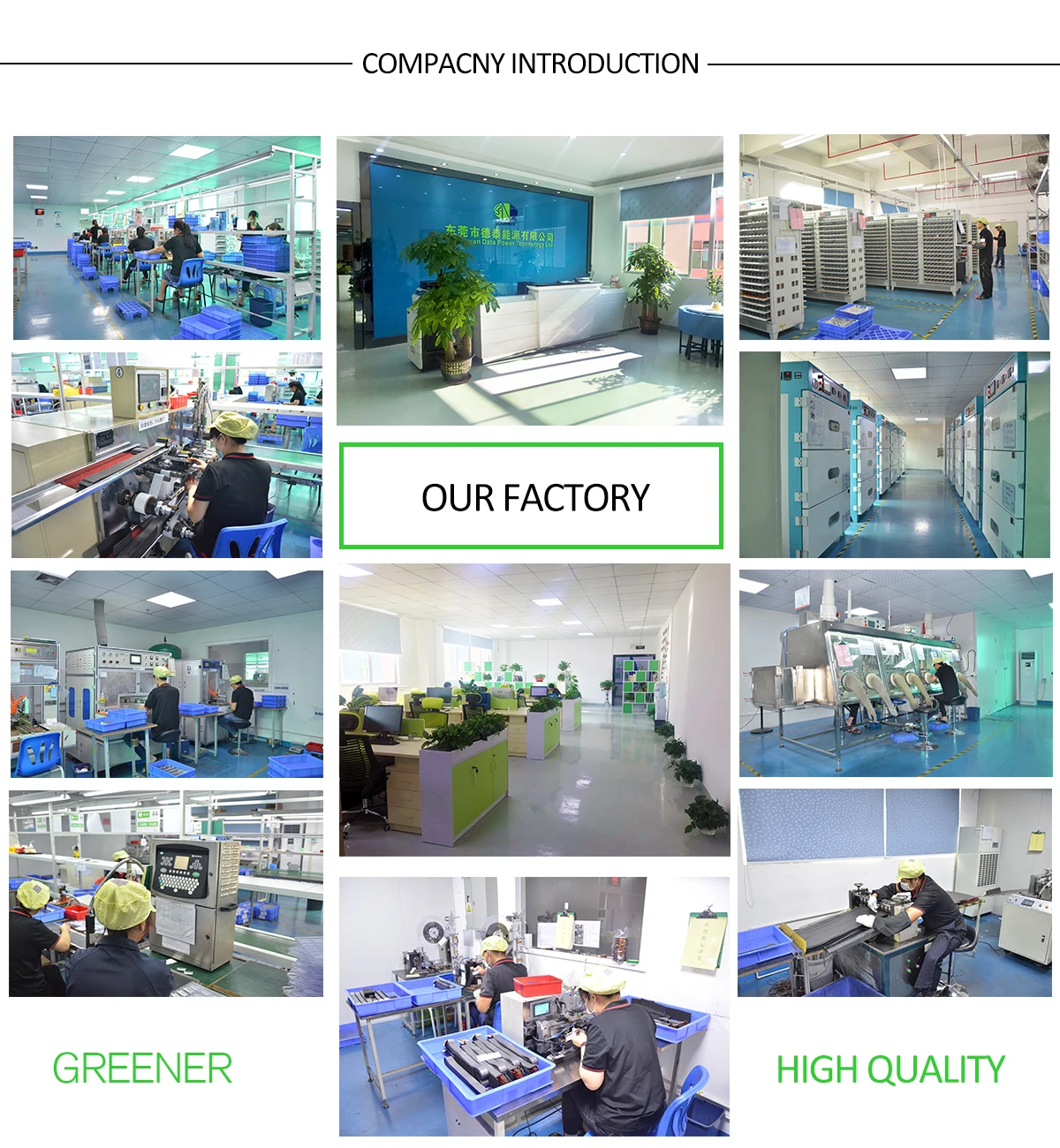

Company Introduction
1. High energy density lithium polymer battery.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most important: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most important: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload.
Packing&Shipping
We have long-term cooperation with more than 20 countries around the world to support cargo door-to-door service. Once we
cooperate, we will continue to provide you with after-sales service.
cooperate, we will continue to provide you with after-sales service.
FAQ
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer place the bulk order.
Q2: What is delivery time if we place an order?
A2: It's depends on the order quantities. Usually, we can deliver goods within 3 -5 working days for small orders. For bulk order, let's confirm when you place official order.
Q3: What's your payment and delivery terms?
A3: Payment terms: By T/T, 30% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal.
Q4: What company will be used for making the shipments? DHL? UPS or others?
A4:Normally, we ship our battery via DHL,UPS and FedEx.
Q5: What is your package looks like? Can I have the customized package?
A5: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
A1: Generally we don't provide free sample, but we can return sample cost when the buyer place the bulk order.
Q2: What is delivery time if we place an order?
A2: It's depends on the order quantities. Usually, we can deliver goods within 3 -5 working days for small orders. For bulk order, let's confirm when you place official order.
Q3: What's your payment and delivery terms?
A3: Payment terms: By T/T, 30% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal.
Q4: What company will be used for making the shipments? DHL? UPS or others?
A4:Normally, we ship our battery via DHL,UPS and FedEx.
Q5: What is your package looks like? Can I have the customized package?
A5: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
