Высококачественный портативный водный песок циклонный сепаратор от поставщика шламовый фильтр
- Категория: Mining Machinery >>>
- Поставщик: Jiangxi,Walker,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 60.45 $* | 63.85 $* |
| Aug-15-2025 | 59.54 $* | 62.30 $* |
| Jul-15-2025 | 50.77 $* | 53.34 $* |
| Jun-15-2025 | 58.75 $* | 61.97 $* |
| May-15-2025 | 51.96 $* | 54.88 $* |
| Apr-15-2025 | 57.15 $* | 60.26 $* |
| Mar-15-2025 | 57.5 $* | 60.3 $* |
| Feb-15-2025 | 56.55 $* | 59.44 $* |
| Jan-15-2025 | 56.90 $* | 59.65 $* |
Характеристики
Product Description
Product Introduction.

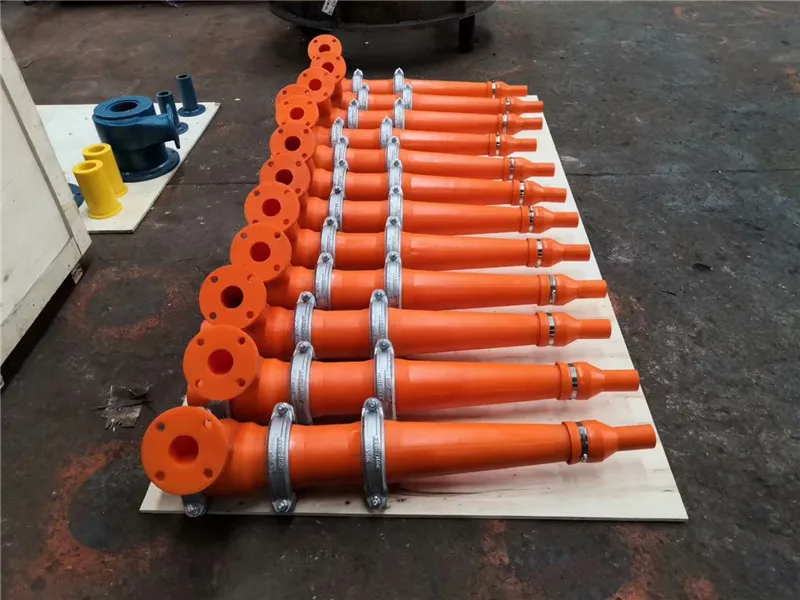

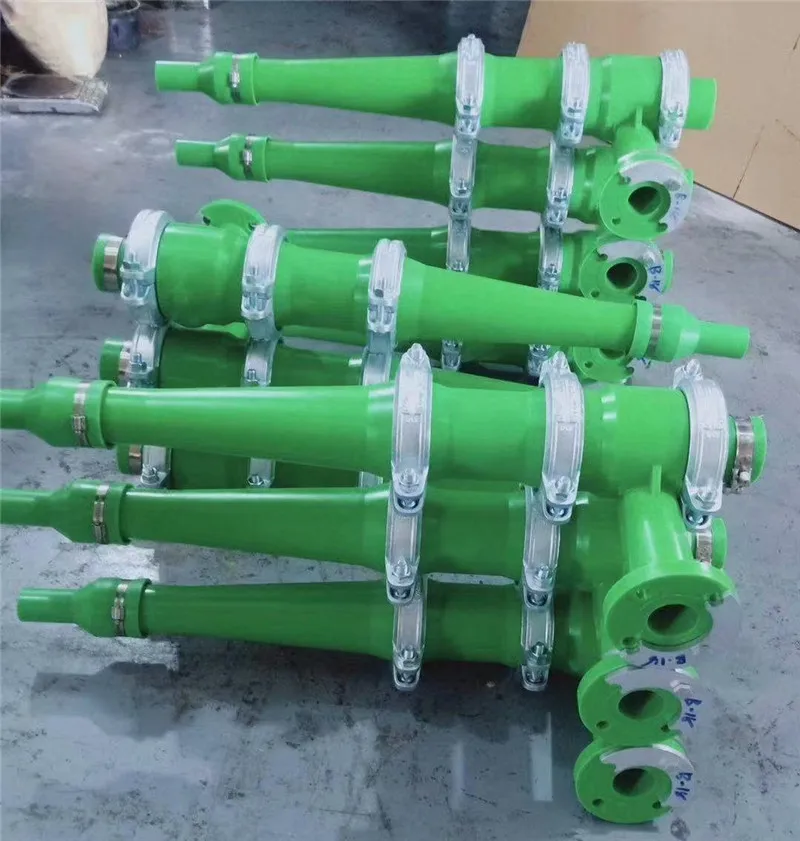

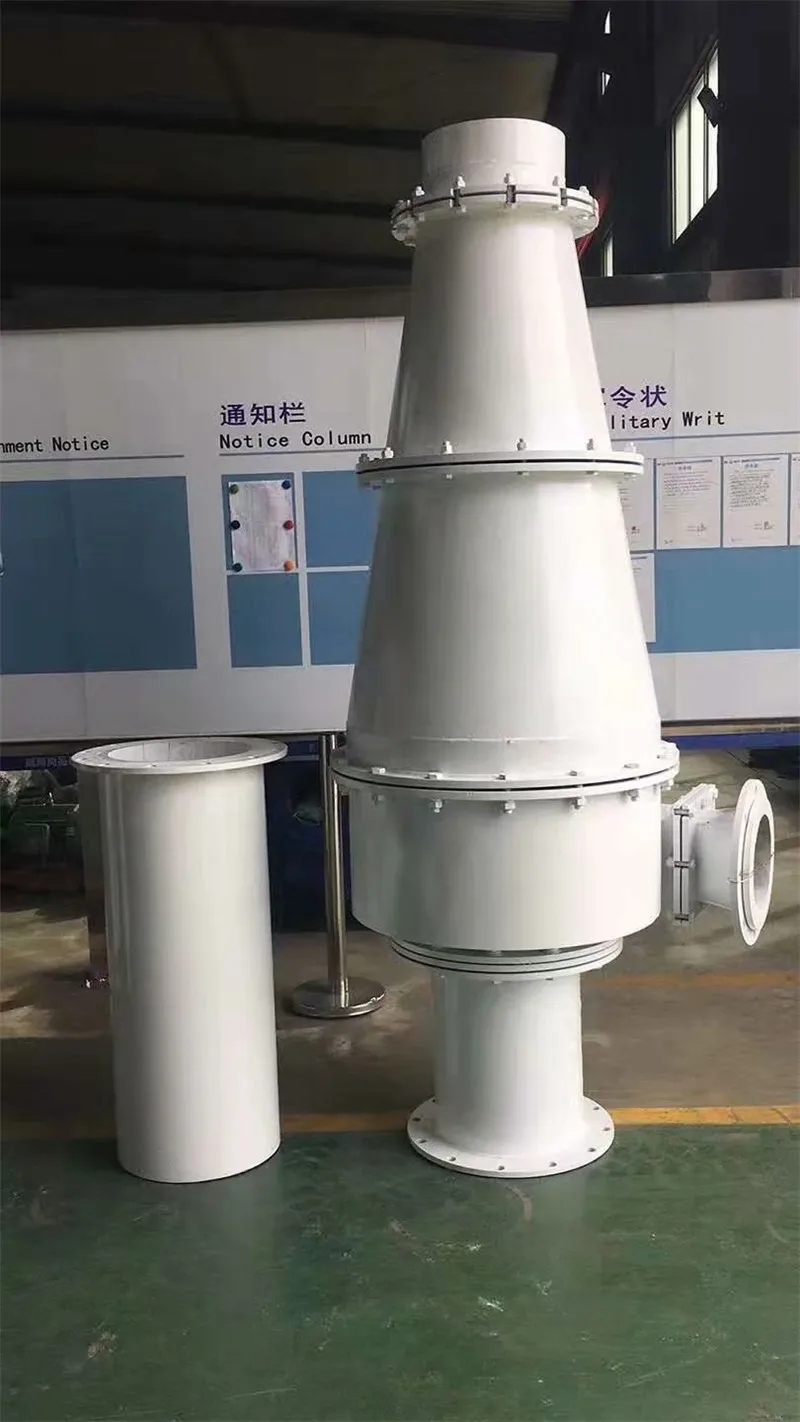

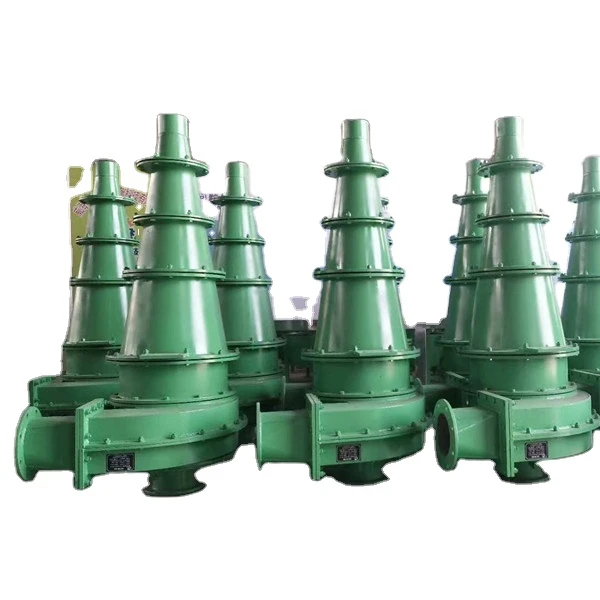

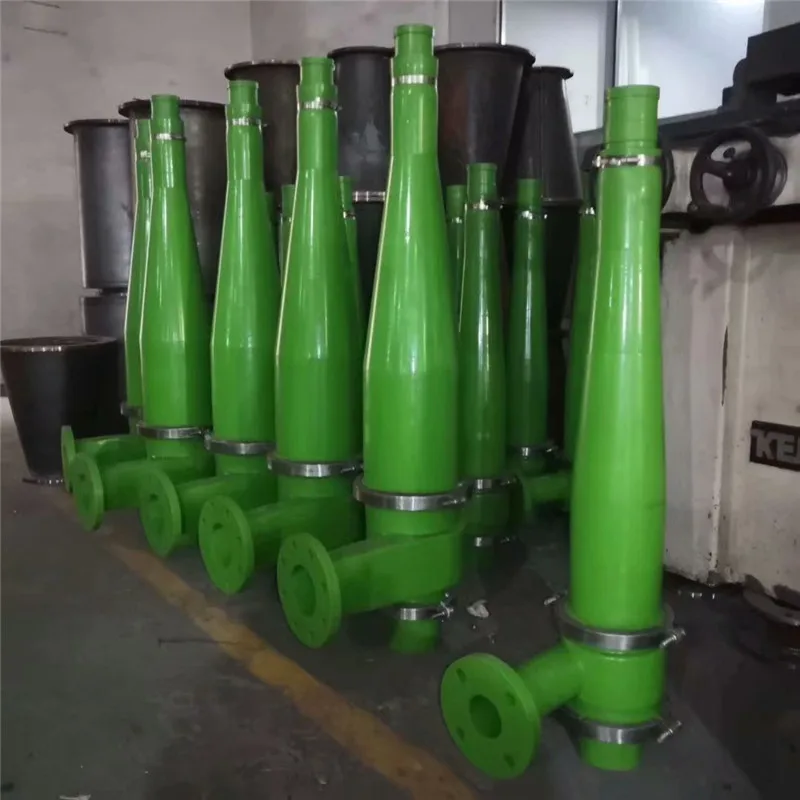

The hydrocyclone is a device for separating and removing substances such as heavier coarse-grained silt from sewage. Sometimes used for mud dewatering. It is divided into two types: pressure type and gravity type. It is usually made of circular column structure or metal tube. The water enters the tangential line from the upper part of the structure (or metal tube) by pressure or gravity. Under the action of centrifugal force, the coarse and heavy particulate matter is thrown to the wall and rotated downward to discharge together with the formed concentrated liquid. The smaller particulate matter is rotated to a certain extent and then discharged with the secondary upper vortex.
Application Field.
Hydrocyclones are used for grading, desliming and concentration. For pulverized coal and dense metal minerals, it can sometimes be used for sorting. When referring to heavy media, the cyclone can be used for pre-selection or rough selection of ore.
Application Field.
Hydrocyclones are used for grading, desliming and concentration. For pulverized coal and dense metal minerals, it can sometimes be used for sorting. When referring to heavy media, the cyclone can be used for pre-selection or rough selection of ore.
Material.
Three different material types for choices:
1). All casted polyurethane (PU)
2), All casted carbon steel lined with PU.
3), All casted carbon steel lined with ceramic.
1). All casted polyurethane (PU)
2), All casted carbon steel lined with PU.
3), All casted carbon steel lined with ceramic.
Material Features.
adopt the high quality polyurethane, the shore hardness is 75-85. Very high strength, high abrasion resistance and is extremely resistant to oil. good resilience and aging resistance.
Applications.
1.Closed circuit grading, desliming
2.Mineral Classification
3.Concentrate or Tailing Thickening, Dewatering
4.Tailing damming and filling cyclone also can be used for pre-selection or rough selection of ore.
2.Mineral Classification
3.Concentrate or Tailing Thickening, Dewatering
4.Tailing damming and filling cyclone also can be used for pre-selection or rough selection of ore.
Model name | Diameter(mm) | Inlet Pressure(mpa) | Capacity(m³/h) | Cut Size(pm) |
FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
FX710 | 710 | 0.04-0.15 | 400-550 | 74-250 |
FX660 | 660 | 0.04-0.15 | 260-450 | 74-220 |
FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
FX400 | 400 | 0.06-0.2 | 100-170 | 74-150 |
FX350 | 350 | 0.06-0.2 | 70-160 | 50-150 |
FX300 | 300 | 0.06-0.2 | 45-90 | 50-150 |
FX250 | 250 | 0.06-0.3 | 40-80 | 40-100 |
FX200 | 200 | 0.06-0.3 | 25-40 | 40-100 |
FX150 | 150 | 0.08-0.3 | 14-35 | 20-74 |
FX125 | 125 | 0.1-0.3 | 8-20 | 25-50 |
FX100 | 100 | 0.1-0.3 | 8-20 | 20-50 |
FX75 | 75 | 0.1-0.4 | 1-10 | 10-40 |
FX50 | 50 | 0.1-0.4 | 2-5 | 7-40 |
FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
The strength cyclone has a simple structure, no moving parts, easy operation, small volume, large processing capacity, and good classification effect. It is suitable for processing finer materials, and the separation particle size is generally between 0.25-0.01 mm.
working principle.
The working principle of the cyclone is mainly centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone at a certain pressure from the feeding port of the cyclone, a strong three-dimensional elliptical strong rotating shear is generated. Cut turbulent motion. Due to the different density of the particles, the centrifugal force, centripetal buoyancy, and fluid drag force are different. Due to centrifugal sedimentation, most of the coarse particles (or heavy phases) are discharged through the swirler bottom outlet, and most of the fine particles ( Or light phase) discharged from the overflow pipe to achieve separation and classification.

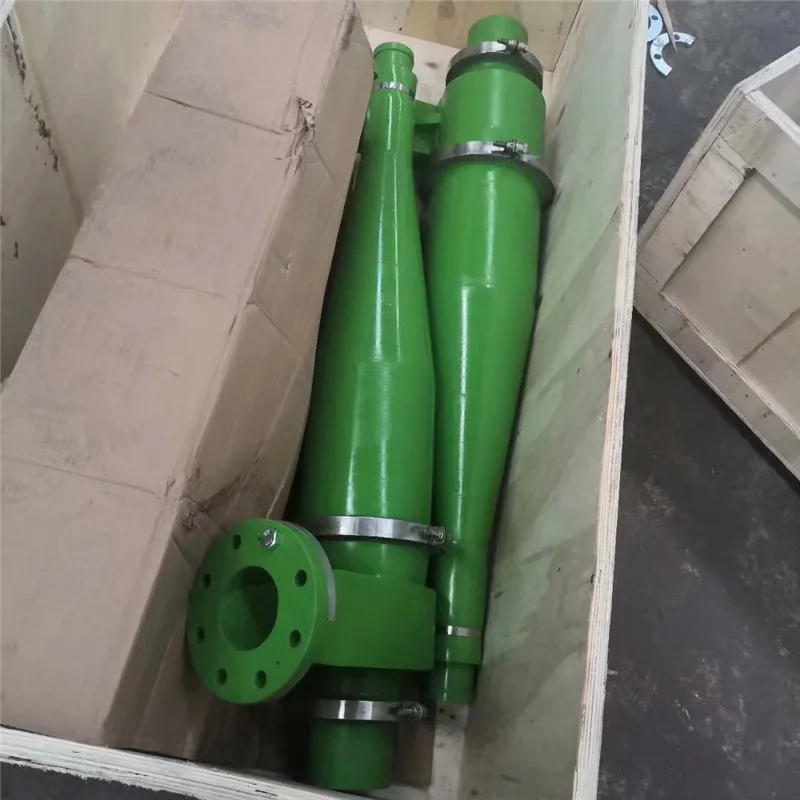

Packing & Delivery
Packaging: standard plywood packing
Container:40HQ/40GP/20GP
Container:40HQ/40GP/20GP
Packaging: standard plywood packing
Container:40HQ/40GP/20GP
Container:40HQ/40GP/20GP
