Характеристики
Product Description

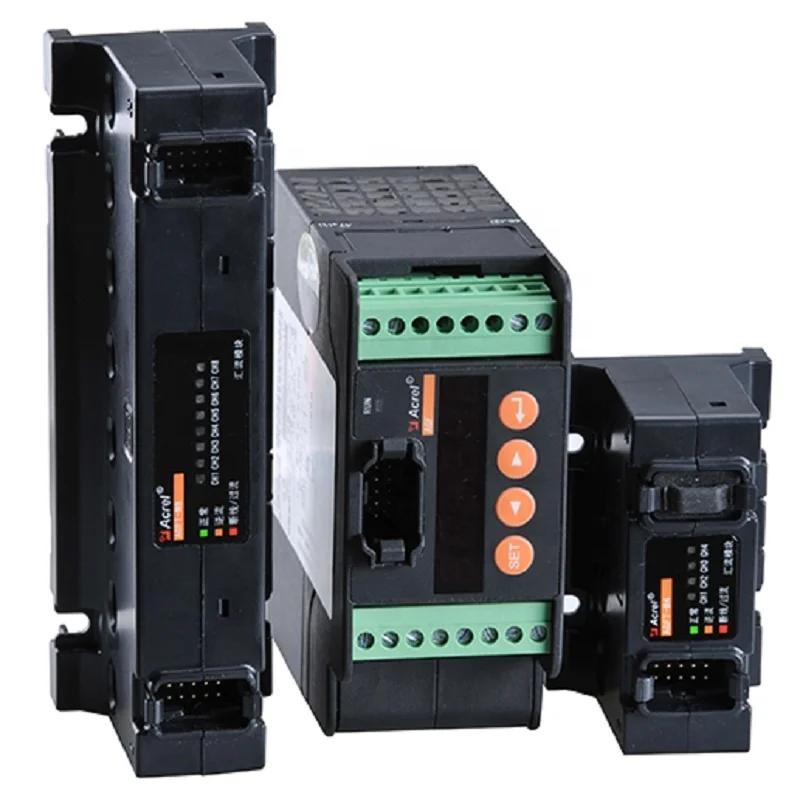

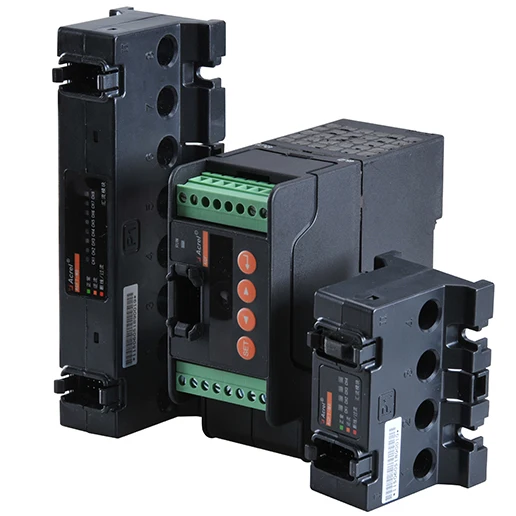

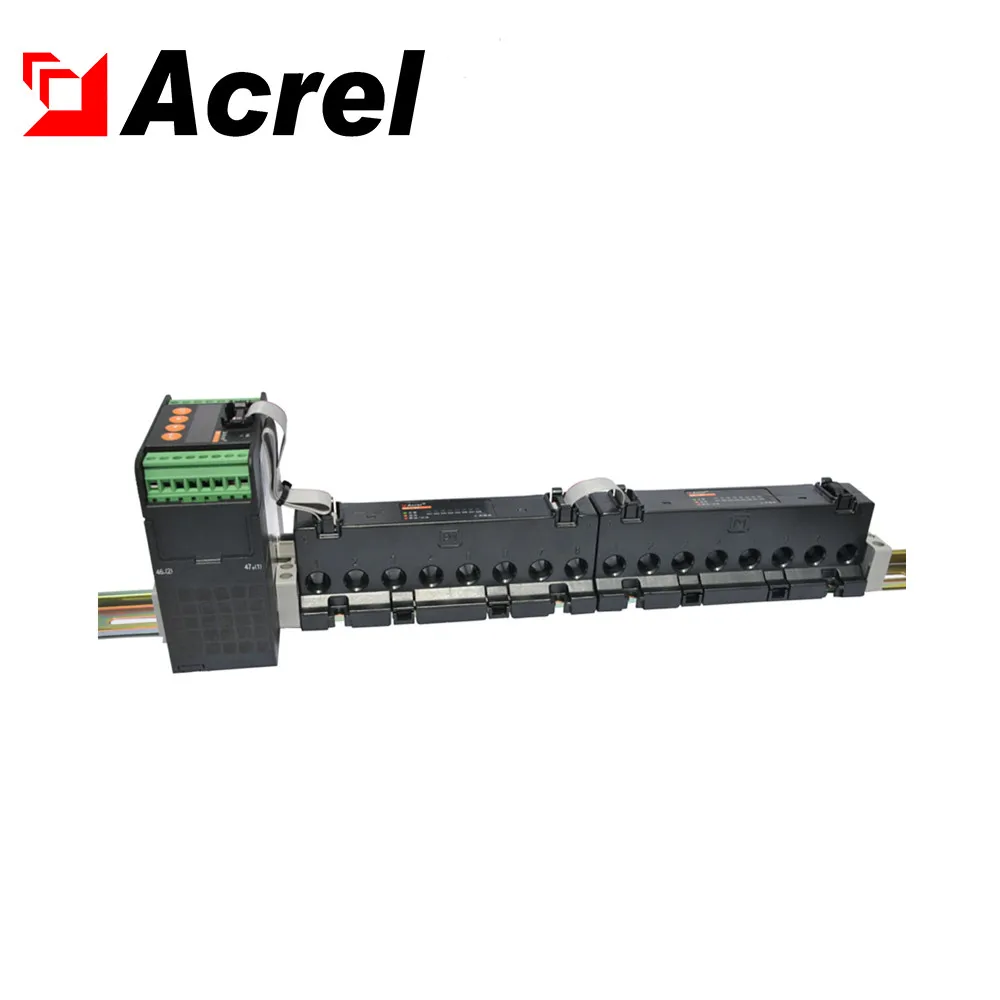

24 string solar box monitor device with built-in hall effect CT for array pv combiner box
PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays,monitoring of string
current,SPD states,cabinet temperature,dc circuit breaker states and relay contract output.
It is with sensor interface such as wind speed, temperature, irradiator, etc.
The device is equipped with Modbus over RS485 communication port for transmitting all the datas to master device.
Functions and parameters
Main functions:

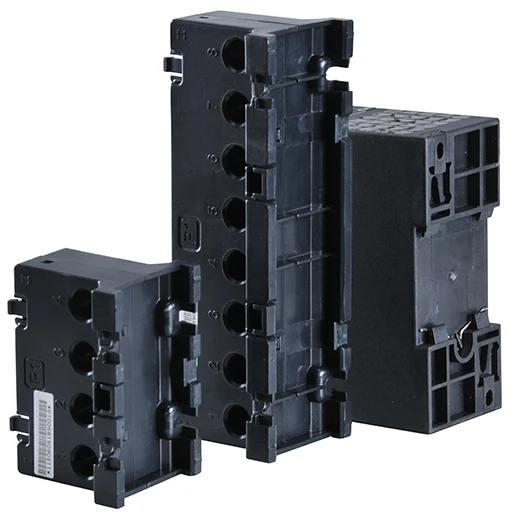

*4,8,12,16,20 or 24 string measurement with inner hall effect clamps
*pv string current input:DC 0-±20A (built-in hall sensor)
*Input voltage:DC0-1000V
*Accuracy:0.5
*Analog input:PT100,DC0-20ma,DC4-20ma or DC0-10V
*Communication:Modbus over RS485
*Auxiliary power supply:DC1000V or DC1500V
*pv string current input:DC 0-±20A (built-in hall sensor)
*Input voltage:DC0-1000V
*Accuracy:0.5
*DI(3 external states input,Optocoupler or dry contact)
*Analog input:PT100,DC0-20ma,DC4-20ma or DC0-10V
*Communication:Modbus over RS485
*Auxiliary power supply:DC1000V or DC1500V
Model | AGF-M4T | AGF-M8T | AGF-M12T | AGF-M16T | AGF-M20T | AGF-M24T | |||||
PV array string input | 4 | 8 | 12 | 16 | 20 | 24 | |||||
Rated input current | DC0-20A,3.5KV hall current sensor isolation | ||||||||||
Accuracy | 0.5 | ||||||||||
Relay output | 2 NO 5A/AC250V(5A/DC 30V) | ||||||||||
Digital input | 3 external state input(optocoupler or dry contact | ||||||||||
Analog input | PT100,DC4-20ma or DC0-10V | ||||||||||
Communication | RS485 Modbus-RTU | ||||||||||
Baud rate | 4800/9600/19200/38400bps | ||||||||||
Auxiliary power supply | DC1000V(1KV no damage）OR DC1500V(±10%） | ||||||||||
Optional function | MJ(Analog input plus relay output（PT100,DC4-20ma or dc0-10v） plus 2 NO 5A/AC250V(5A/DC30V) | ||||||||||
B(power supply filter module) | |||||||||||
L(LCD) | |||||||||||
P2(Auxiliary power supply:DC1000V) | |||||||||||
P3(Auxiliary power supply:DC1500V) | |||||||||||

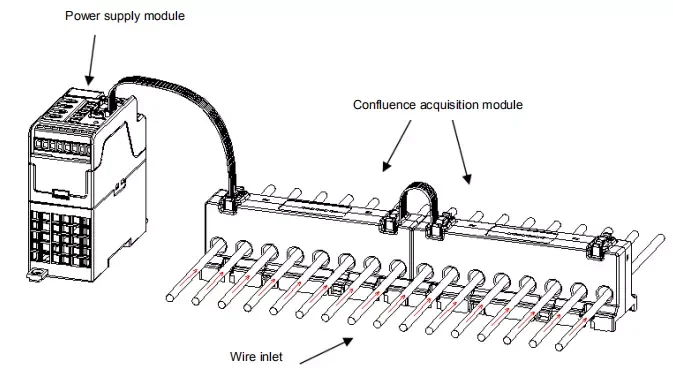

Installation and dimensions
