CE 1000-20000 bph полная автоматическая алюминиевая укупорочная


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.76 $* 0.97 $*
Aug-16-2025 0.70 $* 0.36 $*
Jul-16-2025 0.60 $* 0.27 $*
Jun-16-2025 0.37 $* 0.12 $*
May-16-2025 0.80 $* 0.26 $*
Apr-16-2025 0.89 $* 0.43 $*
Mar-16-2025 0.18 $* 0.4 $*
Feb-16-2025 0.71 $* 0.53 $*
Jan-16-2025 0.91 $* 0.99 $*

Характеристики


Product Description

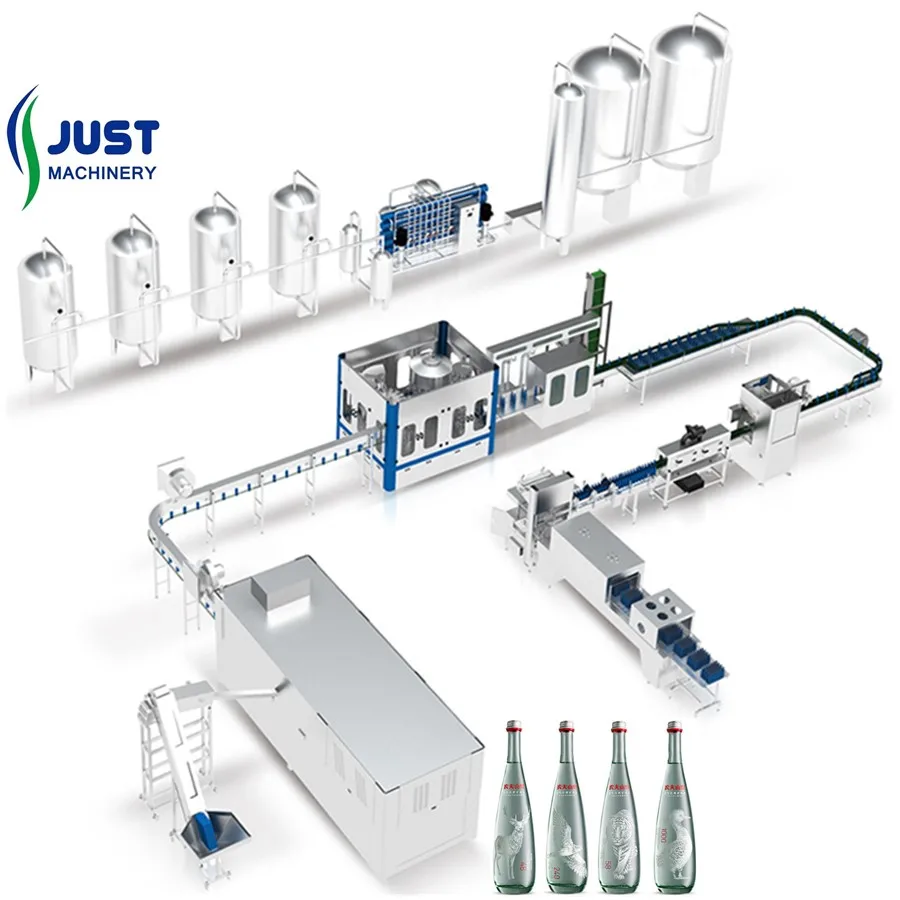

Complet Automatic Drinking Water Filling Machinery Line:

XGF  Bottle Washing Filling Capping 3 IN 1 machine:

Washing Part :

<1>360 degree cleaning inside and outside of the bottle,no dead Angle.
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<3>The flushing pressure can be adjusted.
<4> 304/316 stainless steel washing pump make the machine more durable .

Filling heads :

<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank, same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner,easy to clean.
<4> 304/316 stainless steel filling pump.

Aluminum Cover Capping heads :

<1> Place and capping system, electromagnetic capping heads,with burden discharge function,make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping.
<4> Automatic stop when lack of bottle
<5> Italy ROAL capping hard,capping effect is stable and reliable,Defective rate ≤0.1%

Crown cover Capping heads :

<1>.No capper no capping.the cap is beautifully formed, and will not distroy the paint on the cap.
<2>.Universal coupling for quick and easy setting of In-feed worm.
<3>.Adjustable bottle height gauge for easy and quick setting Optional Features.
<4>.Motorized height adjustments system.

Flat conveyor :

<1> Adapt to customer factory layout.
<2> Special lubrication system, keep products clean, health, safety,extended service life
<3> Electric eyes design keep whole line running safety and quickly,Energy saving. High efficient.
<4>All Stainless steel 304 support, hygienic/firm.

Automatic water filling machine line packaging specifications:
Material:SS304/316
           Bottle material
       Shape
    Filling volume
   Filling level(mm)
        Neck type
          Pet/Glass Bottle
Square/Round   /Falt Bottle
      100-2000ml
 According request
          ±0.5mm
        As request
Adjustable specifications of the bottle type
Bottle Size:Bottle diameter ≤120mm Bottle Height≤350mm
If using square bottles, then bottle separating system will be added.
Filling temperature
2℃–50℃. Level control:Float ball and pneumatic butterfly valve.
                    Bottle labeling type
   Packing system                   Min, Spec.
  Palletizing system
                   Manual  / Automatic
                     Hot Melt Roll-Fed
                     PVC Shrink Label
                   Full Label/ Half Lable
     Film shrinker
   Robert Packing
   Carton packing
        2*3 2*4 3*4
    3*5 4*4 4*5 4*6
      6–30Bag/Min
      Low position         gantry palletizer
    Robot Palletizer
      High position
User Ambient Conditions
Temperature:2~40℃;Humidity:No dew
bottle feed-in
conveyor with screw for glass bottles
adopt air-conveyor for PET bottle.
Auxiliary Equipments

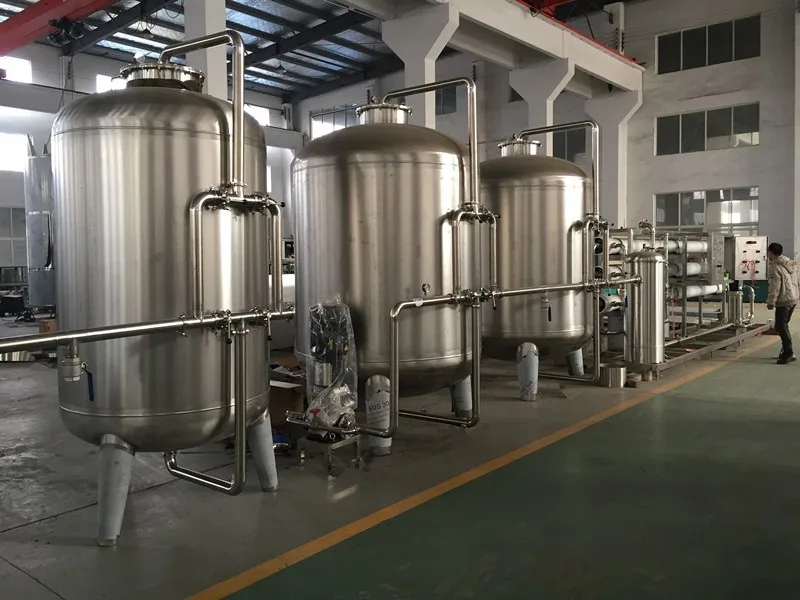

 Water Treatment Production line:
Material:SS304/316
         Source of Water
       Capacity
   Water pump
      Filter media
        RO Membrane
    river,/well/spring/lake/                  sea/tap water
       2-50 T/H
     Nanfang,             Grundfos
Quartz sand/Active carbon/Sodium ion /Hollow fiber filter
    Filmtec Dow/USA
    Hydranautics/USA
Naturally oxygen-rich water
      Pure water
      RO water
      Mineral water
       Spring water
            ultrafiltration
        Reverse                osmosis
      Reverse              osmosis
       ultrafiltration
       ultrafiltration
Automatic control system
Float ball/solenoid valve/pneumatic butterfly valve
Filling Water
We can make water purification system as per different water quality.
Types of water
Mineral water pure water spring water RO water Oxygen-enriched water

Bottle Depalletizer :

<1> Don't change the mould can arrange similar size different shape bottles.
<2> High speed and lower rate of waste.
<3> small occupied area. machine is arranged flexibly placement saving the area of factory.
<4> automatic intelligent design,The function of preventing bottle.photoelectric detection to run more smoothly.

Automatic labeling machine:

<1> Heat shrink sleeve labeling machine
<2> OPP Hot melt labeling machine
<3> PVC label stick labeling machine
It adopts double driving structure ,that is four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle packaging machine :

<1> PE film shrink wrapping machine.
<2> Carton box packaging machine.
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat & shrink, cool and finally get the finished product.

Carton palletizer :

  The high level palletizer is suitable for cartons, plastic crates, shrink wrapped packs and five gallon bottles etc palletizing.With inspection device to check the storage of cartons on conveyor and regulate the speed according to inspection data. With safety device to stop machine and alarm in

emergency.

Certifications
About JUST machinery
Our services
Q1: Proposal design and make budget:
We are capable of providing specialized proposal design and make a general budget for you.
Q2: Equipment production&commissioning:
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Q3: Factory layout design:
Machines and factory layout design is also available after the proposal confirmed.
Q4: Bottle shape design:
We can also help to do the bottle shape design for you according to your needs.
Q5: Label Design:
We can also help to design the label for you, and you can share with us your idea too.
Q6: Raw Material supply:
We are capable of provide one-stop service, so the raw material supply is also available.
After-service:
1. The guarantee of our machines is five years, life-long services, also we will supply spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2. We can train your engineers in our factory free of charge. IMeans you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long time normal use.
3. We will supply you detail user manual for our machines, also we will make one Video CD to show you how to install and maintain the machines, it will help you to maintain the machines for the long time.
4. We will send our engineers to your factory to install the machines and train your staff how to operate the machines., We have been doing the install jobs for our overseas customers for many years.
5. We will help to arrange the shipping of goods for you and keep you posted about the steps.
Contact us
FAQ
Q1: Are you manufacturer?
A1:Yes, welcome to visit us ! We can show you our machine running.
Q2: How long of your warranty?
A2: Regarding warranty, normally we offer 5 years warranty, and we offer lifetime maintenance.
Q3: Can you provide turnkey project service?
A3: Yes, of course, we can provide the full set of turnkey project service to you, from raw material, to equipments, installation nd training etc.
Q4. Do you accept OEM order?
A4: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
Q5: What else need to be paid attention besides price?
A5: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
