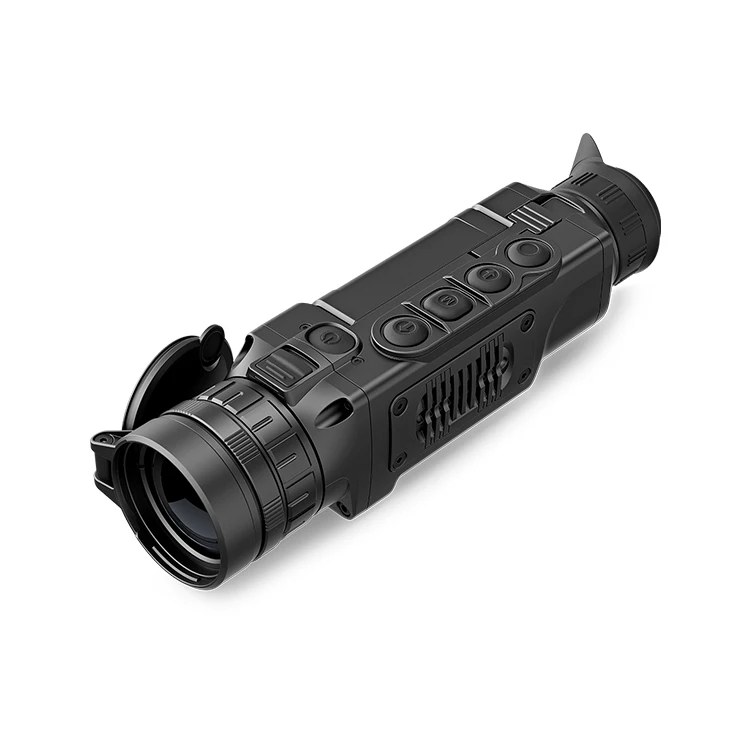

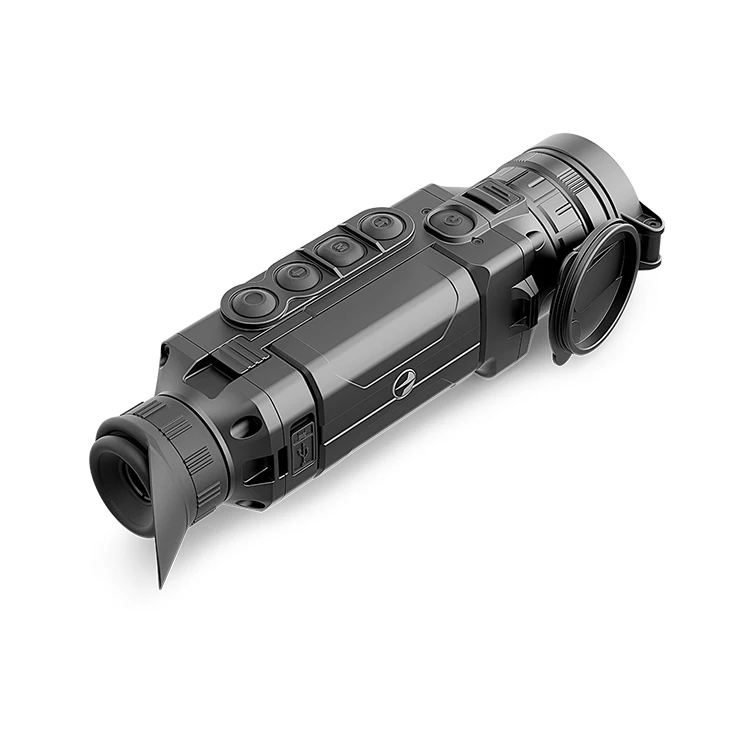

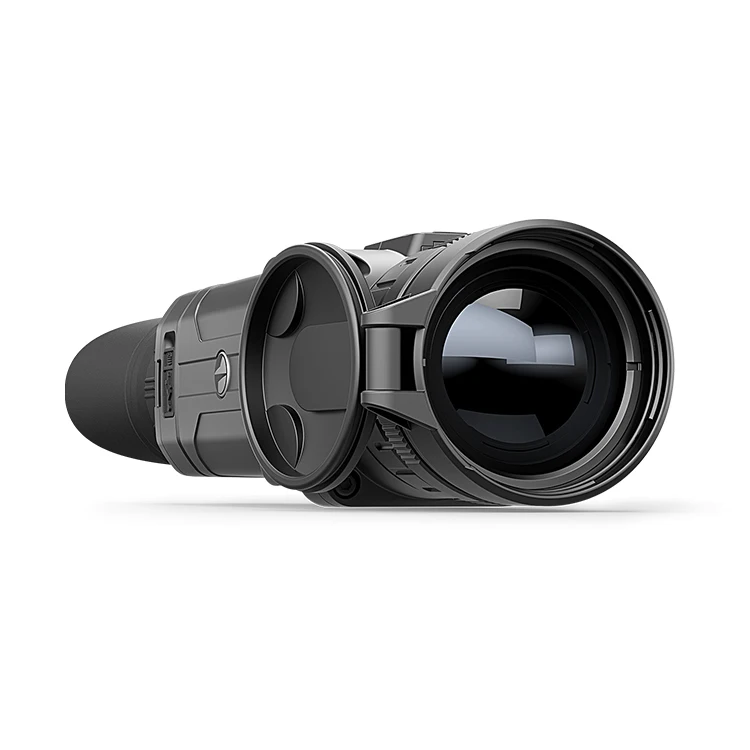

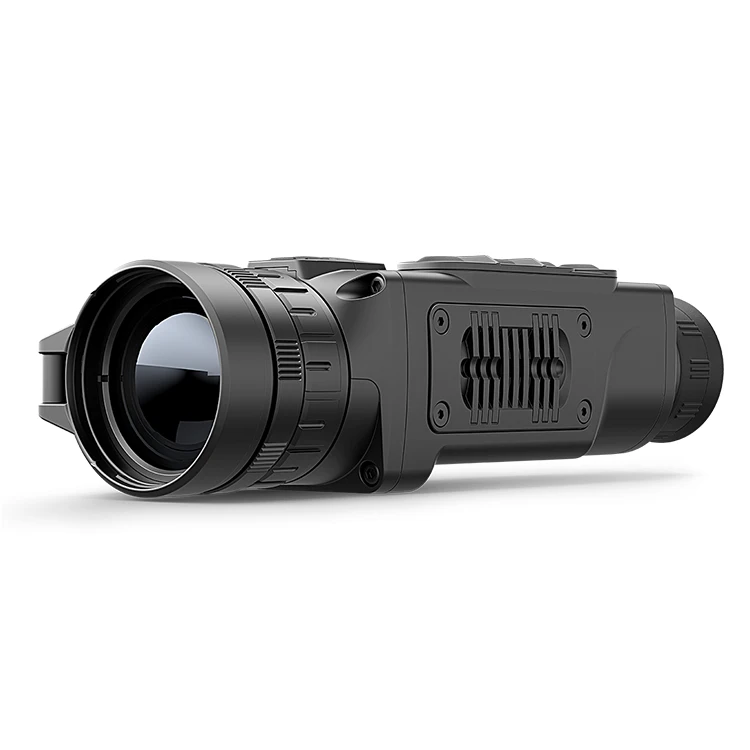

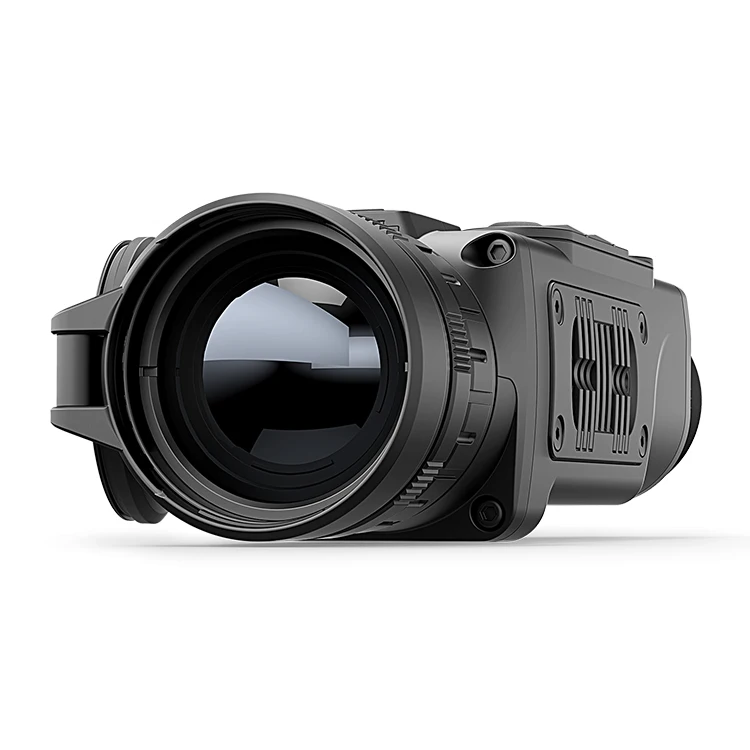

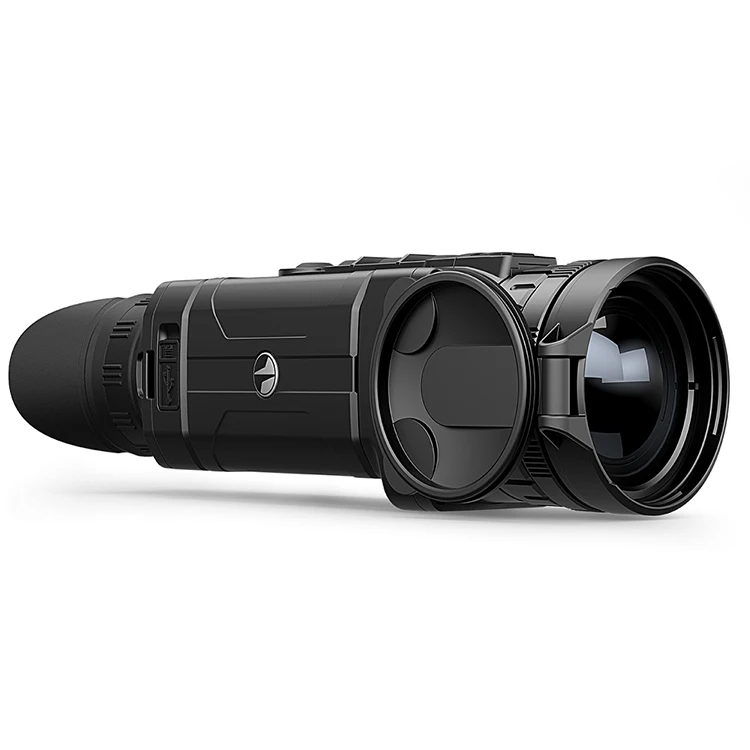

PULSAR Trail XQ50 LRF гиростабилизатор камеры для термического формирования изображений сфера блочного Лука Охота Стрельба оптические
- Категория: Ночное видение >>>
- Поставщик: Shenzhen,Coolsport,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.8 $* | 0.85 $* |
| Aug-20-2025 | 0.18 $* | 0.15 $* |
| Jul-20-2025 | 0.9 $* | 0.25 $* |
| Jun-20-2025 | 0.68 $* | 0.18 $* |
| May-20-2025 | 0.49 $* | 0.71 $* |
| Apr-20-2025 | 0.99 $* | 0.82 $* |
| Mar-20-2025 | 0.45 $* | 0.58 $* |
| Feb-20-2025 | 0.50 $* | 0.96 $* |
| Jan-20-2025 | 0.61 $* | 0.85 $* |
Характеристики
Product Description
A step forward in thermal imaging:
The Helion series thermal imagers embrace a wide range of professional and semi-professional applications from hunting and scouting to law enforcement and life rescue. Hunters looking for animals in the woods, outdoor enthusiasts willing to protect camping site at night, law enforcement professionals seizing criminals and rescue teams searching for survivors or lost people all will be pleased with potential of the Helion series from Pulsar.
High resolution 640x480 thermal imaging sensor:
The Helion XP boasts an uncooled micro-bolometric matrix 640x480px, at 17 µm, for highly detailed imaging.
Built-in video recorder:
The Helion is equipped with a recorder which enables video shooting and image capturing at the time of observation. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi
Long viewing range 1800 meters:
Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest) for the Helion thermal scopes up to 1800 meters, depending on the model.
Power Supply System B-pack:
Helion includes a progressive autonomous B-Pack power supply consisting of a quick-detach, rechargeable IPS5, 5 A-h battery pack designed to deliver over 8 hrs. of operation on maximum mode. Higher-powered IPS10 battery packs, as well as CR123A and AA battery cases, also are available and provide a perfect off-the-grid power solution.
Stadiametric rangefinder:
Helion has a stadiametric rangefinder performed in the shape of rangefinding reticle which enables distance measuring to observed objects with known height (deer - 1,7 m; boar – 0,7 m; hare – 0,3 m) with a sufficient precision.
Pulsar’s proprietary Image Boost Technology is comprised of software algorithms:
designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identifcation capabilities.
Color palettes:
In addition to user-favorite “white hot” and “black hot” imaging, Helion offers a robust array of 8 color palettes for true
colorized temperature mapping. Transitioning from color to default “white hot” during operation is also fast and easy.
Mobile-Friendly with Remote Control and Live Internet Streaming:
The highlight of the Helion is the ability to link via Wi-Fi the device with Android and iOS based mobile units using the free
mobile application Stream Vision. The Stream Vision software connects the device with Android / iOS mobile unit (smartphone or tablet) which enables you to receive footage in the real time mode, to distantly operate the device with your smartphone, as well to stream online the image captured by the device to YouTube.
Variable magnification:
Helion models include variable magnification, up to 8x depending on model, and feature both 2x step-up and smooth, graduated magnification for a truly optimum, customized field of view.
Updatable Software:
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Helion software versions are available.
Display Off:
When it is necessary to temporarily stop observation the user can apply Display Off function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation(when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).
Effective temperature stabilization of the sensor:
A radiator panel, located on the device’s body, effectively prevents heat build-up from the sensor and other components while also significantly reducing temperature and noise sensitivity, especially between calibrations
High image frequency:
Due to the high image frequency (50 Hz) it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).
User-friendly interface:
The Helion is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Wireless remote control (optional):
The ergonomic, wireless remote control, with encoder wheel, puts the full range of Helion operation at your fingertips when
comfort and convenience means taking hands-off the controls.
Fully waterproof:
The Helion thermal scopes can be operated in precipitation of any intensity, e.g. heavy shower or snowfall (the units have IPX7 degree of protection according to the IEC 60529).
External power supply:
Helion makes charging from external sources, such as power banks, fast and easy with a micro-USB jack. The convenience of power-bank charging even enhances the ability to power up the Helion during extremely cold weather while also protecting the source from rapid discharge.
Wide range of operation temperatures:
Helion thermal imaging scopes are effective for the use in low temperatures (-25°C) thanks to the frost-resistant AMOLED display employed in the unit (image remains the same as when viewing at positive temperature of the surrounding atmosphere).
Features of Pulsar Helion XQ50:
* 640x480 resolution, 17µm pixel pitch core
* Integrated laser rangefinder
* Single Time Measurement and Scanning Modes
* 1.2 aperture
* 1350M detection range
* High-contrast, color AMOLED display
* 2.5-20x magnification
* Picture-in-picture digital zoom
* Stream Vision app connects binoculars to smart device
* 8-hour rechargeable battery pack
* 8 custom color modes
* 12.4 degrees field of view
* 50Hz refresh rate
* Stadiametric rangefinder
* Adjustable interpupillary distance
* IPX7 fully waterproof rated, submersible up to 3ft for 30 minutes
* Image optimization observation modes
* Real time video sharing
* Covered by the Pulsar's 1 year warranty
The Helion series thermal imagers embrace a wide range of professional and semi-professional applications from hunting and scouting to law enforcement and life rescue. Hunters looking for animals in the woods, outdoor enthusiasts willing to protect camping site at night, law enforcement professionals seizing criminals and rescue teams searching for survivors or lost people all will be pleased with potential of the Helion series from Pulsar.
High resolution 640x480 thermal imaging sensor:
The Helion XP boasts an uncooled micro-bolometric matrix 640x480px, at 17 µm, for highly detailed imaging.
Built-in video recorder:
The Helion is equipped with a recorder which enables video shooting and image capturing at the time of observation. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi
Long viewing range 1800 meters:
Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest) for the Helion thermal scopes up to 1800 meters, depending on the model.
Power Supply System B-pack:
Helion includes a progressive autonomous B-Pack power supply consisting of a quick-detach, rechargeable IPS5, 5 A-h battery pack designed to deliver over 8 hrs. of operation on maximum mode. Higher-powered IPS10 battery packs, as well as CR123A and AA battery cases, also are available and provide a perfect off-the-grid power solution.
Stadiametric rangefinder:
Helion has a stadiametric rangefinder performed in the shape of rangefinding reticle which enables distance measuring to observed objects with known height (deer - 1,7 m; boar – 0,7 m; hare – 0,3 m) with a sufficient precision.
Pulsar’s proprietary Image Boost Technology is comprised of software algorithms:
designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identifcation capabilities.
Color palettes:
In addition to user-favorite “white hot” and “black hot” imaging, Helion offers a robust array of 8 color palettes for true
colorized temperature mapping. Transitioning from color to default “white hot” during operation is also fast and easy.
Mobile-Friendly with Remote Control and Live Internet Streaming:
The highlight of the Helion is the ability to link via Wi-Fi the device with Android and iOS based mobile units using the free
mobile application Stream Vision. The Stream Vision software connects the device with Android / iOS mobile unit (smartphone or tablet) which enables you to receive footage in the real time mode, to distantly operate the device with your smartphone, as well to stream online the image captured by the device to YouTube.
Variable magnification:
Helion models include variable magnification, up to 8x depending on model, and feature both 2x step-up and smooth, graduated magnification for a truly optimum, customized field of view.
Updatable Software:
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Helion software versions are available.
Display Off:
When it is necessary to temporarily stop observation the user can apply Display Off function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation(when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).
Effective temperature stabilization of the sensor:
A radiator panel, located on the device’s body, effectively prevents heat build-up from the sensor and other components while also significantly reducing temperature and noise sensitivity, especially between calibrations
High image frequency:
Due to the high image frequency (50 Hz) it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).
User-friendly interface:
The Helion is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Wireless remote control (optional):
The ergonomic, wireless remote control, with encoder wheel, puts the full range of Helion operation at your fingertips when
comfort and convenience means taking hands-off the controls.
Fully waterproof:
The Helion thermal scopes can be operated in precipitation of any intensity, e.g. heavy shower or snowfall (the units have IPX7 degree of protection according to the IEC 60529).
External power supply:
Helion makes charging from external sources, such as power banks, fast and easy with a micro-USB jack. The convenience of power-bank charging even enhances the ability to power up the Helion during extremely cold weather while also protecting the source from rapid discharge.
Wide range of operation temperatures:
Helion thermal imaging scopes are effective for the use in low temperatures (-25°C) thanks to the frost-resistant AMOLED display employed in the unit (image remains the same as when viewing at positive temperature of the surrounding atmosphere).
Features of Pulsar Helion XQ50:
* 640x480 resolution, 17µm pixel pitch core
* Integrated laser rangefinder
* Single Time Measurement and Scanning Modes
* 1.2 aperture
* 1350M detection range
* High-contrast, color AMOLED display
* 2.5-20x magnification
* Picture-in-picture digital zoom
* Stream Vision app connects binoculars to smart device
* 8-hour rechargeable battery pack
* 8 custom color modes
* 12.4 degrees field of view
* 50Hz refresh rate
* Stadiametric rangefinder
* Adjustable interpupillary distance
* IPX7 fully waterproof rated, submersible up to 3ft for 30 minutes
* Image optimization observation modes
* Real time video sharing
* Covered by the Pulsar's 1 year warranty
model | 77404 |
type | uncooled |
resolution, Pixels | 640x480 |
frame rate | 50hz |
pixels size | 17um |
magnification | 2.5x |
continuous digital zoom | 2.5-20x |
digital zoom | x2/x4/x8 |
objective lens | 1:1.2 |
field of view | 12.4 |
dioptre adjustment | ±5 D |
interpupillary distance adjustment | 56-71mm |
max obervation range | 1350m |
display type | AMOLED |
power supply | 3.7v |
battery type/capacity/output voltage | li-ion battery pack IPS5/5000mAH/DC 3.7V |
external power supply | 5v |
operating time | 8h |
degree of protection | IPX7 |
operating temperature range | -25°c ~ +50 °c |
dimensions | 234x55x58mm |
weight(without battery) | 0.5kg |
video/photo format | avi./jpg. |
built-in memory | 8Gb |
built-in memory capacity | 150 min video/ 10000 pictures |
wifi frequency | 2.4Ghz |
wifi reception range | 15m |
Packing & Delivery
* Battery pack and charging kit
* Carrying case
* Lens cloth
* USB cable
* Hand strap
* Carrying case
* Lens cloth
* USB cable
* Hand strap
* User manual
Shipping to worldwide via DHl express with 3-5 days delivery.
Shipping to worldwide via DHl express with 3-5 days delivery.
our advantage:
* secure transaction guaranteed
* we offer reasonable discount on bulk purchase
* we offer 1 year warranty
* we ship monday through sunday with package tracking & arriving reminding
FAQ
1. Can you do OEM ?
Yes, we offer custommade service to our clients. You need to provide us some technical data such as dimension and mark.
2. If we need a sample first, could you supply it?
No problem, sample is available as your require.
3. How do I pay for my order?
Alibaba Escrow is the first option and priority for the payment. We can also accept the payment via Pay-Pal or Western Union or
Bank T/T Wire Transaction etc.
4. How to contact you ?
You can contact us with WhatsApp, Facebook, Alibaba client, WeChat, Linkedin and email. We will provide you with quality service.
FYI:
wechat:15970075977
whatsapp:+8615970075977
facebook: https://www.facebook.com/ken.cai.77
linkedin: https://www.linkedin.com/in/ken-cai-6a16a2103/
Yes, we offer custommade service to our clients. You need to provide us some technical data such as dimension and mark.
2. If we need a sample first, could you supply it?
No problem, sample is available as your require.
3. How do I pay for my order?
Alibaba Escrow is the first option and priority for the payment. We can also accept the payment via Pay-Pal or Western Union or
Bank T/T Wire Transaction etc.
4. How to contact you ?
You can contact us with WhatsApp, Facebook, Alibaba client, WeChat, Linkedin and email. We will provide you with quality service.
FYI:
wechat:15970075977
whatsapp:+8615970075977
facebook: https://www.facebook.com/ken.cai.77
linkedin: https://www.linkedin.com/in/ken-cai-6a16a2103/
