XLink-30 система передачи видео дальнего радиуса действия 30
- Категория: Радио и ТВ аксессуары >>>
- Поставщик: Huixinghai,Technology,(Tianjin),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 5701.22 $* | 5815.27 $* |
| Jul-16-2025 | 4624.64 $* | 4716.38 $* |
| Jun-16-2025 | 5611.16 $* | 5723.14 $* |
| May-16-2025 | 5566.24 $* | 5677.30 $* |
| Apr-16-2025 | 4444.90 $* | 4533.98 $* |
| Mar-16-2025 | 5477.37 $* | 5587.96 $* |
| Feb-16-2025 | 5432.81 $* | 5541.52 $* |
| Jan-16-2025 | 5387.70 $* | 5495.67 $* |
Характеристики
Product Description
Specifications:
| Frequency Band | 1410MHz ~ 1470MHz |
| Bandwidth | 4MHz; 8MHz; 10MHz; 14MHz; 20MHz |
| Transmitting Antenna | 2*Tx & 2*Rx |
| Modulation Technique | OFDM |

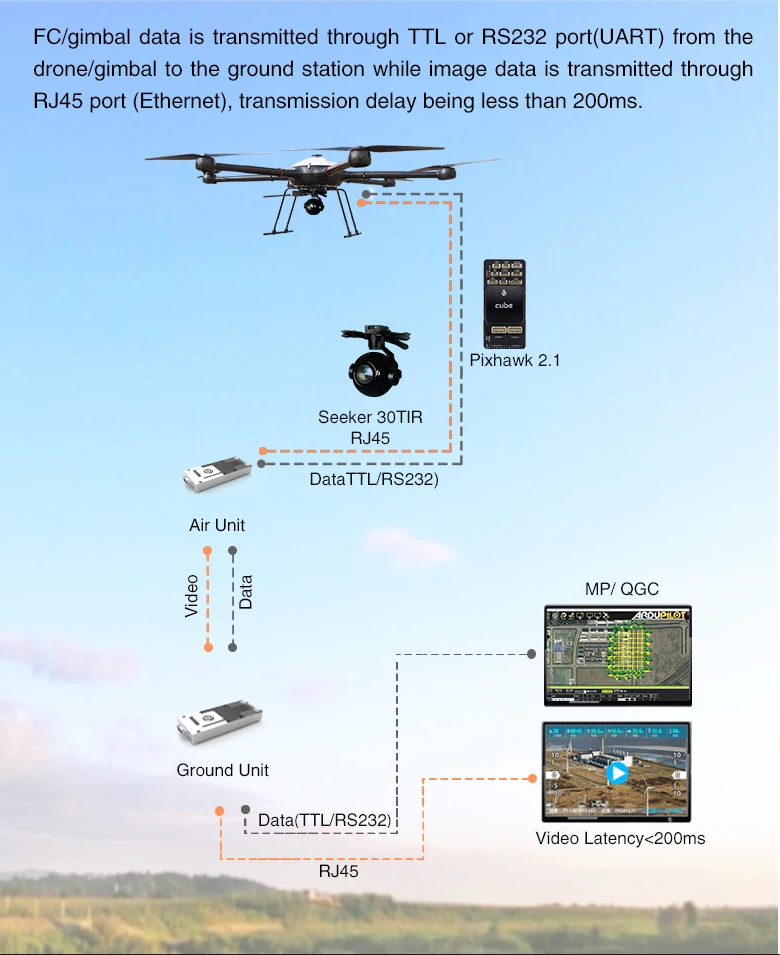

| Video Input | 1*RJ45(Ethernet) |
| Video Output | 1*RJ45(Ethernet) |
| Data Input | 2*TTL/1*RS232(UART) |
| Data Output | 2*TTL/1*RS232(UART) |
| Voltage | DC 9V ~ 36V; Typical Value 12V |
| Transmitting Power | ANT1, 0. W ANT2, 0.5W |
| Power Consumption | Air Unit:≤12W Ground Unit:≤6W |
| Bit Rate | Air Unit to Ground Unit 1.2Mbps ~ 12Mbps Ground Unit to Air Unit 115Kbps ~ 1Mbps |
| Transmission Delay | <200ms |
| Encryption Method | AES 128bit, Physical Layer Encryption |
| Size | 135mm*57mm*16.4mm |
| Weight | 174g |

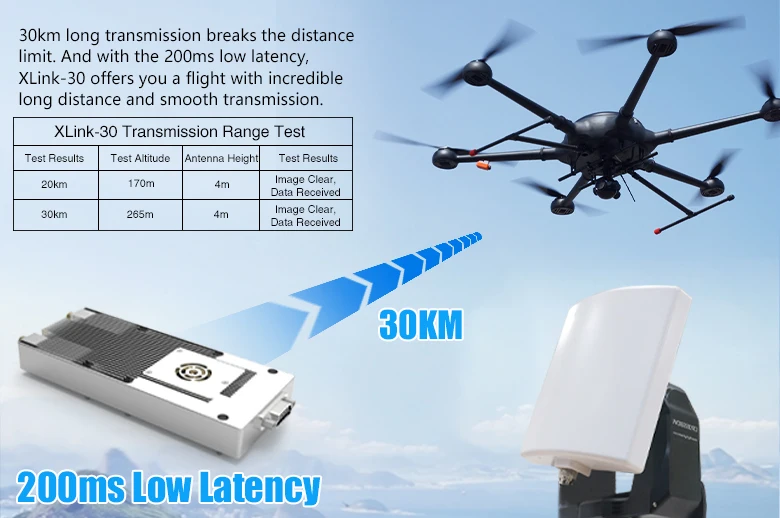

| Transmission Distance | 30km |
| Working Temperature | -40℃ ~ + 55℃ |
Advantage
| 1.XLink-30 is a point-to-point wireless data/video transmission system designed for industrial UAVs, ground robots and other data communication applications, featuring 30km long transmission distance. |

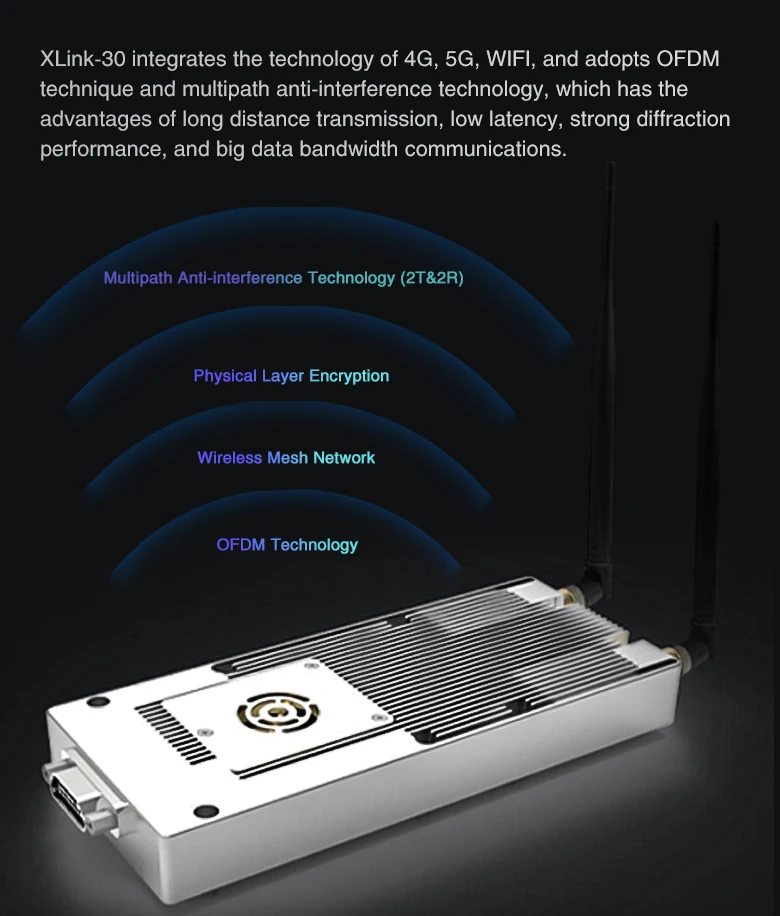

| 2.XLink-30 integrates the technology of 4G, 5G, WIFI, and adopts OFDM technique and multipath anti-interference technology, which has the advantages of long distance transmission, low latency, strong diffraction performance, and big data bandwidth communications. |
| 3.The transmission distance reaches 30km when used on UAVS, which requires an antenna tracking system and a holder, while used on UGVs that are matched with an omni-directional FRP antenna, it can still reach 1km- 2km despite of the intense ground signal interference. And with the 200ms low latency, XLink-30 offers you smooth video transmission. |
| 4.A great highlight of XLink-30 is that it supports multi-node interlinked to form a communication mesh, in which one node is too far from the ground station to receive signals, it is able to transmit data to its nearest node, by which data can be sent back to the ground station. |

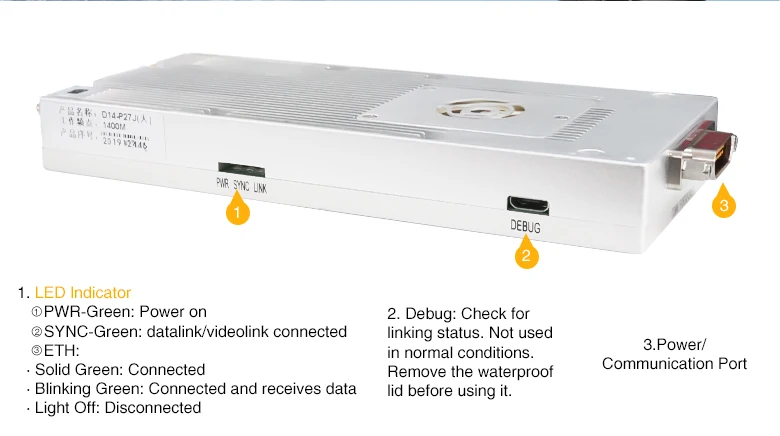

Detailed Images
More products
Contact us
Company Information
FAQ
Q: How will you deliver the goods?
A: By DHL/ TNT/ UPS etc.
Q: What are your terms of payment?
A: We accept T/T and Paypal.
Q. Do you test your aircrafts before delivery?
A: Yes, 100% test flight before delivery.
Q: What is your warranty and after-services?
A: 6 months warranty for all electronics. We offer technical support, and traning service (if needed).
Q: What is the lead time? (How long will it take to prepare my order?)
A: Normally around 7 -20 days. Many of our products we have stock, so delivery is fast. If u want them urgent, please contact me.
Q: Can i get a special discount as i am a distributor?
A: Yes, please contact Carol (whatsapp/ wechat 0086-18222870274), thank you.
