Product Description
Vmix Control Panel for Audio Video Live Broadcast System VIMIX Software Support Windows/ Linux/ Android/ ios OS

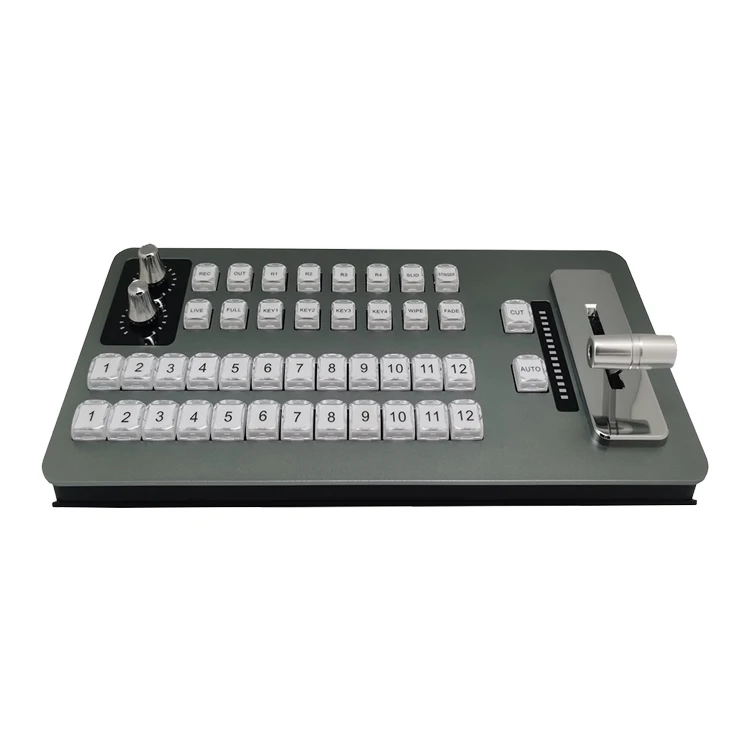

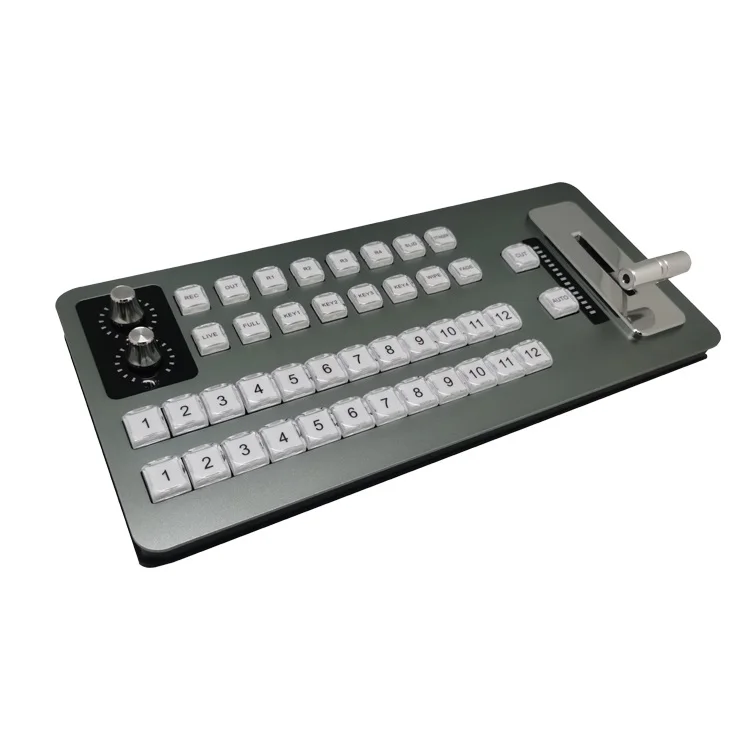

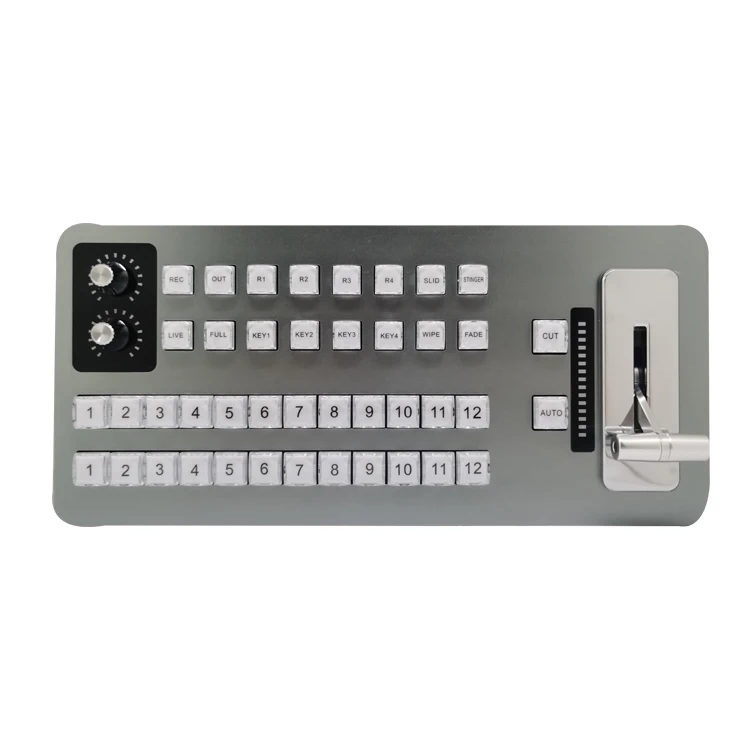

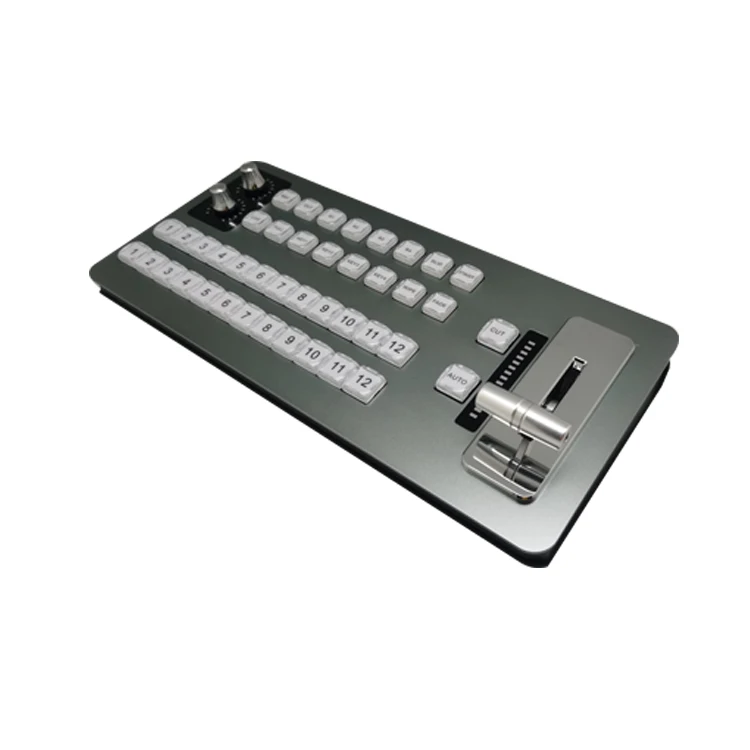

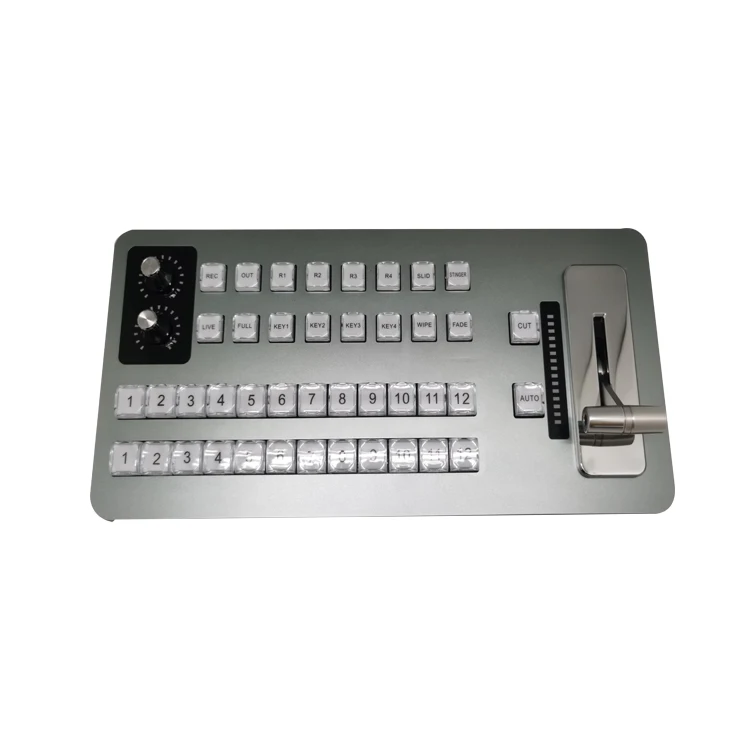

The KT-KV video switchboard
is suitable for audio and video editing live broadcast systems and recording systems.It supports USB HID protocol, MIDI and other common protocols, driver-free, V-Mix software, as well as RS232 and RS422 communication, TALLY interface.Meanwhile it provides free OEM service.
Video editing, virtual studio, a variety of video features
Fully support vMix full hd and 4K video source real-time mixing, switching, recording and real-time streaming media.
Live concert productions, sports events, church services or small webcasts
Fully support vMix full hd and 4K video source real-time mixing, switching, recording and real-time streaming media.
Live concert productions, sports events, church services or small webcasts
Features:
* T-BAR Hall Single-Axis Actuator (Class 15 Progress Indicator)
* 42 buttons, each with its own RGB full-color backlight (software color adjustment)
* 2 knobs (encoder, with push-down switch), 15-stage LED indication
* External interfaces: 1 RS232 (DB9 pin) communication port, 1 RS422 communication port.1 USB (drive-free) 1, RJ45 (spare)
* TALLY interface: TALLY (DB25 pin)
* Power supply: DC12V with power switch at the rear.
* Dimensions: 164 X 354 X 51 (excluding rocker and knob sizes)
* 42 buttons, each with its own RGB full-color backlight (software color adjustment)
* 2 knobs (encoder, with push-down switch), 15-stage LED indication
* External interfaces: 1 RS232 (DB9 pin) communication port, 1 RS422 communication port.1 USB (drive-free) 1, RJ45 (spare)
* TALLY interface: TALLY (DB25 pin)
* Power supply: DC12V with power switch at the rear.
* Dimensions: 164 X 354 X 51 (excluding rocker and knob sizes)
Details Images

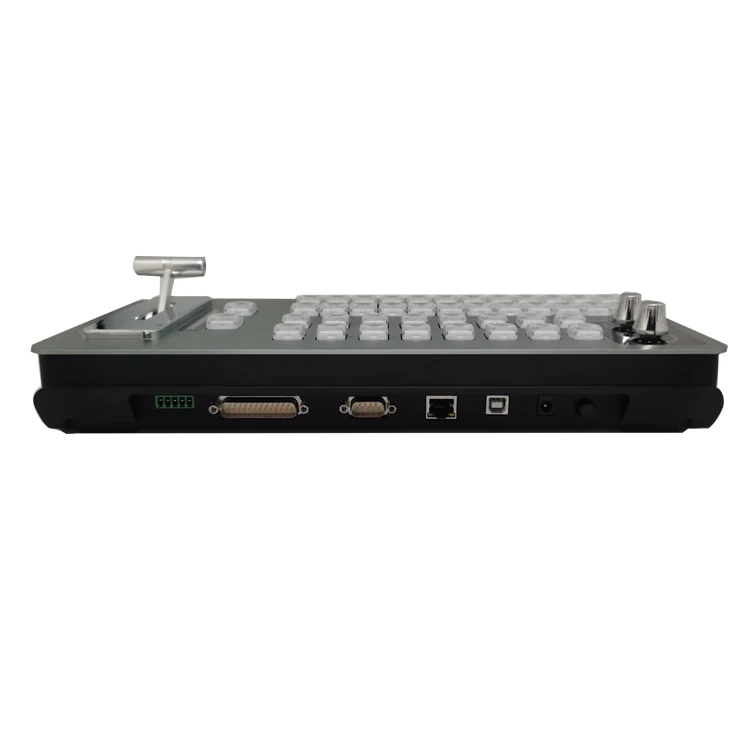

Instructions on the back of the keyboard
⑨ T-BAR
⑩ RS422
Pin1 \tPin2 \tPin3\t Pin4\t Pin5
RX- \t RX+\t TX- \t TX+\t GND
⑪ TALLY: DB25
⑫ RS232:DB9
Pin1\tPin2\tPin3\tPin4\tPin5\tPin6\tPin7\tPin8\tPin9
\t RXD\tTXD\t\t GND\t\t\t\t
⑬RJ45
Pin1\tPin2\tPin3\tPin4\tPin5 \t Pin6\t Pin7\t Pin8
GND\t\t\t\t 232-TX\t232-RX\t\t 12V IN
⑭ USB：USB2.0B, support DirecetX HID, plug and play, no driver
⑮ Imput：DC12V, random with power plug
⑯ power plug
⑩ RS422
Pin1 \tPin2 \tPin3\t Pin4\t Pin5
RX- \t RX+\t TX- \t TX+\t GND
⑪ TALLY: DB25
⑫ RS232:DB9
Pin1\tPin2\tPin3\tPin4\tPin5\tPin6\tPin7\tPin8\tPin9
\t RXD\tTXD\t\t GND\t\t\t\t
⑬RJ45
Pin1\tPin2\tPin3\tPin4\tPin5 \t Pin6\t Pin7\t Pin8
GND\t\t\t\t 232-TX\t232-RX\t\t 12V IN
⑭ USB：USB2.0B, support DirecetX HID, plug and play, no driver
⑮ Imput：DC12V, random with power plug
⑯ power plug
