Гибридный кондиционер Sunpal с питанием от солнечной энергии Minisplit высоким потоком 1 тонна 5 тонны
- Категория: Кондиционеры >>>
- Поставщик: Sunpal,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 669.8 $* | 702.30 $* |
| Aug-15-2025 | 663.33 $* | 696.77 $* |
| Jul-15-2025 | 556.65 $* | 584.79 $* |
| Jun-15-2025 | 652.58 $* | 685.78 $* |
| May-15-2025 | 568.43 $* | 596.52 $* |
| Apr-15-2025 | 641.7 $* | 673.89 $* |
| Mar-15-2025 | 635.22 $* | 667.54 $* |
| Feb-15-2025 | 629.39 $* | 660.46 $* |
| Jan-15-2025 | 624.71 $* | 655.51 $* |
Характеристики

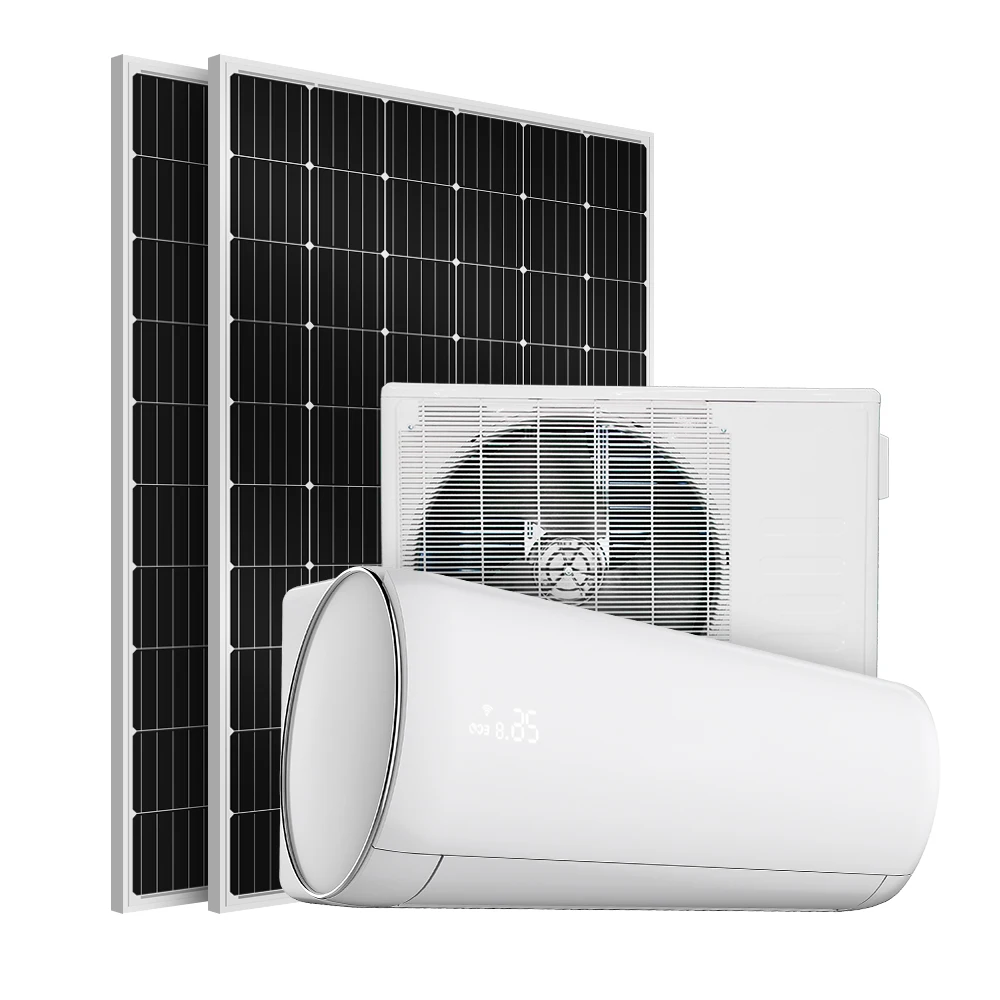

Solar Air Conditioner Description
What Is Solar Air Conditioner：
Sunpal Recreate Series Hybrid Solar Air Conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including DC Compressor, high-efficiency DC Fan Motors, DC Valves & Solenoids, etc.
Hybrid Solar Air Conditioner uses Solar Direct Drive Technology(SDDA), so the A/C Unit can use AC DC power in the same time or independently. The solar energy will be used as the priority power instead of the grid energy to run the air conditioner. In the sunshine day, the Recreate Hybrid Solar Air Conditioner can be operated by 100% solar energy without AC power.

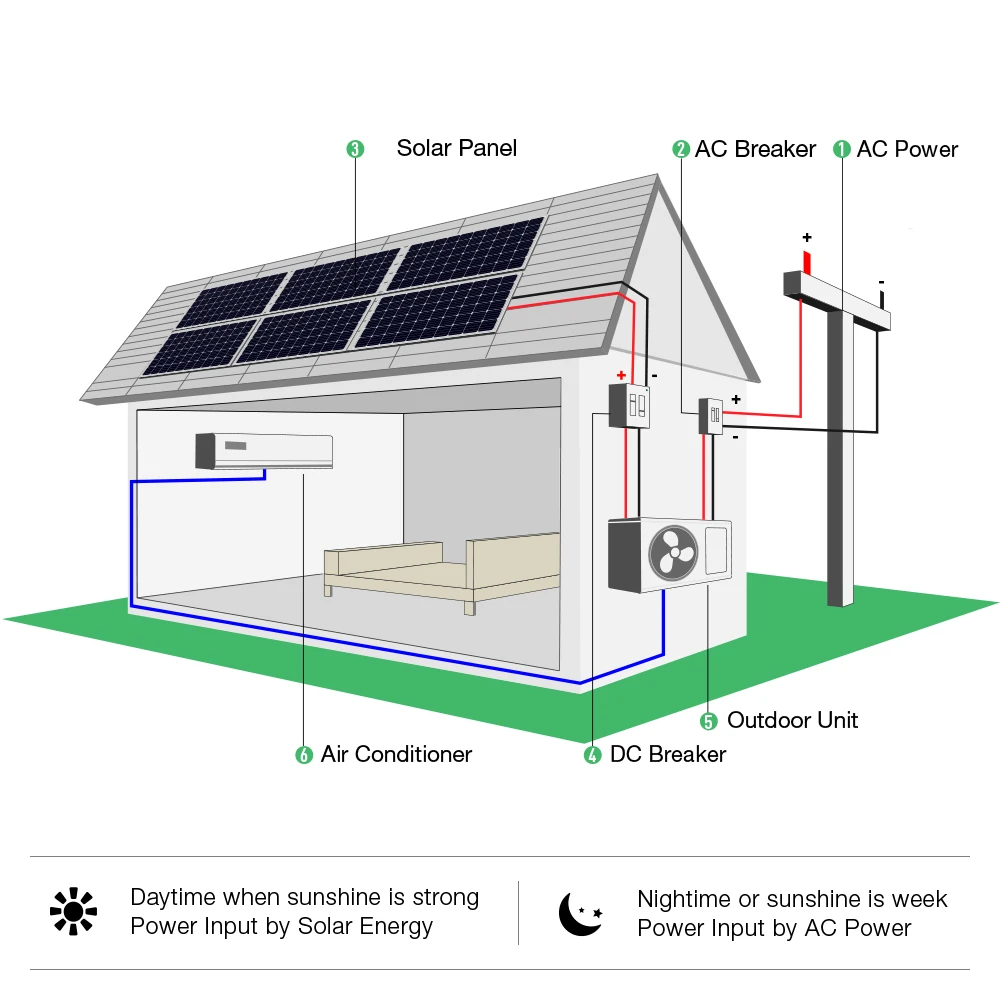

The whole system just contains an A/C Unit and a few PV panels ( NO BATTERY, NO INVERTER, NO CONTROLLER). Compare with the regular air conditioner, the investment increases 50%-80%, but the electricity bill will reduce 60-80% yearly.
The Air Conditioner System uses VRF (Variable Refrigerant Flow ) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change.
Hybrid Solar Air Conditioner uses Solar Direct Drive Technology(SDDA), so the A/C Unit can use AC DC power in the same time or independently. The solar energy will be used as the priority power instead of the grid energy to run the air conditioner. In the sunshine day, the Recreate Hybrid Solar Air Conditioner can be operated by 100% solar energy without AC power.
The whole system just contains an A/C Unit and a few PV panels ( NO BATTERY, NO INVERTER, NO CONTROLLER). Compare with the regular air conditioner, the investment increases 50%-80%, but the electricity bill will reduce 60-80% yearly.
GRID POWER
During the night, the A/C unit take the power from the grid power and running with same principle of regular air conditioner, the SEER is over 22.
GRID AND SOLAR
When Sunshine is weak, like the morning or cloudy day. The A/C unit will take the solar as the priority choice, the insufficient power will take from the grid
100% SOLAR
When solar meet the Min Running requirement of compressor, the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving
A/C Unit Description
Model No | ADC09GW-XA | ADC12GW-XA | ADC18GW-XA | ADC24GW-XA | ||||
Power Supply: | ||||||||
Solar Power | DC90-380V | |||||||
Max Solar Charging Current | 15A | |||||||
AC Power Connected | 200-230V (50/60HZ) | |||||||
Cooling: | ||||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h | ||||
Inverter Capacity Range | 2808-9536 Btu/h | 3099-1298 Btu/h | 3482-19389 Btu/h | 4294-25280 Btu/h | ||||
Power Input | 0.81Kw | 0.98Kw | 1.51Kw | 1.87Kw | ||||
SEER/EER | 22/12.3 Btu/W | 22/12.6 Btu/W | 20/12.1 Btu/W | 20/12.1 Btu/W | ||||
Heating: | ||||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h | ||||
Inverter Capacity Range | 2858-9685 Btu/h | 2808-9536Btu/h | 2808-9536Btu/h | 2808-9536Btu/h | ||||
Power Input | 0.87 Kw | 1.12 Kw | 1.29 Kw | 1.82 Kw | ||||
HSPF/COP | 12/13.4 Btu/W | 11/12.38 Btu/W | 10/12.41 Btu/W | 11/12.31 Btu/W | ||||
Operation Temperature: | ||||||||
Indorr Unit | 60.8-89.6 ºF | |||||||
Outdoor Unit | 50-125.6 ºF | |||||||
Solar Part Decription
A/C Unit.
>ACDC Hybrid Indoor Unit
Available Capacity 9k, 12k, 18k, 24k Btu ;
Digital display

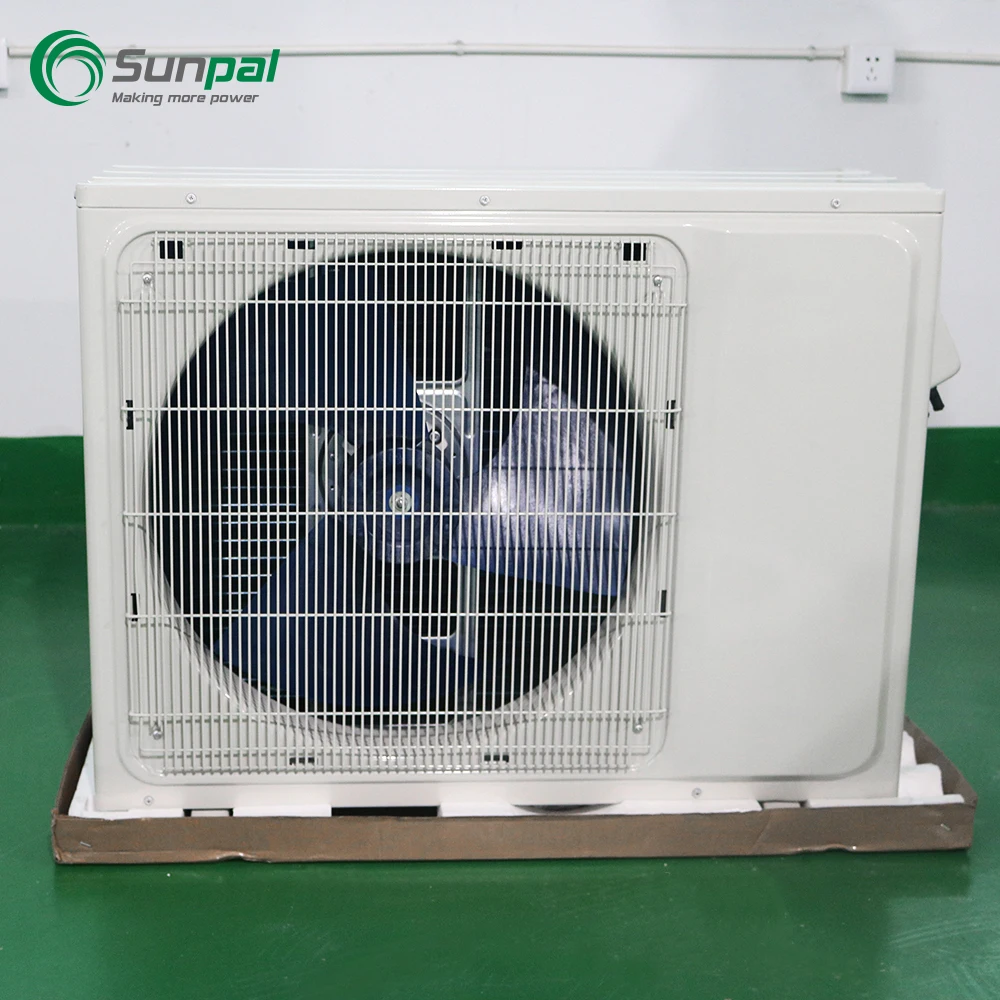

>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A

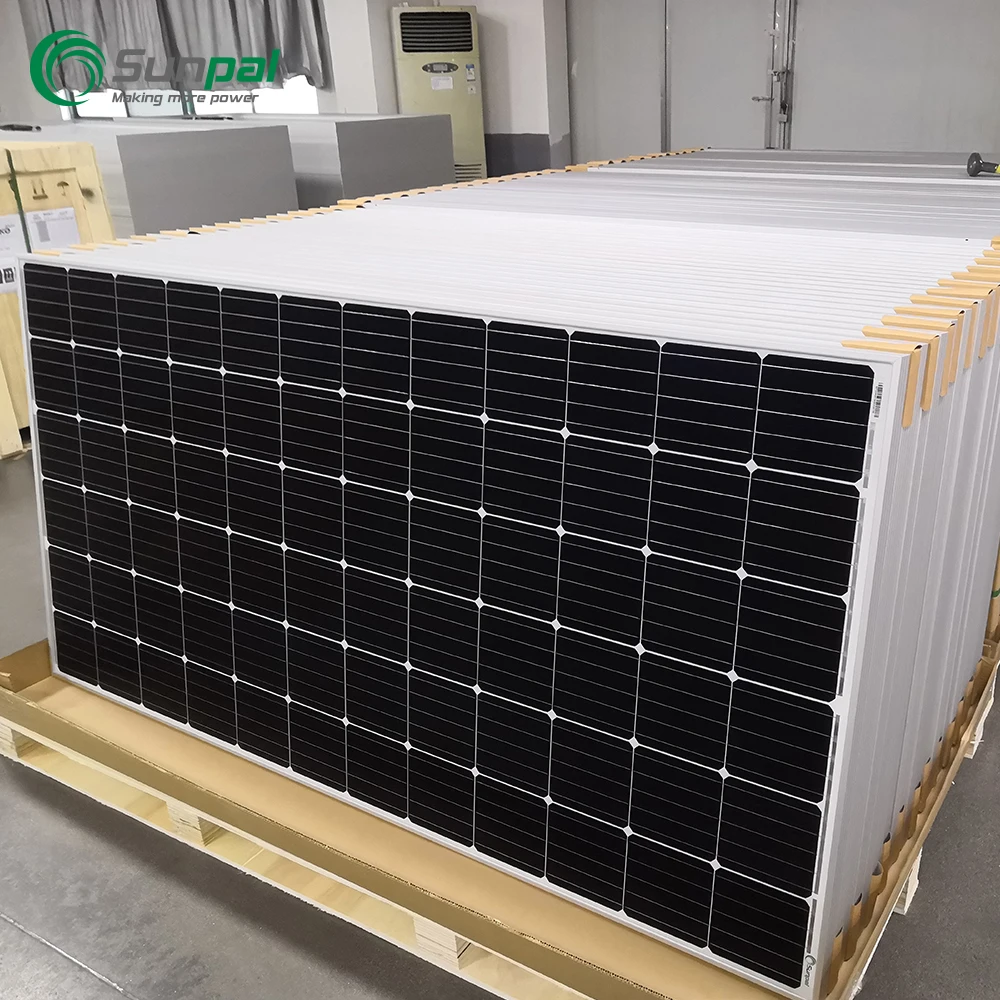

Solar Panel.
Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
DC Cable & MC4 Connector.
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Lightning Arrester.
PC40-85V DC
Fuse-Protection.
RT28N-32X 1P
DC Breaker.
DC800V 2P 20A
Certifications
1.CB; 2.CE; 3.GCC; 4.SASO; 5.ISO 9001; 6. SONCAP
Project Cases

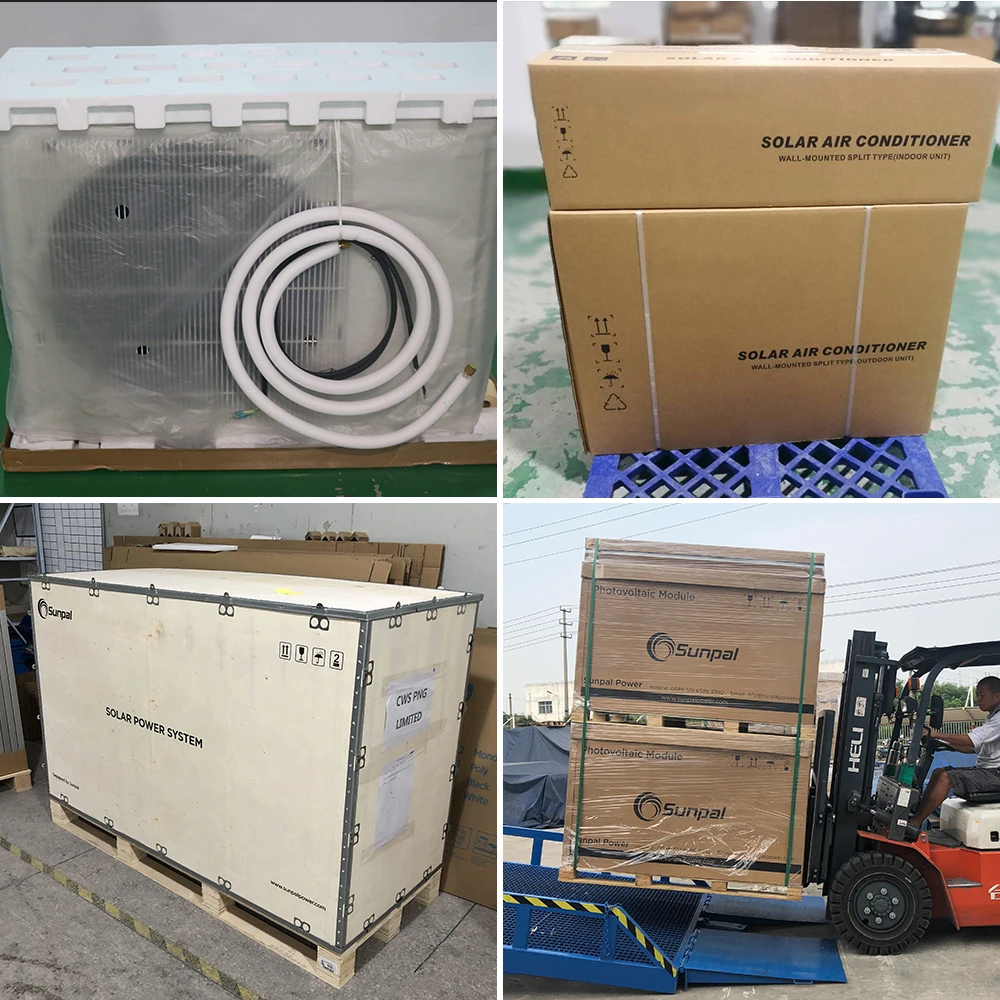

Professional packaging
