Заводская цена портативная небольшая Щековая камнедробилка для дизельного двигателя мобильная PE150 *

Заводская цена портативная небольшая Щековая камнедробилка для дизельного двигателя мобильная PE150 *

Категория: Energy & Mineral Equipment >>>
Поставщик: Jiangxi,Hengchang,Mining,Machinery,Manufacturing,Co.,Ltd.

Цена:1 650,00 $ - 2 100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	1964.54 $*	2062.24 $*
Aug-18-2025	1947.53 $*	2044.20 $*
Jul-18-2025	1634.19 $*	1716.75 $*
Jun-18-2025	1914.21 $*	2010.89 $*
May-18-2025	1667.31 $*	1750.86 $*
Apr-18-2025	1881.29 $*	1975.57 $*
Mar-18-2025	1865.94 $*	1958.46 $*
Feb-18-2025	1848.35 $*	1940.87 $*
Jan-18-2025	1832.19 $*	1924.32 $*

Характеристики

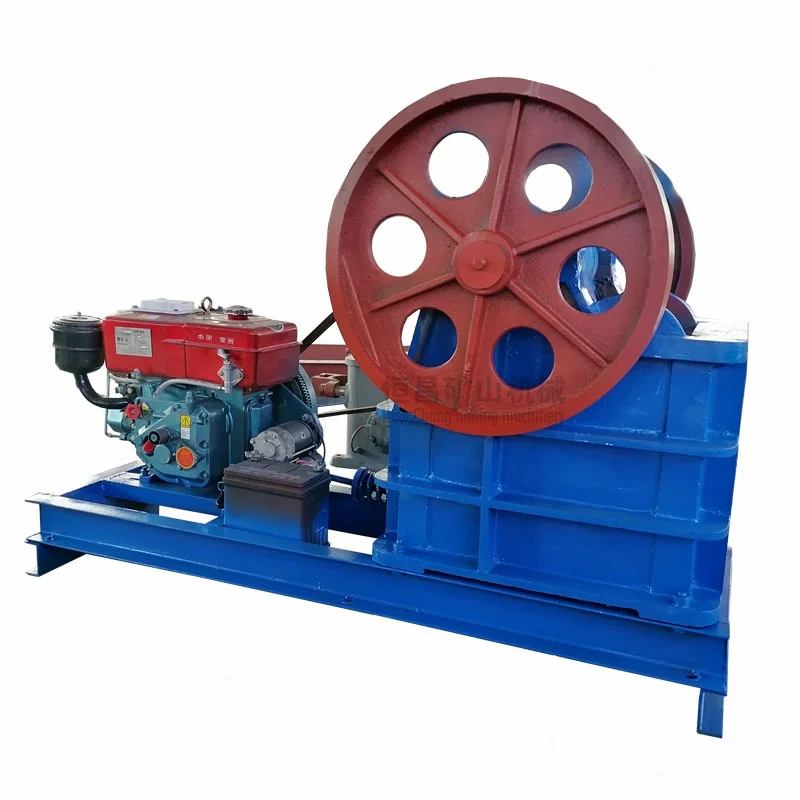

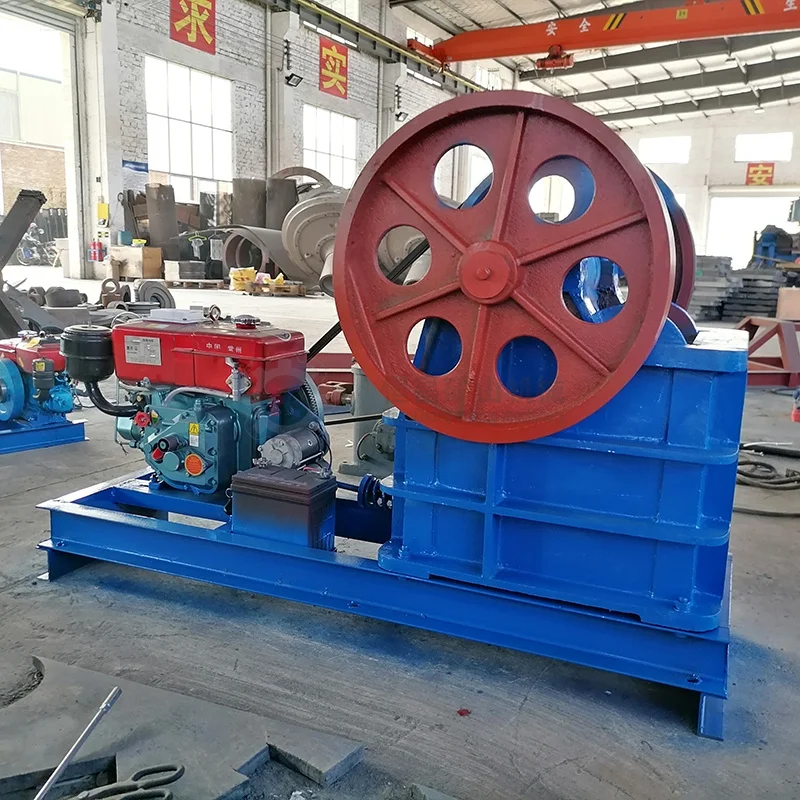

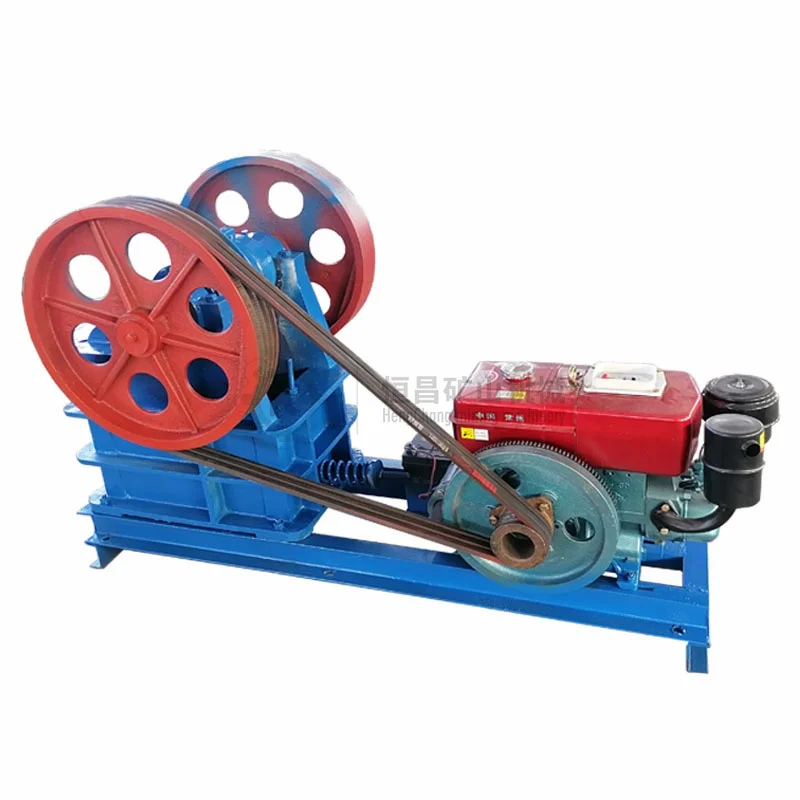

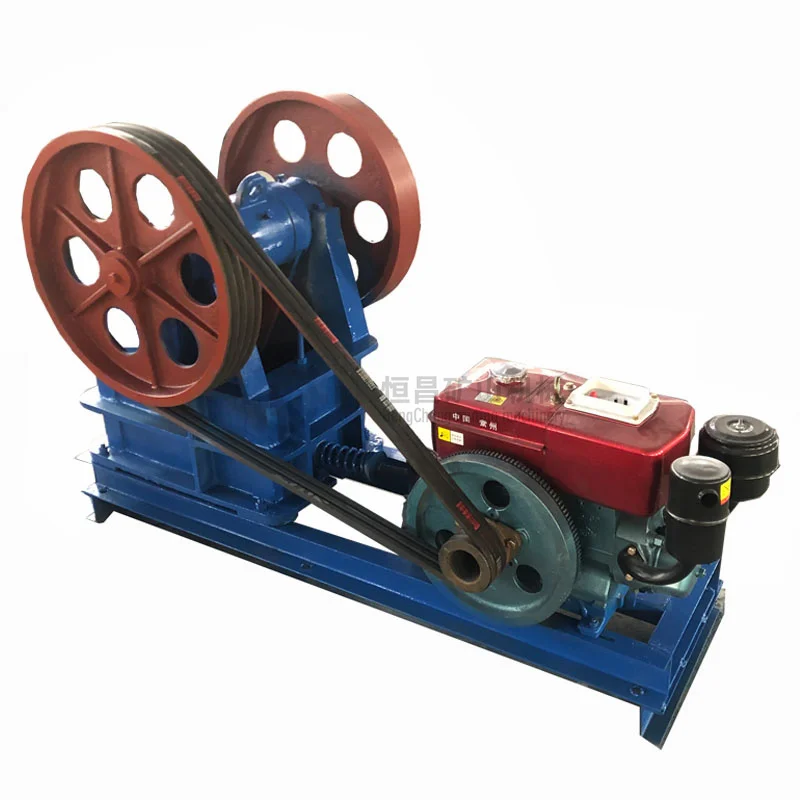

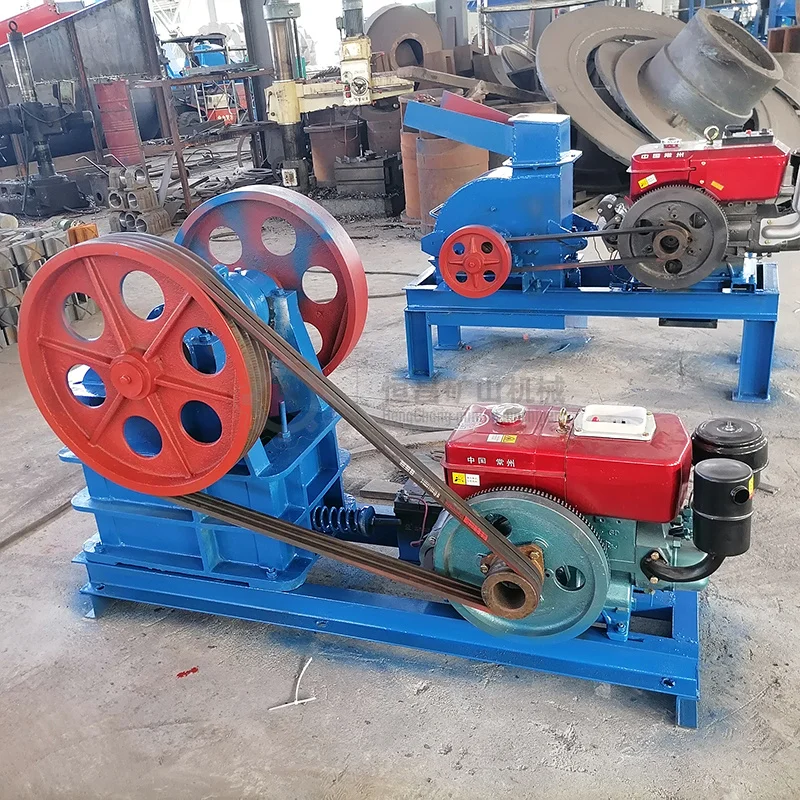

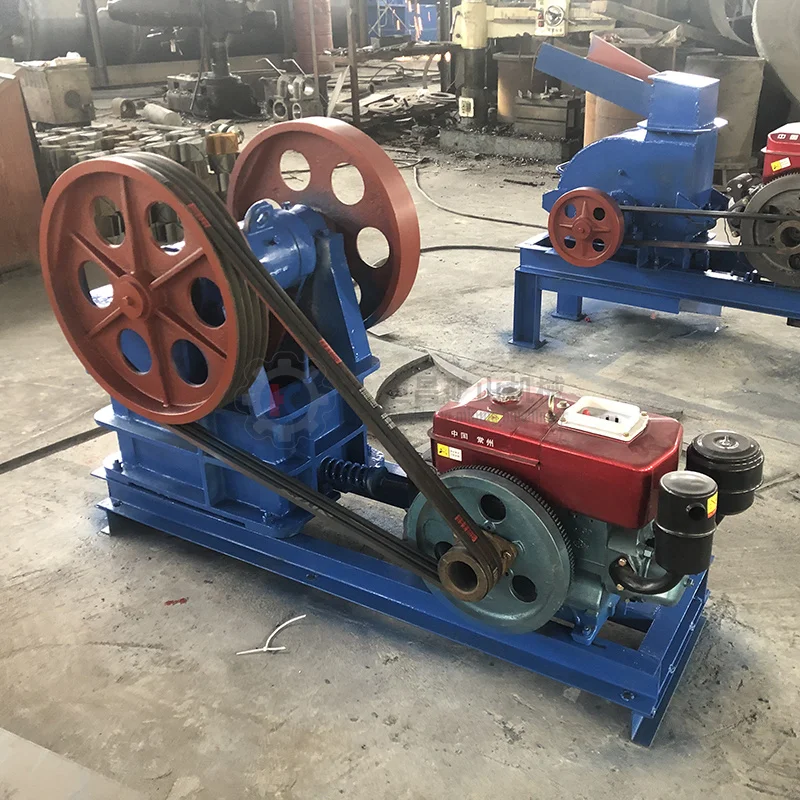

Factory Price Portable Small Diesel Engine Jaw Stone Crusher,Mobile Rock Crusher PE150*250

Hengchang Brand PE Series Portable Diesel Engine Crusher is widely used for crushing of stone, rock , Cement processing plant glass, metal, ore etc., such as limestone, granite, dolomite, marble stone, etc. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Jaw Crusher is for first crushing.

Working Principle of Portable Diesel Engine Crusher

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.

Features of Portable Diesel Engine Crusher

1. High crushing ratio, well-distributed final product size.

2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.

Model	Max feeding size (mm)	Capacity (t/h)	Output size (mm)	Power (kw)	Weight (kg)
PE150×250	125	1-3	10-40	5.5	1160
PE200×300	180	2-6	15-50	7.5	1240
PE200×350	180	3-10	18-60	11	1520
PE250×400	210	5-20	20-80	15	2572
PE400×600	340	14-36	40-100	37	5800
PE500×750	425	30-80	50-120	45	9000
PE600×900	500	56-192	75-200	75	18900
PE750×1600	630	110-320	80-235	110	29300
PE900×1200	750	180-350	100-250	110	55000
PE1200×1500	1020	400-800	150-350	160	101000
PEX150×750	120	8-35	10-40	15	3350
PEX250×750	210	15-45	15-50	30	5000
PEX250×1000	210	15-50	20-50	30	6800
PEX250×1200	210	20-70	20-60	45	9000

Title goes here.

Stone Jaw Crusher Working Principle:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft.The movable jaw plate moves forth and back to press the materials with the fixed jaw plate together, the materials will be broken to smaller size and discharged from the outlet of jaw crusher.
