Конвейерная лента для суши Faith Factory
US $170.00
4 0 мм 3 слоя Зеленый ПВХ конвейерной ленты стойкость к большим на растяжение
- Категория: Conveyors >>>
- Поставщик: Shenzhen,Jiaheng,Industrial,Belting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 14.74 $* | 14.98 $* |
| Jul-15-2025 | 11.99 $* | 11.9 $* |
| Jun-15-2025 | 14.12 $* | 14.62 $* |
| May-15-2025 | 14.90 $* | 14.40 $* |
| Apr-15-2025 | 11.69 $* | 11.46 $* |
| Mar-15-2025 | 13.54 $* | 13.15 $* |
| Feb-15-2025 | 13.23 $* | 13.78 $* |
| Jan-15-2025 | 13.44 $* | 13.26 $* |
Характеристики
Product Description

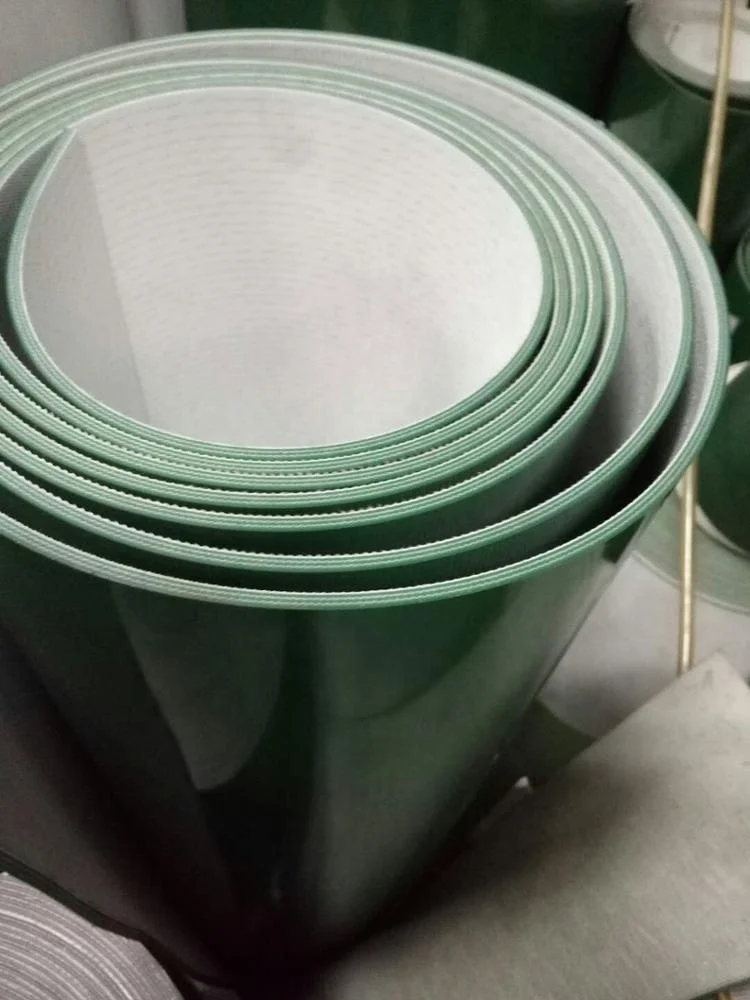

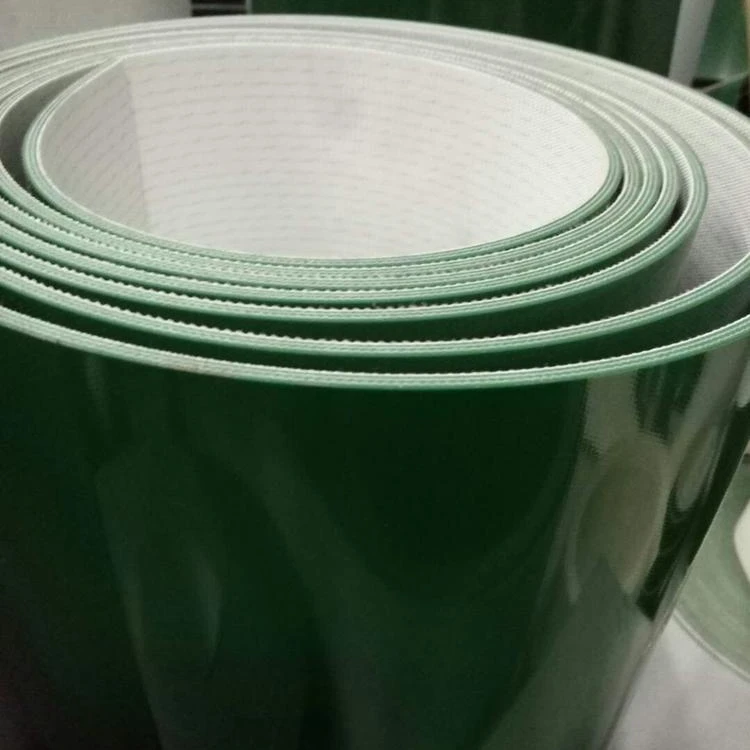

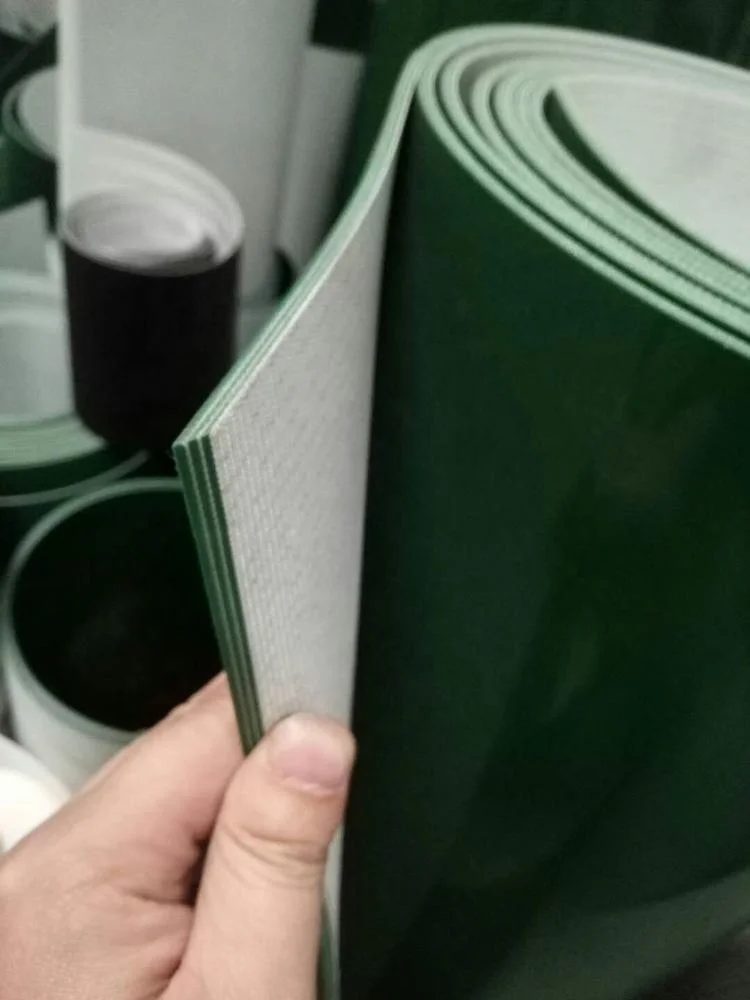

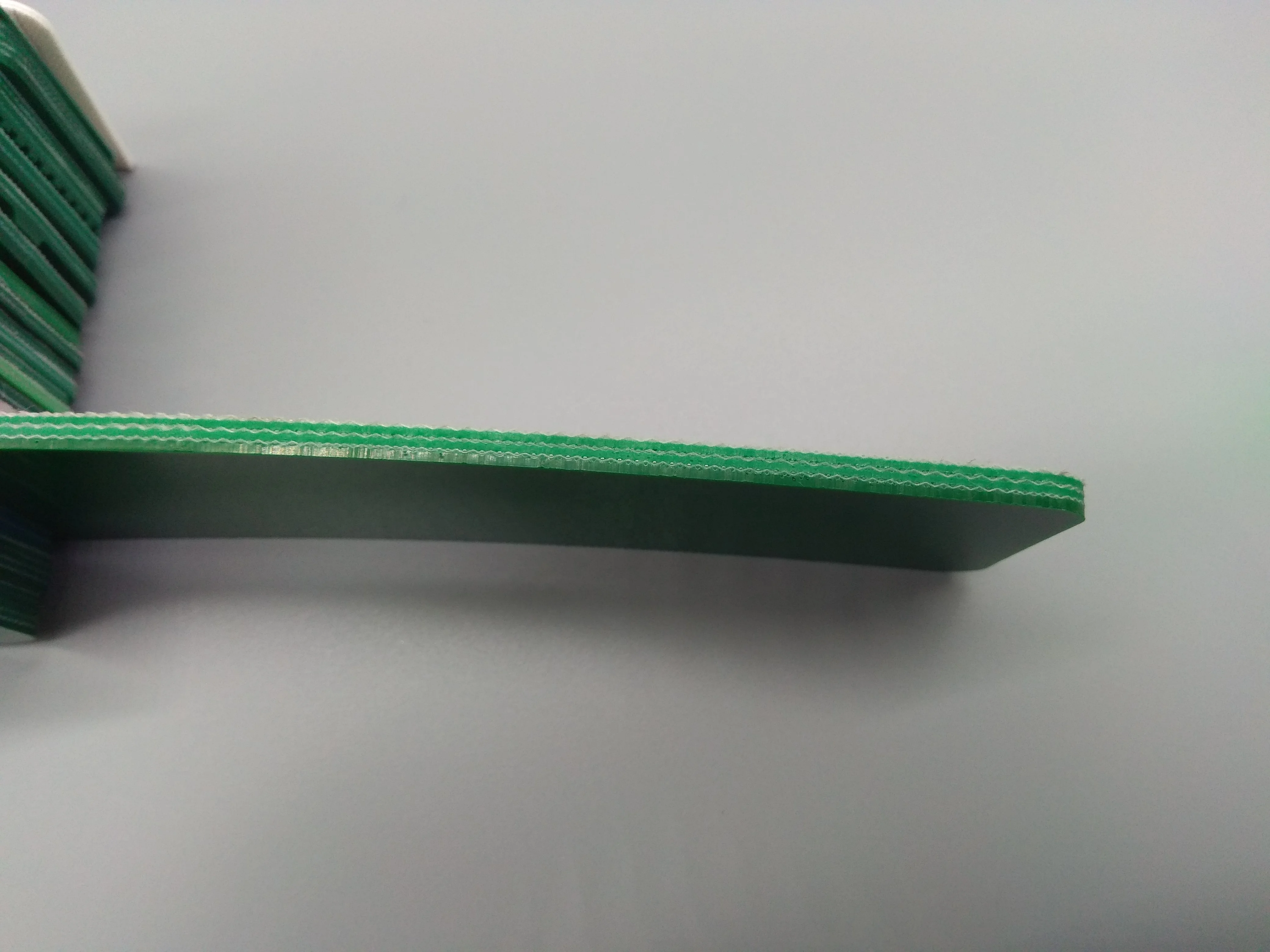

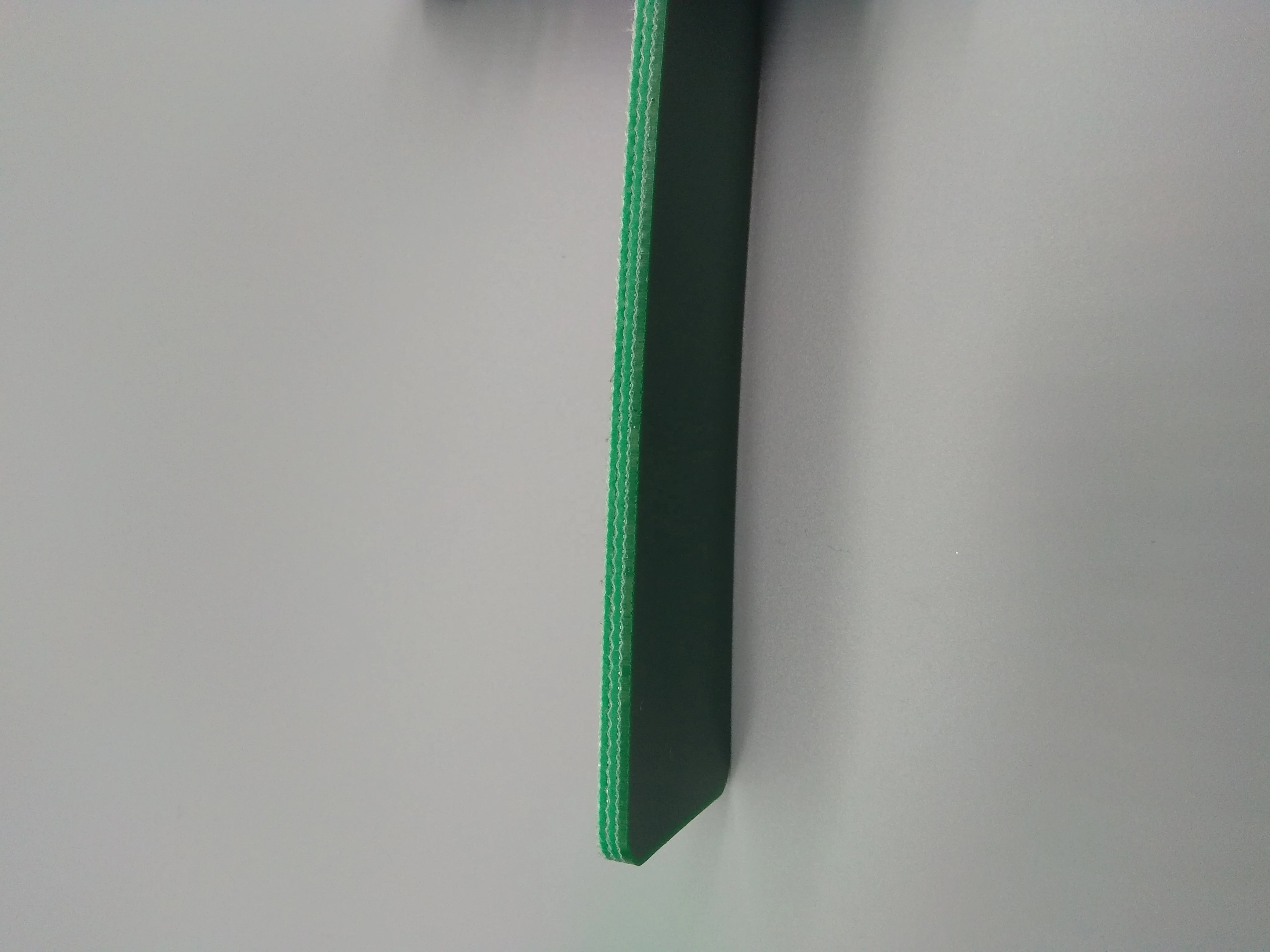

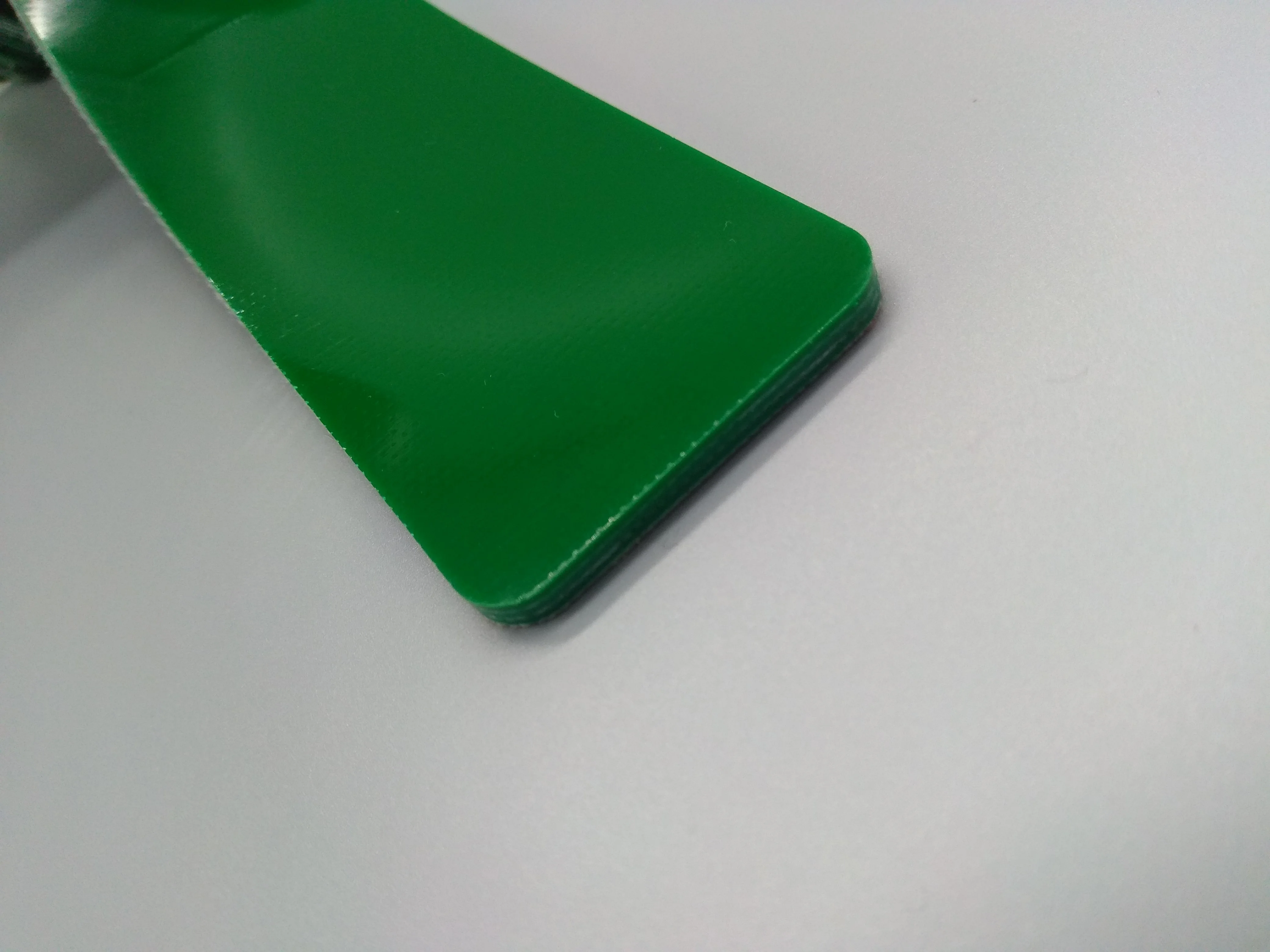

4.0mm 3 ply PVC CONVEYOR BELT
The Belts are able to fulfil the application needs for light to heavy processing and conveying applications.
The conveyor belts are made of 3 plies fabrics with a pvc coating on the top side. The coatings PVC on Synthetic Belts is also
called polymer which have influence on the suitability of the belt in a certain application.
Polyvinyl chloride, commonly abbreviated to PVC, is a widely produced plastic. PVC is a type of thermoplastic polymer that is
flexible and durable, and therefore suitable for use on conveyor systems.
A belt consists of 3 fabrics plies to give certain features such as strength, stability and impact resistance.
The conveyor belts are made of 3 plies fabrics with a pvc coating on the top side. The coatings PVC on Synthetic Belts is also
called polymer which have influence on the suitability of the belt in a certain application.
Polyvinyl chloride, commonly abbreviated to PVC, is a widely produced plastic. PVC is a type of thermoplastic polymer that is
flexible and durable, and therefore suitable for use on conveyor systems.
A belt consists of 3 fabrics plies to give certain features such as strength, stability and impact resistance.
Features
* Good chemical resistance (including chlorine)
* Hydrolysis resistance (hot water and steam)
* Flame-retardant types available (ISO 340)
* Some food types available (dry food)
* Economically priced
* Available in many different hardnesses, profiles and colours
* Hydrolysis resistance (hot water and steam)
* Flame-retardant types available (ISO 340)
* Some food types available (dry food)
* Economically priced
* Available in many different hardnesses, profiles and colours
Applications
PVC Belts are produced using different materials, thicknesses, colours etc. Therefore each belt has different features such as
high grip, non-fray or wear-resistance for example.
high grip, non-fray or wear-resistance for example.
* Airports
* Logistics
* Agriculture
* Fruit and Vegetables
* Logistics
* Agriculture
* Fruit and Vegetables
* Packaging
* Production lines
Product Paramenters
Model | MP32-14A |
Color | Green |
Total thickness | 4.0mm |
Ply | 3 |
Weight | 4.3 KG/M2 |
Tension 1% Elongation | 15 N/mm |
Top coating hardness | 80 ShoreA |
Min.Pulley Diameter | 60mm |
Max Production width | 4000mm |
Working Temperature | -15/+80 |
Transportation Style | Slat, Roller, U type |
Lateral Stability | Yes |
Belting process
Plain belt material is fabricated to customise the belt to your specifications,
for example, cutting to the right length and width.
An important fabrication job is making the belt endless. Belts can be made endless by means of various splicing methods.
for example, cutting to the right length and width.
An important fabrication job is making the belt endless. Belts can be made endless by means of various splicing methods.
