2020 сельскохозяйственная боковая оросительная система мобильный линейный
- Категория: Система орошения для фермы >>>
- Поставщик: Dalian,Gengze,Agricultural,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.83 $* |
| Aug-19-2025 | 0.71 $* | 0.44 $* |
| Jul-19-2025 | 0.89 $* | 0.37 $* |
| Jun-19-2025 | 0.51 $* | 0.59 $* |
| May-19-2025 | 0.51 $* | 0.42 $* |
| Apr-19-2025 | 0.38 $* | 0.97 $* |
| Mar-19-2025 | 0.81 $* | 0.61 $* |
| Feb-19-2025 | 0.69 $* | 0.30 $* |
| Jan-19-2025 | 0.4 $* | 0.11 $* |
Характеристики
Product Description
Pls Contact Us Immediately To Get This Month Newest Quotation With Special Discount Of 2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine

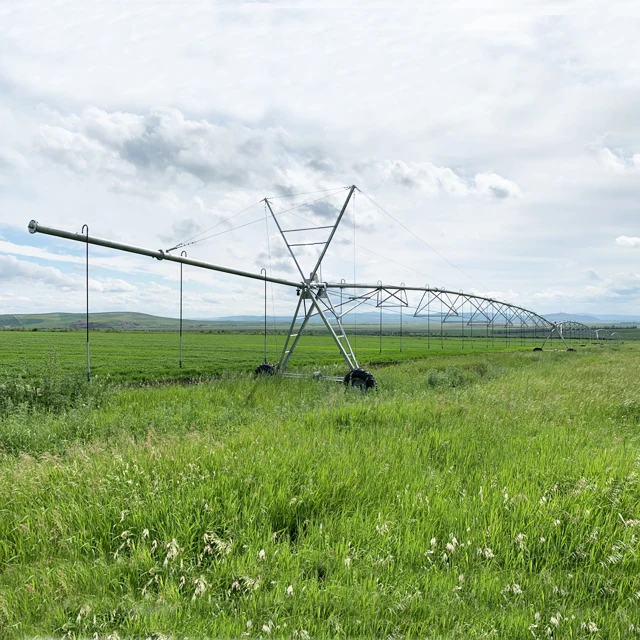

2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Centre Pivots Irrigatoralso known as pointer type irrigation, it's made up of center trestle table, spans, cantilever and synchronous system controlled by electric etc. The spans rotate repeatly around the base anchored to the ground, the sprinklers on the truss will spray water uniformly to the crops. 2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Centre Pivots Irrigator
2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Centre Pivots Irrigator | ||||||
Pipeline Diameter | 141mm,168mm(Standard),203mm,254mm | |||||
Pipeline Material | Hot-dip galvanized pipe Optional: Steel 304 pipe, Aluminium pipe, Hot galvanizated pipe with poly span inside | |||||
Pipeline Thickness | 3.2mm | |||||
Pipe Length | 6.7m | |||||
Span Lengths | 61.3m, 54.5m(Standard), 48m, 41m, 34m | |||||
Overhang length | 3.35m, 6.7m | |||||
Maximum Machine Length | 3.35m, 6.7m | |||||
Clearance | 2.6m, 3.1m, 4.1m, 5m | |||||
Collector Ring | external | |||||
Gearbox&motor | USA Brand | |||||
Max Slope | 25% or 30% | |||||
Span connectiton | Aluminium coupler & boot | |||||
Formed Outlets | Yes | |||||
Corner arm | Aluminium coupler & boot | |||||
Stablizers Dimention | 50mmx50mmx5mm | |||||
Tire Options | 11.2"x22.5"; 11.2"x24.5"; 11.2''x24''; 14.9"x24'' | |||||
Maximum Towers | 20 | |||||
Power Supply | 380v-460v | |||||
Detailed Images
2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine
•Pipe strength
The 3.2mm thickness pipeline provides strength and maintain integrity.2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine

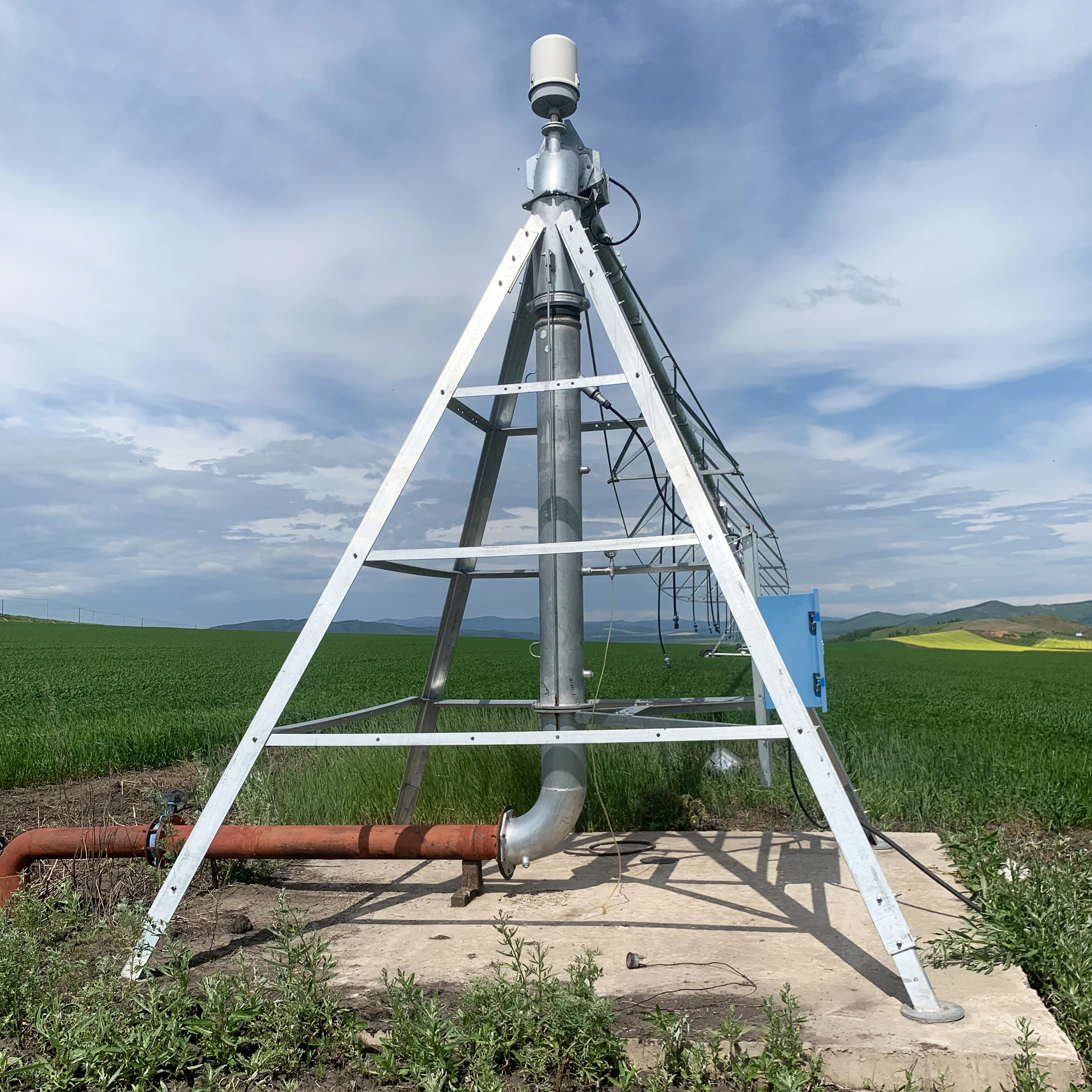

•Robust pivot point
Standard, medium, high and ultra-high clearance options to fit a variety of crops.2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine
•Full flow collector ring
The collector ring is mounted externally, eliminating water flow restriction.2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine
•Advanced controls
User-friendly control panels offer time-saving management and precise control.
The enforced standard pipes are normally carbon steel, their diameters are 6 5/8 inch(168 mm), which is 10% thicker than the competitor's top quality level.And they are effected the hot-dip galvanized process according to maritime standard.
The sprinkler from USA most famous brand, so that our system has more competitive price and higher working performance.
Our professional engineers specially design the frame with high tensile strength, which would guarantee 20 years of life-span.
The main body of the system effected by hot-dip galvanize, 20 years of working span expected.
PLC Intelligent control panel for your choice
If the water condition is unexpected hostile,the rubber liner inside the pipe will offer additional protection.
Packing & Delivery
2020 Agricultural Lateral Pivot Irrigation System Mobile Linear Irrigator Centre Pivots Machine can be only loaded in 40GP or 40HQ container since its span length is 6.7m.
Related Products
Our Company
FAQ
1. What about the MOQ?
- 1 set (at least 2 spans)
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
