DPSS High quality 50W 1064nm Laser Diode Module with power supply for laser marker

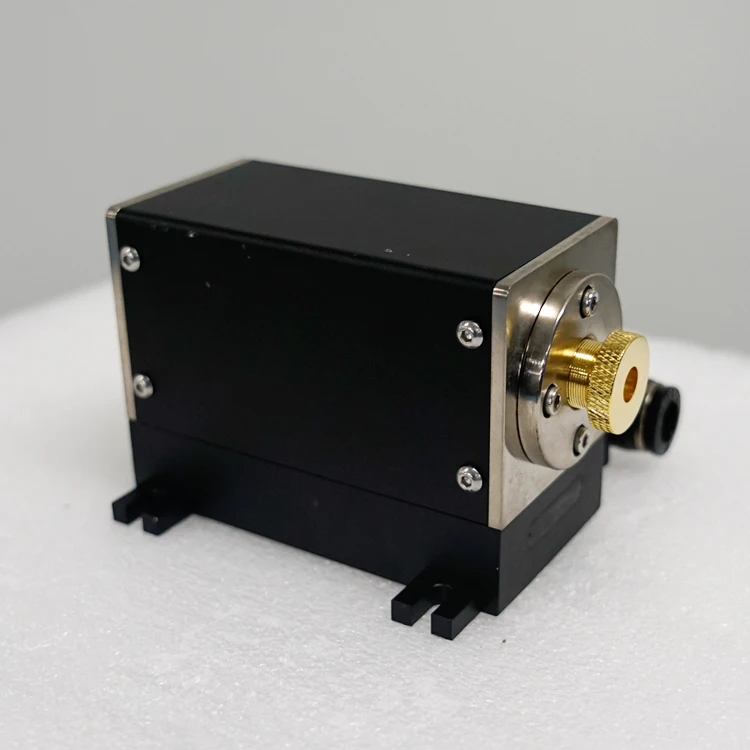

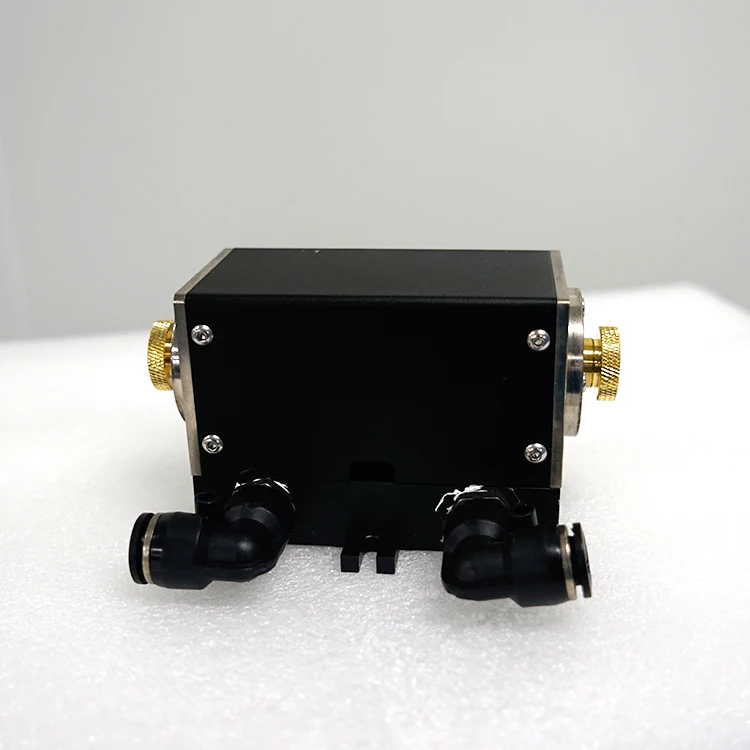

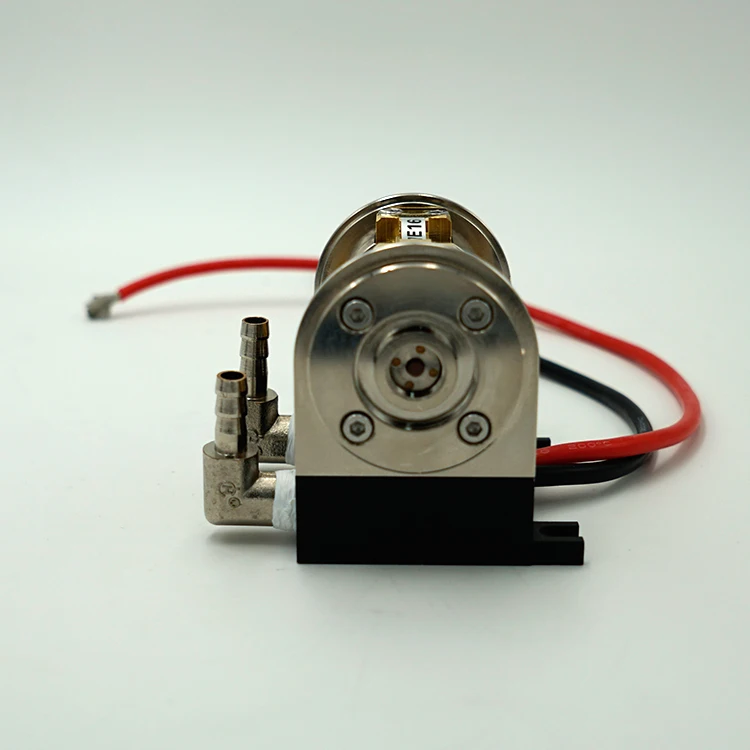

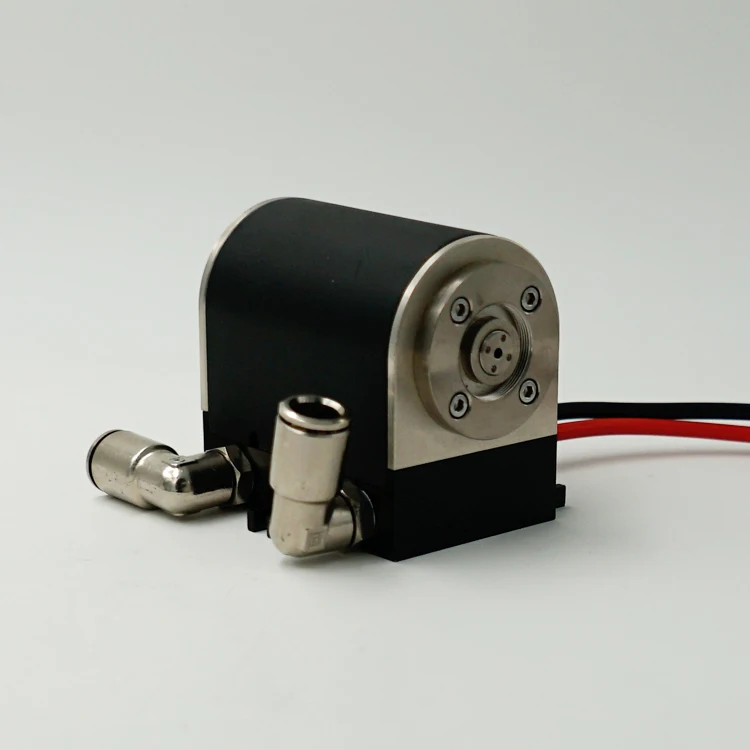

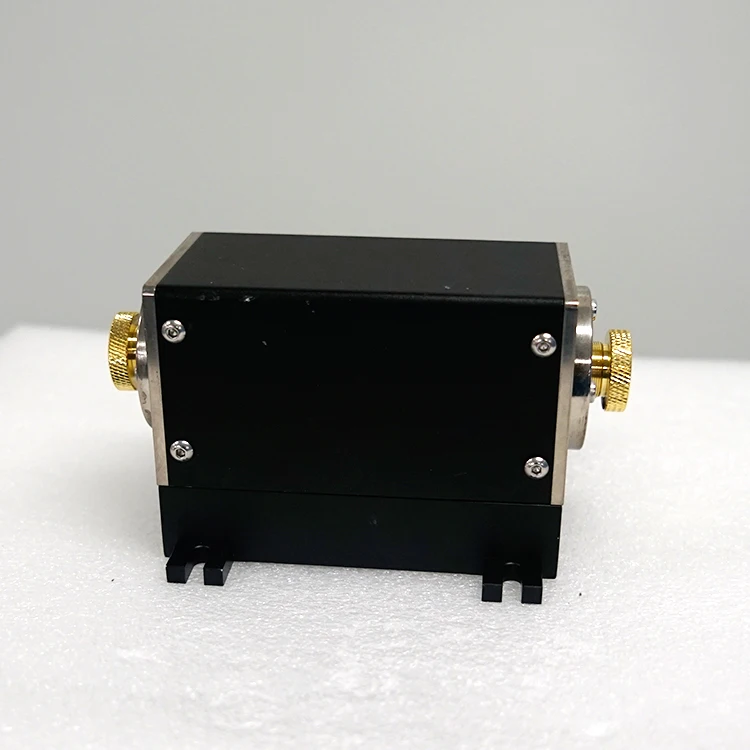

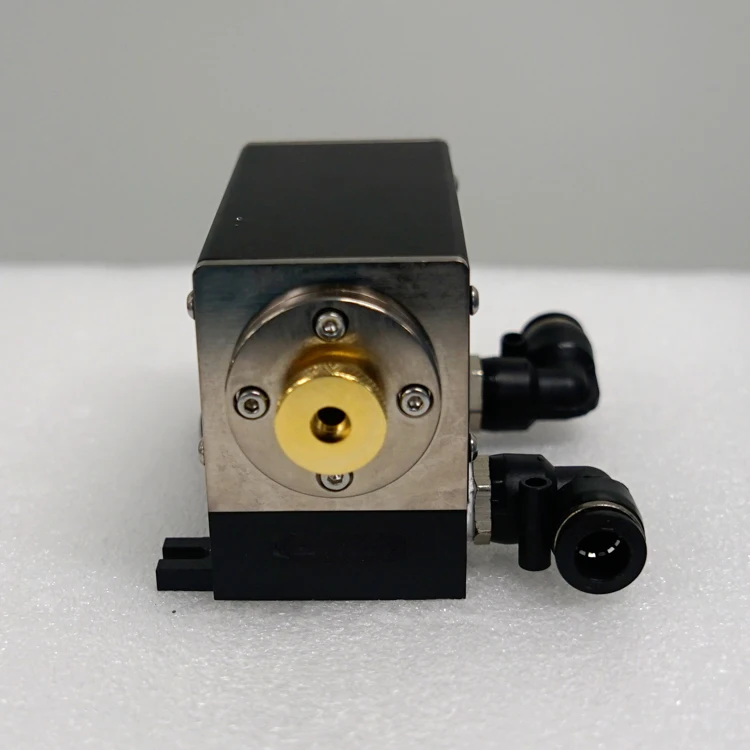

1.product display



2.product description

This GN50 is widely used in cutting diamond, marking and engraving.Please find more details in the following specifications. Also we are professional in repairing other brand laser like LEELASER, ROFIN, CEO and so on.

3.other product

4.product specification

Module No.	GN50	Unit
Central Wavelength	1064nm	nm
Typical Output Power	50	W
Typical Operating Current	25	A
Max Current	35	A
Typical Operating Voltage	<18	V
Threshold Current	Around 12-14	A
Nd:YAG Diameter	3	mm
Nd:YAG Length	65	mm
Nd:YAG Center Height	40	mm
Nd:YAG Doping	0.6%	-

1. Minimum 1064 nm multi-mode output in a short cavity (300 mm, Plane-Plane Resonator, OC T=20%).

2. Expected life time is around 10,000 hours.

3. Other doping level can be customized upon request.

4. Other DPSS laser modules can be customized according to specific requirements.

5. QCW /CW modules available.

6. Warranty: 13 months after delivery.

7.Germany Jenoptik bar

5.GN50 DPSS Module Schema & Typical P/I Chart

The P/I chart may be different according to various modules. Please refer to burn-in-test record for each DPSS laser module along with the ex-work products.

6.GN50 DPSS Module Typical Operation Conditions



7.GN50 DPSS Module Dimensions

Wide application
1 Metal marking
2 Diamond cutting
3 Laser welding and cutting

4  Laser heating laser cladding and rust removal



NOTE: The modules can be customized by customers
