XB-6277 syble большое значение Высокая производительность 2D лазерный сканер штрих-кода считыватель с USB
- Категория: Сканеры >>>
- Поставщик: Guangzhou,Xunbao,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 57.84 $* | 60.18 $* |
| Aug-17-2025 | 57.29 $* | 60.7 $* |
| Jul-17-2025 | 48.35 $* | 50.28 $* |
| Jun-17-2025 | 56.29 $* | 59.36 $* |
| May-17-2025 | 48.92 $* | 50.68 $* |
| Apr-17-2025 | 55.36 $* | 58.27 $* |
| Mar-17-2025 | 54.63 $* | 57.73 $* |
| Feb-17-2025 | 54.21 $* | 57.68 $* |
| Jan-17-2025 | 53.38 $* | 56.73 $* |
Характеристики
Product Description

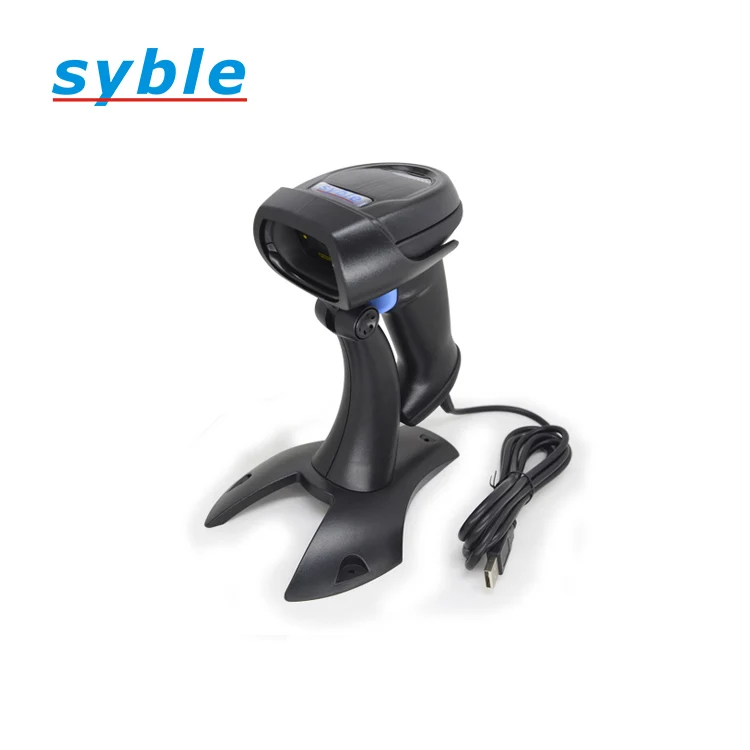

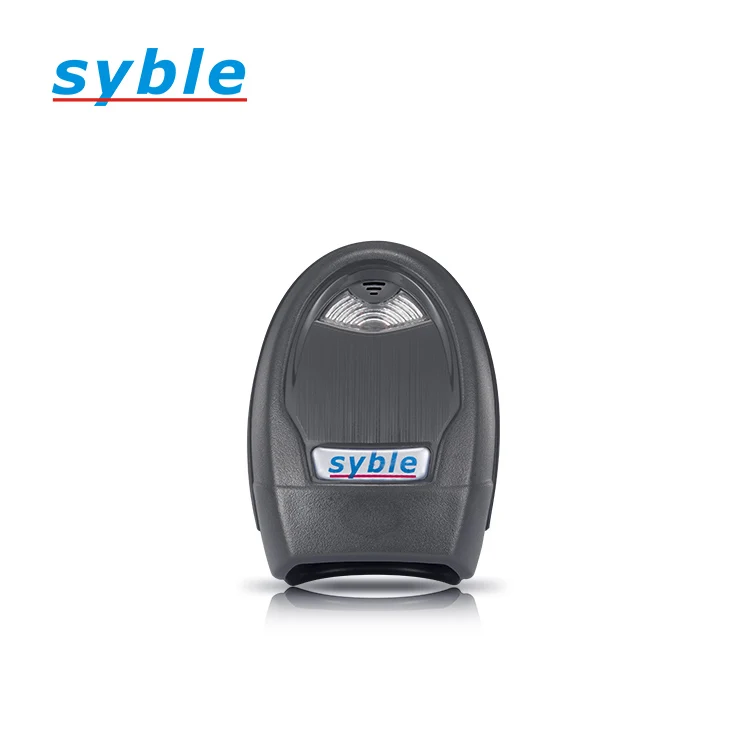

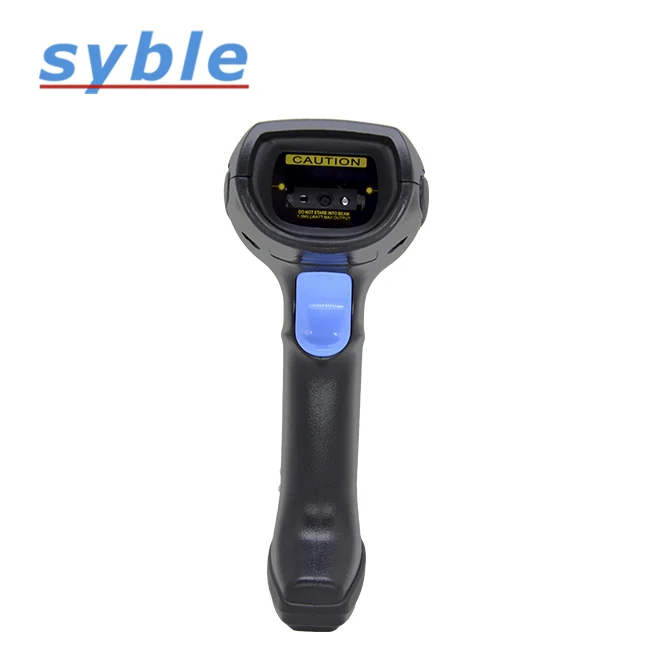

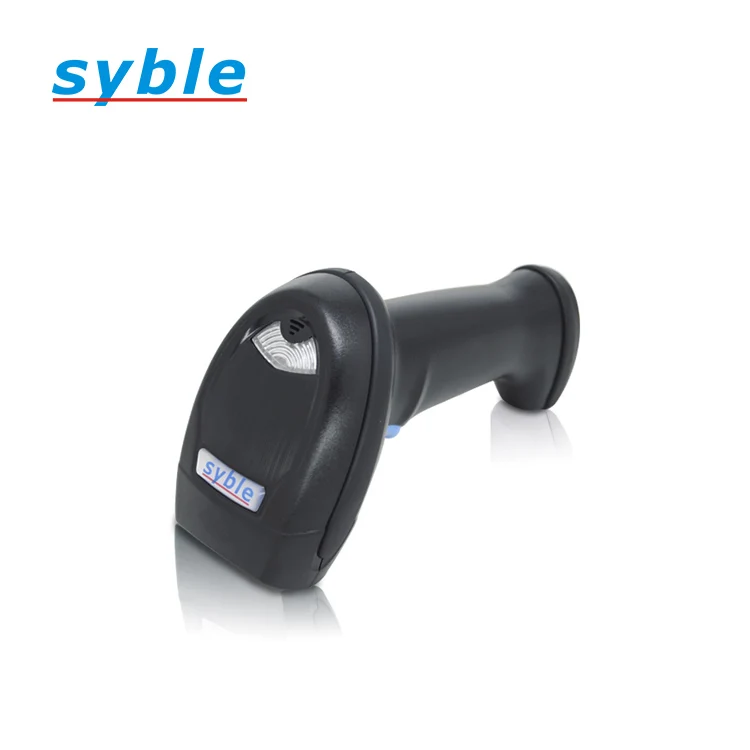

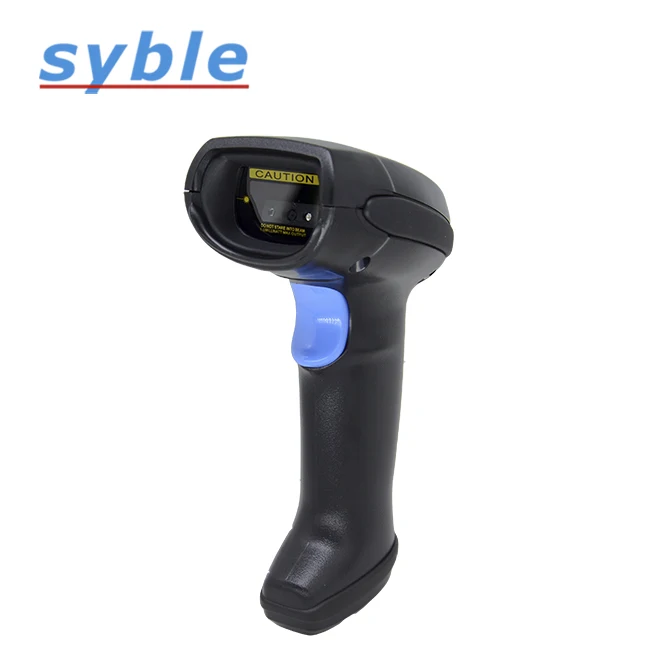

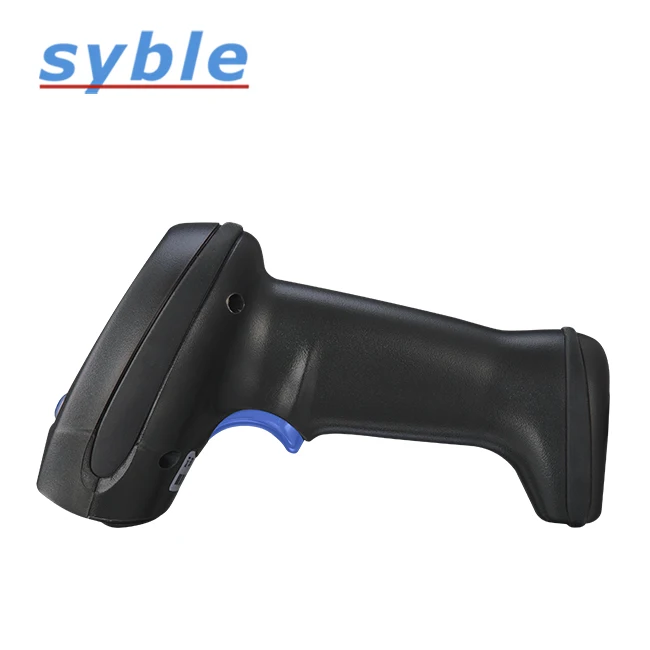

XB-6277 Syble Great Value High Performance 2D Image Barcode Scanner Gun Code Reader with USB of CE
Model:XB-6277
Model Number | XB-6277 |
| Performance Parameters | |
| Scan Type | Red LED 625nm±10nm |
Supported Symbologies | 1D:Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Codabar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93, Code 11, Plessey, GS1-DataBarTM(RSS) (RSS-14, RSS-Limited, RSS-Expand).2D:PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, 050, ECC000, 080, 100, 140). |
| Image sensor | 640 × 480 CMOS |
| Scan Angle | Yaw ±45°,Rotation 360°,Pitch ±50° |
| Precision | ≥3mil |
| Depth of scan field | EAN13 55~325mm(13mil);PDF147 30~90mm(6.67mil);Code 39 25~140mm(5mil);Data Matrix 25~90mm(10mil);QR Code 30~130mm (15mil) |
| Error Rate | Less than 1/5 million |
| Contrast | ≥20% |
| Field of view angle | Horizontal: 44°; Vertical: 33.2° |
| Interface | USB-HID,USB-COM,RS232 |
| Physical Parameters | |
| Dimensions | 102mm*71mm*177mm |
| Weight | 169.2 |
| Material | ABS+PC |
| Cable Length | 2M |
| Environmental Parameters | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95%(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Current | Operation: 190mA (typ), 227mA (max); Standby: 10m |
| Rated power consumption | 50mW (typical) |
Product Feature
Features:
1. Fast and accurate in reading all 1D or 2D barcode codes.
2. Better read incomplete and fuzzy codes, very comfortable operation.
3. Self-developed decoder chip and high performance.
4. Full quakeproof , water splash-proof, dustproof, antiknock design and EMI shielding.
5. Faster and accurate scanning, powerful decoding.
6. 32 bit CPU for encoding data.
Applications
Application Scenarios:
This barcode scanner is used in a range of applications, including retail, medical, logistics, and supply chain managem
FAQ
Q1:How about the quality? Professional QC team and testing machine. All the products pass CE, FCC, ROSH, etc. |
Q2: Why so competitive? With almost many years experience, we owned a large domestic market in China. We are the best-seller in China. So large quantity will reduce our raw material cost directly. What’s more we have mature technology to save cost. |
Q3: How to control the performance stable? We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery. |
Q4:Is OEM or ODM available? Yes. We are the factory directly. We can make it as your requirement. |
Q5:Why customer choose us? Bcz our factory with strictly quality control system. Prompt after-sales service. |
Q6:How about the factory? We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields. |
Packing
Contact
