KPM75 для солнечной батареи Трехфазный Анализатор качества электроэнергии

KPM75 для солнечной батареи Трехфазный Анализатор качества электроэнергии

Категория: Измерители мощности >>>
Поставщик: Henan,Compere,Smart,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.22 $*	0.73 $*
Aug-16-2025	0.19 $*	0.55 $*
Jul-16-2025	0.77 $*	0.29 $*
Jun-16-2025	0.40 $*	0.97 $*
May-16-2025	0.98 $*	0.68 $*
Apr-16-2025	0.97 $*	0.5 $*
Mar-16-2025	0.36 $*	0.89 $*
Feb-16-2025	0.77 $*	0.0 $*
Jan-16-2025	0.26 $*	0.6 $*

Характеристики

Product Overview

The KPM75 is a new generation of high-end watt meter power analyzer that follow international power quality standards and monitor all power quality parameters such as flicker, short interruptions in recorded voltage, and harmonic up to 63 measurements with power data Statistics, IO signal control alarm, communication and other functions. Large graphic LCD display, pluggable function module design, widely used in key power applications, it is the ideal choice to monitor the distribution operation efficiency.

FEATURES AT A GLANCE

Application

• Measure, monitor and control power distribution system parameters
• Collect energy consumption data that cost center analysis needs
• Power quality analysis(Harmonic, voltage interruption, flicker and so on)
• Signal control alarm

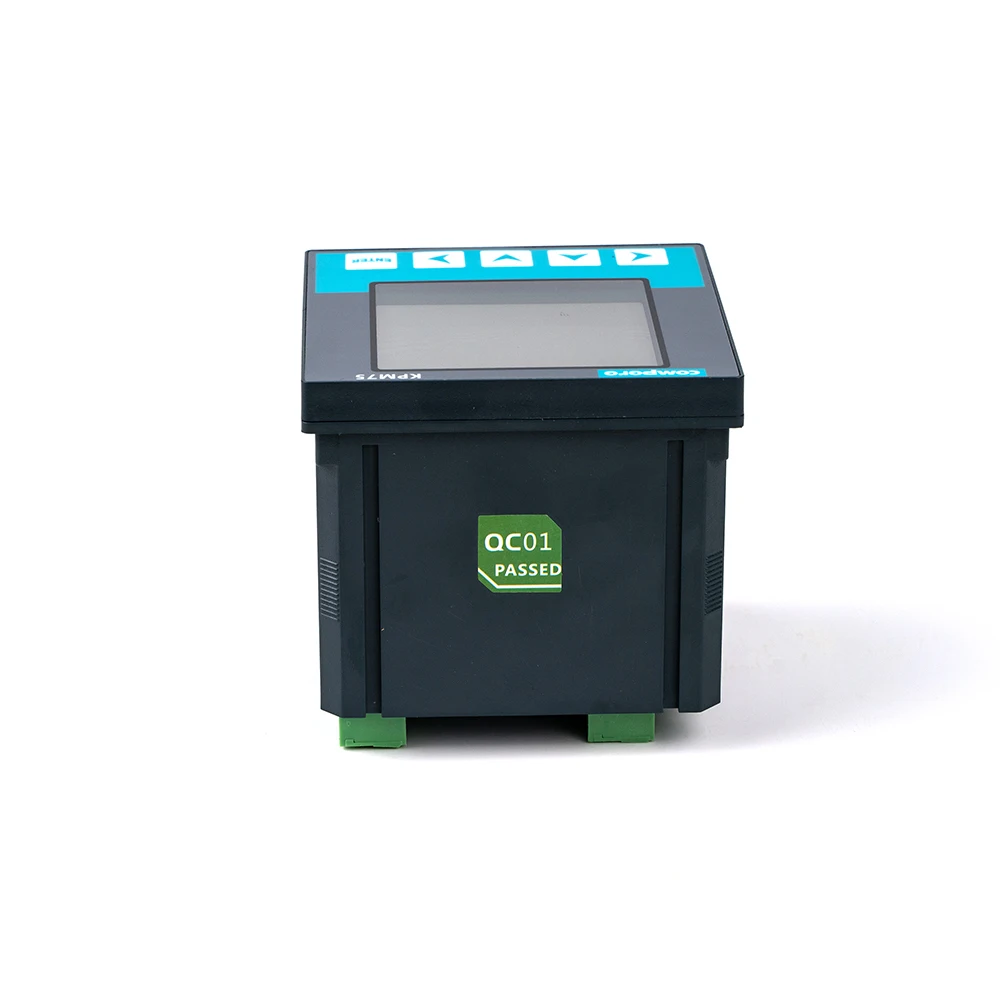

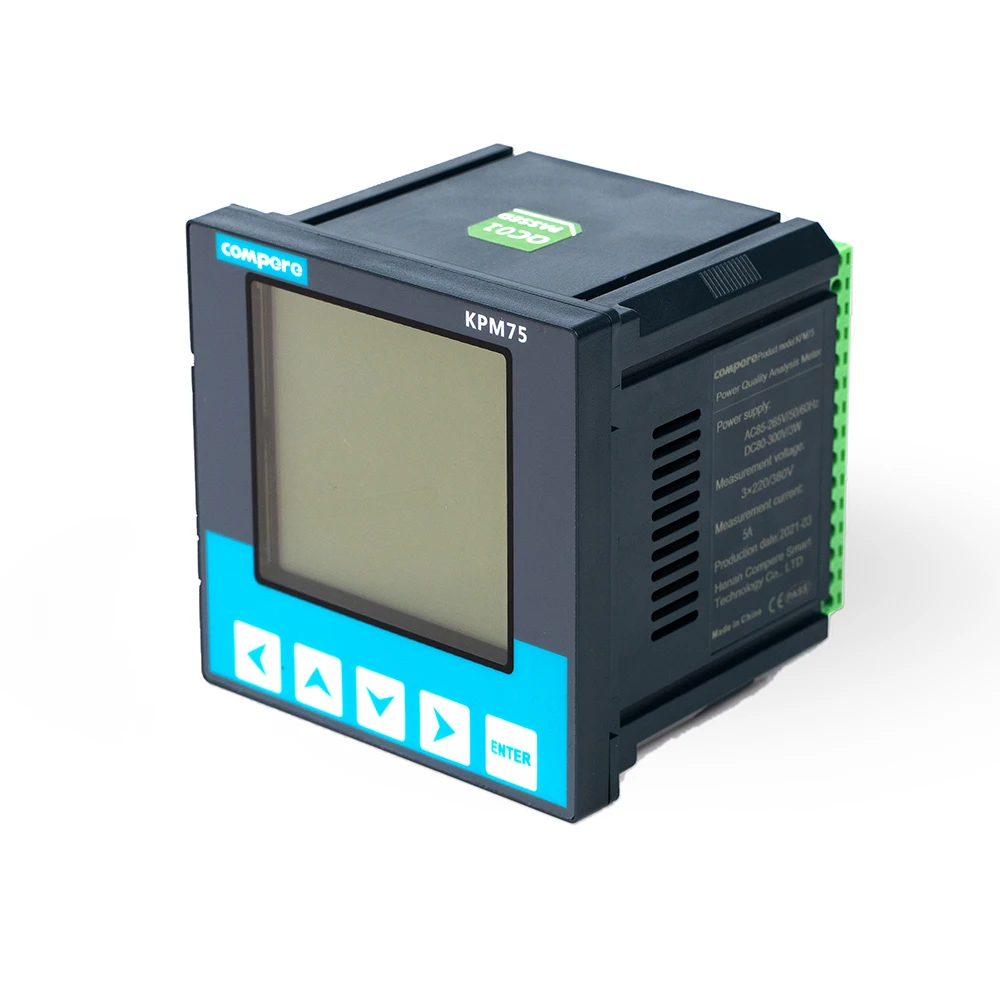

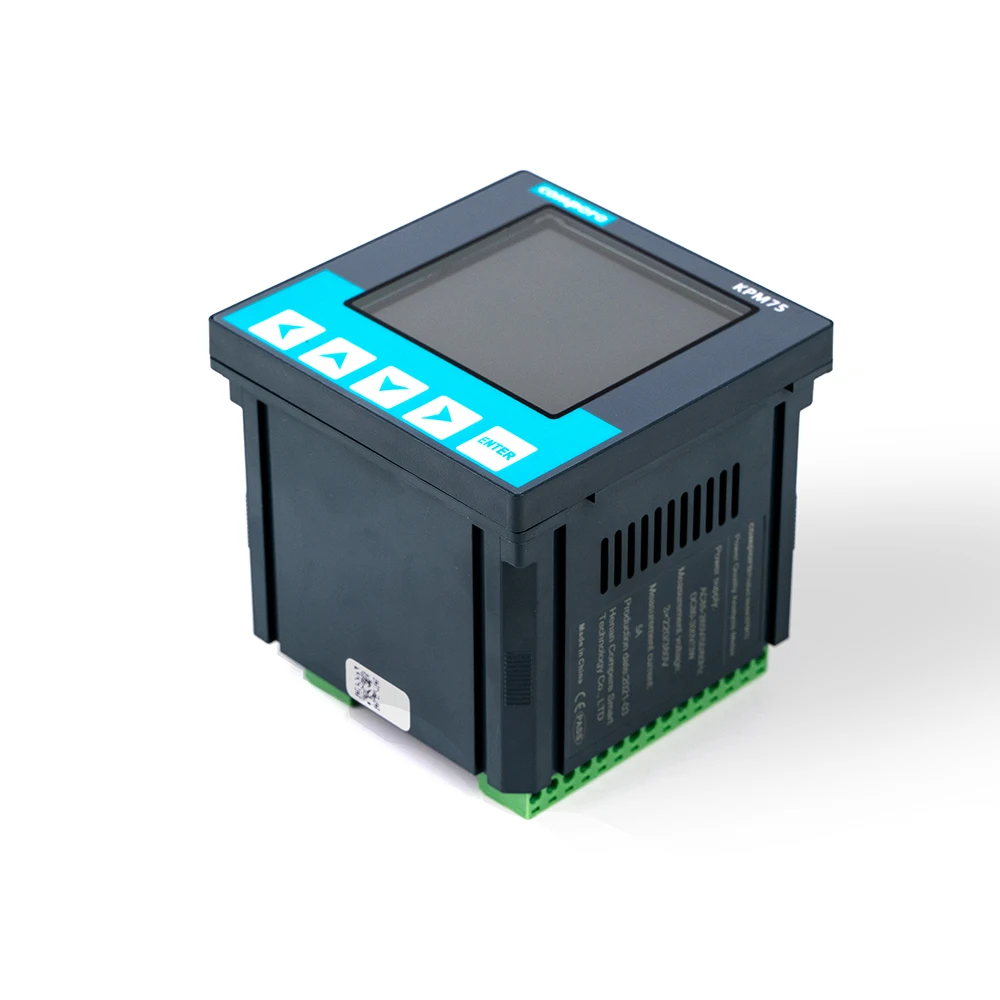

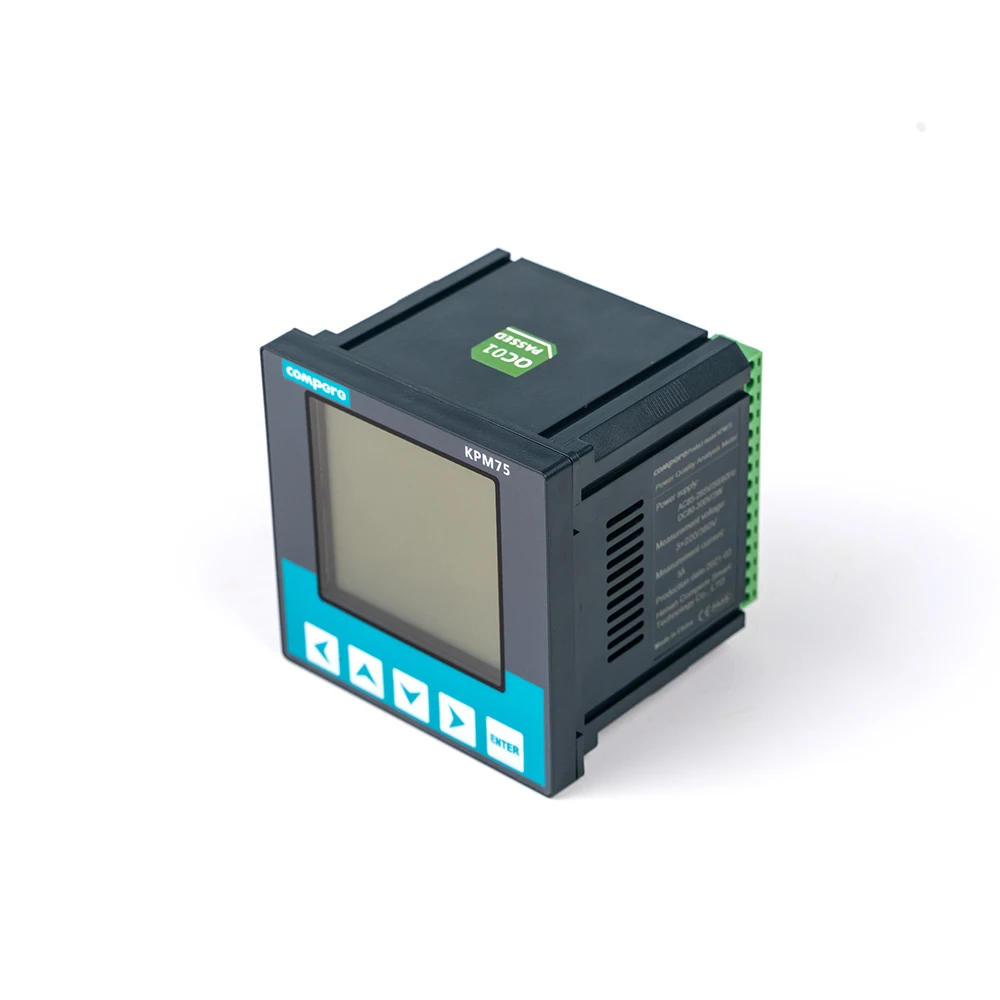

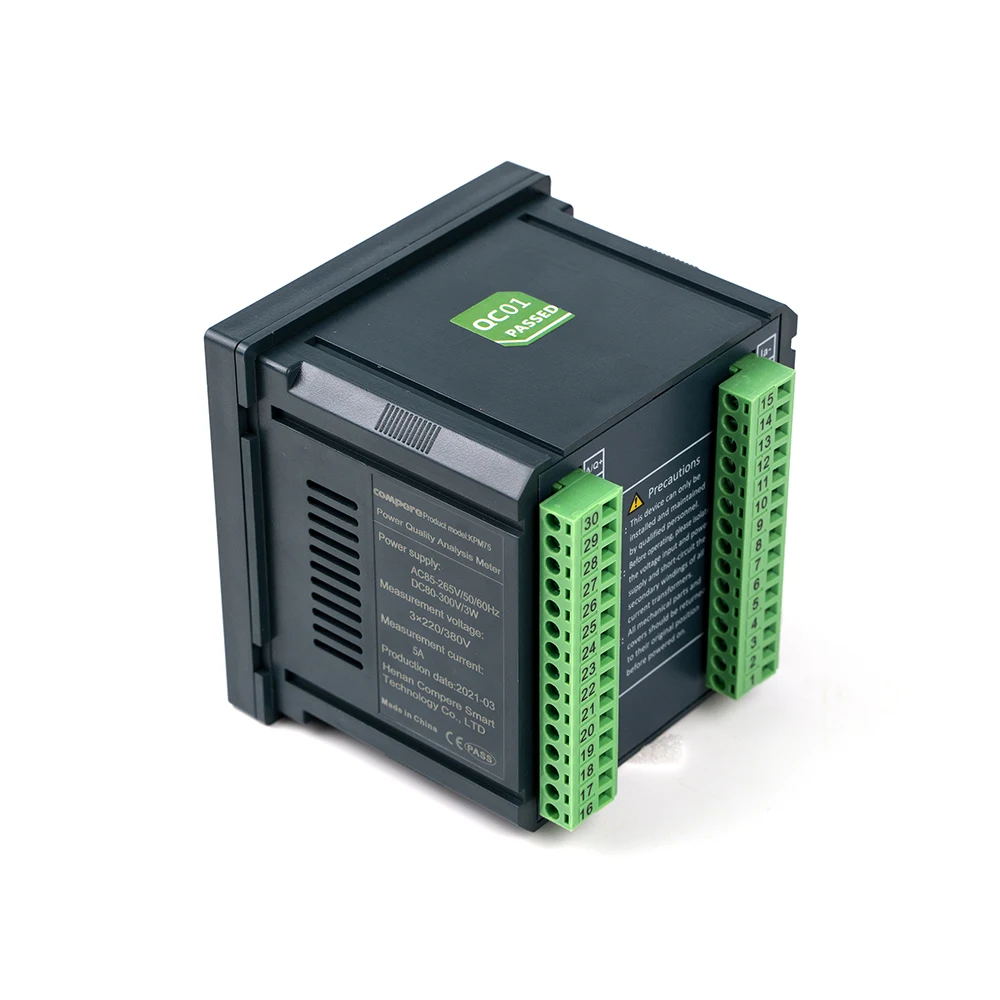

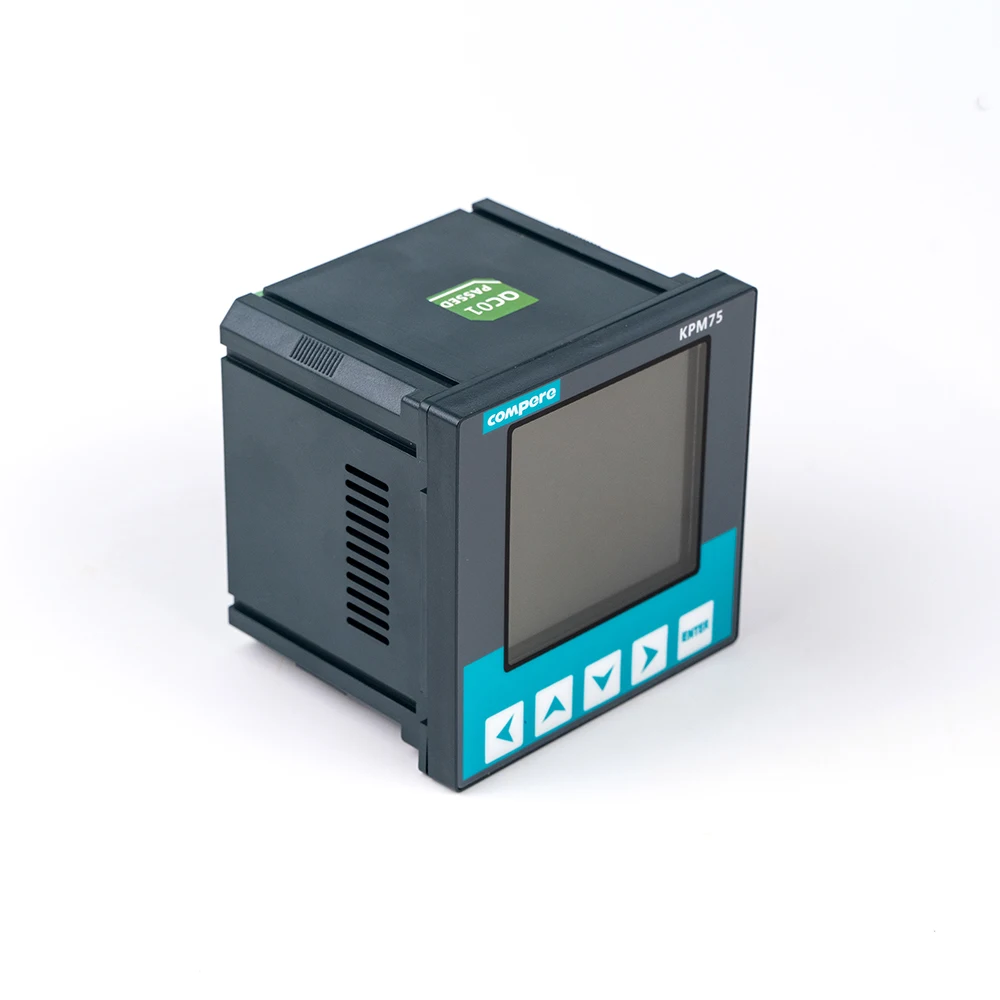

Details Images

Product Paramenters

Technical Parameters - KPM75 three phase electronic reactive energy meter
Accuracy Class			Voltage: 0.2; Current: 0.2; Frequency: 0.002 Hz; Power Factor: 1.0
				Active Power: 0.5; Reactive Power: 2.0
				Active Energy: 0.2S; Reactive Energy: 2.0
Input	Rated Value	Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A)
		Overload	Voltage: Sustained Overload: 1.2 times of the rated value
				Momentary Overload: 2 times of the rated value, allows 1s
				Current: Sustained Overload: 1.2 times of the rated value
				Momentary Overload: 20 times of the rated value, allows 1s
		Frequency	45-60Hz
Functional Module	Pulse Output	1
Functional Module		Interface	1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps Optional Profibus-DP protocol, 9600~12Mbps
Power Supply	Working Range	AC: 85-265V; DC: 80-300V
Power Supply		Consumption	< 3VA
Working Condition	Temperature	Operating: -25°C~+70°C. Storage: -30°C~ +75°C
		Humidity	5%~95% No condensation
		Altitude	<4000m
Dimensions:			96×96×88mm
