Комплект втулок для электродвигателя велосипеда 52 в 1500 Вт наборы переоборудования электрического комплект электровелосипеда 29 дюймов
- Категория: Запчасти для электровелосипедов >>>
- Поставщик: Boneng,Electric,Appliance,(changzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.33 $* | 0.77 $* |
| Aug-18-2025 | 0.8 $* | 0.53 $* |
| Jul-18-2025 | 0.56 $* | 0.37 $* |
| Jun-18-2025 | 0.81 $* | 0.93 $* |
| May-18-2025 | 0.48 $* | 0.60 $* |
| Apr-18-2025 | 0.78 $* | 0.54 $* |
| Mar-18-2025 | 0.69 $* | 0.71 $* |
| Feb-18-2025 | 0.37 $* | 0.81 $* |
| Jan-18-2025 | 0.13 $* | 0.45 $* |
Характеристики
Products Description
Motor power | 48V 60V 72V 500W 1000W |
Design | Brushless gearless dc |
Casstte Fly | 8s,9s ( cassette motor only ) $20 extra |
controller | 22/26A Smart controller |
Throttle | Thumb throttle |
Brake | Disc brake / Brake sensor |
waterproof | IP54 |
Open size | 135mm rear / 100mm front |
Wheel size | 16" 20" 24" 26" 700C 28" 29" |
Display | LED / LCD / Colorful display Optional |
Details Images

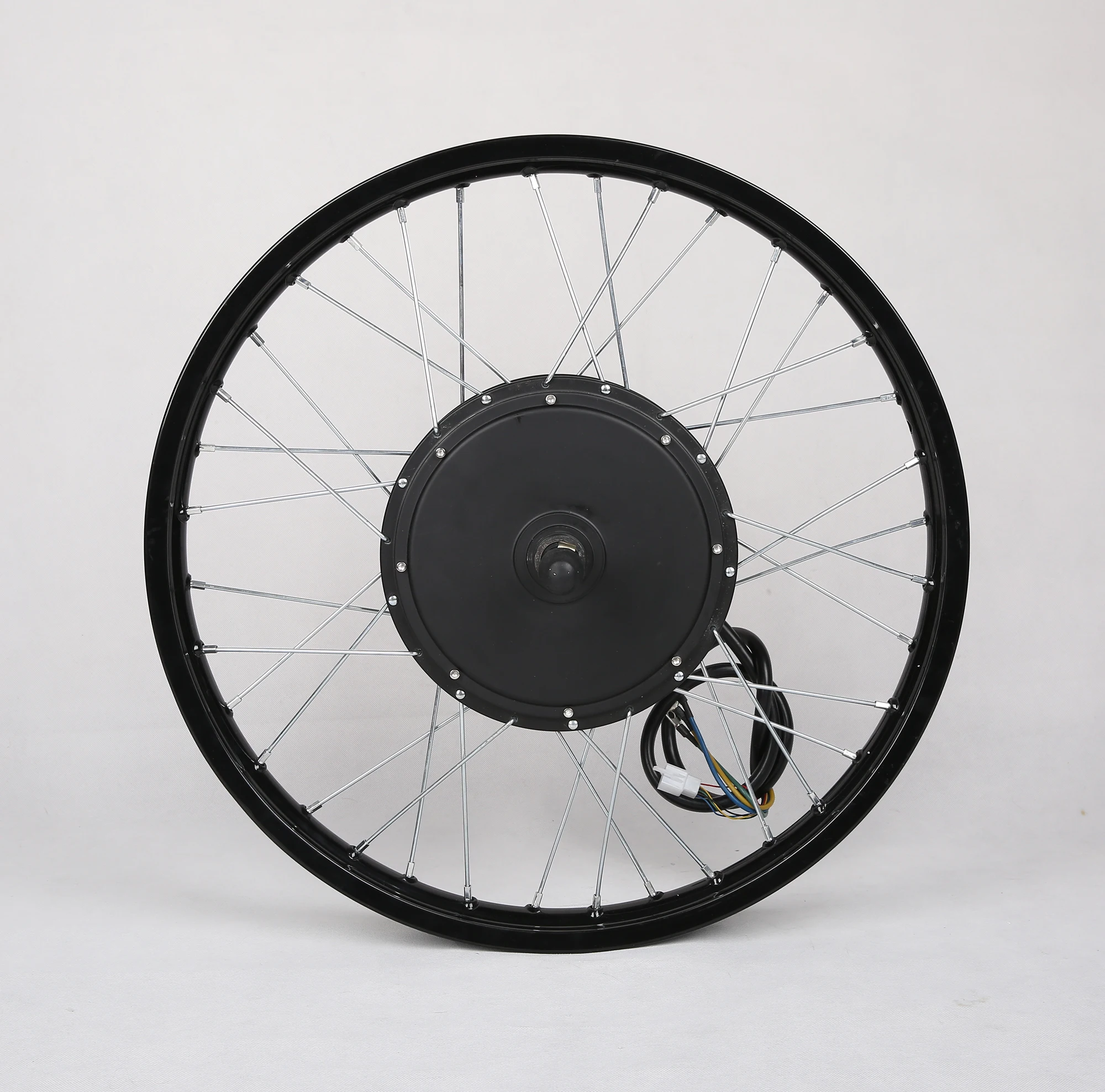

hub motor
36v/48V/60v brushless Gearless Hub motor
1). Very light and low noise
2). 4.4 reduction ratio with high torque
3). 100mm /135mm dropout for bikes
4). OEM warmly welcome
1). Very light and low noise
2). 4.4 reduction ratio with high torque
3). 100mm /135mm dropout for bikes
4). OEM warmly welcome
controller
36V/48V/60V 22A-40A brushless controller
1). Inside with Mosfets good tube,square wave controller
2). 120 degree phrase position(120º)
1). Inside with Mosfets good tube,square wave controller
2). 120 degree phrase position(120º)

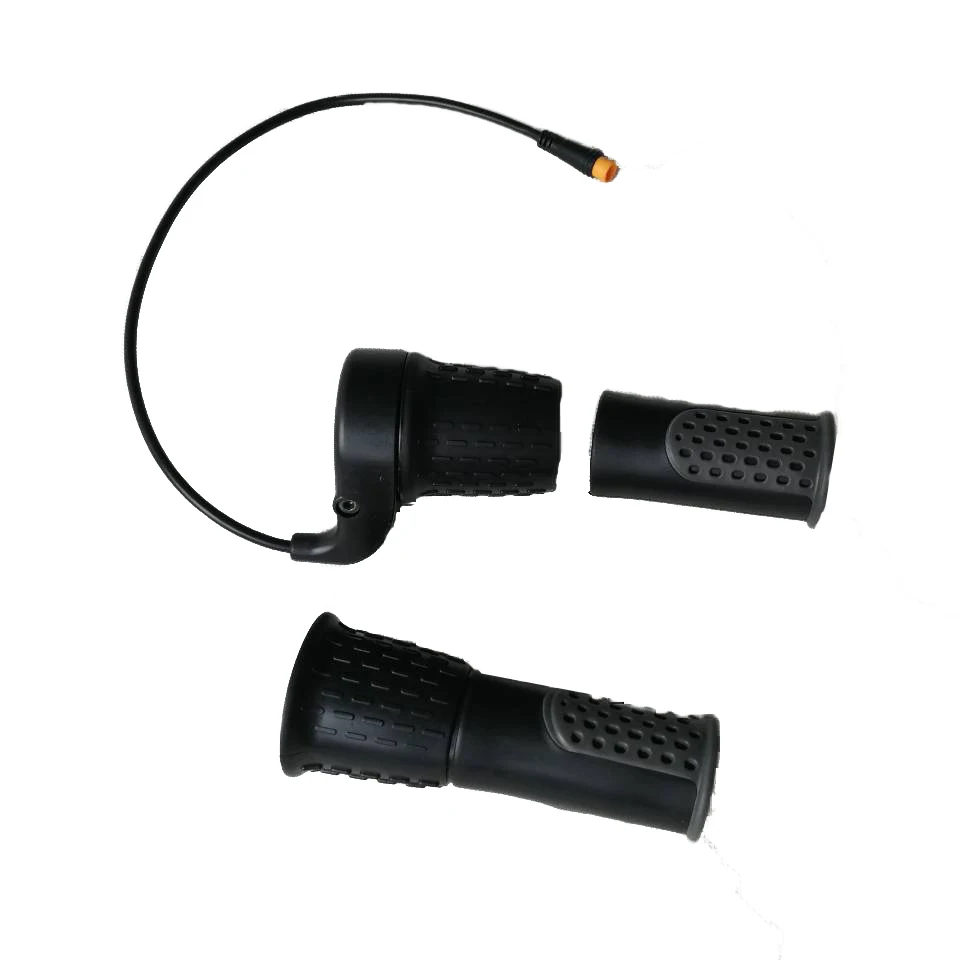

Thumb throttle/Twist throttle:
1). Wuxing brand 57XDX
2). Power indicator/Lock available
2). Power indicator/Lock available

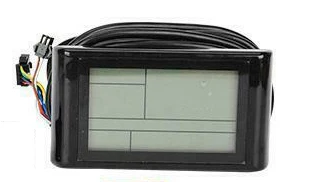

Display:
1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing

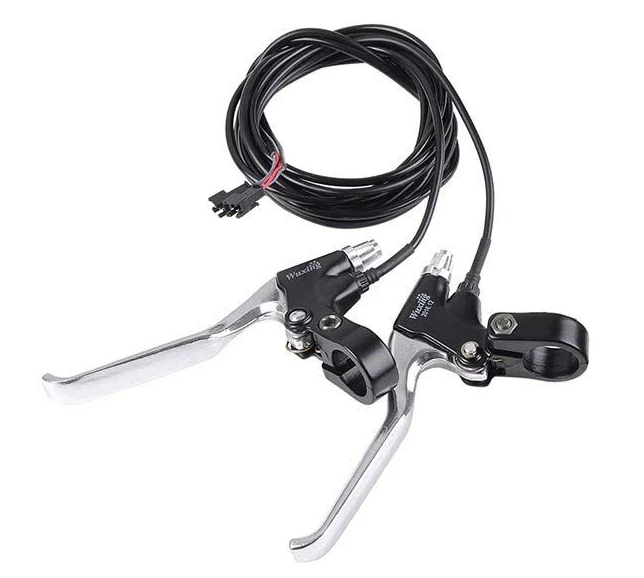

E-brake/Brake sensor:
1). Size: 36mm*12mm*16mm(hydralic brake sensor is also ok )
2). Fit for all bikes with normal or hydraulic disc brakes
3). Easy installation,no need to remove original brake levers
4). Cut power automatically once brakes move
2). Fit for all bikes with normal or hydraulic disc brakes
3). Easy installation,no need to remove original brake levers
4). Cut power automatically once brakes move
Pedal-assistant sensor(PAS):
1). 5/8 magnet points available with good quality
2).5 magnet for the kit without display ,8 magner for display kit
3). Good response speed and sensive for pedal assistance
2).5 magnet for the kit without display ,8 magner for display kit
3). Good response speed and sensive for pedal assistance
Product packaging

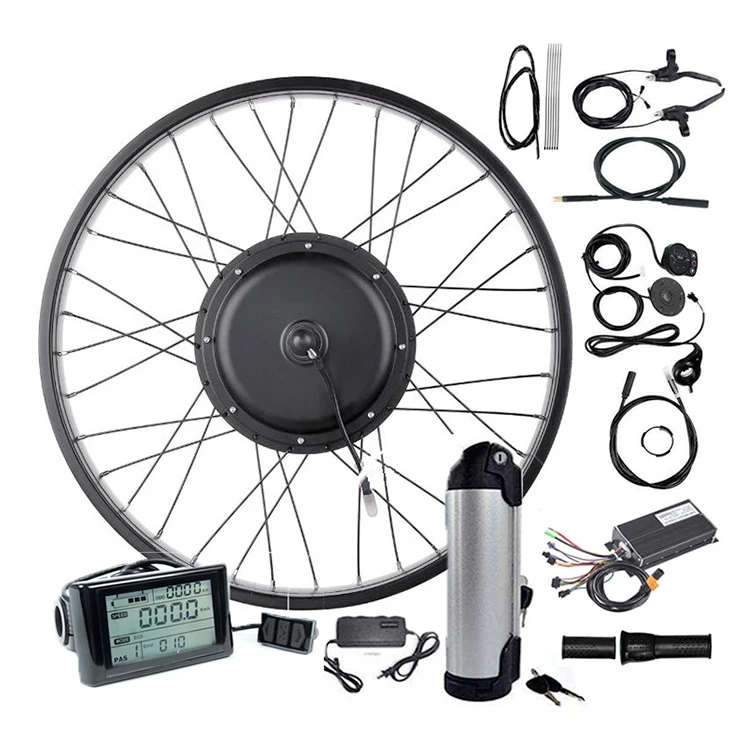

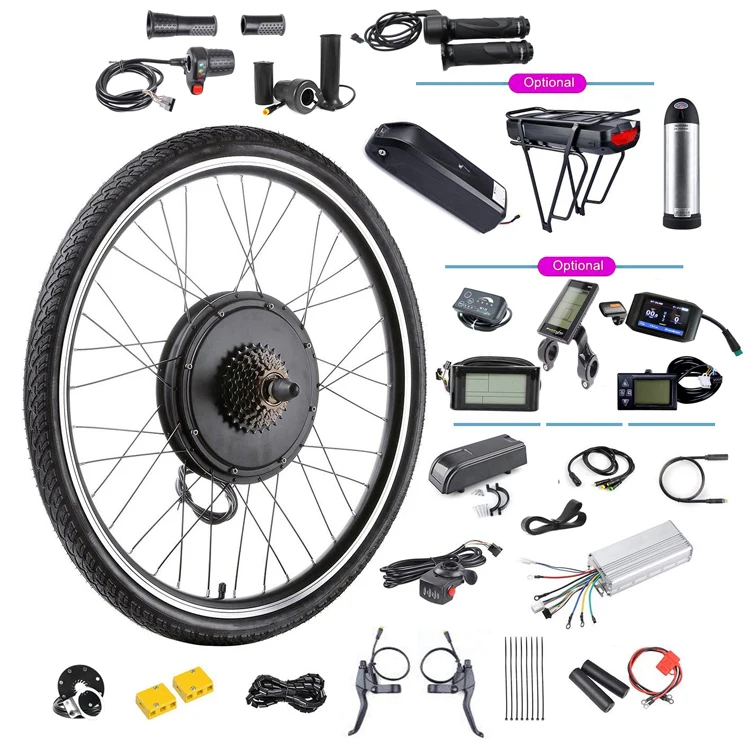

500w 1000w front or rear wheel electric bike conversion kit for ebike
(1)Germany type gearless motor REAR
(1)Germany type gearless motor REAR
(2)1xAluminum Alloy Fat Rim
(3)36xSpokes
(4)1xtwist or thumb throttle
(5)2xbrake lever
(5)2xbrake lever
(6)1xcontroller
(7)1xInstallation User Manual
(8)1xWinding pipe
(9)1xLCD(optional)
Our Advantages
Company Profile
Boneng Electrical Appliances (Changzhou) Co., Ltd is specialized in manufacturing electric bike and accessories,such as complete stealth bomber ebike,conversion motor kit,hub motor,frame,rear suspension,front fork,lithium battery and so on,located in Changzhou city near to Shanghai city.We have 6 years of production experience, with an experienced and professional team. And we have exported experience to many countries and regions around the world, especially America and Europe.Quality is our corevalue.We hope to grow with partners all over the world and enjoy mutual benefit with you.
FAQ
Q1. Can my bike be used with the kits?
A: Yes sure and on the market 95% bikes can be used with our kits!
Q2. Is the kits difficult to install ?How to install?
A:Not difficult but need you like hand-work. Only install our motor kits and fix well the brake lever and controller.Connect the
cables is ok. We will offer you inslation viedo and will service on you on line.
Q3.Need I offer what data for bikes?
A:It is better you can send me your bike photo,tire type numbers: such as 26'*1.95.
Q4. Install front wheel or rear wheel?
A:Both ok. Front wheel is flexible and real wheel is stable.But rear wheel is a little diffcult than front wheel.
A: Yes sure and on the market 95% bikes can be used with our kits!
Q2. Is the kits difficult to install ?How to install?
A:Not difficult but need you like hand-work. Only install our motor kits and fix well the brake lever and controller.Connect the
cables is ok. We will offer you inslation viedo and will service on you on line.
Q3.Need I offer what data for bikes?
A:It is better you can send me your bike photo,tire type numbers: such as 26'*1.95.
Q4. Install front wheel or rear wheel?
A:Both ok. Front wheel is flexible and real wheel is stable.But rear wheel is a little diffcult than front wheel.
Recommend Products
500W-8000W GEARLESS BRUSHLESS KIT
OPTIONAL:
1.48V60V72V 500W /1000
2.48V60V72V 1500W
3.48V60V72V 3000W
4.48V60V72V 5000W
5.48V60V72V 8000W
