Технология GXG металлическая труба стальная на линии оборудование для удаления сварных

Описание и отзывы

Трекер стоимости

Характеристики



TUBE MATERIAL:Stainless Steel/Titanium steel/Copper/Carbon Steel/Iron Etc

PIPE SHAPE:Round/Ellipse Etc

USAGE:Pipes for Industry, Furniture, Construction, Municipal Facilities Etc

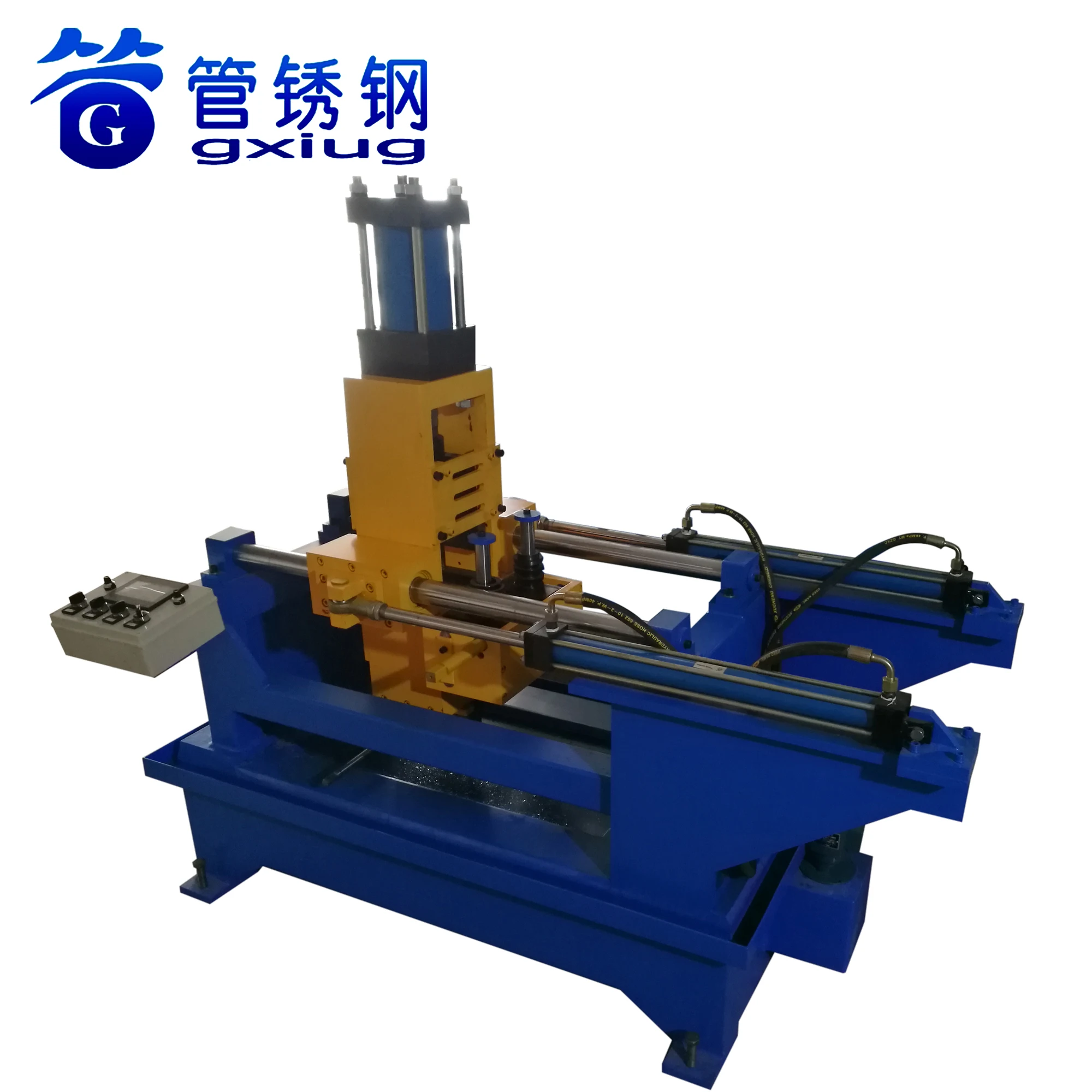

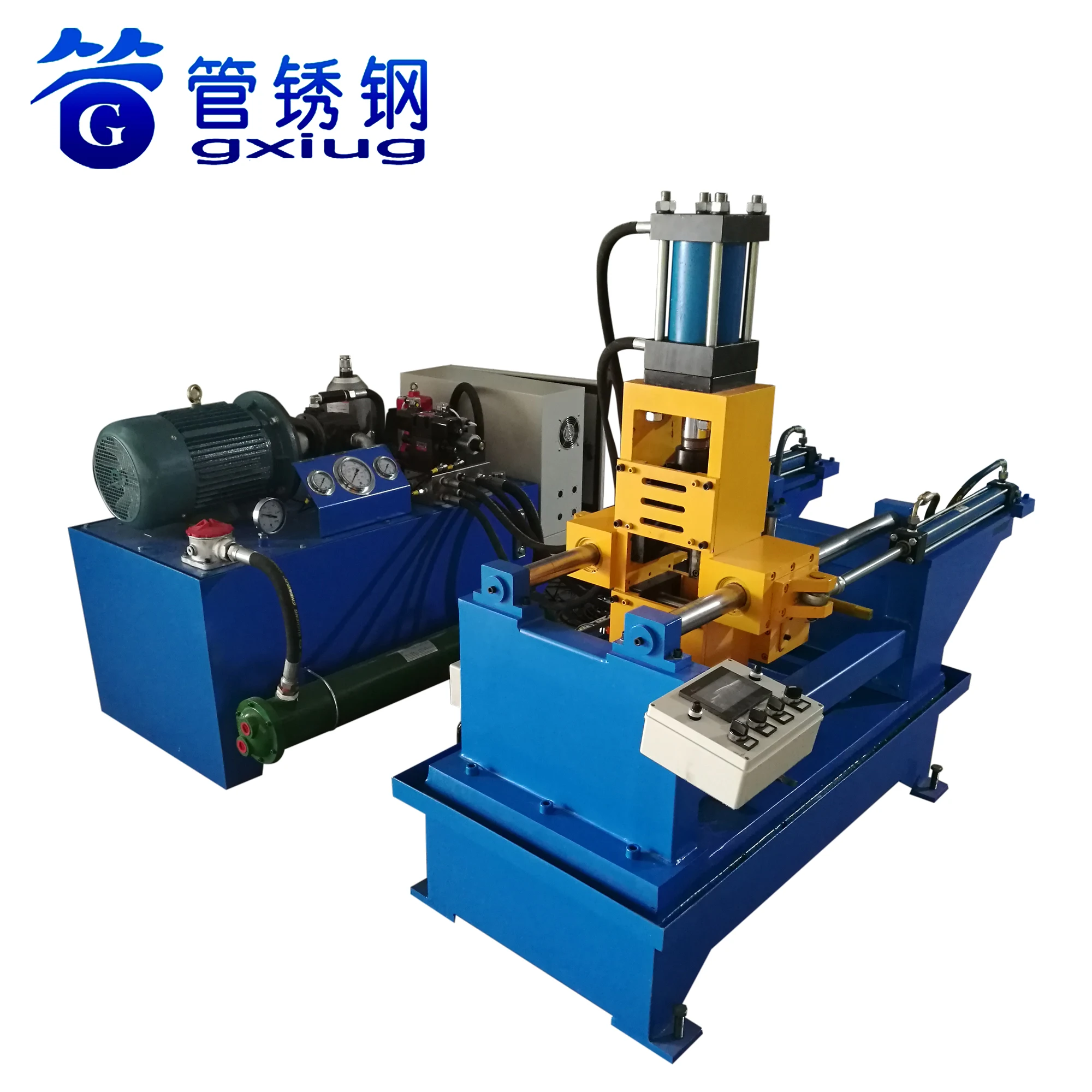

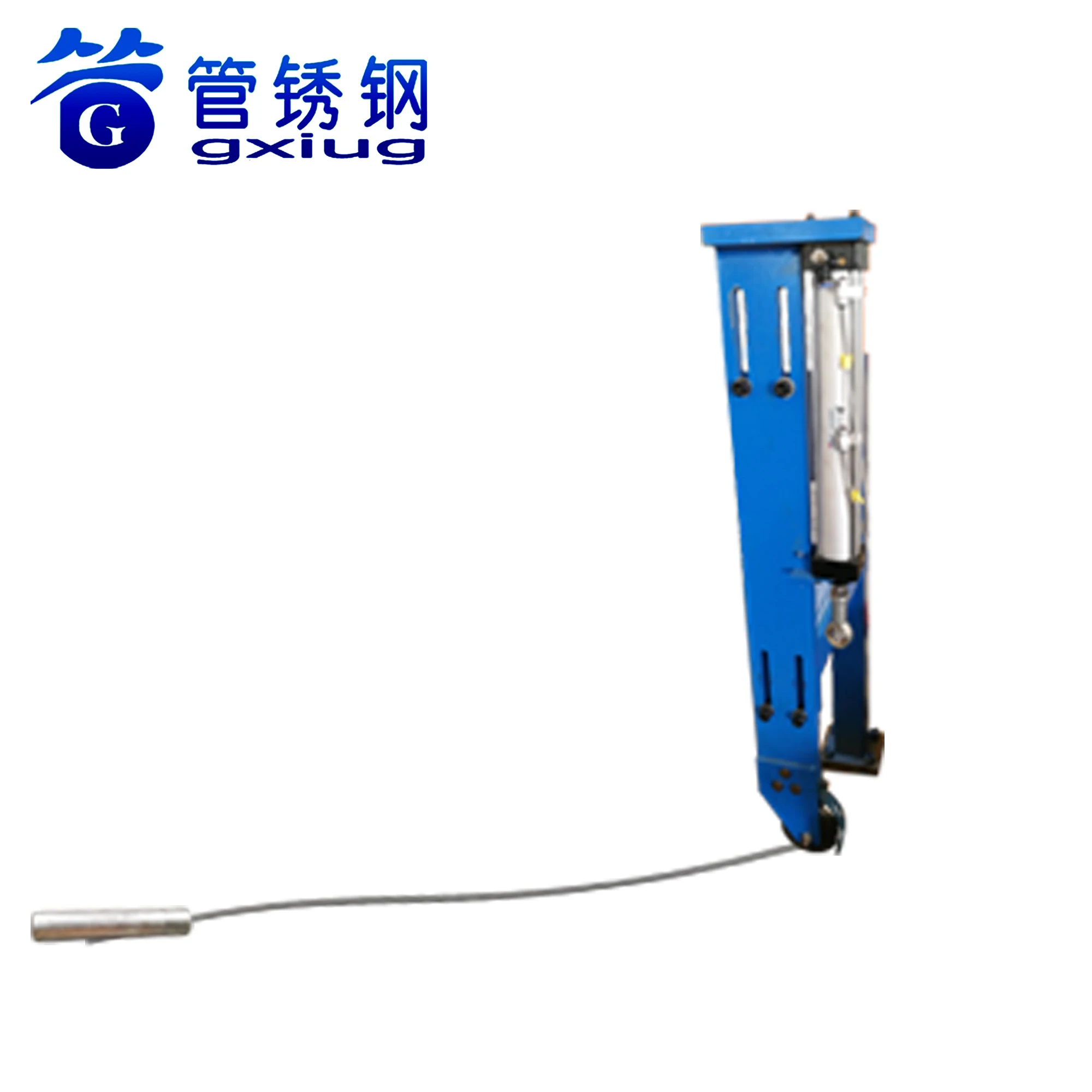

Internal & external weld seam flattening & leveling mechanical equipment Metal Tube Steel Pipe On Line Weld Bead Removal Equipment of stainless steel metal pipe is specially used for flattening weld reinforcement. Through the function of mandrel and mould, the equipment processes the weld of pipe, the external weld is rolled by mould, the internal weld is passively extruded by mandrel, and it moves back and forth to flatten the weld of pipe and smoothly transition with base metal, so that the pipe can achieve seamless pipe effect.

MODEL	GXG-30	GXG-40	GXG-50	GXG-60	GXG-70
Circular tube range (mm)	Ø15.8—31.8 5/8”—1-1/4”	Ø25.4—50.8 1”—2”	Ø31.8—76.2 1-1/4”—3”	Ø50.8—114.0 2”—4-1/2”	Ø76.2—168 3”—6-5/8”
Wall thickness range (mm)	0.5—1.5	0.5—2.5	0.5—3.0	1.0—4.0	1.0—5.0
