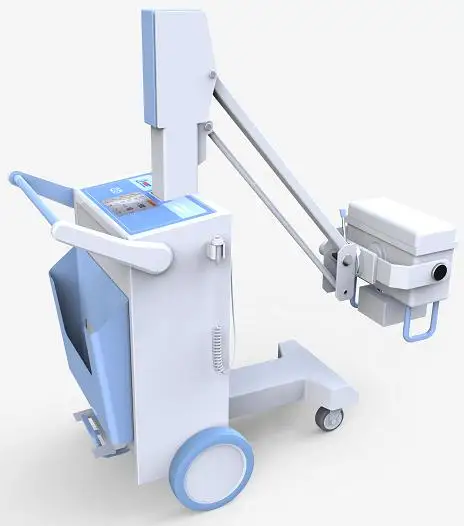

DIGITAL MOBILE X-RAY MACHINE PLX5100E

PRODUCT DESCRIPTION

Product Usage

PLX5100(E) is a high frequency mobile flat-panel digital X-ray radiography system, suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU and other departments. With flexible movement, easy operation, high efficiency, to meet the radiography for all of human body's parts, such as head, limbs, chest, spine, lumbar vertebrae, abdomen, etc.



Product Specification

1. Generator output: 5.0 kW

2. kV range: 40 kV - 120 kV in 1kv steps

3. mA range: 25~100 mA

4. Exposure time: 4 films per min, less than 20 ms per film

5. X-ray tube: Stationary anode tube with a focal spot of 1.5*1.5 mm

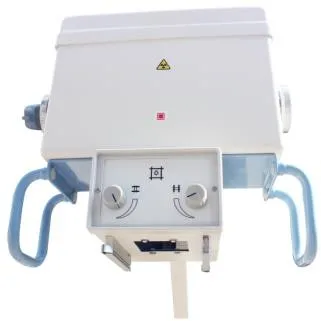

6. Collimator: Bright field light beam collimator with 120 W halogen lamp and auto shut-off facility.

7. Power requirements: Single phase 220 V +/- 10% Voltage tolerance; 50 Hz power supply

8. Mobile stand: Light-weight, low height mobile and easily maneuverable stand.

9. The mobile radiographic unit also include a handheld control and a microwave wireless remote control for the 20-meter microwave remote Without the restriction of Barriers and directional, different from the infrared remote control . Grids reduce the fog line filters and raise the degree of scattering contrast.

10. The unit is provided with a line (power) cord of acceptable durability, quality, length and is secured with adequate strain reliefs

The unit include, power plugs that are sufficient for the maximum voltage and current of the unit.

11. The maximum distance from the ground: ≥1800mm, and minimum distance from the ground: ≤500mm. Rotating around the horizontal axis 180 °,, the collimator can rotate 180 °.



Product Advantages

1. Monoblock

High frequency and High voltage monoblock, 15 years experiences, make sure the stability quality.

50kHz inverter frequency, good x-ray quality, low dose, world top-level technology.

Thermal capacity 500KJ, long time continuous exposing.

With digital closed loop control technology and fault alarm function



2. Exposure Controller

Hand controller -- wired exposure

Microwave controller -- wireless remote, within 10 meters



3. Flat Panel Detector

Whole-plate non-spliced, cesium iodide + amorphous silicon flat-panel detectors derive from the world's leading technology, which greatly improves performance.

Version Scope: 14”x 17”

Spatial resolution: 3.7Lp/mm

Pixel size: 150μm

 Output gray scale: 14bit

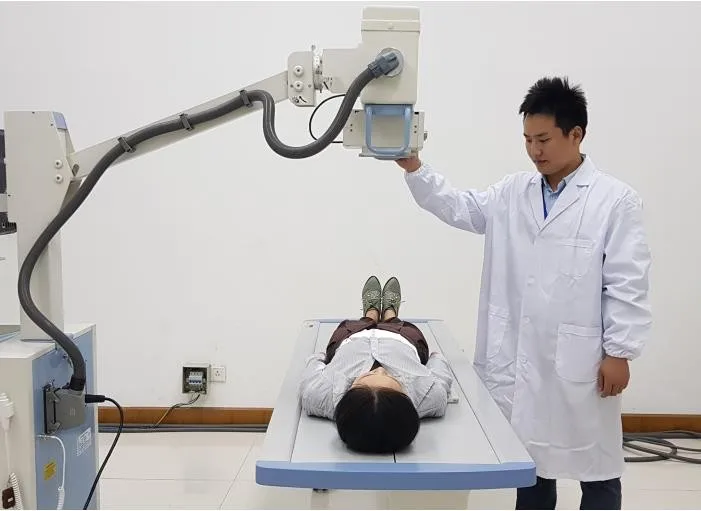

    4.Self Balance Function

The support arm can stop at any position, that's our self balance technology, easy operation.

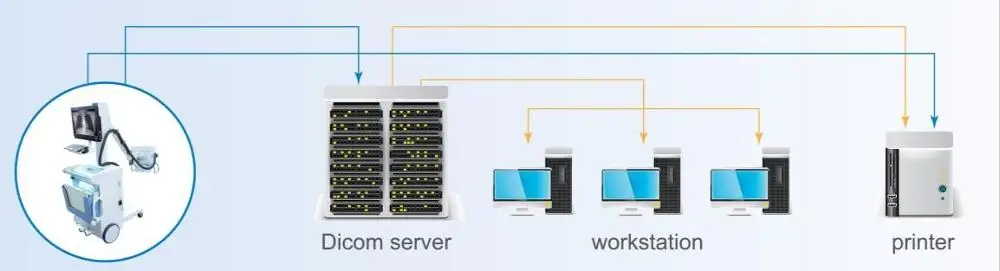

5. Networked device: high quality image and output information system

The networking function include: Dicom storage, Dicom film printing, Dicom film transfer.

 It has standard DICOM 3.0 interface, supporting film printing, output, storage, barrier-free docking hospital PACS system.

 6. Workstaion:

Workstation model:IC12A CPU model: ≥i3

Memory capacity:≥4GB Hard drive capacity:≥64GB
