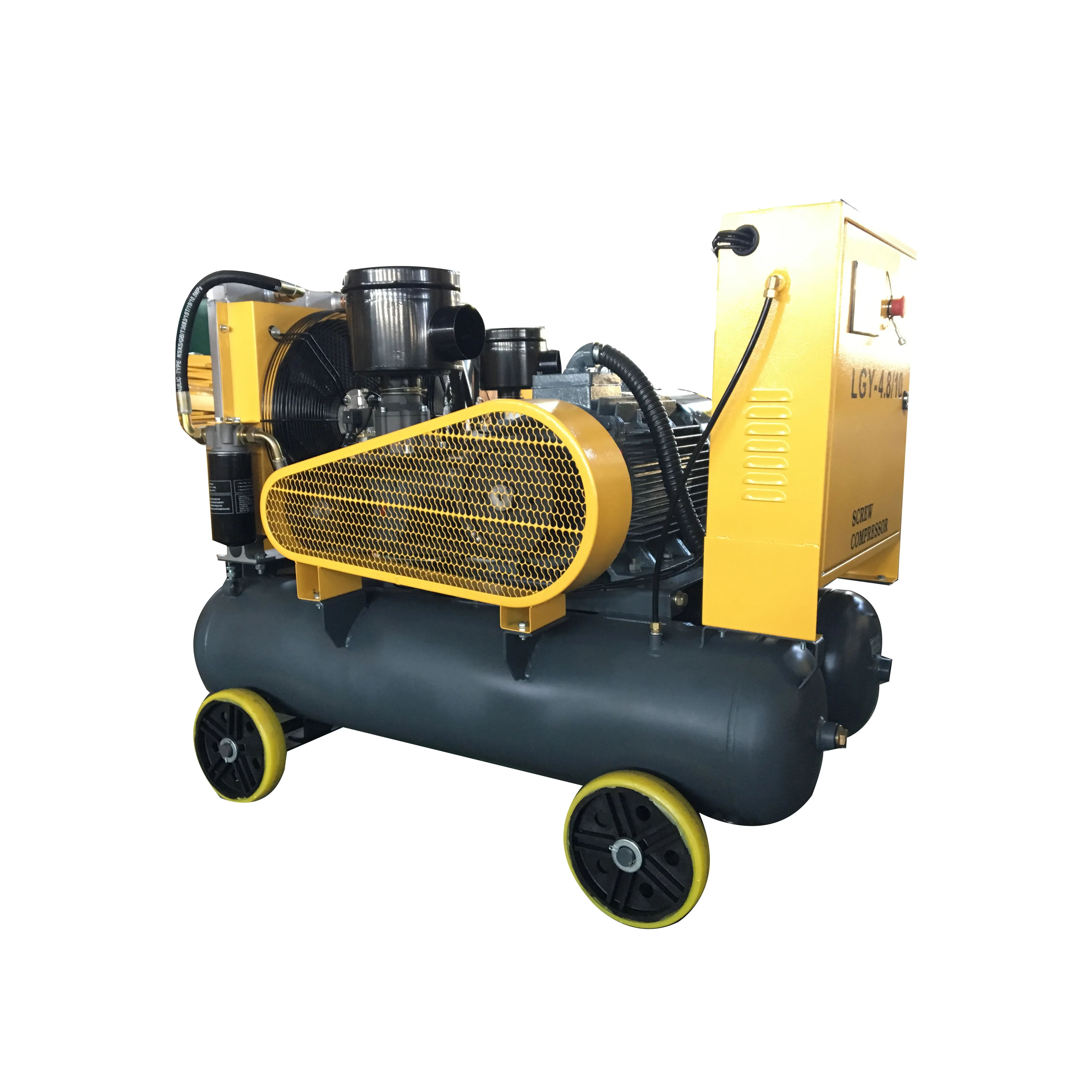

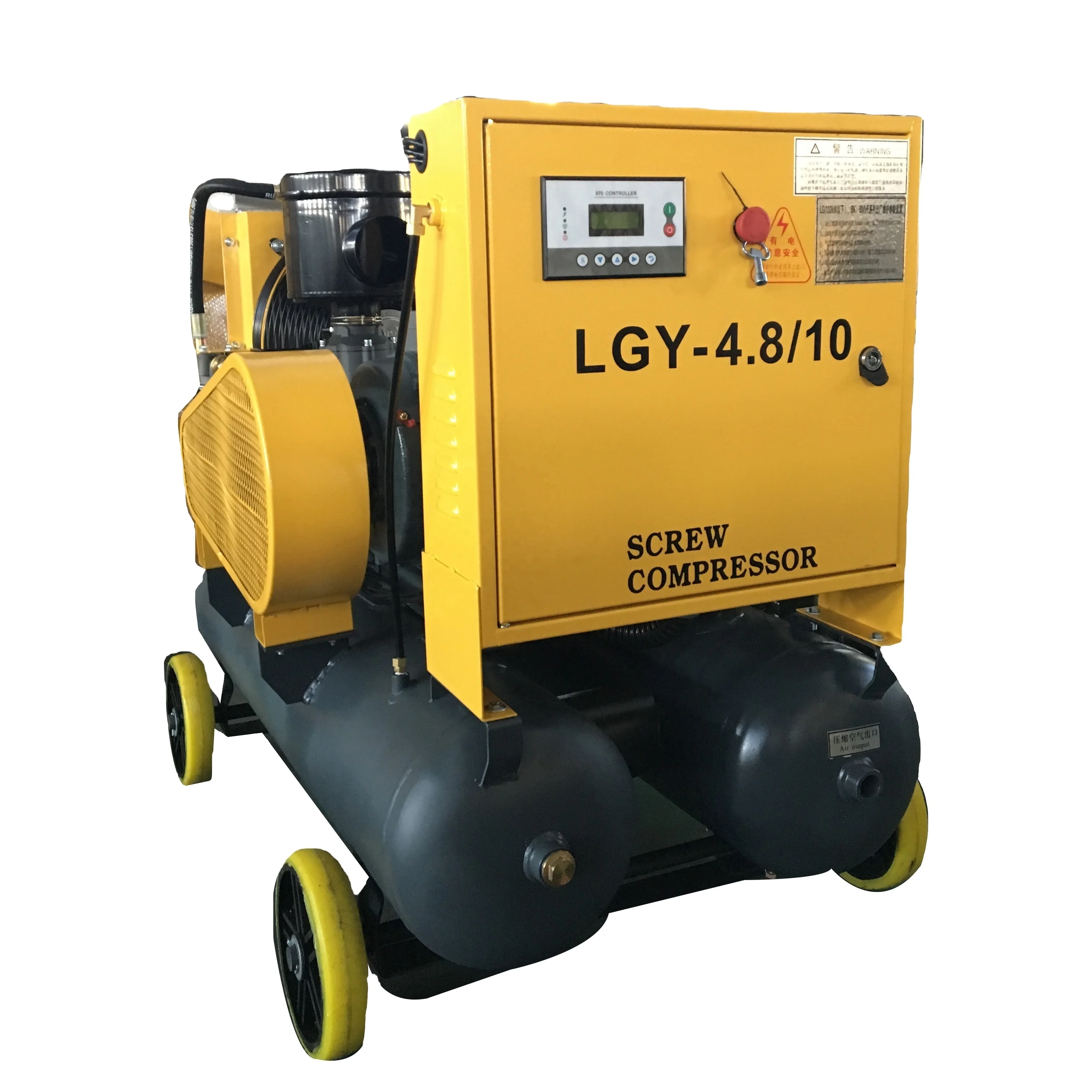

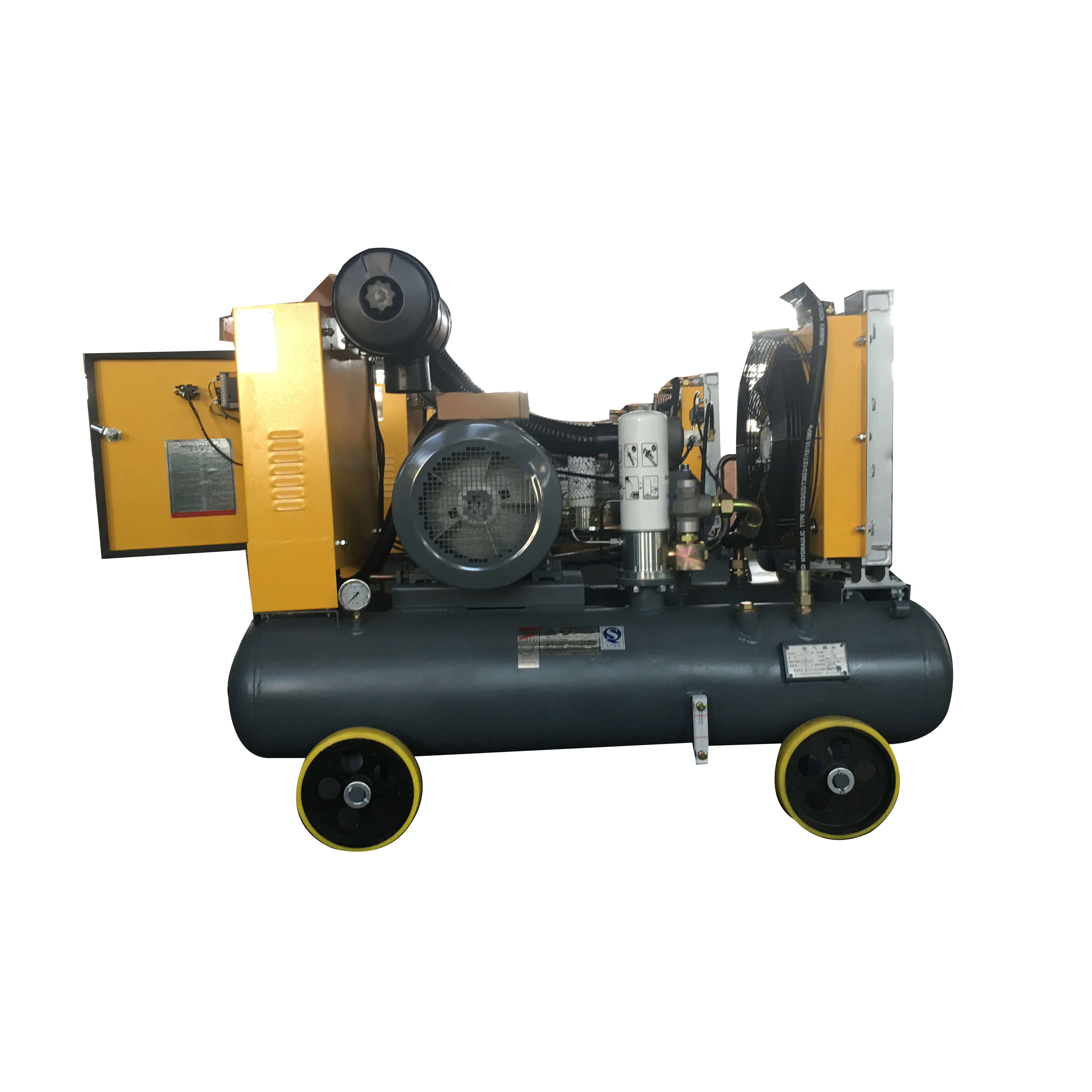

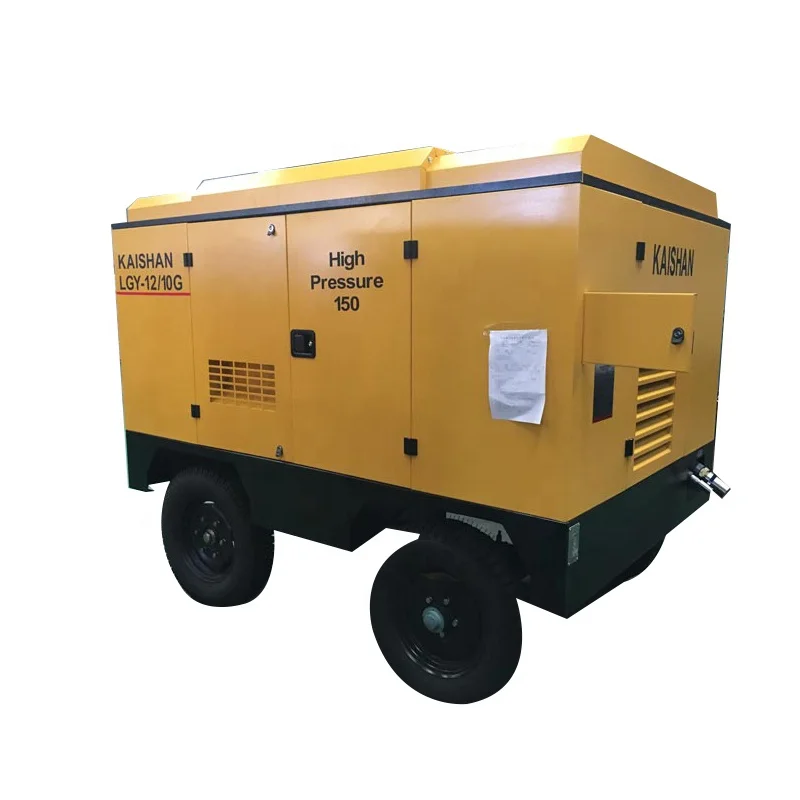

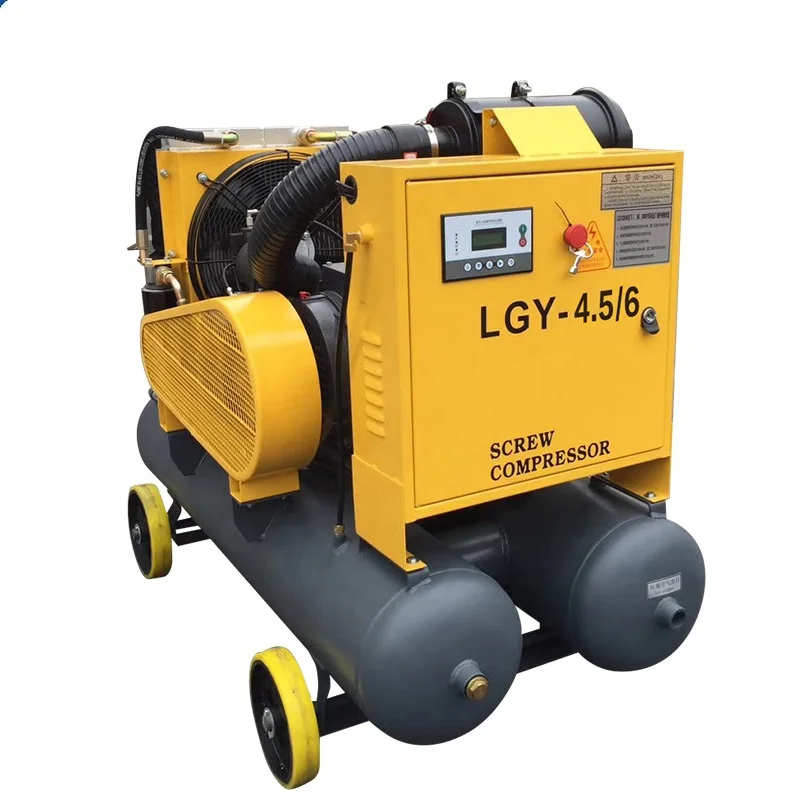

10bar 37kw electric power screw mining air compressor rock drill machine

The Design Features of the LGY Series 1.Our single-stage rotary screw airend is engineered for its durability. Larger rotors allows for bigger bearings, 30%-50% slower rotor speeds results in less power consumption, lower sound levels and reduced maintenance cost . 2.Our one piece bearing housing ensures both rotors are ridgely held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes. SKF bearings and SEALTECH bearing seals are utilized in all airends. 3.All of our compressors have the latest inlet valve, airend air discharge port and oil inlet port design. 4.Lower sound (dBA) emission level than most of our competitors results in less sound pollution. 5.The axial and rotational loadings are supported by different bearings for better stiffness and less transition noise. 6.Simple package design requires only minimum maintenance for optimum performance. Continuous cooling and circulation of lubricating oil, ensures long airend operating life.

Technical parameters of LGY series screw air compressor

Model	Working pressure (bar)	Capacity (m³/min)	Motor power (kw)	Dimension (mm)			Weight (kg)
				l	w	h
LGY-6.2/8G	8	6.2	37	3423	1445	1480	1120
LGY-7.5/8	8	7.5	45	3040	1500	1500	1200
LGY-6.9/10	10	6.9	45	3040	1500	1500	1200
LGY-5.6/13	13	5.6	45	3040	1500	1500	1200
LGY-7.0/8G	8	7	45	3423	1445	1480	1200
LGY-10/8G	8	10	55	3693	1585	1550	1200
LGY-13/8G	8	13	75	3850	2040	1980	1900
LGY-11.6/10G	10	11.6	75	3850	2040	1980	1900
LGY-9.3/13G	13	9.3	75	3850	2040	1980	1900
LGY-16/8G	8	16	90	3460	1660	2000	2750
LGY-13/10G	10	13	90	3460	1660	2000	2750
LGY-11.6/13G	13	11.6	90	3460	1660	2000	2750
LGY-20/8G	8	20	110	3790	1740	2155	3500
LGY-16/10G	10	16	110	3790	1740	2155	3500
LGY-13.5/13G	13	13.5	110	3790	1740	2155	3500
LGY-22/8G	8	22	132	3790	1740	2155	3600
LGY-20/10G	10	20	132	3790	1740	2155	3600
LGY-16/13G	13	16	132	3790	1740	2155	3600
LGY-13/17G	17	13	132	3790	1740	2155	3600
LGY-27/8G	8	27	160	3910	1740	2235	3800
LGY-23/10G	10	23	160	3950	1820	2250	5000
LGY-20/13G	13	20	160	3860	1820	2235	3900
LGY-30/8G	8	30	185	3860	1820	2235	3900
LGY-21/13G	13	21	185	3950	1820	2250	5000
LGY-17/18G	18	17	185	3860	1820	2235	3900
LGY-30/8GB	8	30	200	4113	1820	2294	4200
LGY-30/10G	10	30	200	3870	1820	2250	4600
LGY-27/13G	13	27	200	4050	1950	2385	5000
LGY-35/10G	10	35	250	4115	1950	2385	5200



click here for more models&solutions about compressor





FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
