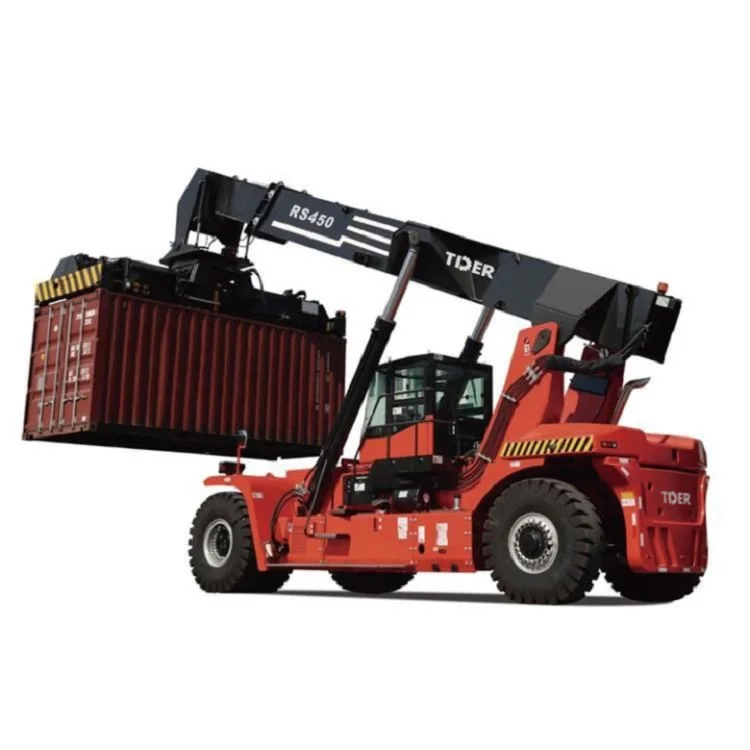

TDER Китай мощный 45-тонный контейнер RS45 штабелер в порту
- Категория: Грузоподъемное оборудование >>>
- Поставщик: Xiamen,Tider,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 341944.30 $* | 348783.55 $* |
| Jul-18-2025 | 277324.38 $* | 282870.77 $* |
| Jun-18-2025 | 336559.39 $* | 343290.16 $* |
| May-18-2025 | 333866.16 $* | 340543.44 $* |
| Apr-18-2025 | 266555.6 $* | 271886.64 $* |
| Mar-18-2025 | 328481.24 $* | 335051.32 $* |
| Feb-18-2025 | 325789.79 $* | 332305.52 $* |
| Jan-18-2025 | 323096.93 $* | 329558.11 $* |
Характеристики
Product Description
1.Vertical Lifting Technologies of Boom
The intelligent controller monitors the boom' s parameters at real-time,and automatically adjust the position of the boom to ensure vertical lifting
of the spreader, which makes stacking safer and improves efficiency significantly.
of the spreader, which makes stacking safer and improves efficiency significantly.
2.Power on demand technology
Power on demand ”where by acting on the joystick ,the engine will automatically rev up as required by the load on spreader and the lift speed required? It will realize the oprecise,mitemeter-scale actions canbe ,done at the same time,improving the effieciency.
3.Comfortable Operation Environment
The operator-oriented design includes a broad view of work condition. The controlling devices are placed in reasonable position to ease fatigue of operators.

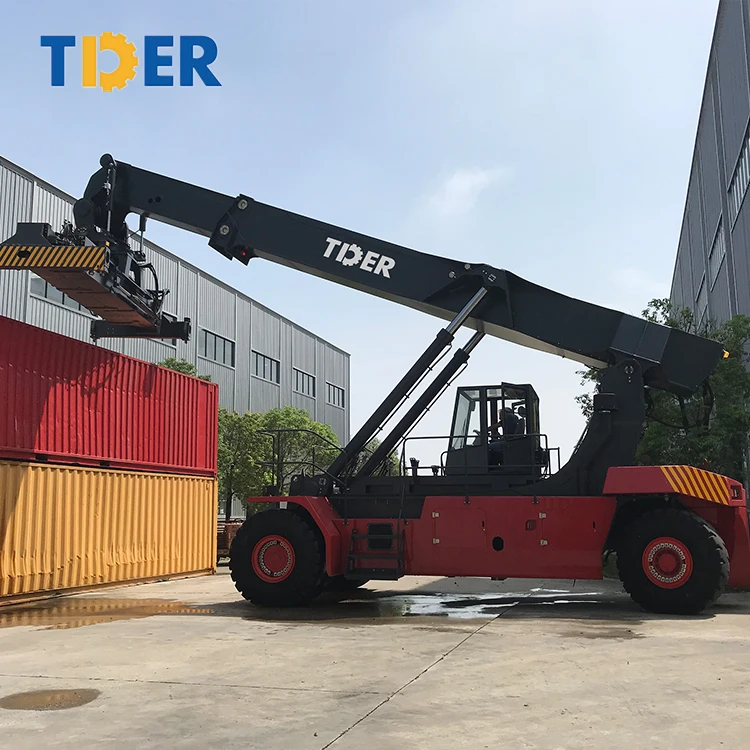

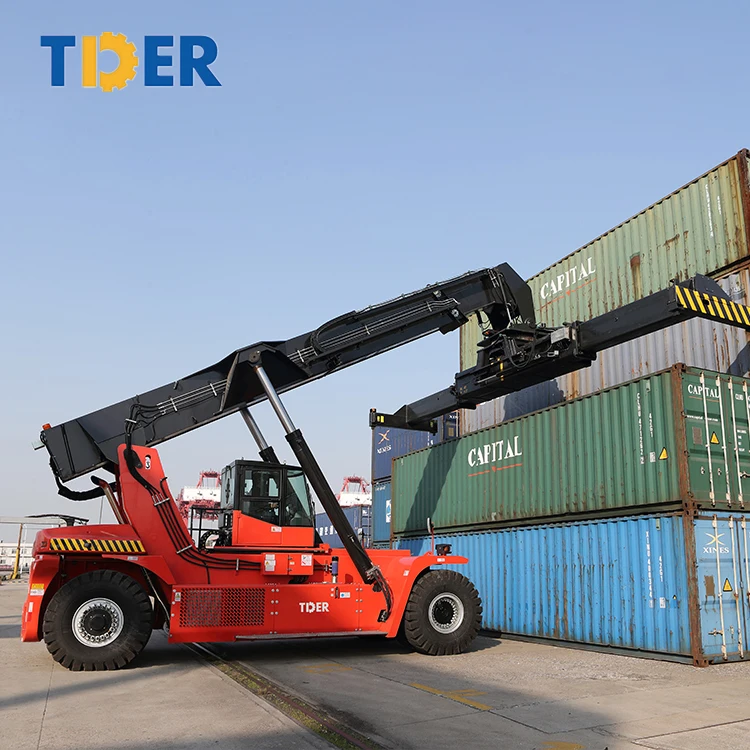

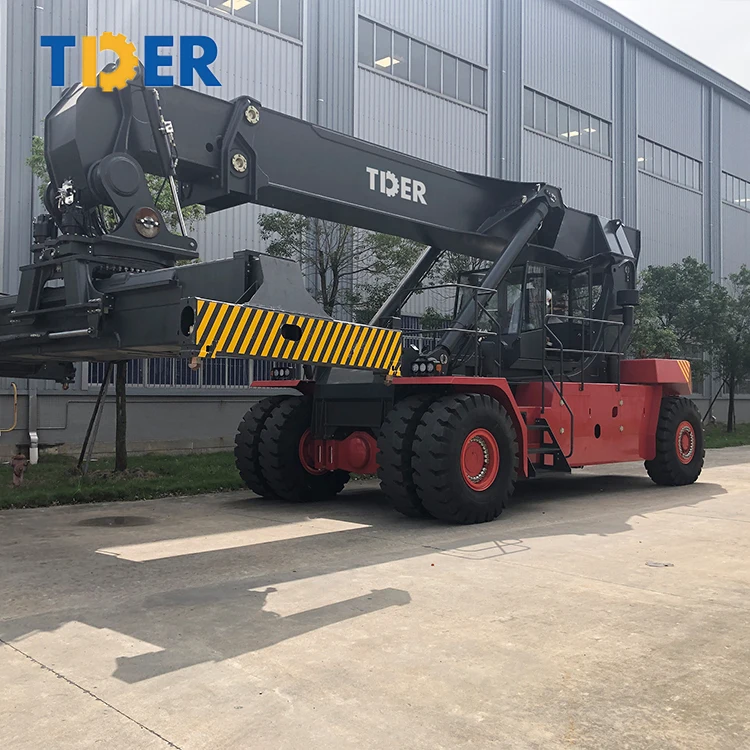

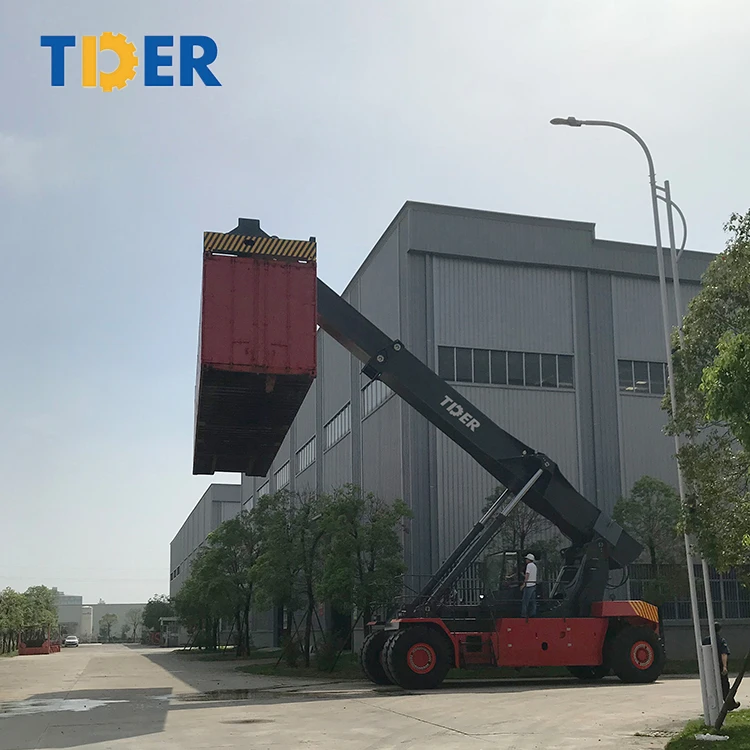

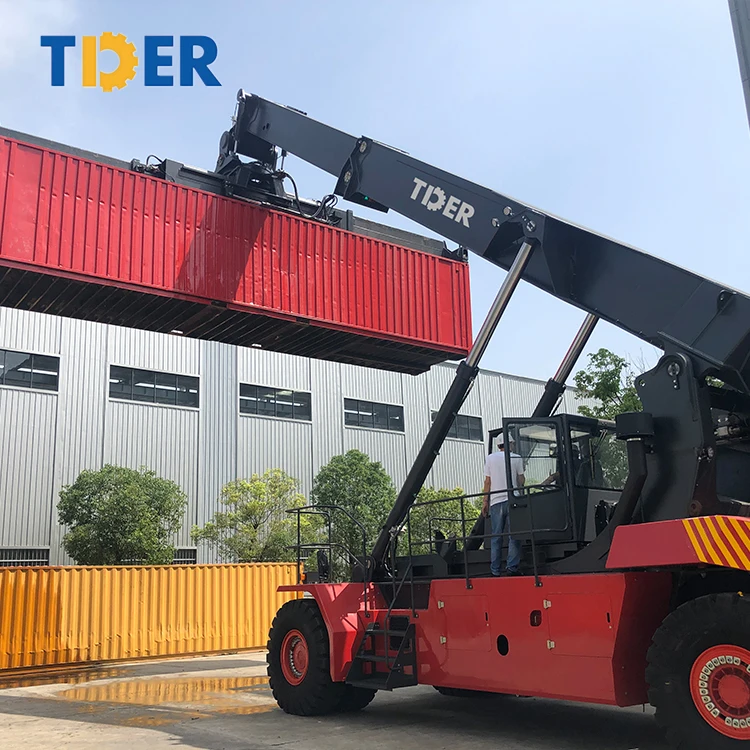

TIDER Reach Stacker is specifically designed for 20ft and 40ft containers, mainly used in small or mid-size ports, intermodal terminals, to transfer and stack various containers and other materials.
Compare with forklift, the Reach Stacker has more advantage in above application such as: more flexible, easier to operate, more stable, lower tyre pressure, higher stacking and storage capacity etc. It can also be operated across over containers.
Compare with forklift, the Reach Stacker has more advantage in above application such as: more flexible, easier to operate, more stable, lower tyre pressure, higher stacking and storage capacity etc. It can also be operated across over containers.
Specification
CHARACHTERISTICS | ||||
Manufacturer | TIDER | |||
Model designation | CRS450 | |||
Power unit: battery, diesel, LP gas, mains power | Diesel | |||
Operation: manual, pedestrian, stand-on, seated, order picker | Rider seated | |||
Load capacity(L1, L2, L3) | Q (kg) | 45000 / 31000 / 16000 | ||
Load centre, First row(L1) | c (mm) | 1800 | ||
Load centre, Second row(L2) | c (mm) | 3860 | ||
Load centre, Third row(L3) | c (mm) | 6400 | ||
Axle centre to spreader center(L1-1/2 high) | x (mm) | 2800 / 2600 | ||
Wheelbase | y (mm) | 6400 | ||
DIMENSIONS | ||||
Boom lift angle, raised/lowered | α/β( / °) | 61/ 0 | ||
Height boom lowered | h1 (mm) | 4945 | ||
Lift height(L1, L2, L3) | h3 (mm) | 15900 / 14100 /11350 | ||
Height, boom extended | h4 (mm) | 19000 | ||
Height of cabin | h6 (mm) | 3900 | ||
Height, operators seat | h7 (mm) | 2840 | ||
Towing coupling height | h10 (mm) | 600 | ||
Twistlock height lowered | h13 (mm) | 1495 | ||
Overall length with spreader | l1 (mm) | 11618 | ||
Overall length | l2 (mm) | 8410 | ||
Overall width | b1/b2 (mm) | 4180 / 3400 | ||
Width of soreader 20'/40’ | b3 (mm) | 6050 /12150 | ||
Ground clearance minimum | m1 (mm) | 345 | ||
Ground clearance, centre of wheelbase | m2 (mm) | 300 | ||
Stacking aisle 20' container | Ast (mm) | 10225 | ||
Stacking aisle 40' container | Ast (mm) | 13050 | ||
Turning radius | Wa (mm) | 8605 | ||
Minimum pivoting point distance | b13 (mm) | 3400 | ||
Wheelspan, Front wheels | b10 (mm) | 3030 | ||
Wheelspan, Rear wheels | b11 (mm) | 2786 | ||
WEIGHTS | ||||
UnLaden | Laden | |||
Weight kg | 71400 | 116400 | ||
Load on drive axle kg | 36400 | 101900 | ||
Load on steering axle kg | 35000 | 14500 | ||
PERFORMANCES | ||||
UnLaden | Laden | |||
Travelling speed km/h | 25 | 21 | ||
Climbing ability % | 30 | 28.8 | ||
Tractive force kN | 325 | —— | ||
Lifting speed m/s | 0.39 | 0.28 | ||
Lowering speed m/s | 0.39 | 0.39 | ||
CABIN | ||||
Movable closed cabin | ||||
Equiped with Air-conditioner, cooling/heating function | ||||
Noise level at driver's ear dBA | 74 | |||
ENGINE | ||||
Brand | Import engine | |||
Type | QSM 11 | |||
Cylinder number/ Displacement | 6 / 10820 cm3 | |||
Rated power @ rated speed | 250Kw @ 2100 rpm | |||
Maximum torque | 1674NM @ 1500 rpm | |||
Rated current of alternator | 150 A | |||
Battery | 24 V (2 x 12 /150) | |||
Product features
1.Famous world brand: Import engine, DANA transmission, KESSLER Drive and Steering Axle.
2.Independent brake cooling system: Drive axle brake use a separate cooling system from truck oil cooling system to ensure safety and extend drive axle service life.
3.Equip with turbocharger to improve the truck power and engine efficiency.
4. Dynamic anti-tip over protection
5. Load sense hydraulic system
6. Vertical lifting function
7. Errors automatic detection and real data showing technology
8. Anti-collision protection for spreader and boom
3.Equip with turbocharger to improve the truck power and engine efficiency.
4. Dynamic anti-tip over protection
5. Load sense hydraulic system
6. Vertical lifting function
7. Errors automatic detection and real data showing technology
8. Anti-collision protection for spreader and boom
Certifications
Customers
After-sales Service
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
FAQ
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
