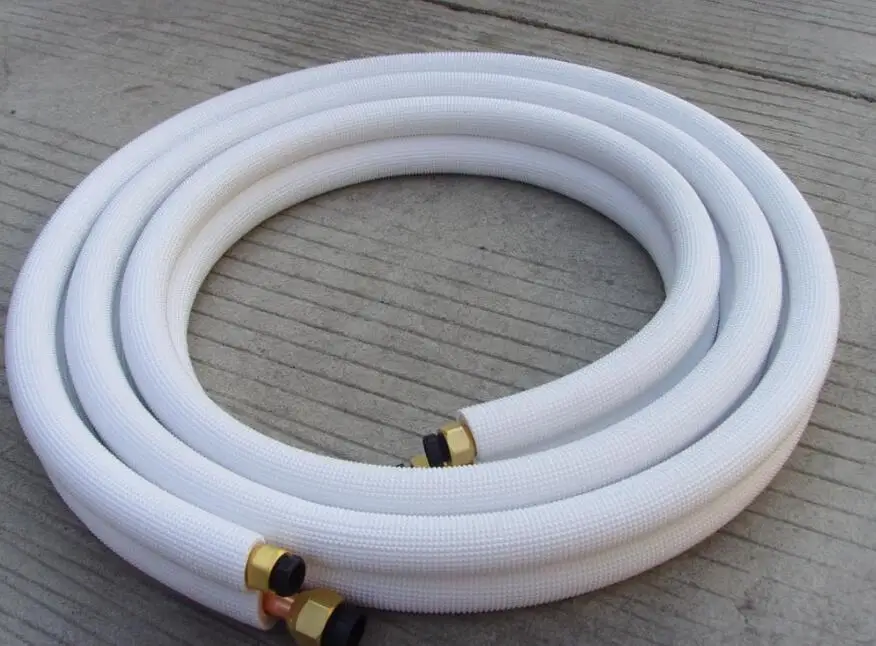

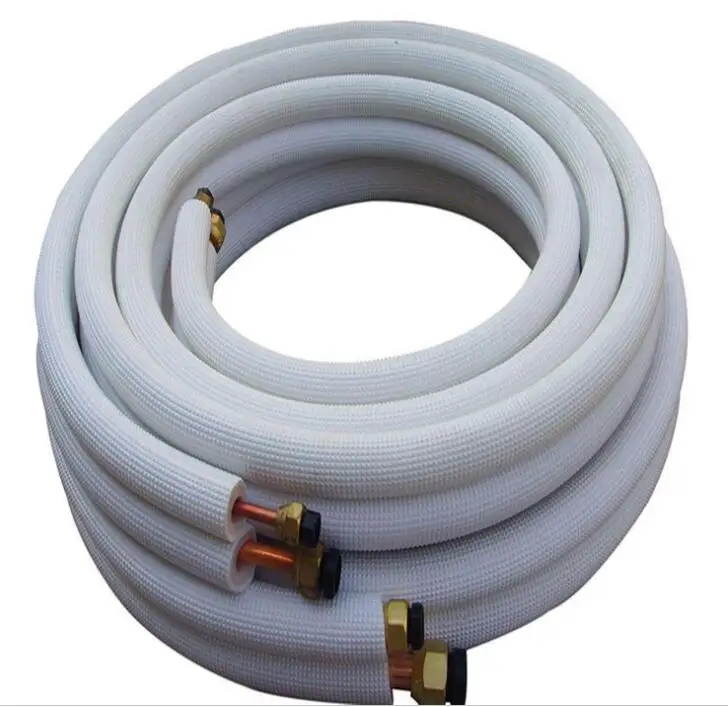

Insulated Twin Copper Tube for Air Conditioner & Air Conditioning parts
Air-conditioner copper connecting tubing used for connecting the indoor and outdoor of air conditioners,  it is made of higher quality copper tube, Insulation tube and brass nuts, the length and wall thickness can follow client's specifications.

No.	Type of Air conditioners	Copper tube size	Size of Insulation tube	3M Length 3M	4M Length 4M	5M Length 5M	1M~30M Length 1-30M
1	1 HP	∅6.35+9.52	∅9+∅12	1HP×3M	1HP×4M	1HP×5M	1HP×1M~30M
2	1.5 HP	∅6.35+∅12.7	∅9+∅15	1.5HP×3M	1.5HP×5M	1.5HP×5M	1.5HP×1M~30M
3	3 HP	∅9.52+∅15.88	∅12+∅19	3HP×3M	3HP×4M	3HP×5M	3HP×1M~30M
4	4 HP	∅9.52+∅19.05	∅12+∅22	4HP×3M	4HP×4M	4HP×5M	4HP×1M~30M
5	5 HP	∅12.7+∅19.05	∅15+∅22	5HP×3M	5HP×4M	5HP×5M	5HP×1M~30M

   In accordance with the market demand, we especially developed 30m length conecting tube (copper tube fixed with 2 layers embossed PE insulation sleeve tube), the connecting  tube has identification  marks for every 1 meter length, and can be easily cut to certain length as 3m, 5m, 6m, 10m, 15m, 20m, 30m according to the project needs, so, it is easy to use, high efficiency, less waste and widely used in air conditioning system for large-scale shopping malls and factories.

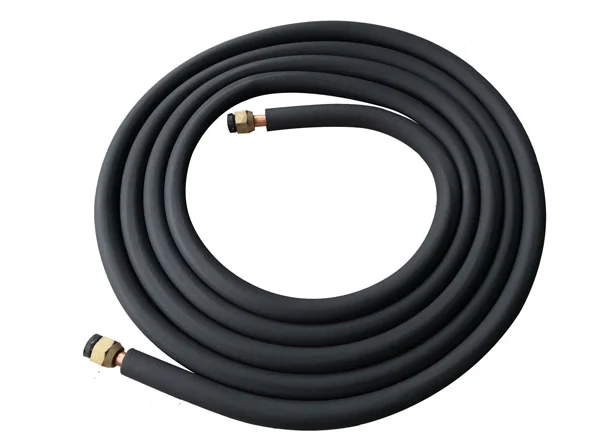

Connecting tube for air-condition  (with Single layer insulation Tube)

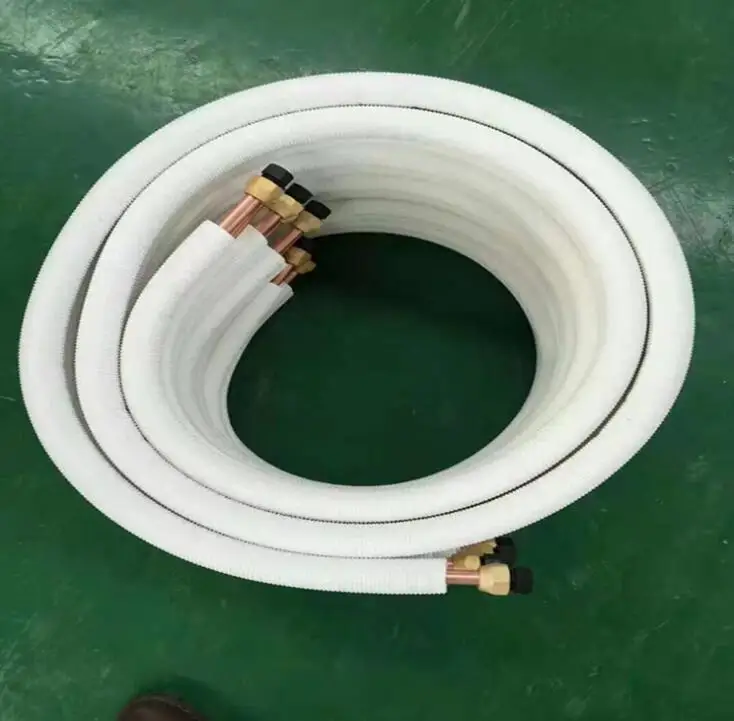

Connecting tube for air-condition  (with twin layers insulation Tube)
