Вилочный погрузчик TIDER дизельный вилочный 2 5 3 тонны 4 7 8 10 подъемник
- Категория: Грузоподъемное оборудование >>>
- Поставщик: Xiamen,Tider,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 748402.69 $* | 763370.23 $* |
| Jul-18-2025 | 606972.11 $* | 619111.17 $* |
| Jun-18-2025 | 736616.67 $* | 751348.19 $* |
| May-18-2025 | 730723.54 $* | 745337.54 $* |
| Apr-18-2025 | 583400.8 $* | 595068.84 $* |
| Mar-18-2025 | 718937.98 $* | 733316.19 $* |
| Feb-18-2025 | 713045.75 $* | 727306.60 $* |
| Jan-18-2025 | 707152.57 $* | 721295.33 $* |
Характеристики
Configuration
1. Japan ISUZU / Chinese xinchai engine
2. Hydraulic/Automatic Transmission
2. Hydraulic/Automatic Transmission
3. 2 stage mast/3 stage mast
4. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
5. Electric-hydraulic directional control Valve
6. The casting-type steering bridge which more than 8 years of service life than ordinary welded bridge
7. Priority Steering priority system will improve work efficiency
7. Priority Steering priority system will improve work efficiency
8. Toyota seat with armrest and LED Light
10. A set of spare parts and some quick -wearing parts free for customers![]()
![]()
10. A set of spare parts and some quick -wearing parts free for customers
Details
![]()
No matter what load capacity of forklift you need
we all have
Click the picture below to jump to the forklift with corresponding load
1.5 Ton - 5 Ton Forklift Truck
![]()
![]()
6 Ton - 7 Ton Forklift Truck
![]()
![]()
8 Ton - 10 Ton Forklift Truck
![]()
![]()

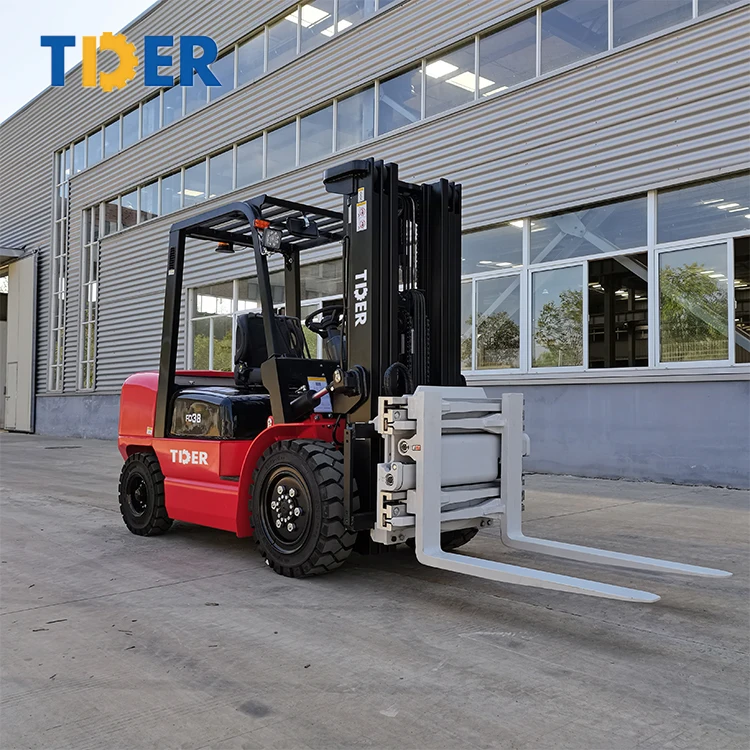

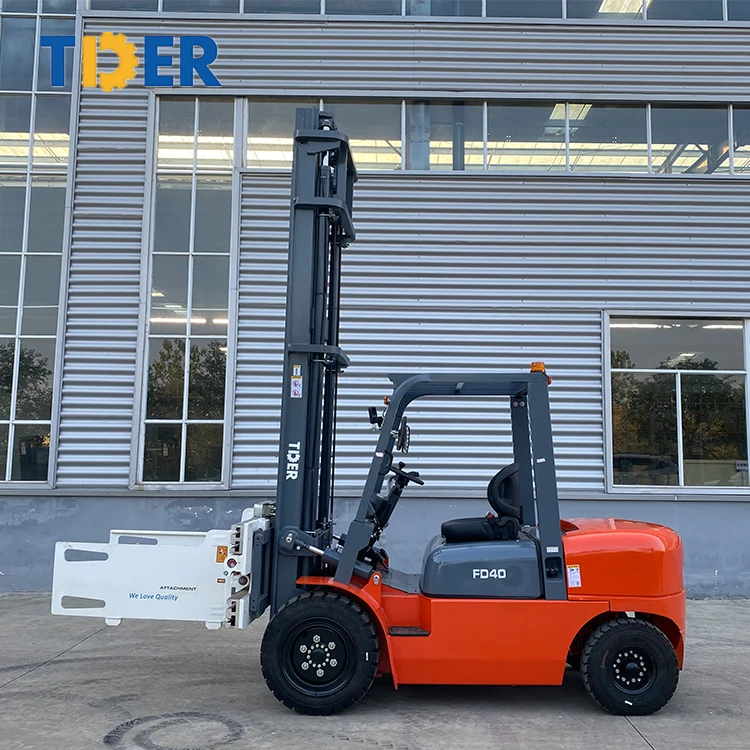

Forklift with attchment
![]()
![]()
ELectric Forklift LPG&Gasoline Forklift
![]()
![]()
Rough Terrain Forklift
![]()
![]()
Technical Sheet
The Specifications of 3.5 Ton Diesel Forklift Truck | ||||
Specifications Manufacture | TIDER | |||
Model | FD35 | |||
Power Type | Diesel type | |||
Rated Capacity | kg | 3500 | ||
self weight | kg | 4500 | ||
Dimensions | Max. Lifting Height | mm | ||
Load Centre | mm | 500 | ||
Fork Size(L*W*T) | mm | 1070*125*50 | ||
Mast Extended Height(With backrest) | mm | 4160 | ||
Mast Lowered Height | mm | 2175 | ||
Overhead Guard Heigh | mm | 2090 | ||
Turning Radius(Outside) | mm | 2480 | ||
Min. Insecting aisle | mm | 2530 | ||
Performance Speed Travel(Empty load) | KM/h | 19 | ||
Lifting(Full load) | mm/s | 440 | ||
Max.Gradeability | % | 20 | ||
Wheel & Tires | Tire | Front | ||
Rear tire | mm | 6.50-10-10PR | ||
Ground Clearance(Bottom of mast) | mm | 135 | ||
Wheelbase | mm | 1700 | ||
Power Battery Voltage/Capacity | V/Ah | 12/80 | ||
Engine Model | ISUZU C240/Xinchai C490 | |||
Rated Output | /r.p.m kw | 46/2450 | ||
Rated Torque | /r.p.m N.m | 186.3/1600-1800 | ||
No. of Cylinder | 4 | |||
Bore*Stroke | mm | 95.4*107 | ||
Displacement | cc | 3059 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission | Power shift | |||
Stage(FWD/RVS) | 1/1 | |||
For parameters of other model, please consult our salesman. | ||||
Product packaging
![]()
Factory Show
![]()
![]()
![]()
Customer & Exhibition
![]()
After Sales Service
1)TIDER always treat after-sale service important as the same as product quality.
2) TIDER grants our clients a twelve-month-period or 2000-hours warranty for anymachine purchased from us.
3) TIDER can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge
about your specific machine. With our technical advises, your machine service life can be significantly prolonged and
sustained with high capacity.
![]()
Contact Me
![]()
![]()
![]()
FAQ
1. What Certificate do you have?
TIDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TIDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TIDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TIDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
TIDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TIDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TIDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TIDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
