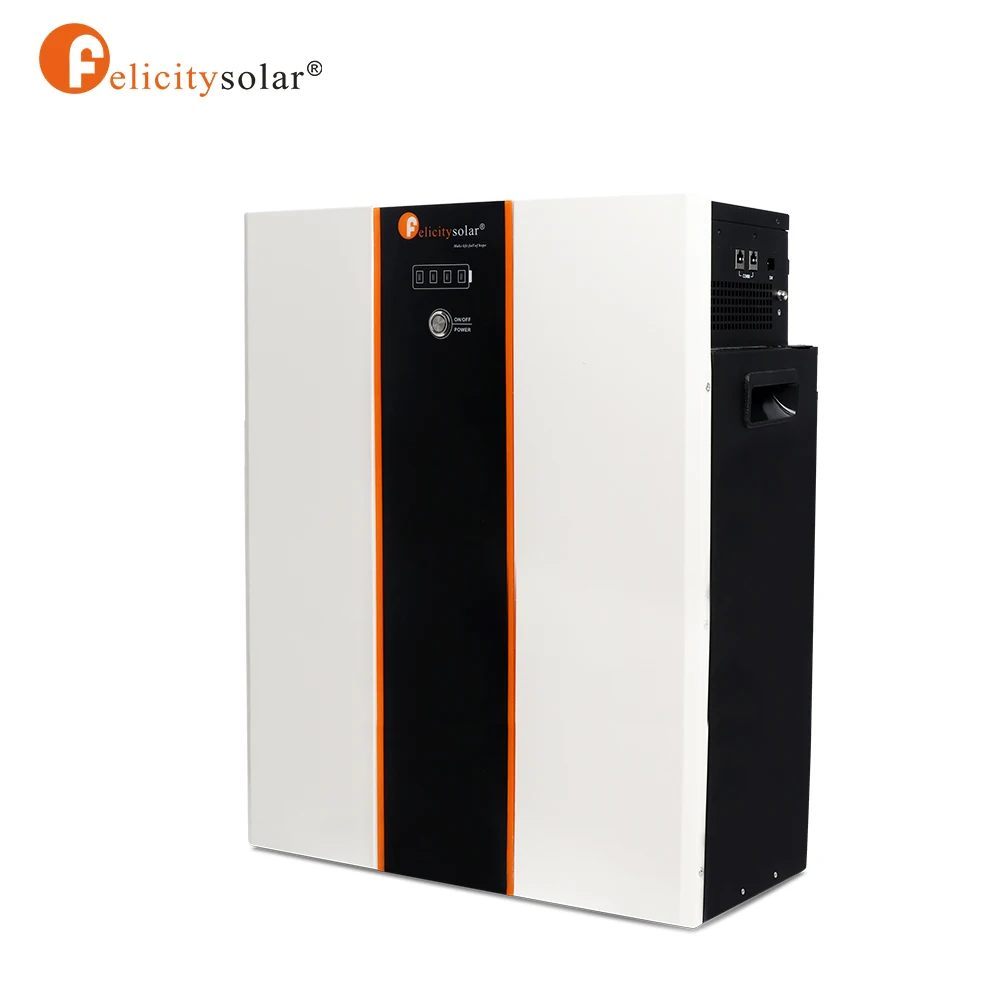

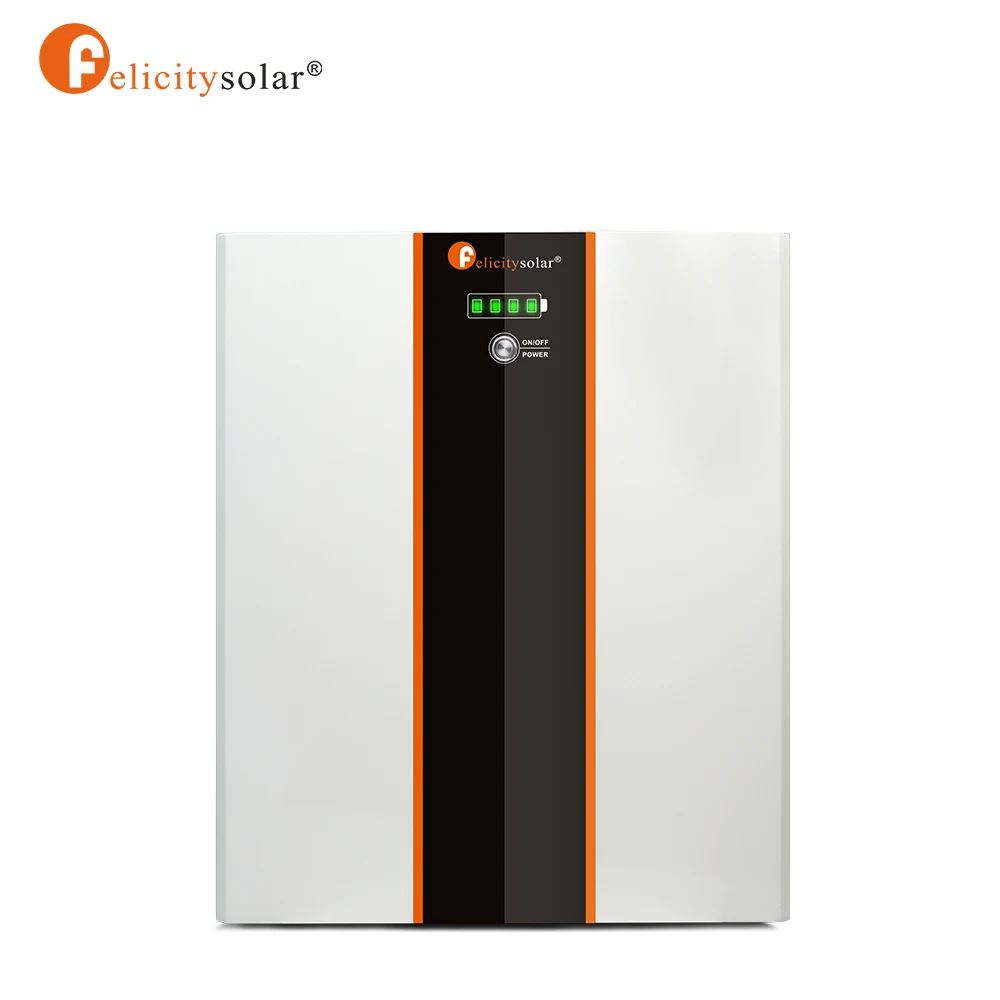

Новый дизайн сменная литиевая батарея Tesla 51 2 V 200ah
- Категория: Литий-ионные аккумуляторы >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1702.81 $* | 1787.46 $* |
| Aug-17-2025 | 1687.46 $* | 1771.21 $* |
| Jul-17-2025 | 1416.6 $* | 1487.71 $* |
| Jun-17-2025 | 1659.21 $* | 1742.91 $* |
| May-17-2025 | 1444.66 $* | 1516.92 $* |
| Apr-17-2025 | 1630.56 $* | 1712.49 $* |
| Mar-17-2025 | 1616.95 $* | 1697.44 $* |
| Feb-17-2025 | 1602.22 $* | 1682.64 $* |
| Jan-17-2025 | 1587.91 $* | 1666.83 $* |
Характеристики
Product Paramenters
1) Iron phosphate-lithium power battery
2) Long warranty period:2 years
3) Higher energy density, smaller volume for household
4) Support connected in parallel mode for expansion
5) Special design for Photovoltaic systems,UPS,wind turbine storage system
6)Battery management system(BMS) built-in.
7) Expand capacity:This battery pack can be easily expanded by connecting two or more pack in parallel(Up to 6)
2) Long warranty period:2 years
3) Higher energy density, smaller volume for household
4) Support connected in parallel mode for expansion
5) Special design for Photovoltaic systems,UPS,wind turbine storage system
6)Battery management system(BMS) built-in.
7) Expand capacity:This battery pack can be easily expanded by connecting two or more pack in parallel(Up to 6)
Model | LPBF24150 | LPBF48150 | LPBF24200 | LPBF48200 | |||||||||||
Usable Capacity | 3.75KWH | 7.5KWH | 5KWH | 10KWH | |||||||||||
Voltage | 24V | 48V | 24V | 48V | |||||||||||
Rated Voltage | 25.6V | 51.2V | 25.6V | 51.2V | |||||||||||
Charge Voltage | 28.8V | 57.6V | 28.8V | 57.6V | |||||||||||
Discharge Voltage Range | 24-28.8V | 48-57.6V | 24-28.8V | 48-57.6V | |||||||||||
MAX. Charge & Discharge Current | 120A | ||||||||||||||
Rated Charge & Discharge Current | 80A | ||||||||||||||
MAX. Output Power | 2500W | 5000W | 2500W | 5000W | |||||||||||
Rated Output Power | 1250W | 2500W | 2000W | 4000W | |||||||||||
DOD | 0.95 | 0.95 | 0.95 | 0.95 | |||||||||||
Modules Connection | 1-6 in parallel | ||||||||||||||
Communication | CAN&RS485 | ||||||||||||||
Ingress Protection | IP21 | ||||||||||||||
Cycle Life | >3000 times, @25℃ | ||||||||||||||
Working Temperature Range | Discharge:-20°C to +60°C, Charge:+0°C to +55°C | ||||||||||||||
Net Weight(kg) | 37.3kg | 68kg | kg | 103kg | |||||||||||

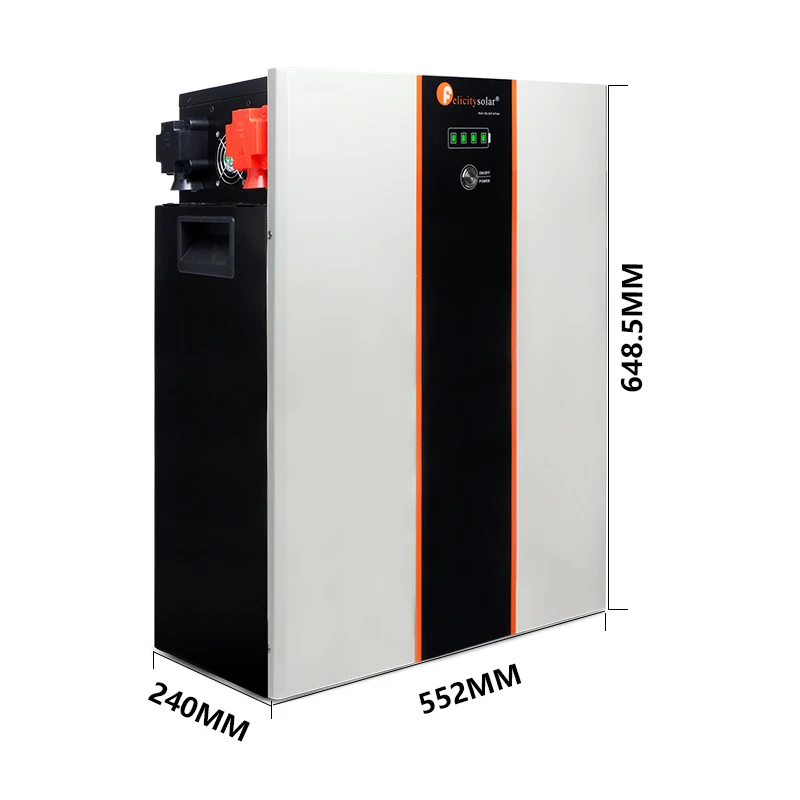

Product Dimension(MM) | 485*370*240mm | 485*573*240mm | 552*409*240mm | 552*649*240mm | |||||||||||
Package Dimension(MM) | 615*550*365MM | 615*750*365MM | 685*590*365MM | 685*830*365MM | |||||||||||
Parallel connection show
Noted:After completing the above 4 steps ,arbitrarily select the positive and negative poles of one of the battery packs to output (the upper battery pack or the lower battery pack, you can not select the positive and negative poles of the two battery packs at the same time).After confirming the correct connection of the inverter,controller and battery ,you can turn on any of the switches and use the battery group happily.
Recommend Products
IVCP/IVCM Series 1~5KVA Inverter
12V/24V/48V Pure sine wave Inverter Built-in PWM/MPPT Controller
IVPS/IVPM Series 5~10KVA Inverter
24V/48V Pure sine wave Inverter Communicate with our Mppt controller
IVEM 1~5KVA Inverter
24V/48V Built-in PWM/MPPT Controller
Maximum input voltage of 450A
LPBF Series Lithium Ion Batteries
24/48V 3.75KWH~10KWH Battery
LPBG Series Lithium Ion Batteries
24/48V 5KWH~12.5KWH Battery
LPBF Series 12V Batteries
12V 150Ah/200Ah Lithium Ion Battery
GEL Series 70Ah~250Ah Battery
12V 70AH~250AH Gel battery
OPzV Series 200Ah~2500Ah battery
2V 200Ah~2500Ah Gel Battery
Front terminal Series Battery
12V 100Ah~200Ah Battery
Product Applications
Production Line
Our Company
Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar
panel production lines, LED street light production lines and the testing systems for solar power and lighting.
panel production lines, LED street light production lines and the testing systems for solar power and lighting.
Certifications
Payments & Delivery
FAQ
1.Do you offer power solutions?
We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. How's your quality control system?
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. How's the lead time and services?
-- Fast Delivery in 10 days
-- 8h response & 48h solution
4. How's your R&D ability?
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. How's your quality control system?
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. How's the lead time and services?
-- Fast Delivery in 10 days
-- 8h response & 48h solution
4. How's your R&D ability?
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
