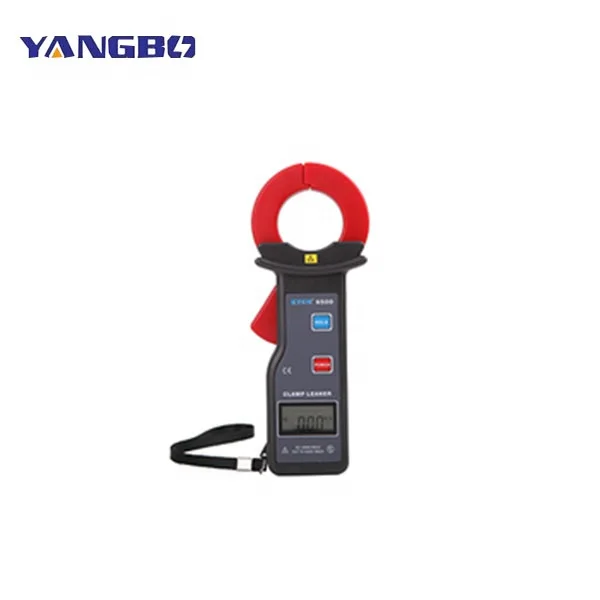

Product introduction
The ETCR6500 series high-precision clamp-type leakage current meter is specially designed and manufactured for measuring AC leakage current. It adopts the latest CT technology and digital integration technology. It has the characteristics of small size, high accuracy and perfect function. Widely used in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. The sensor core adopts special alloy and adopts magnetic shielding technology, which is almost not affected by the external magnetic field, ensuring the high precision, high stability and high reliability of the uninterrupted measurement all the year round.



ETCR clamp type ammeter model category


Type number
Name
Range
Resolution
Jaw size
ETCR6000
Clamp AC and DC leakage current meter
AC / DC 0mA ～ 60.0A
1mA
φ7mm
ETCR6100
Clamp AC and DC ammeter
AC / DC 0.0A ～ 1000A
0.1A
30 × 35mm
ETCR6200
Clamp AC and DC leakage current meter
AC / DC 0mA ～ 60.0A
1mA
25 × 30mm
ETCR6300
Clamp leakage current meter
AC 0.000mA ～ 60.00A
1uA
ETCR6300D
Clamp DC leakage current meter
DC 0.0mA ～ 6.0A
0.1mA
ETCR6500
Clamp leakage current meter
AC 0.00mA ～ 300.0A
0.01mA
35 × 40mm
ETCR6600
Clamp leakage current meter
AC 0mA ～ 600A
1mA
ETCR6800
Clamp leakage current meter
AC 0.00mA ～ 1200A
0.01mA
φ68mm
ETCR6800D
Clamp AC and DC ammeter
AC 0.0A ～ 1000A; DC 0.0A ～ 2000A
0.1A




Technical specifications


Features
AC leakage current measurement, AC current measurement, online AC current measurement
power supply
Zinc manganese dry battery 6F22 9V
test method
Clamp CT, integration method
Display mode
4-digit LCD display
Jaw size
35mm × 40mm
Meter size
Height, width and thickness: about 175mm × 70mm × 38mm
LCD size
35mm × 21.5mm; display field: 32mm × 15mm
Sampling rate
Frequency
2 times / sec
50Hz, 60Hz automatic recognition
Gear shift
Fully automatic switching
Range
0.01mA ～ 300.0A
Resolution
10uA
measurement accuracy
(23 ℃ ± 3 ℃, below 70% RH)
0 ～ 60.00A: ± 1.5% ± 5dgt
60.00A ～ 199.9A: ± 2% ± 5dgt
200.0A ～ 300.0A: ± 4% ± 5dgt
Line voltage
Line test below AC600V
RS232 interface
With RS232 interface, stored data can be uploaded to computer, software monitoring
data storage
99 groups, flashing display "FULL" symbol indicates that the storage is full
Peak hold
Peak capture and hold function, long press HOLD in the test without letting go and display peak value
Data retention
Data retention function: "DH" symbol display
Yi Chu display
Overrange benefit function: "OL" symbol display
Automatic shut-down
About 5 minutes after power on, the meter will automatically shut down to reduce battery consumption
battery voltage
When the battery voltage drops to about 7.2V, the battery voltage low symbol "" is displayed, reminding to replace the battery.
Instrument quality
120g (including battery)
rated power
5mW
Working temperature and humidity
0 ℃ ～ 40 ℃; below 80% rh
Storage temperature and humidity
Dielectric strength
-10 ℃ ～ 60 ℃; below 70% rh
AC2kV / rms (between iron core and housing)
Suitable for safety regulations
IEC1010-1, IEC1010-2-032, pollution, etc. 2, CAT Ⅲ (600V)

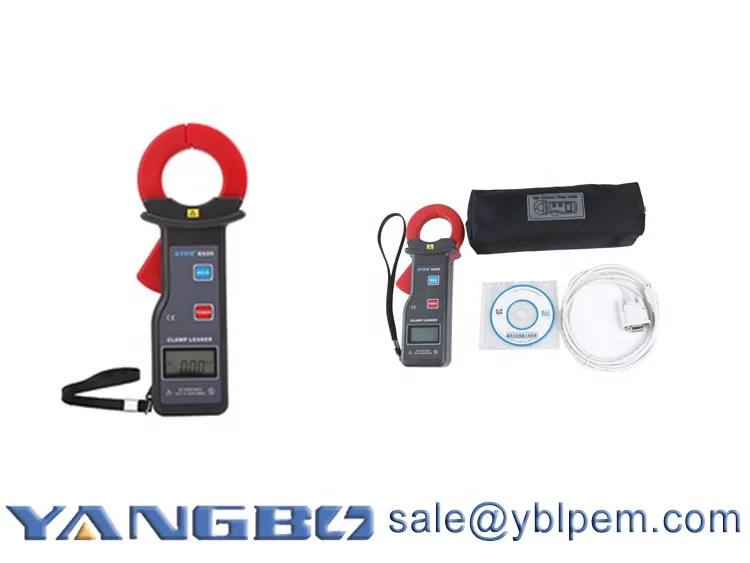

Random attachment
Instrument: 1; Data software / RS232 dedicated communication line: 1; CD: 1; Battery (6F22 9V): 1
Working temperature and humidity
-10 ℃ ～ 40 ℃; below 80% rh
Storage temperature and humidity
-10 ℃ ～ 60 ℃; below 70% rh
Dielectric strength
AC 2kV / rms (between iron core and housing)
Suitable for safety regulations
IEC1010-1, IEC1010-2-032, pollution, etc. 2, CAT Ⅲ (600V)

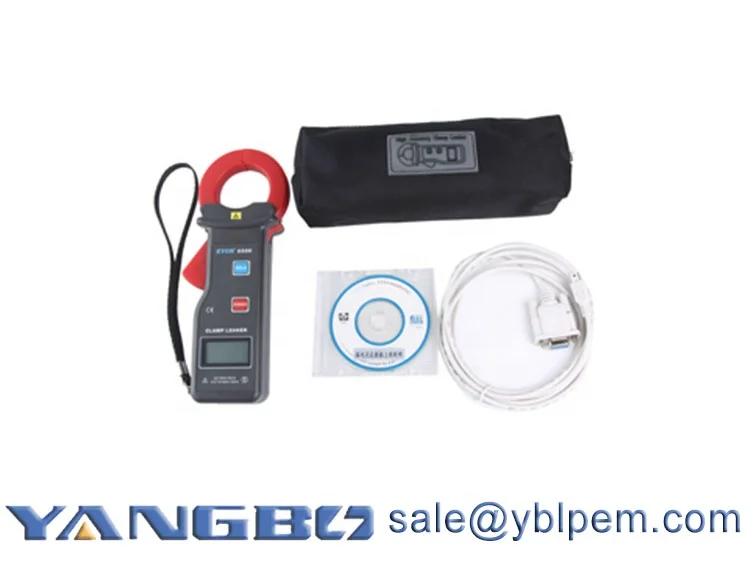

Random attachment
Clamp meter: 1 piece;
test line: 4 (red 3, black 1);
RS232 data line: 1;
software CD: 1;
battery (LR6): 4;
instrument box: 1




    The instrument has an RS232 interface, and its software can perform real-time online monitoring and historical query, dynamic display, with maximum, minimum, and average indication, with alarm value setting and alarm indication function, with historical data reading, saving, printing and other functions. The instrument can be used for AC line current measurement below AC600V, online current measurement, and also has functions such as peak hold, data hold, data storage, etc. It is easy to use and is an essential tool for electrical safety testing.
