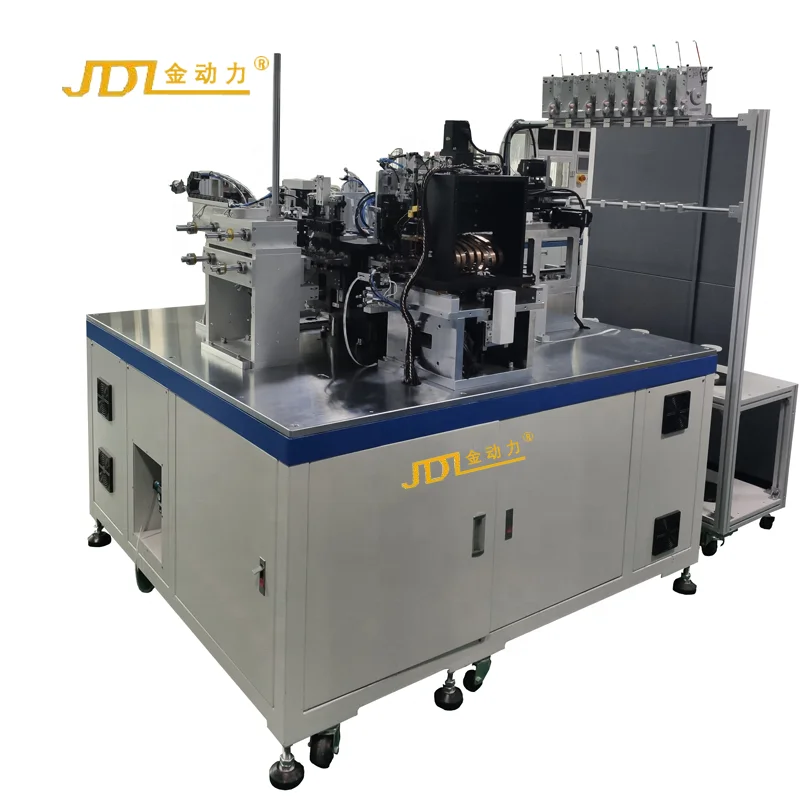

Четыре шпинделя автоматическая машина для намотки дроссельной

Четыре шпинделя автоматическая машина для намотки дроссельной

Категория: Оборудования для электронных изделий >>>
Поставщик: Jindongli,Intellingent,Technology,(SZ),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.42 $*	0.15 $*
Aug-16-2025	0.14 $*	0.80 $*
Jul-16-2025	0.35 $*	0.35 $*
Jun-16-2025	0.11 $*	0.96 $*
May-16-2025	0.38 $*	0.80 $*
Apr-16-2025	0.52 $*	0.95 $*
Mar-16-2025	0.81 $*	0.15 $*
Feb-16-2025	0.12 $*	0.37 $*
Jan-16-2025	0.32 $*	0.70 $*

Характеристики

Product Description

Product Name	Four Spindles Automatic Common Mode Choke Winding Machine
Feeding Mode	Vibratory Bow Feeder
Winding Mode	Product Rotation
Applicable Product	4532,3225,2012 Common Mode Chokes
Applicable Wire Diameter	0.04-0.10mm
Number of Wires	Single Wire or Double Wires
Number of Spindles	Four Spindles
Drive Mode	Direct Drive Motor (Four Stations)
Spindle Speed	Max. 3000rmp
Machine Capacity	1.0 Kpcs/H-1.2 Kpcs/H
Machine Size	L1600mm x W1450mm x H1800mm
Power Supply	single-phase AC220V, 50HZ
Air Supply	0.5 ~ 0.7MPa
Power	4.5KW
Machine Weight	about 700KG

Machine Features:
The winding spindles and XYZ axis of this machine are driven by high-performance servo motors, the working performance is stable.
Touch screen with sensitive touch and easy operation.
High-precision direct-drive motor to improve the accuracy and facilitate the maintenance.
Pulse hot-press welding, real-time temperature feedback to ensure the welding effect.
Modular structure to improve the accuracy, facilitate commissioning and subsequent maintenance.
Simple operation, fast programming speed and easy to use.

Other functions can be determined in advance according to customer’s requirements.

Related Products

Packing&Shipping

Company Introduction

Jindongli intellingent Technology (SZ) Co., Ltd is a high-tech enterprise integrated with scientific research and design,manufacturing and sales services, main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic inductor test packaging machine, automatic IC test packaging machine, automatic capacitor test machine, touch switch automatic taping machine, peeling strength tester, etc.), SMD electronic packing materials, we also processes the incoming materials of taping packages for SMD electronic components.

Our Services & Strength

We have strong technical force and an outstanding team which is striving for excellence and constantly innovations,which can provide strict quality and process management for production. In order to ensure the stable quality of our products, Jindongli Intellingent Technology (SZ) CO., LTD had applied and passed the ISO Quality Management Systerm,obtained the title of national high and new tech enterprise.

FAQ

1.Are you a manufacture?
Yes, we are factory in Shenzhen,Guangdong Province.

2.What’s the product range?
Our main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic inductor test packaging machine, automatic IC test packaging machine, automatic capacitor test machine, touch switch automatic taping machine, peeling strength tester, etc.), SMD electronic packing materials, we also processes the incoming materials of taping packages for SMD electronic components.

3. How does your factory do regarding quality control?
Quality is priority.Our factory always attach great importance to quality controlling and each step of production products will be camed out inspection by QC department before shipping.Our factory has gained CCC,ISO,SGS authentication.

4.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc.

5.What’s the delivery time?
Normally 30 days after get the payment.

6.How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
①User Manual in English
②Operation Video
③Support on-line
④You can send your technician to our factory to attend the skill training.

7.What’s the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What about the warranty?
We provide one-year limited warranty for all machines from the date of purchase.
