40 м RXTX TTL датчик громкости инфракрасный лазерный модуль с
- Категория: Laser Rangefinders >>>
- Поставщик: Chengdu,JRT,Meter,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 65.33 $* | 66.72 $* |
| Jul-19-2025 | 53.36 $* | 54.93 $* |
| Jun-19-2025 | 64.73 $* | 65.70 $* |
| May-19-2025 | 63.67 $* | 64.63 $* |
| Apr-19-2025 | 50.91 $* | 51.8 $* |
| Mar-19-2025 | 62.7 $* | 63.87 $* |
| Feb-19-2025 | 62.40 $* | 63.2 $* |
| Jan-19-2025 | 61.6 $* | 62.0 $* |
Характеристики

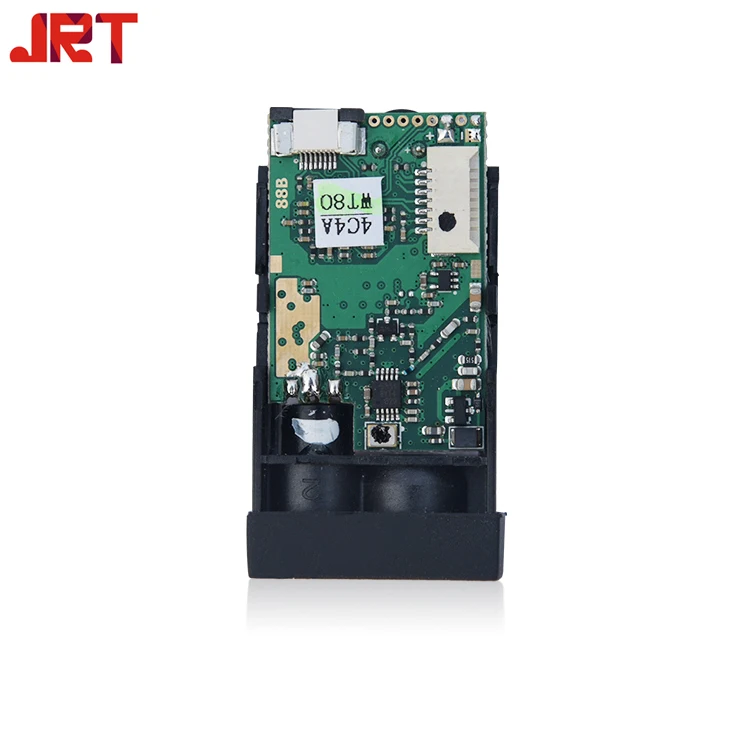

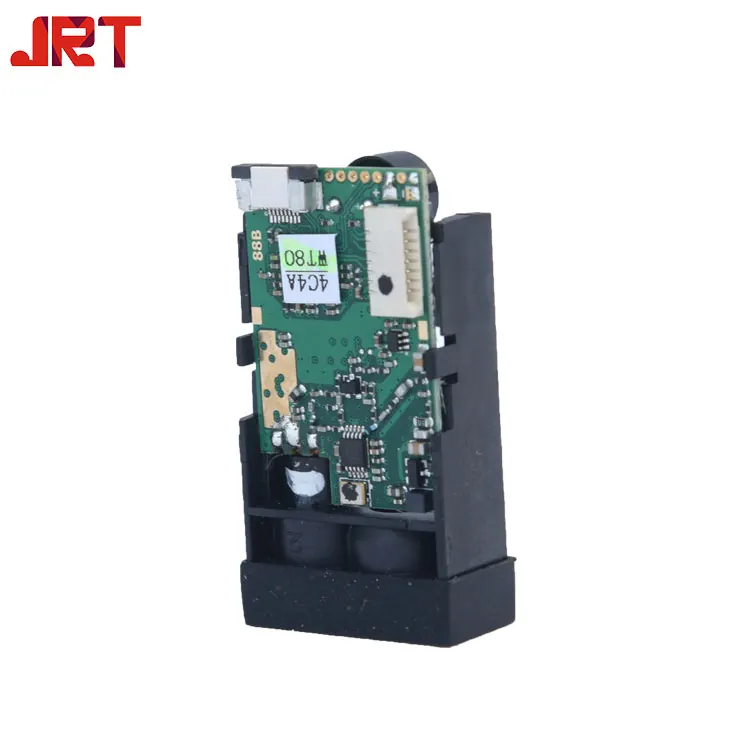

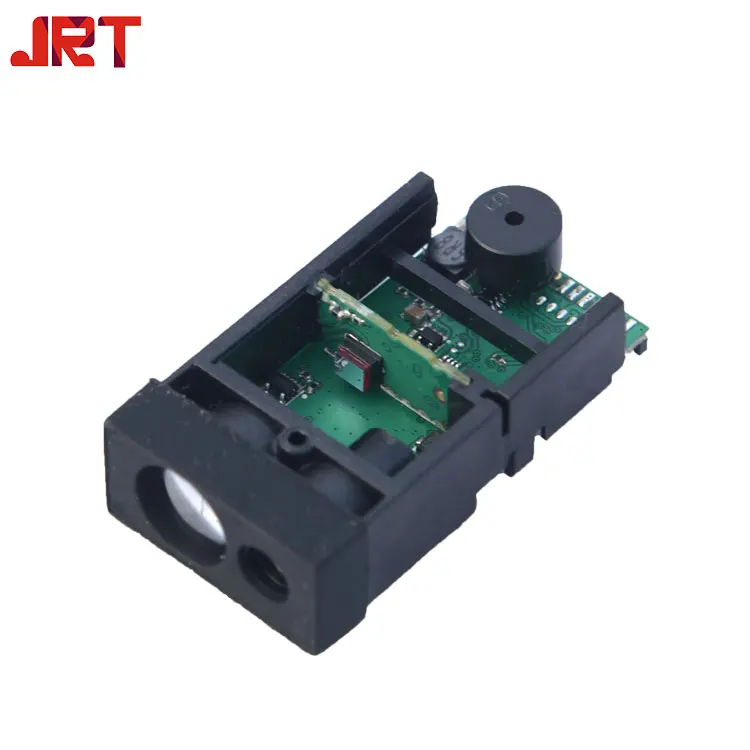

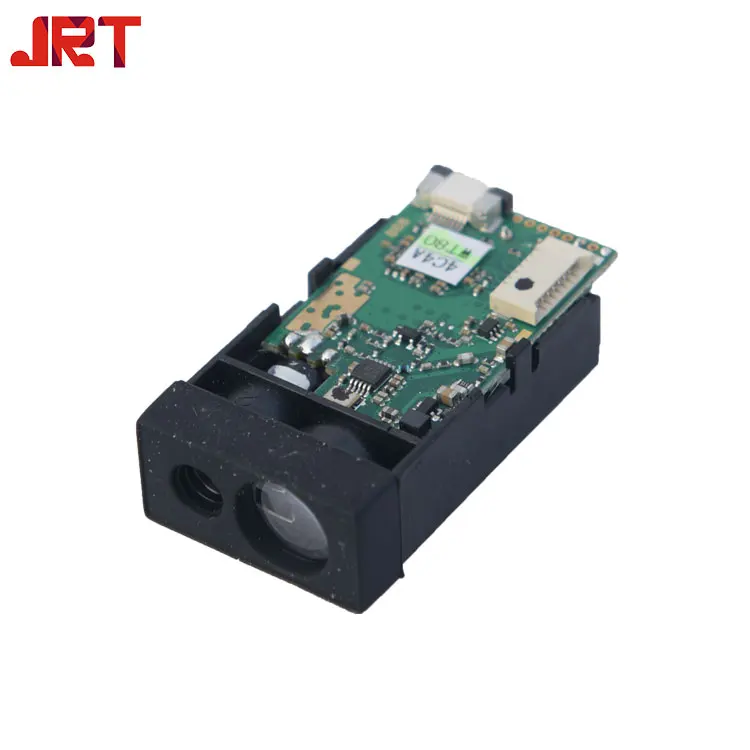

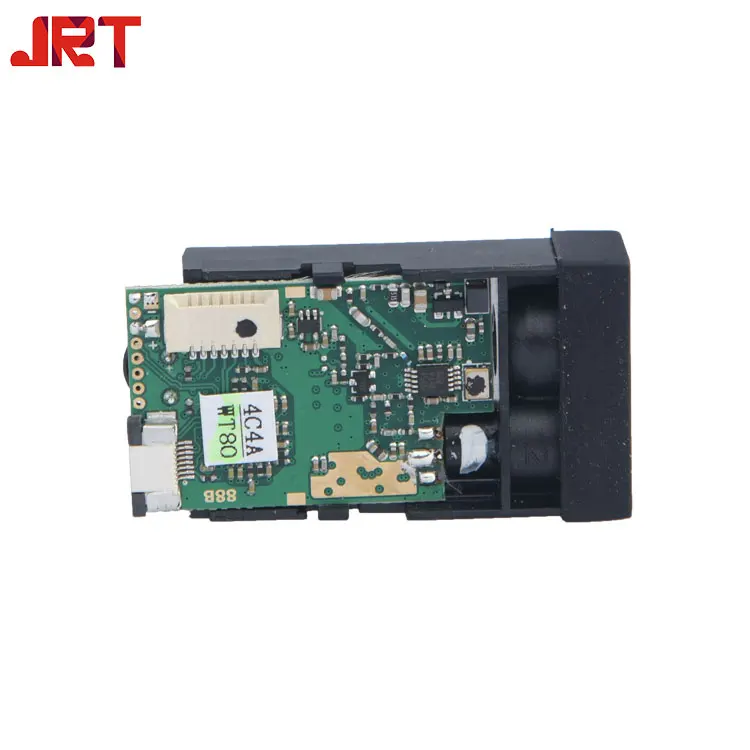

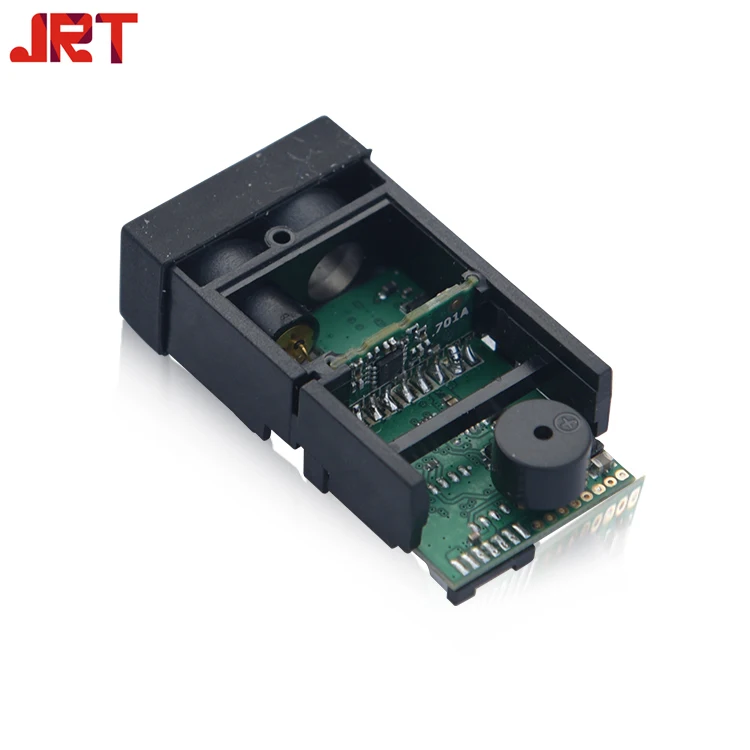

40m RXTX ttl Volume Sensor Infrared Red Laser Module with class 2
1. JRT module responds quickly with high accuracy and long range measuring
2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional
4. Voltage can be changed by power converter LDO
5. Operating temperature -10 ℃~50 ℃ can be customized
6. Analog can be customized.
Specifications
Accuracy | 1 mm (0.04 inch) |
Measuring Unit | meter/inch/feet |
Measuring Range | 0.03-40m |
Measuring Time | 0.3~4 seconds |
Laser Class | Class II |
Laser Type | 620~690nm, <1mW |
Size | 45*25*12mm (±1 mm) |
Weight | About 10g |
Voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 3Hz |
Operating Temperature | 0-40 ℃ |
Storage Temperature | -25~60 ℃ |
40m RXTX ttl Volume Sensor Infrared Red Laser Module with class 2, we also call it secondary development laser distance module, which support TTL level and CMOS. The laser module can be widely used in professional surveying, mapping, construction, robots, hunting arrows, industrial monitoring and automated measurement applications in electricity, transportation, etc. Our laser module supports data communication via RS232,RS485, USB,BeagleBoard,Renesas controller,and also can be applied to, Raspberry Pi, UDOO, MCU etc.
Pls Click Here to Get More Details
Application
JRT laser distance meter module is a very convenient tool for various types of applications in industries, construction and house decoration,such as rooms, apartments, buildings, real estates, factories, warehouses, infrastructures, gardens, roads, and many other applications requiring accurate results for distance , area and volume measurement.
