Чистое серебро провода 9999, акустический кабель провод
US $0.85-$1.20
Slocable индивидуальный солнечный инвертор батарея PV Солнечный Кабель
- Категория: Wires, Cables & Cable Assemblies >>>
- Поставщик: Dongguan,Slocable,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.3 $* | 2.17 $* |
| Aug-18-2025 | 2.28 $* | 2.93 $* |
| Jul-18-2025 | 2.43 $* | 2.77 $* |
| Jun-18-2025 | 2.94 $* | 2.92 $* |
| May-18-2025 | 2.81 $* | 2.55 $* |
| Apr-18-2025 | 2.97 $* | 2.19 $* |
| Mar-18-2025 | 2.11 $* | 2.38 $* |
| Feb-18-2025 | 2.61 $* | 2.60 $* |
| Jan-18-2025 | 2.7 $* | 2.35 $* |
Характеристики
Slocable Customized solar Inverter Battery PV Solar Wire Cable 16mm2
Product Description
Product Description:
|
Technical Data:
Technical Data:
TYPE | Cross Section | Strand Design | Outer Diameter | Conductor Resistance | Rated Voltage | Rated Current |
mm2 | No.OD (mm) | mm | Ω/Km | V DC | A | |
1X2.5mm2 | 2.5 | 48XΦ0.25 | 5.3 | 8.21 | 1500 | 30 |
1X4.0mm2 | 4.0 | 56XΦ0.30 | 5.8 | 5.09 | 1500 | 50 |
1X6.0mm2 | 6.0 | 81XΦ0.30 | 6.8 | 3.39 | 1500 | 70 |
1X10mm2 | 10 | 74XΦ0.40 | 7.5 | 1.95 | 1500 | 95 |
2X2.5mm2 | 2.5 | 48XΦ0.25 | 5.3*10.8 | 8.21 | 1500 | 30 |
2X4.0mm2 | 4.0 | 56XΦ0.30 | 5.8*11.8 | 5.09 | 1500 | 50 |
2X6.0mm2 | 6.0 | 81XΦ0.30 | 6.8*13.8 | 3.39 | 1500 | 70 |
Conductor: 99.7% copper, tinned | UV resistance |
| Insulation material: XLPE(XLPO) | High voltage and High current |
| Double walls insulation | Temperature range: -40°C ~ +90°C |
| Halogen-free material | Color: Black/Red/Blue |
| Flame test according to: EN60332-1-2 | Smallest permissible bending radius: 5 x D |

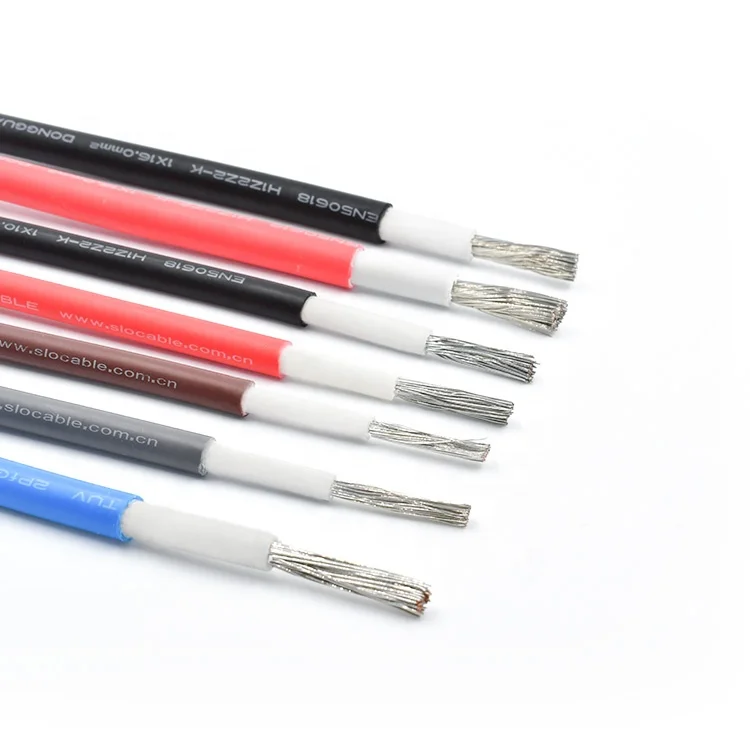

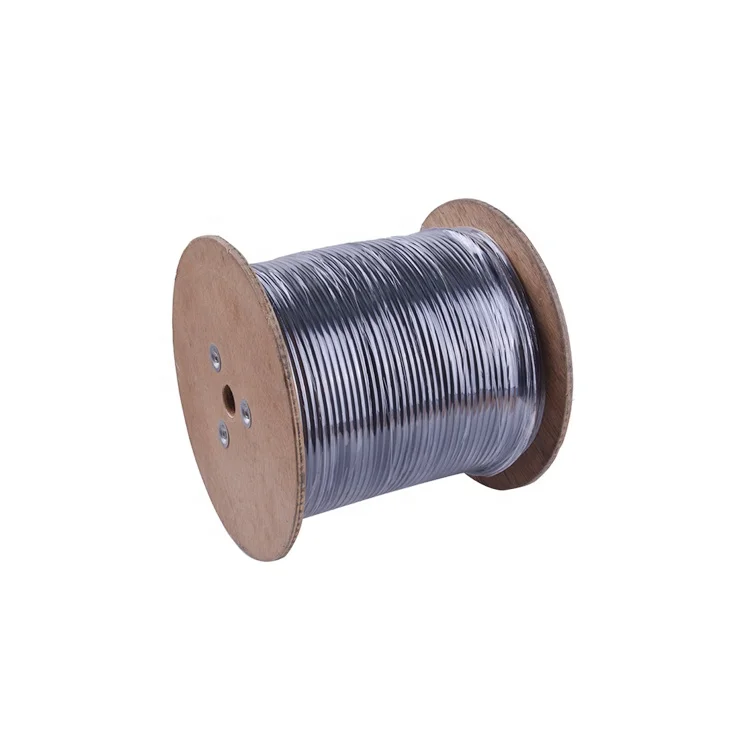

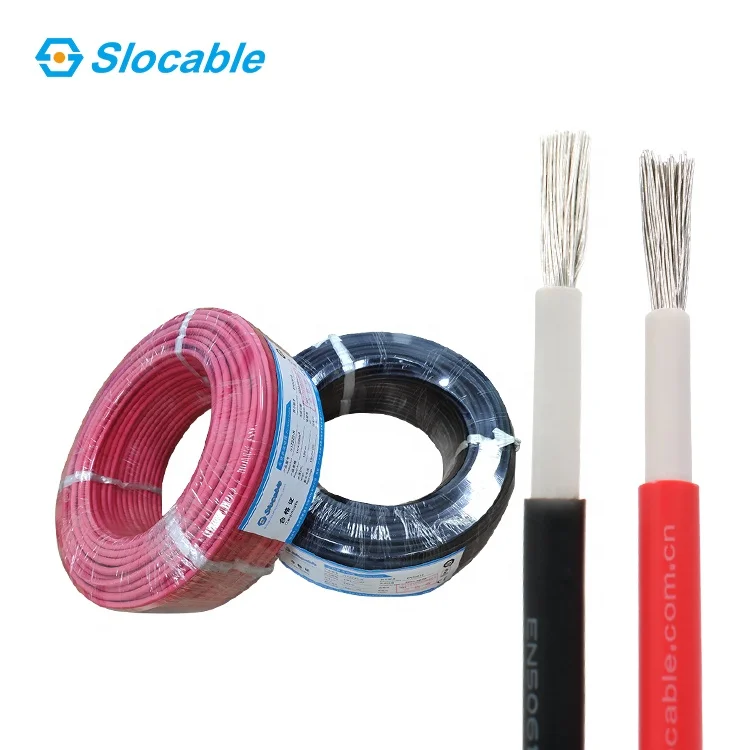

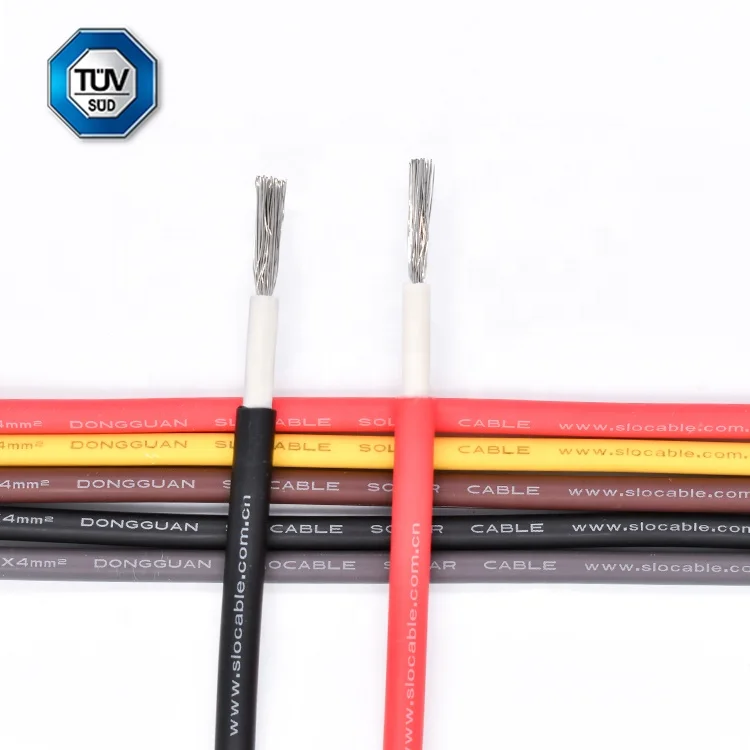

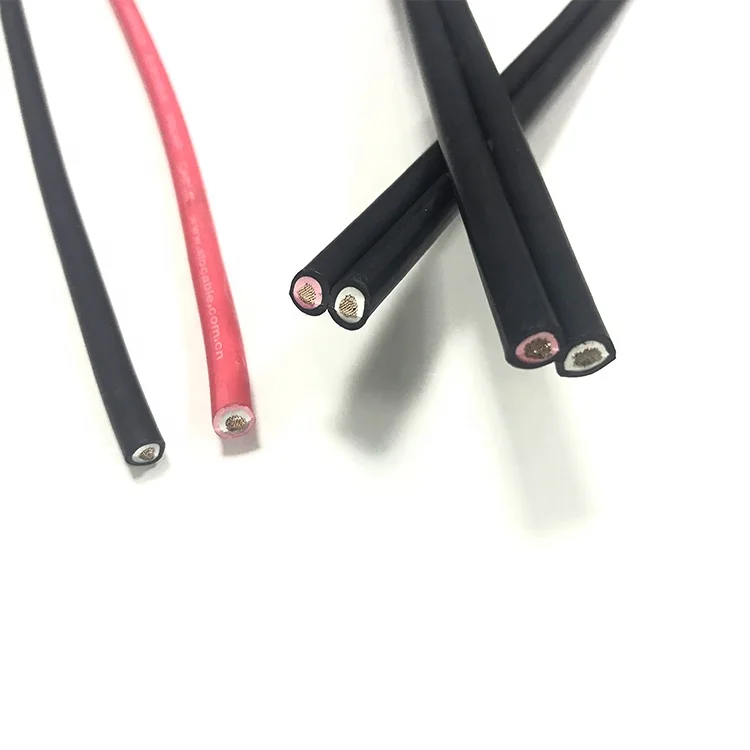

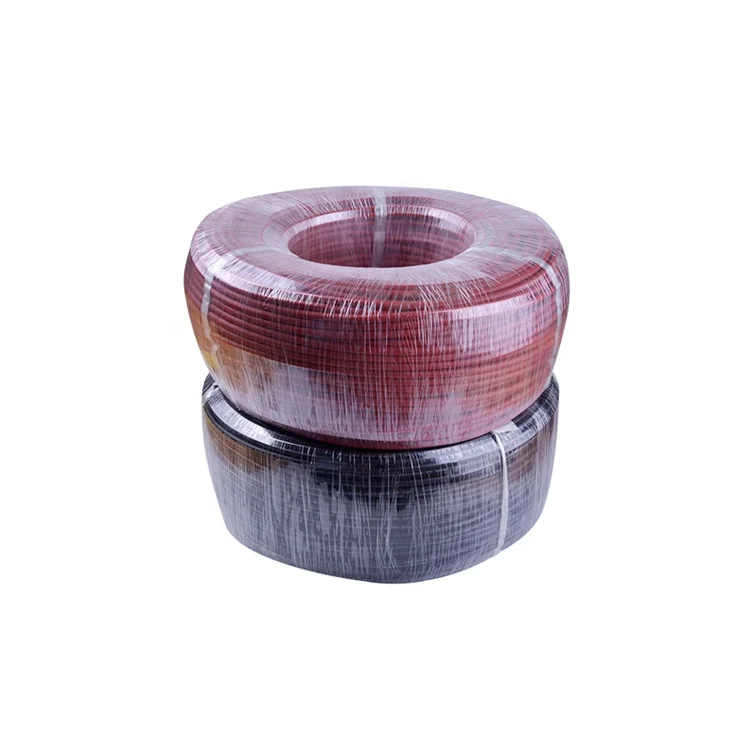

Pictures of 16sqmm Cable
More Products:
More Products:
Company Information
Company Information:
Package:
Package:
FAQ
FAQ:
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 13years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
Click here to get more details from us↓↓↓
