Высокоточный датчик линейного перемещения KTR 5-100 мм с самовозвратной
- Категория: Sensors >>>
- Поставщик: Jiangxi,SOP,Precision,Intelligent,Manufacturing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 19.91 $* | 19.23 $* |
| Jul-18-2025 | 15.8 $* | 15.87 $* |
| Jun-18-2025 | 19.64 $* | 19.43 $* |
| May-18-2025 | 19.33 $* | 19.4 $* |
| Apr-18-2025 | 15.46 $* | 15.72 $* |
| Mar-18-2025 | 18.21 $* | 18.58 $* |
| Feb-18-2025 | 18.97 $* | 18.82 $* |
| Jan-18-2025 | 18.6 $* | 18.28 $* |
Характеристики
Product Description
KTR Series Self Recovery Linear Displacement Sensors Introduction:
KTR series self recovery linear displacement sensors, also name as electronic rulers, resistance rulers, potentiometers and displacement sensors, are used to measure the displacement and length.
There are different connect heads available according to different using environment, such as sensor heads, wheel heads and rod heads. KTR linear position sensor is available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output or RS485 output.
Product Features
KTR Series Self Recovery Linear Displacement Sensors Features:
1. Compact size, ideal for the places where the installation space is very narrow
2. Free from external impact and vibration

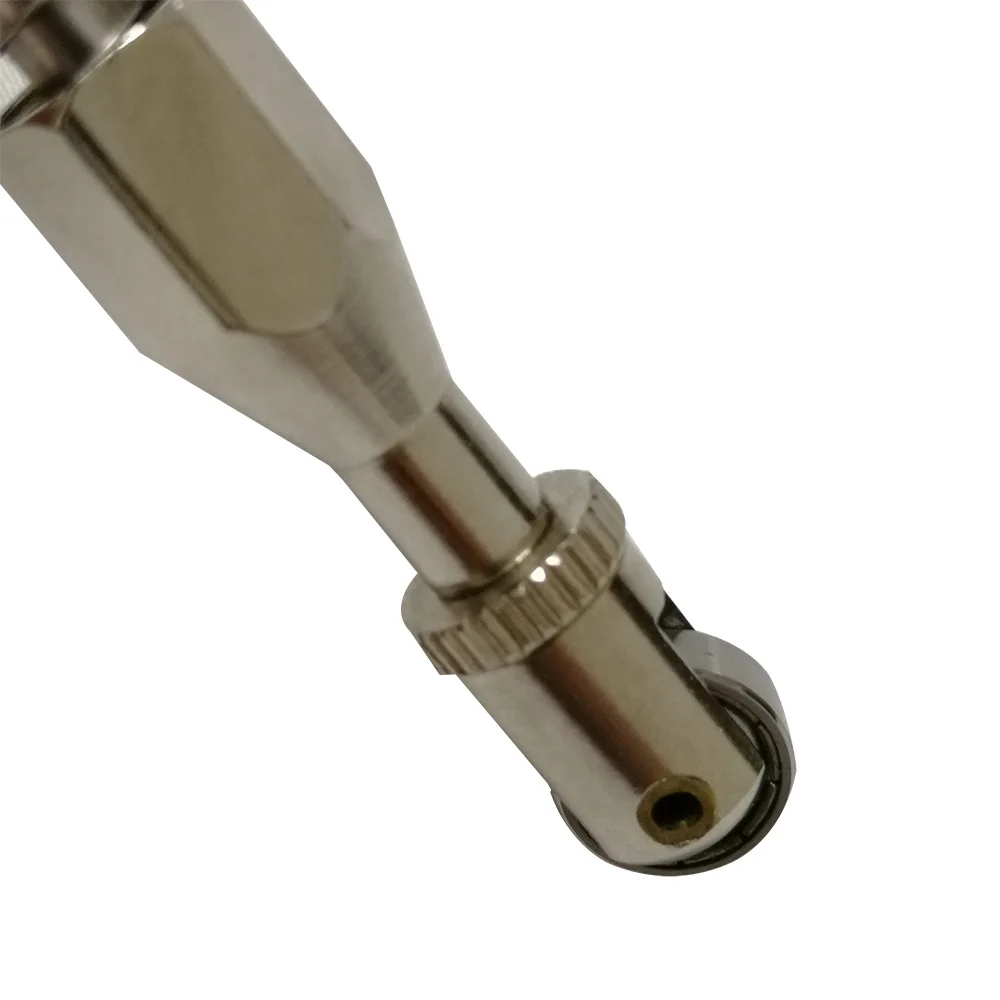

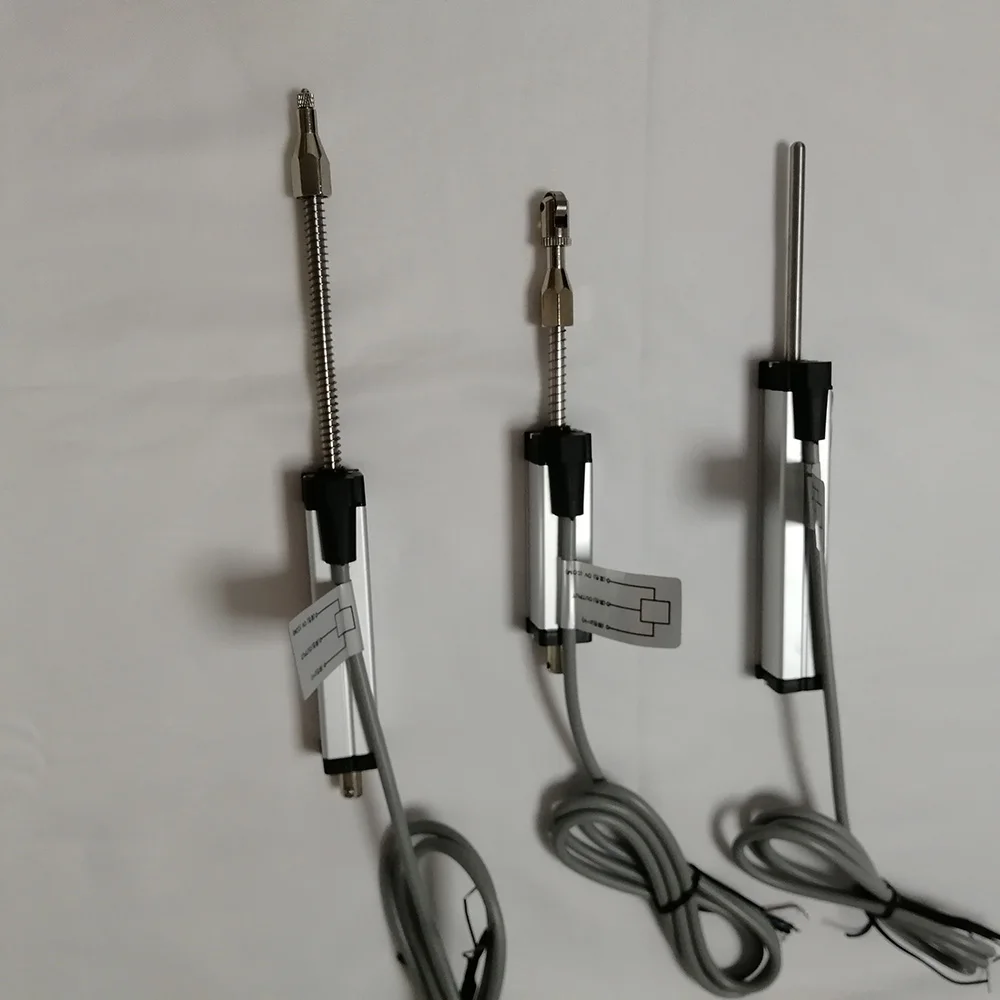

3. Probe head, wheel head and rod head optional
4. Internal spring and external spring type optional
5. Use life is above 50 millions times
6. Green color and black color optional
7. Cable length can be customized
Product Paramenters
Electrical Parameter | ||||||||
Woring stroke | 50 | mm | ||||||
Electric stroke | 50.5 | mm | ||||||
Resistance value | 5K | Ω | ||||||
Resistance Tolerance | 5 | ±% | ||||||
Accuracy | 0.25 | ±% | ||||||
Repeatability | 0.01 | mm | ||||||
Working current | ≤1 | uA | ||||||
Max current | 10 | mA | ||||||
Max voltage | 42 | V | ||||||
Voltage temperate rate | 5 | ppm/K | ||||||
Insulation resistance | ≥10 @ 500V, 1bar, 2s | MΩ | ||||||
Insultation intension | ≤100 @ 500VDC,50Hz, 2s,1bar | uA | ||||||
Mechanical Parameter | ||||||||
Length (A) | 93 | ±2mm | ||||||
Mechanical stroke (MT) | 54.5 | ±2mm | ||||||
Net Wight | 125 | g | ||||||
Horizontal direction | ≤1.1 | N | ||||||
Product Size Drawing

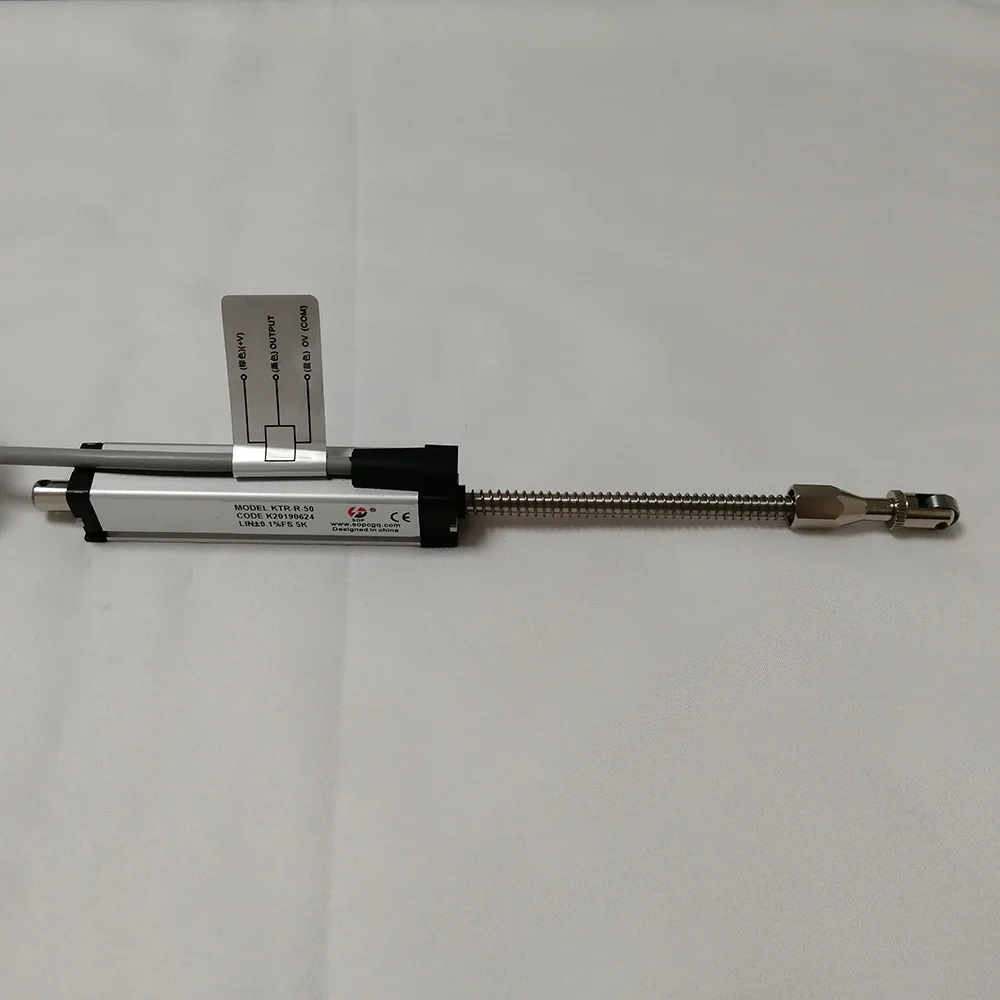

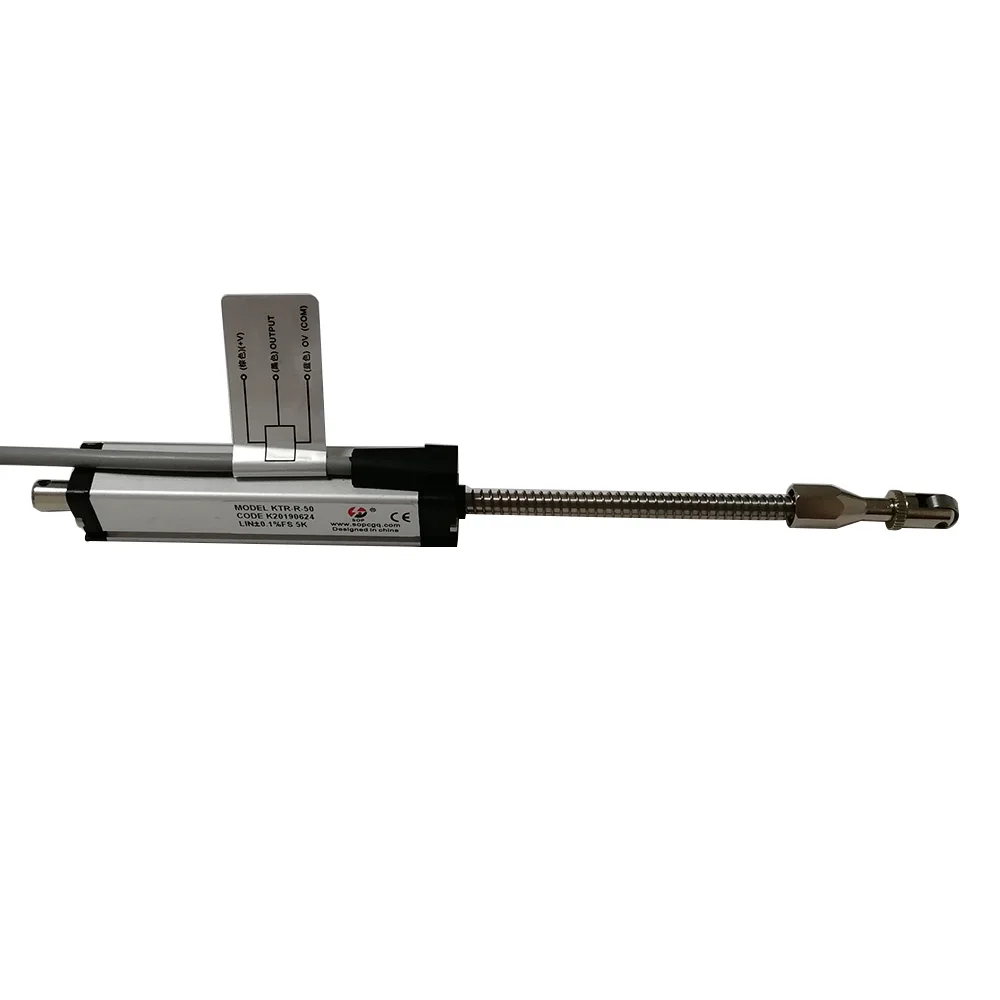

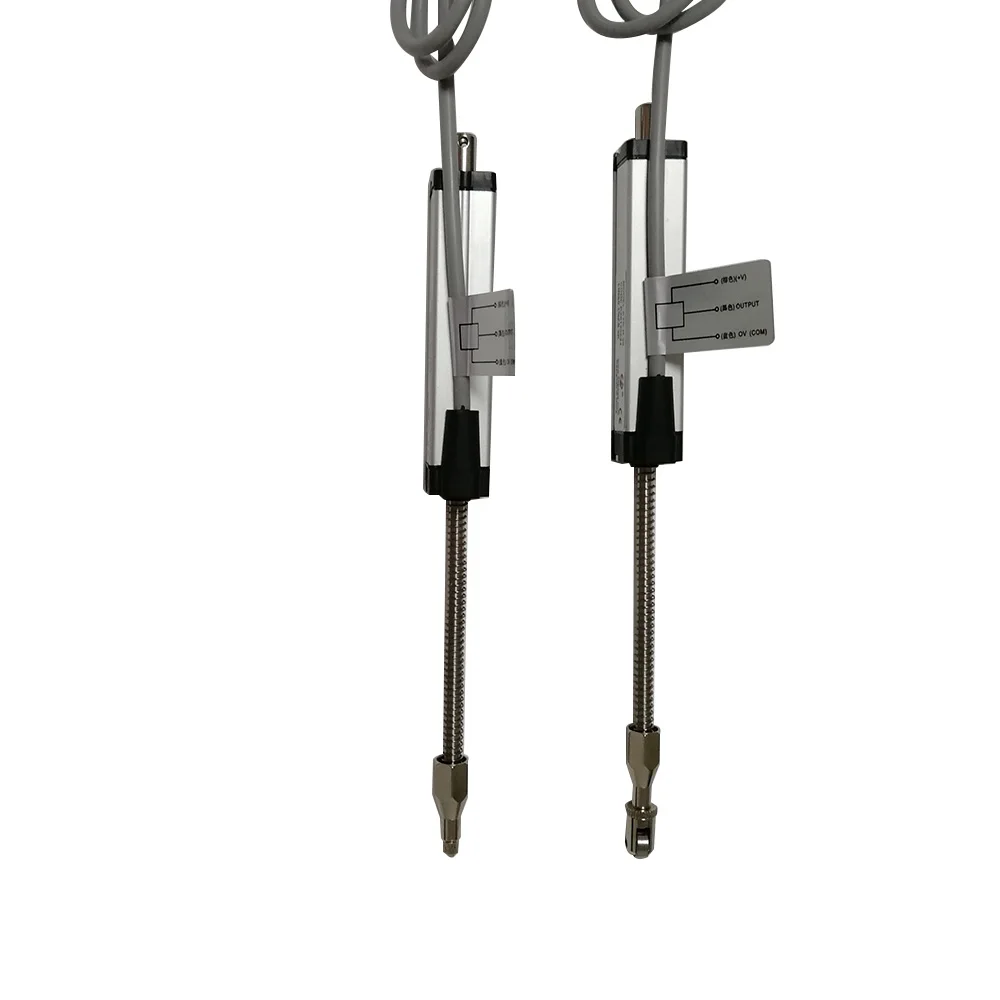

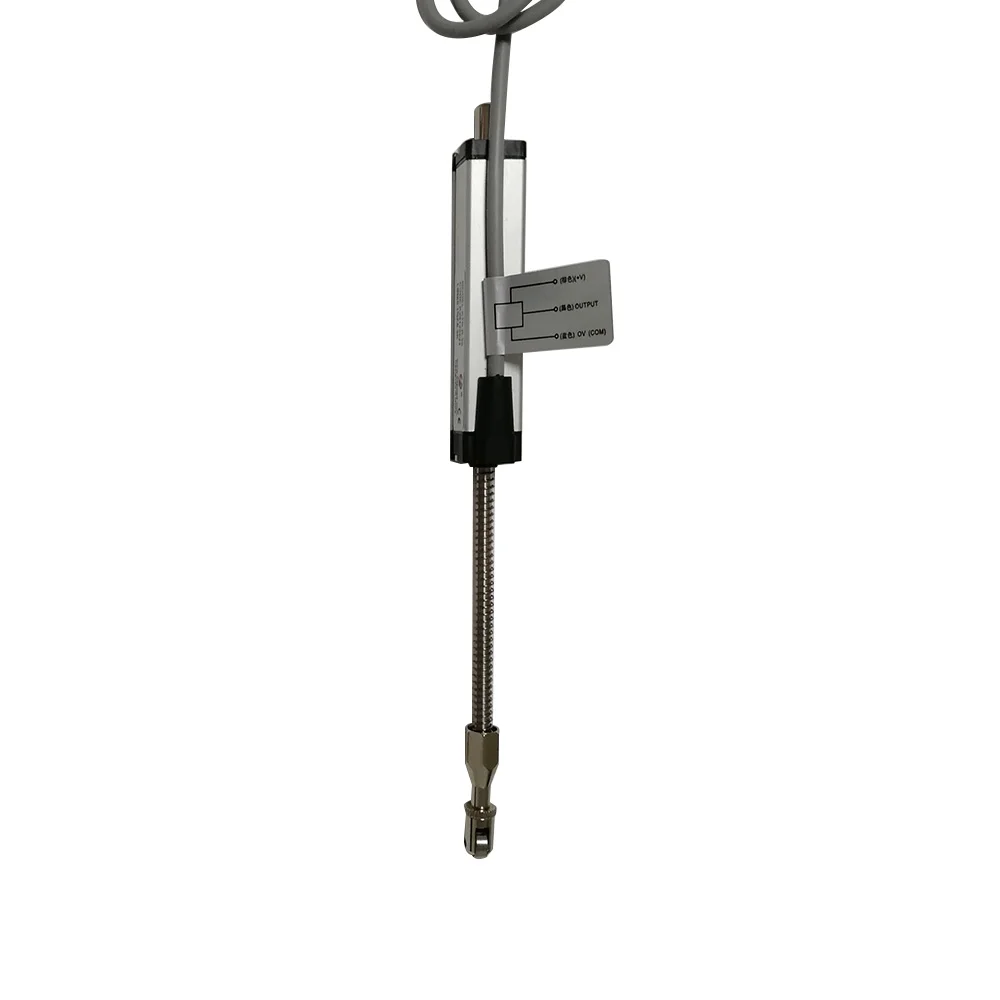

Details Images
Recommend Products
Product packaging
KTR Self Recovery Linear Displacement Sensor Package:
Package: To be packed with high quality brown small carton box
Accessories: Two installation brackets, 4 fixing screws
Shipment Details:
To be shipped with international express or air cargo
Payment Details:
T/T, Credit Card
Bank charges should be borne by the buyer
Company Profile
About Us
Located in Ganzhou city, JIangxi province, Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd. is a professional factory of position sensors.Equipped with advanced production line and test machines, Sop could provide kinds of position sensors with reliable quality and fast delivery.
Our main products are KTC linear position sensors, LWH linear position sensors, WPS draw wire position sensors, KPM linear position sensors, KPZ linear position sensors, KTR linear position sensors and KTF linear position sensors. Besides, we have built a mutual benefit and win-win business relationship with domestic excellent factory of other sensors, such as pressure sensors, load cells, LVDT, magnetostrictive displacement sensors, ultrasonic sensors and proximity sensors.
Please contact us for more details.
Applications
It is widely used for most of common occasions, especially for small installation space, such as tension regulating devices, speed control, material automatically conveying system, package machine, printing machine, bottle blowing machine, production line etc.
Production Process
Raw material ---Test---Trimming-----Test-----Machining----Assembly----Finished products----Test----Warehouse
Raw materials and semi-finished products
Finished products
Hannover Messe 2018
Automation Expo 2019
FAQ
Q1: Can I have a sample?
A1: Yes, we are a factory and samples are welcome.
Q2: Can you offer OEM/ODM?
A2: Yes, OEM/ODM is highly recommended.
Q3: Can you provide trade assurance order on Alibaba?
A3: Yes, we are certified supplier by Alibaba and SGS.
