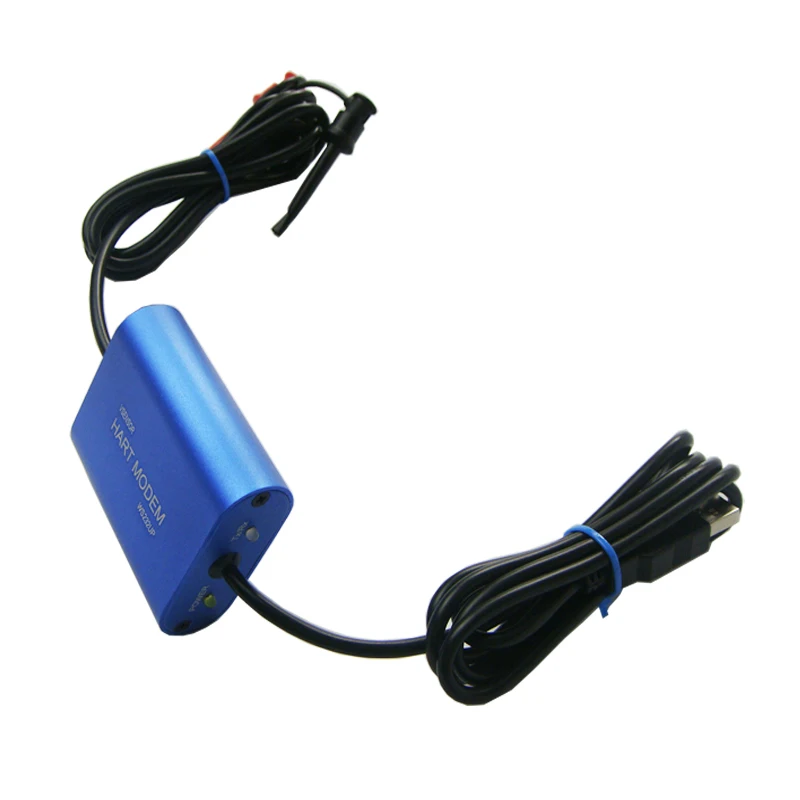

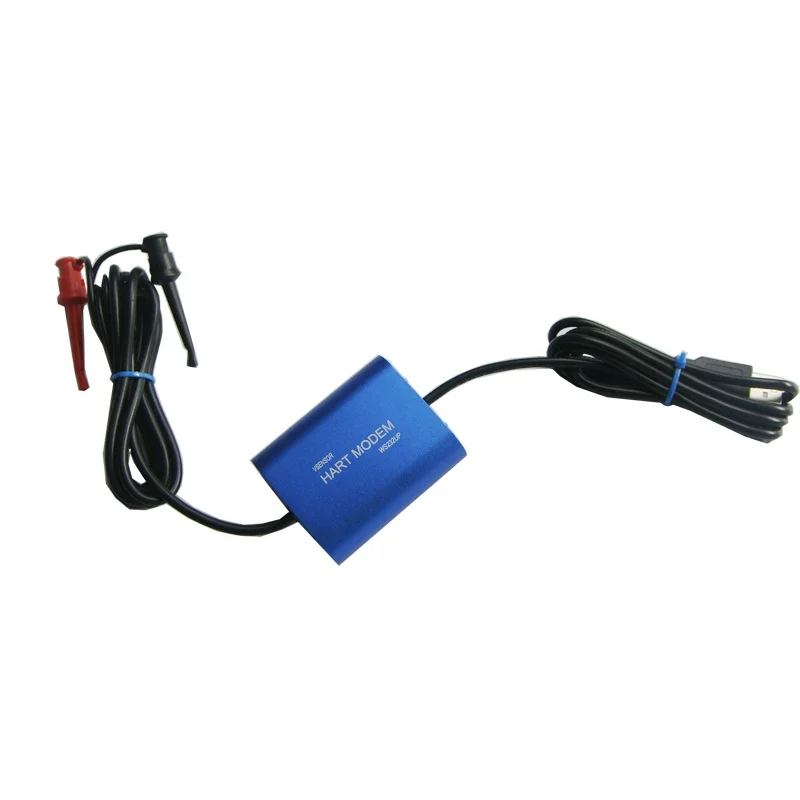

I. Nmae:  WS232UP USB-HART Modem

 The WS232UP USB-HART Modem provides a complete and flexible PC communication link to HART networks and power kit and loop resistor, for commissioning, servicing, calibrating, or acquiring data from any HART instrument or transmitter. The WS232UP is developed based on BELL202 modem standard, this external interface is rugged and compact and ideal choice for field service, commissioning, engineering, training, table top shows, lunch and learns and demo cases.



II. Hart  modem specification



Power Supply	System powered by USB port. Does not require external power
Supply Current	30mA@+5V for modem only; 260mA@+5V with device power and modem
Interface	USB-A connector, compliant for USB2.0/1.1
HART connection	2-wire and polarity insensitive test clips
Output level	0.5plusmn0.1Vpp sinusoid wave @1200/2200Hz, 24VDC@70mA to device
Demodulation Jitter	12% of 1 bit typical
Leakage process loop	plusmn10uA Max.
Isolation	6.5KVDC, 4.6kVrms between instrument and device
Operating system	Win98, Win2000, WinXP, 32-bit or 64-bit Win7, Win8 and Win10
Operating Temp.	-25~55 degree Celsius (-32~131 degree Fahrenheit)
Storage Temp.	-40~85 degree Celsius (-40~185 degree Fahrenheit)
Storage Humidity	0% to 95% relative humidity (No condensing)
Option Mode	Slide-switch for selection: 1. 24V/270Omega; 2. Normal; 3. 270Omega

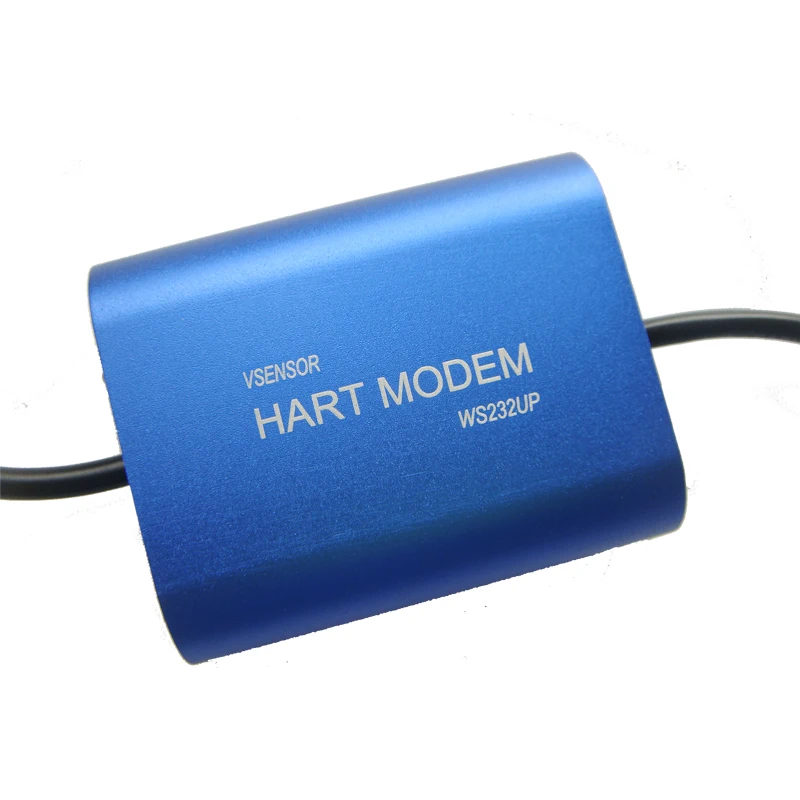

Enclosure	Aluminium alloy, Sky blue color, 63mmtimes52mmtimes22mm, 120g weight(include cable)
USB cable	1m(4 feet) length terminating USB type A connector
Test cable	1.5m(5 feet) length 2-strand wire terminating in two test clips(red and black)







Applications:

1. Install the USB driver software. You can update or download this driver anytime from internet;

2. Plug the USB cable to your PC, the yellow 'POWER' LED will illuminate;

3. Slide-switch to select operating mode, and connect the test cable and HART device according to the following pictures:



* 24VDC/270Omega Mode:

The red ldquo24VDCrdquo LED will illuminate. This mode can power all 2-wire HART device, internal loop resistor is available. Does not need external power and loop resistor.









* Normal Mode:

The red '24VDC' LED will not illuminate. This mode is very typical for HART MODEM, need external power and loop resistor 250Omega~1000Omega.



* 270Omega Mode:

1. The red '24VDC' LED will not illuminate. This mode need external power, does not need loop resistor;

2. Run the HART application software to configure your HART device. The red and blue bi-color ldquoTx/Rxrdquo LED will blink alternately when the communication is good between PC and HART device( Tx-RED, Rx-Blue).

3. If you finish your operating, Please close your HART software, then pull out the USB cable and disconnect the test cable.

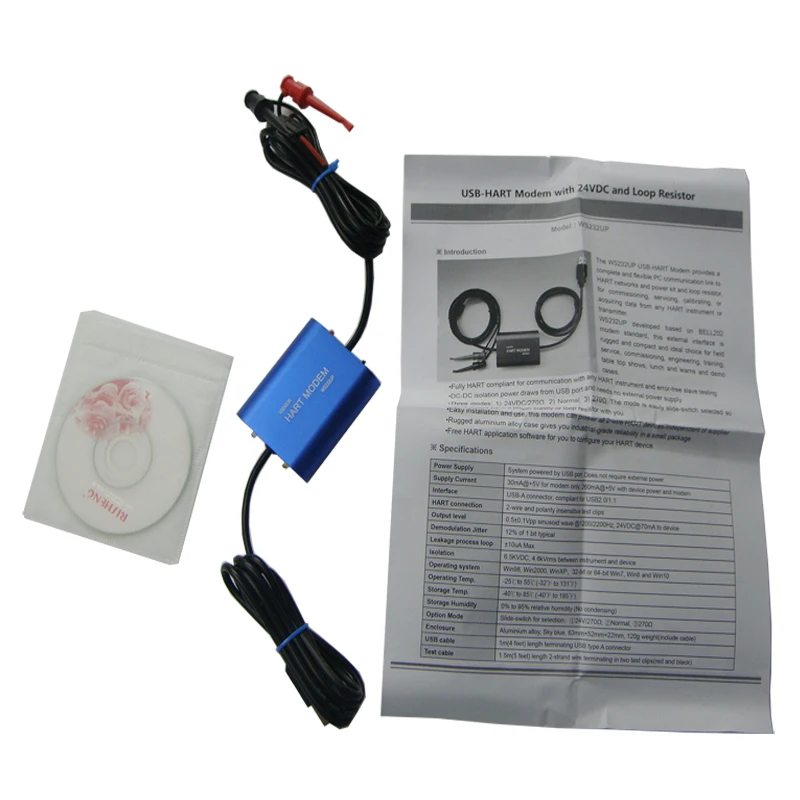

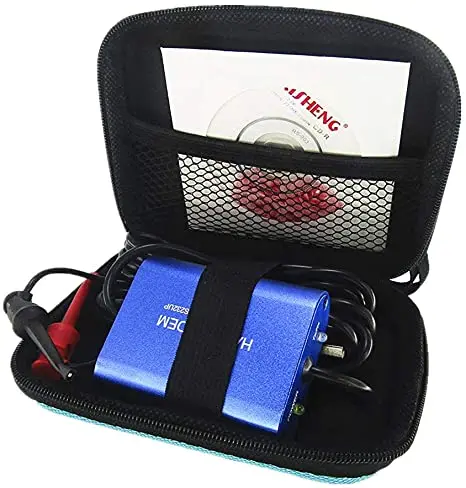

Packing Lists:

1 x WS232UP Unit;

1 x USB Date Cable;
