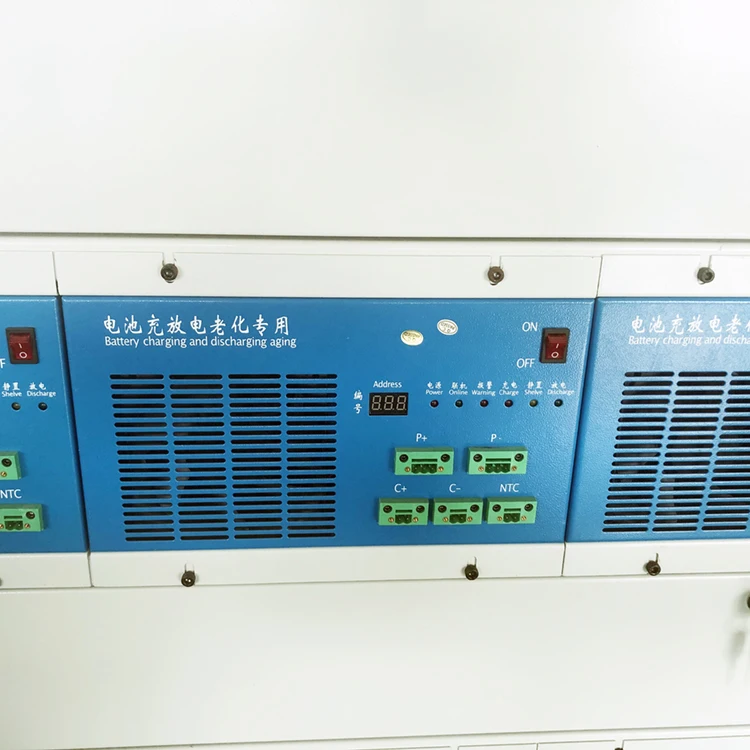

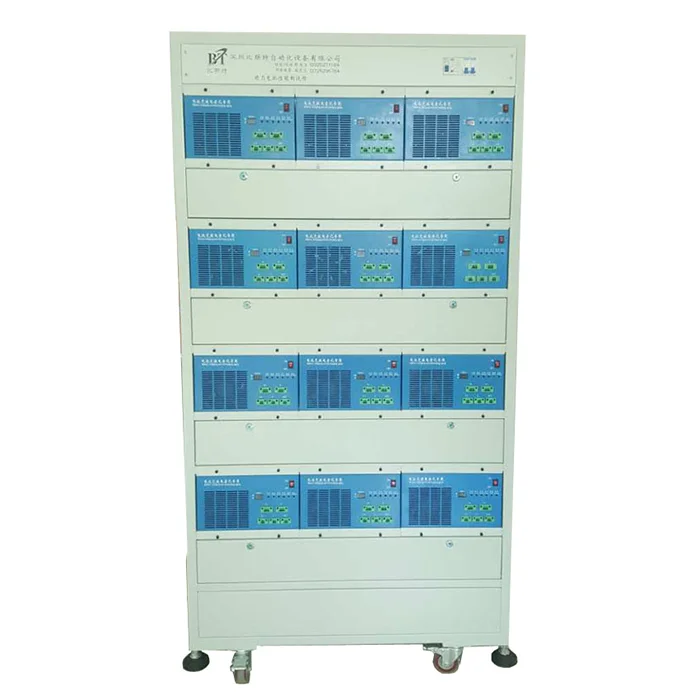

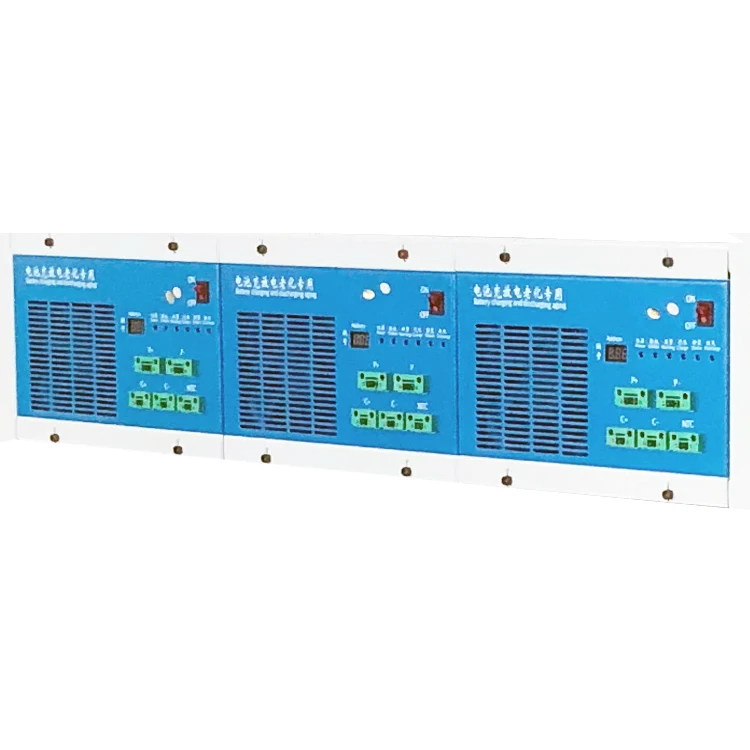

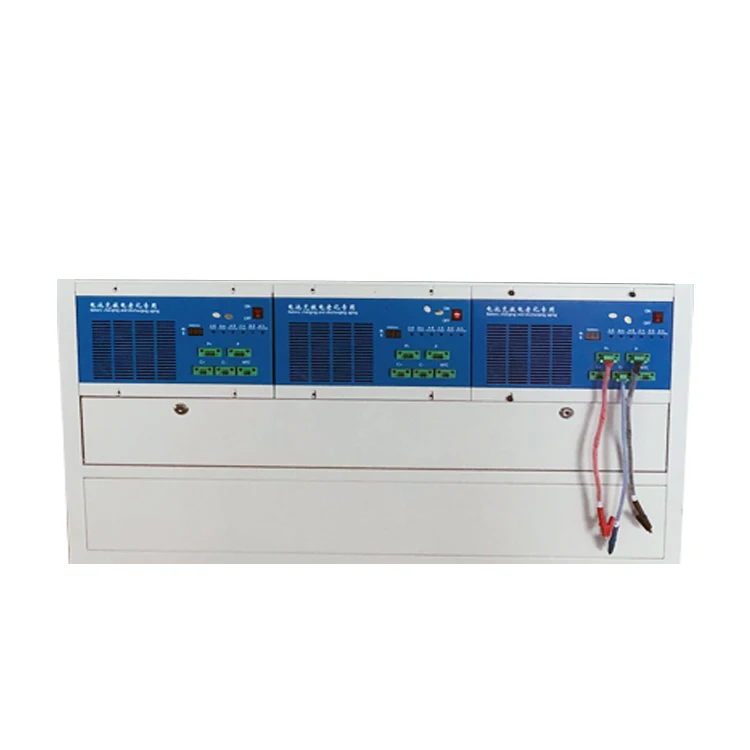

BT-30V10C20F батарейный блок машина старения аккумуляторной батареи заряда-разряда


Поделиться:


Цена:4 800,00 $ - 6 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 5712.85 $* 5998.70 $*
Aug-20-2025 5664.53 $* 5947.80 $*
Jul-20-2025 4752.49 $* 4990.93 $*
Jun-20-2025 5568.6 $* 5846.33 $*
May-20-2025 4848.39 $* 5090.81 $*
Apr-20-2025 5472.91 $* 5746.9 $*
Mar-20-2025 5424.16 $* 5695.92 $*
Feb-20-2025 5376.52 $* 5645.10 $*
Jan-20-2025 5328.17 $* 5594.89 $*

Характеристики


Product Description

 Features
1 In the network mode, it is automatically connected without manual connection.
2 Use MYSQL database to save data, ensure that the data will not be lost, and provide measurement data back-checking function.
3 A small number of instruments can communicate with PC software through the serial port.
4 Multiple instruments can communicate with PC software through the network, reducing the computer-side interface. Only one network port is needed to control all instruments, ensuring real-time and complete communication data.
5 The serial number of the instrument is displayed through the LED light, and the position of the corresponding serial number can be inquired intuitively. The serial number can be modified by software, which reflects the flexibility of the instrument.

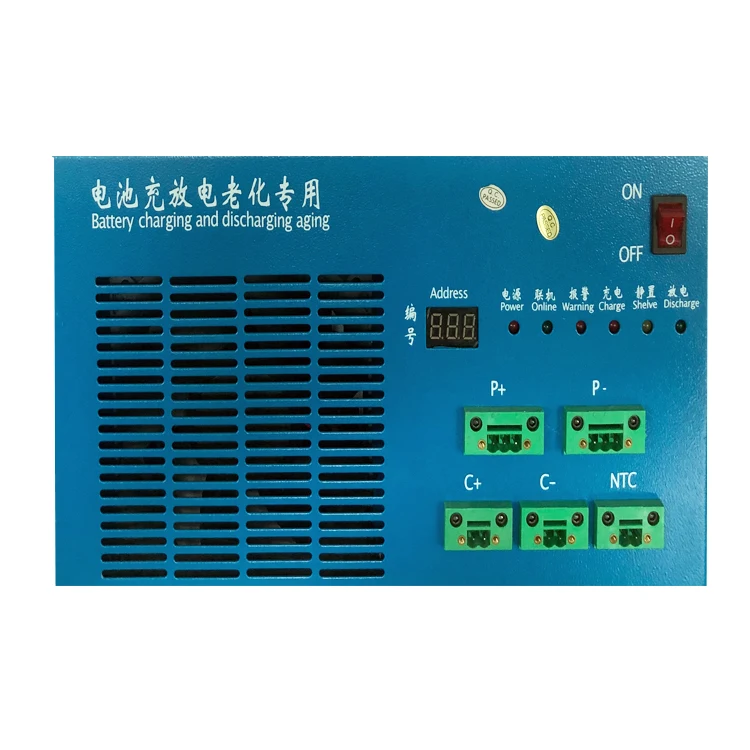

6 In addition to the P + and P- interfaces, the instrument also provides CH + and CH-, which can measure special finished batteries, and charge and discharge on one instrument.
7 As long as the battery is within the test range, the battery can be charged, avoiding the problem that the charger can only charge a specific type of battery.

Input powerAC 380V ±10% / 50Hz
VoltageMeasuring range10~100V
 Accuracy±(0.2% of reading + 0.2% of range)
Electric currentCharging range0~10A
 Charging accuracy±(0.2% of reading + 0.2% of range)
 Discharge range0~20A

Communication InterfaceAccuracy±(0.2% of reading + 0.2% of range)
ChargeConstant voltage cut-off current10mA minimum
capacityAccuracy± 1 ‰
powerDischarge power2000W
timeInspection timeReceive real time <2S
 Timing rangeTiming range 0 ~ 999 hours / work step
Data logging interval5S
Median version1.1 series
ChargeCharging modeConstant current constant voltage charging
 Cut-off conditionVoltage, current, relative time, overcharge protection
DischargeDischarge modeConstant current discharge
 Cut-off conditionVoltage, relative time, over discharge protection
cycleCyclic measurement range1 ~ 999 times
 Single cycle working steps100
Voltage and current detection samplingFour-wire connection
noise<50dB
databaseUse My SQL database to manage test data
Host computer communicationBased on TCP / IP protocol, serial port
Data output methodEXCEL, TXT, chart
Communication Interface Network port
Channels per cabinet12
Chassis sizeW*D*H:450MM*300MM*170MM
Cabinet sizeW*D*H:900MM*600MM*190MM
