Автоматическая плоская вязальная машина для изготовления

Автоматическая плоская вязальная машина для изготовления

Категория: Apparel & Textile Machinery >>>
Поставщик: Hefei,HD,Machinery,Co.,Ltd

Цена:5 000,00 $ - 6 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	5950.63 $*	6248.14 $*
Aug-15-2025	5900.17 $*	6195.88 $*
Jul-15-2025	4950.26 $*	5198.1 $*
Jun-15-2025	5800.80 $*	6090.61 $*
May-15-2025	5050.12 $*	5303.98 $*
Apr-15-2025	5700.42 $*	5985.66 $*
Mar-15-2025	5650.80 $*	5933.34 $*
Feb-15-2025	5600.10 $*	5880.61 $*
Jan-15-2025	5550.96 $*	5828.88 $*

Характеристики

Product Description

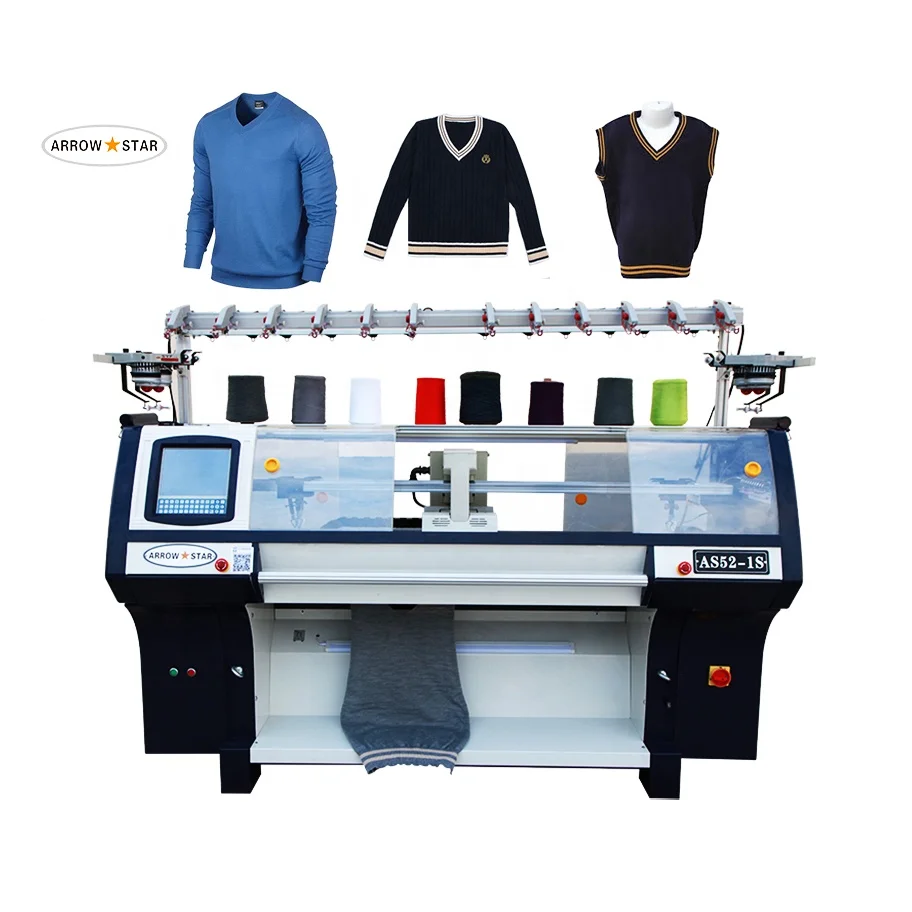

AS52-1S single system sweater flat knitting machine

Single system with singe carriage series are used digital technology to achieve the patterns of transfer ,tuck ,pointel ,jacquard ,apparant shape ,hidden shape ,and other regular patter knitting functions.It is suitable for woven sweaters ,scarves ,hats and clothing accessories for silk ,synthetic yarn,wool,acrylic fibers ,blending yarn and other raw material .This model can adopt Raynen or Hengqiang software ,equipped with small carriage and fast rotation technology .Which greatly shortens the weaving time ,the efficiency of single side machine is 15% higher than previous type .

Products specification

Model	Knitting width	Machine Size （CM)	Weight (KG)
AS36S-1	36 inch	2050X750X1750	around 490
AS52S-1	52 inch	2450X750X1750	around 590
AS60S-1	60 inch	2650X750X1750	around 650
AS66S-1	66 inch	2800X750X1750	around 700
AS72S-1	72 inch	2950X750X1750	around 750
AS80S-1	80 inch	3150X750X1750	around 800

Details Images

Yarn storage

Yarn feeder

Small size carriage

Product Paramenters

SPECIFICATION, GAUGE AND TECHNICAL PARAMETER
Gauge	5G,7G,8G,9G,10G,12G,14G,16G
Knitting width	36,52,56,60,66,68,72,80,100,120 inch
Knitting system	Single carriage with single system
Knitting function	Knit, miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns
Knitting speed	Controlled by sevro-motor with 32 sections optional, max speed reach 1.2M/S
Racking	Controlled by sevro-motor racking within 2 inches and with fine adjusting function
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Stitch density	Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Transfer	Triangular composite design can realize the efficient stitch reversing.
Take-down system	Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100
Color-changing sytem	2×3 yarn feeders at the single side of 3 guide rails, shiftable on any needle position.
Protection system	Automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
		2. USB memory interface,System memory 1G.
		3. Free design system is visual and easy to understand and software upgrade free of charge. Support multi-language operation as Chinese and English, Spanish, Russian etc.
Power	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.

Knitting Samples

Our samples room

Company Profile

Arrow Star Flat knitting machine company and workshop

Our Arrow Star compay have more than 10 years experience in producing and develop flat knitting machine .Product range including manual flat knitting machine , semi-auto flat knitting machine , Single carriage single system , double system , three system computerized fat knitting machine , double carriage , three carriage computerized flat knitting machine .Knitting width can be 36inch , 48inch ,52inch ,56inch ,60inch ,66inch ,72inch ,80inch ,100inch and 120inch and customzied size according with clients request .Flat machine gague from 1.5G ,3G,5G,7G,8G,9G,10G,12G,14G,16G until 18G ,also can be multi-gauge 3-5-7G ,8-10-12G，10-12-14G and etc .Welcome to sent us inquire for getting more exact introduction !

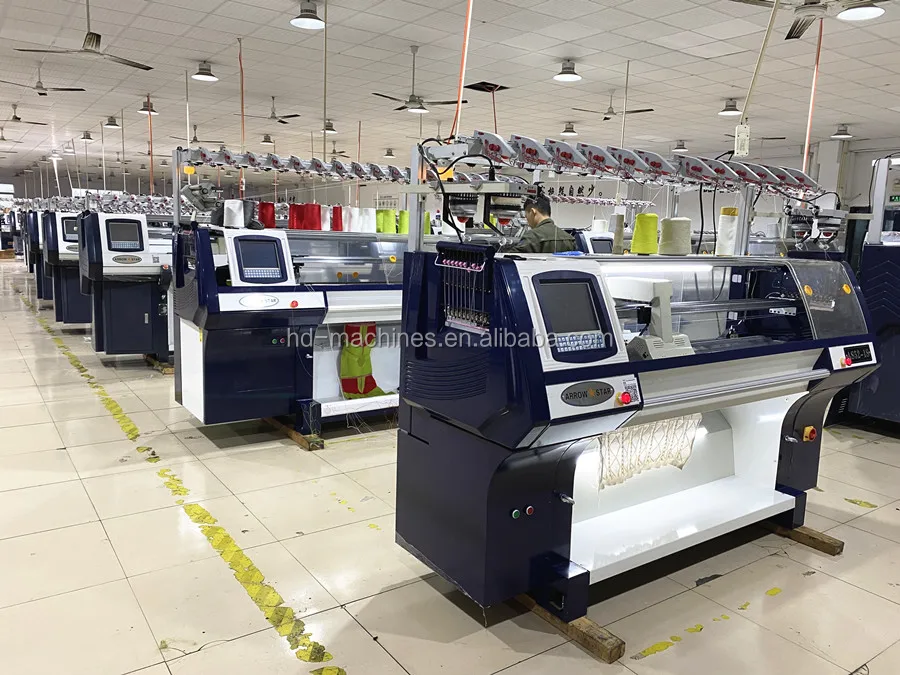

Our workshop

Adpot morden testing device and producing line to make sure each of our machine with stable quality and excellent performance !

Product packaging

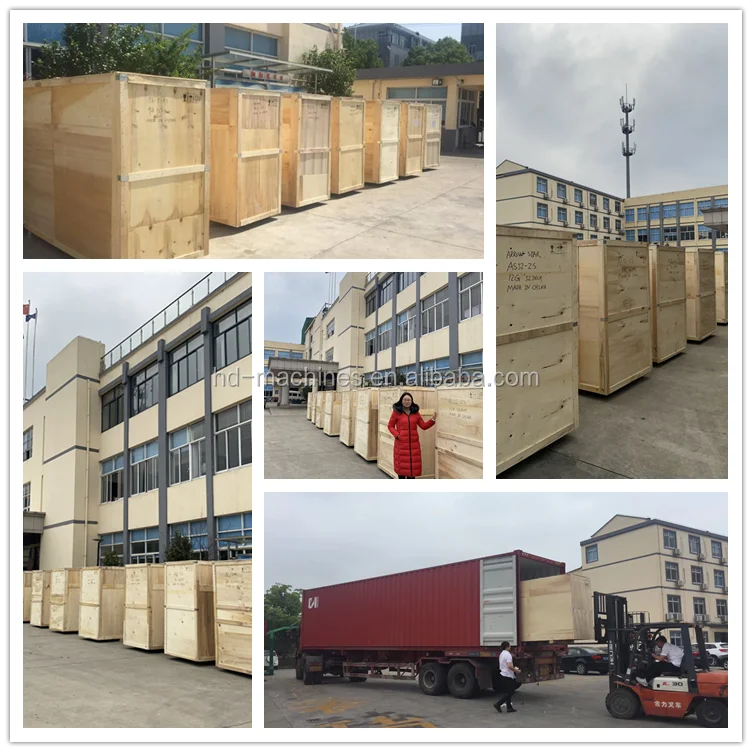

Flat sweater knitting machine package and delivery

Sweater machine packed into suit for export delivery wooden case

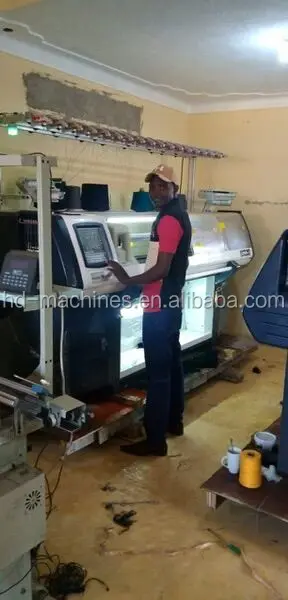

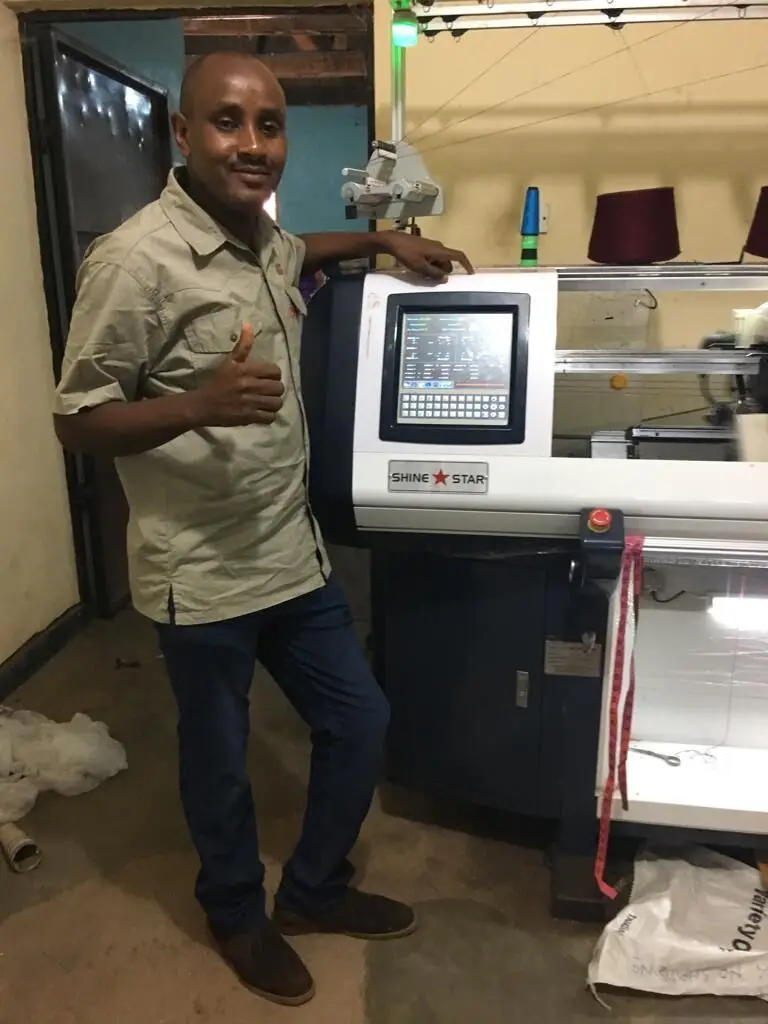

Customer Photos

Africa market popular flat knitting machine for sweater , cardigan , jersey producing.

Our single system flat knitting machine with competitive price and stable performance ,which is very popular in Africa market , at present , we almostly sold to all Africa countries and can supply local after sale service .
