2 0 мм толщина пищевого класса ПВХ конвейерная лента глянцевая гладкая suface

2 0 мм толщина пищевого класса ПВХ конвейерная лента глянцевая гладкая suface

Категория: Conveyors >>>
Поставщик: Shenzhen,Jiaheng,Industrial,Belting,Co.,Ltd.

Цена:6,00 $ - 10,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	7.97 $*	7.71 $*
Aug-15-2025	7.6 $*	7.20 $*
Jul-15-2025	6.44 $*	6.99 $*
Jun-15-2025	7.78 $*	7.34 $*
May-15-2025	6.46 $*	6.21 $*
Apr-15-2025	7.3 $*	7.82 $*
Mar-15-2025	7.67 $*	7.20 $*
Feb-15-2025	7.17 $*	7.52 $*
Jan-15-2025	7.91 $*	7.12 $*

Характеристики

Product Description

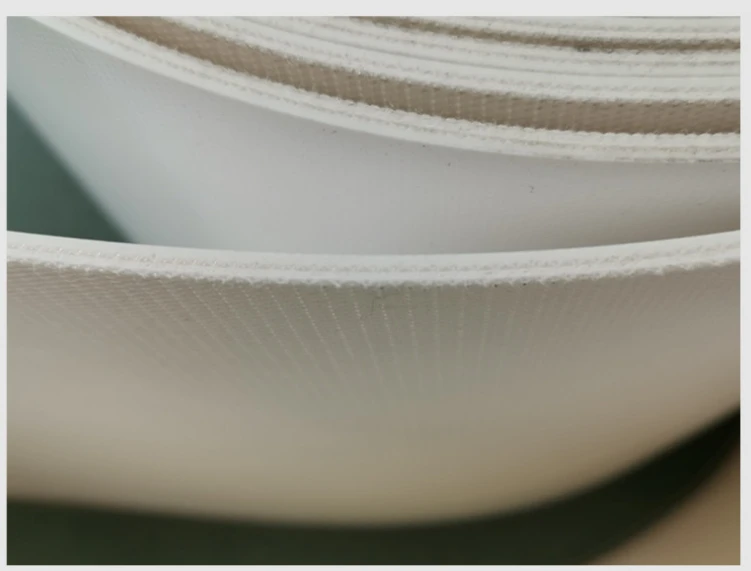

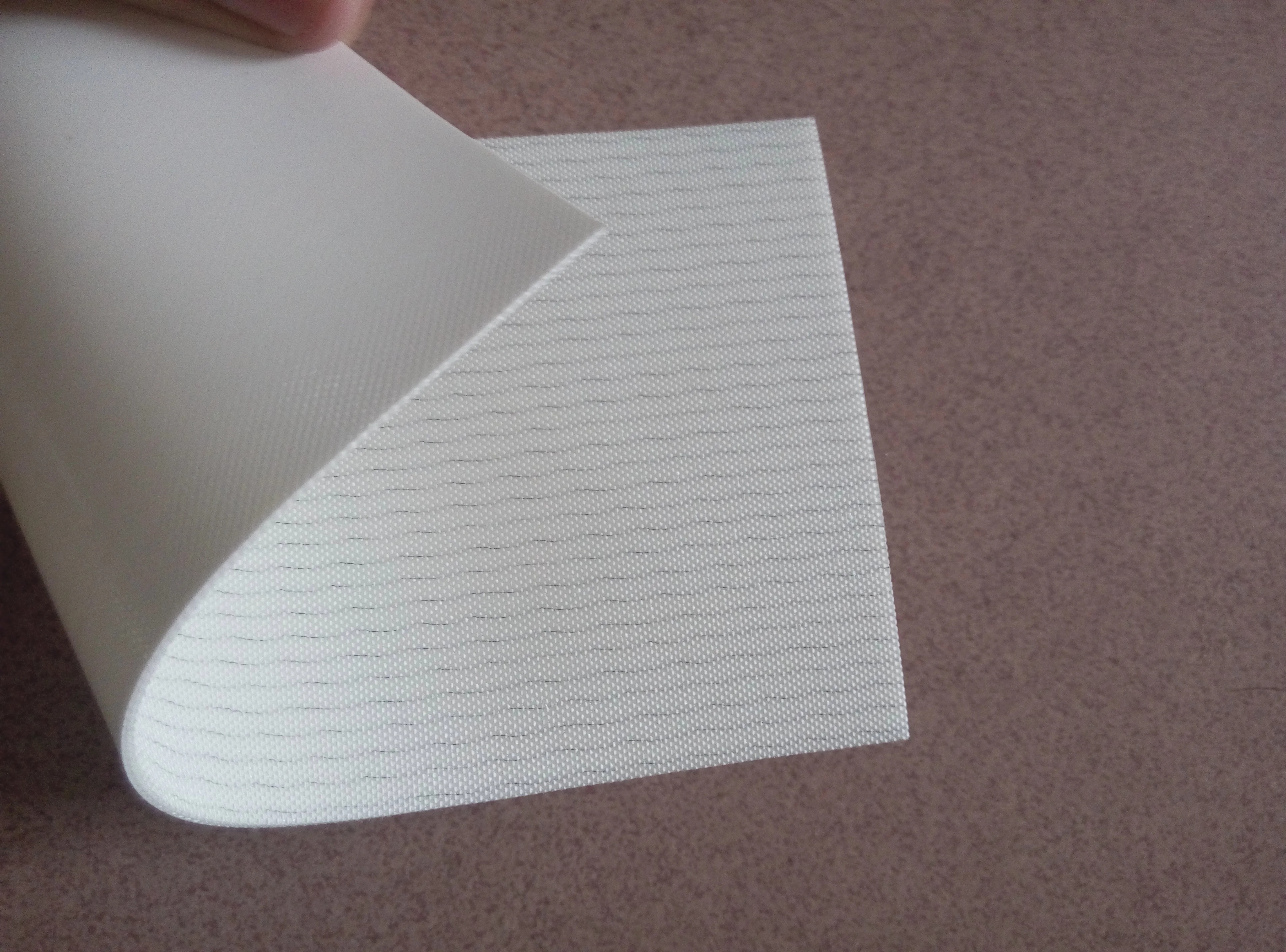

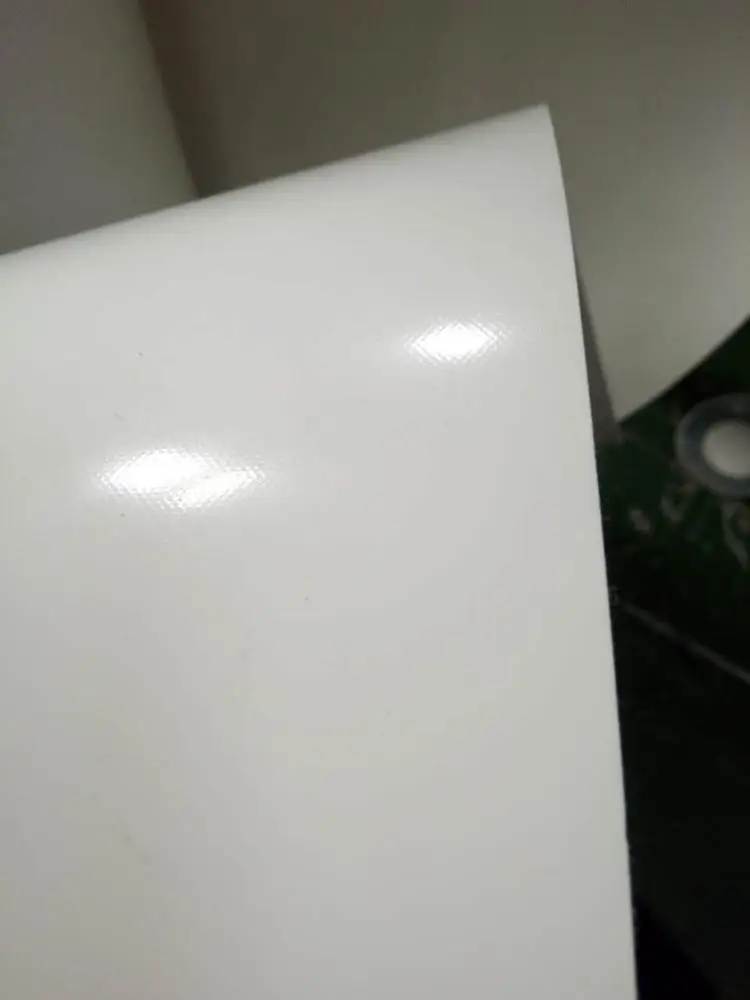

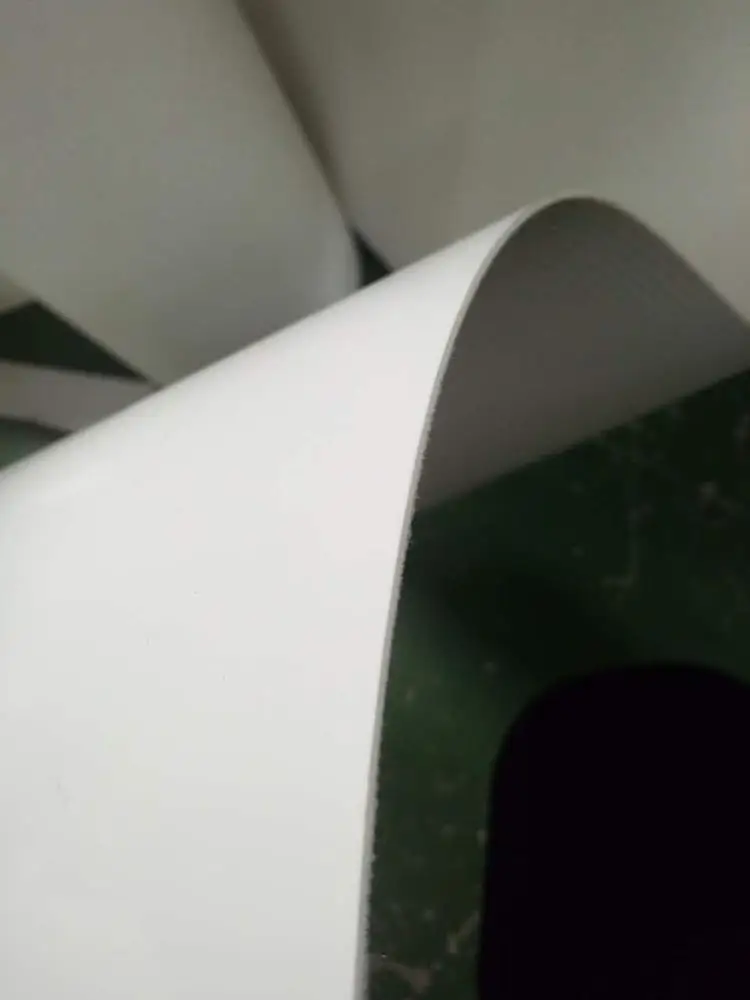

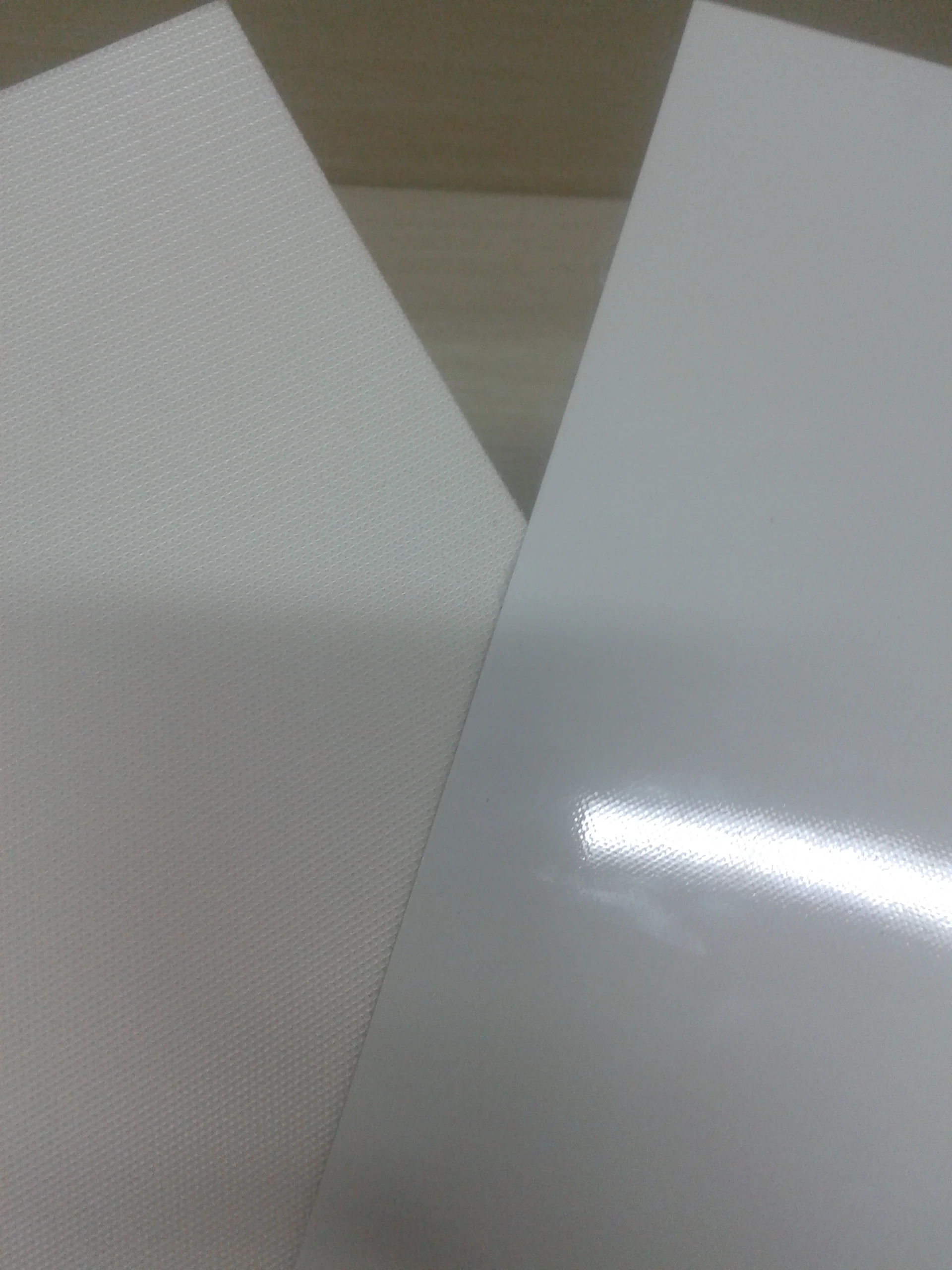

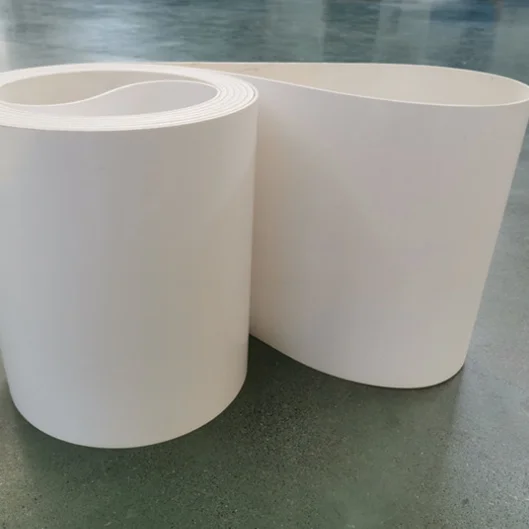

FOOD GRADE PVC CONVEYOR BELT

Uni belts with PVC, Most of them are white and coloured, have rigid weft, although they are also available in blue and natural colours, and some have flexible weft. Belts are used in following markets: Bakery, confectionary, Meat and Poultry Fish, Fruit and Vegetables, Dairy, Agricultural etc.

Features

Non toxic and resistant to animal and vegetal oils and greases, high tensile strength, impregnated bottom side, easy to clean,
high and low temperatures, good release characteristics.

Bottom Guides Available

Trapezoidal tracking guides of PVC, PU For good results, the grooves in the pulleys, rollers and slider beds must be larger than
the tracking guide.

PVC and PU notched trapezoidal tracking guides.Uniform notches increase flexibility and reduces minimum pulley diameter by 10%.

Guides available:6x4mm,8x5mm,13x8mm,17x11mm etc,all can be smooth or notched.

Product Paramenters

Model	MP25-24
Color	White
Total thickness	2.0mm
Weight	2.1 KG/M2
Tension 1% Elongation	8 N/mm
Top coating hardness	80 ShoreA
Min.Pulley Diameter	30mm
Max Production width	4000mm
Working Temperature	-15/+80
Transportation Style	Slat, Roller, U type
Lateral Stability	Yes

Company Profie

Shenzhen Jiaheng Industrial Belting Co.,Ltd is a manufacturing enterprise which professionally produces conveyor belts,timing belt, flat transmission belts,V-belts in China. The coated cover of belts are PVC, Polyurethane, Rubber, PE, Hytrel Polyester, Silicone and etc. After several years of R&D, the upgraded new series products are more polish, the varieties are growing in all-sided. Widely used in the industries of food process, tobacco, logistics and airport, printing, electronics, fitness equipment, wood process, stone and marble process, etc.

Why Choose Us

Based on more than 20 years of experience in development, manufacture and applications know-how, our products are designed to meet specific end-user requirements for high performance and cost-efficiency. We are ready with link "Win-Win" to has better future with our new and old customers.

Cutomers Buying Photos

Installation Instructions

Before installation it is recommended to clean the conveyor.
Replacing the old belts allow the maintenance of the other conveyor components.
- Clean the shafts and the belt supports.
- Check the position of drums and shafts. If it is necessary align them.
- Install tension devices to the minimum position.
- Check the drive drum cover or replace it.
Install the belt on the conveyor. Please note: on the belt should not be any folds and creases.
Tighten the belt so that there is no slippage of the drive drum with a full load and before work start.
